Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 6 illustrations

Illustrations

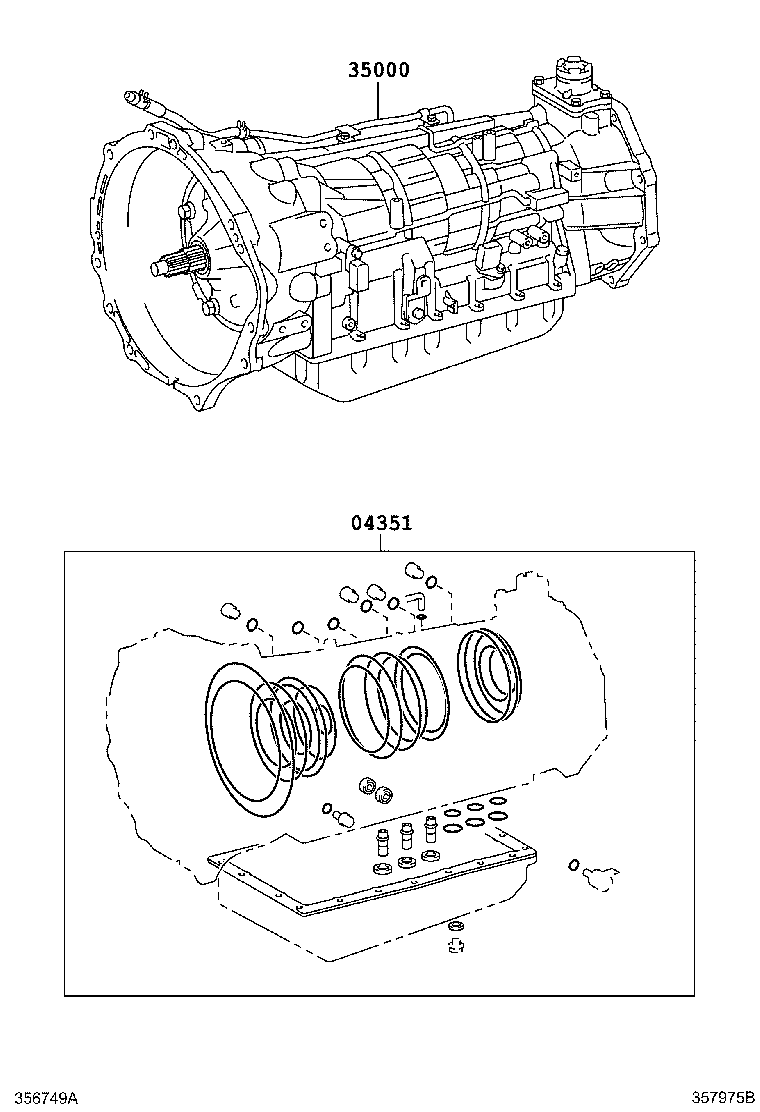

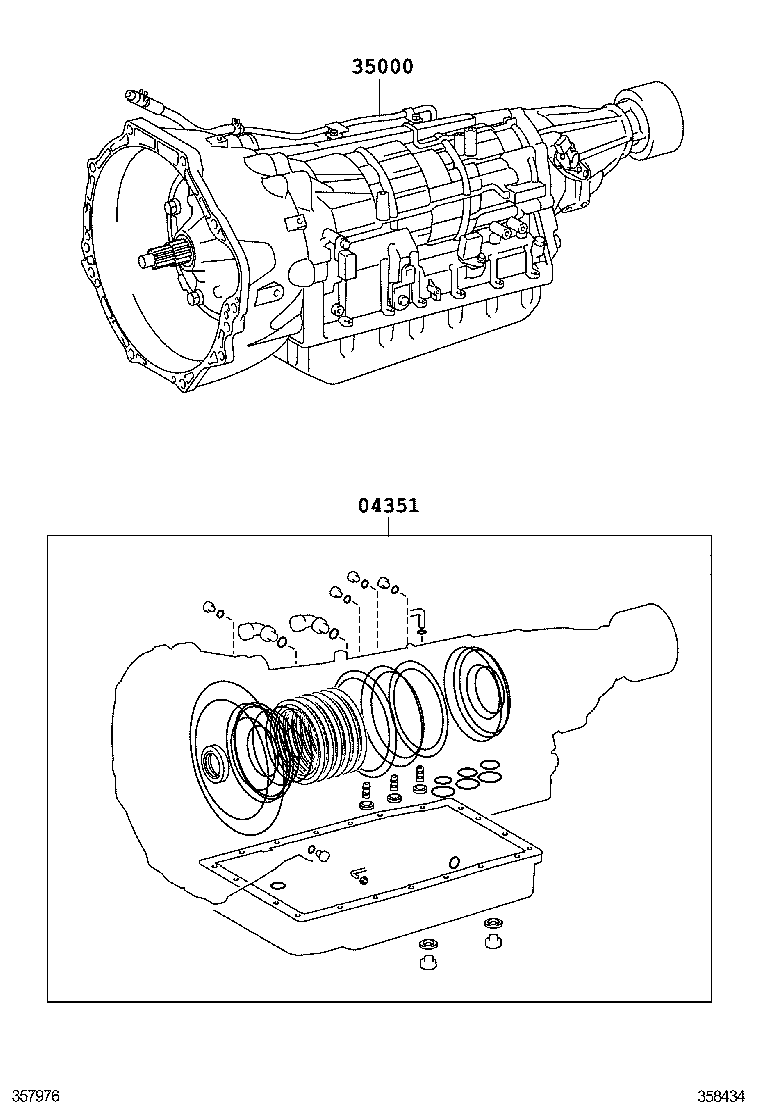

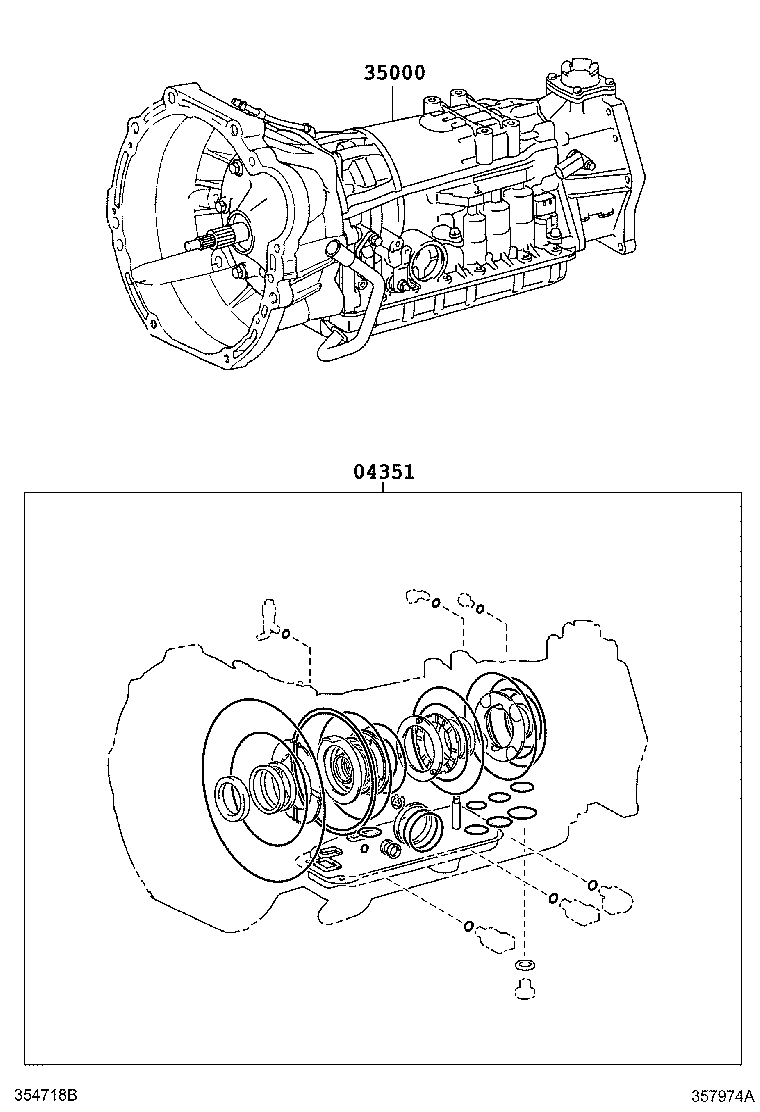

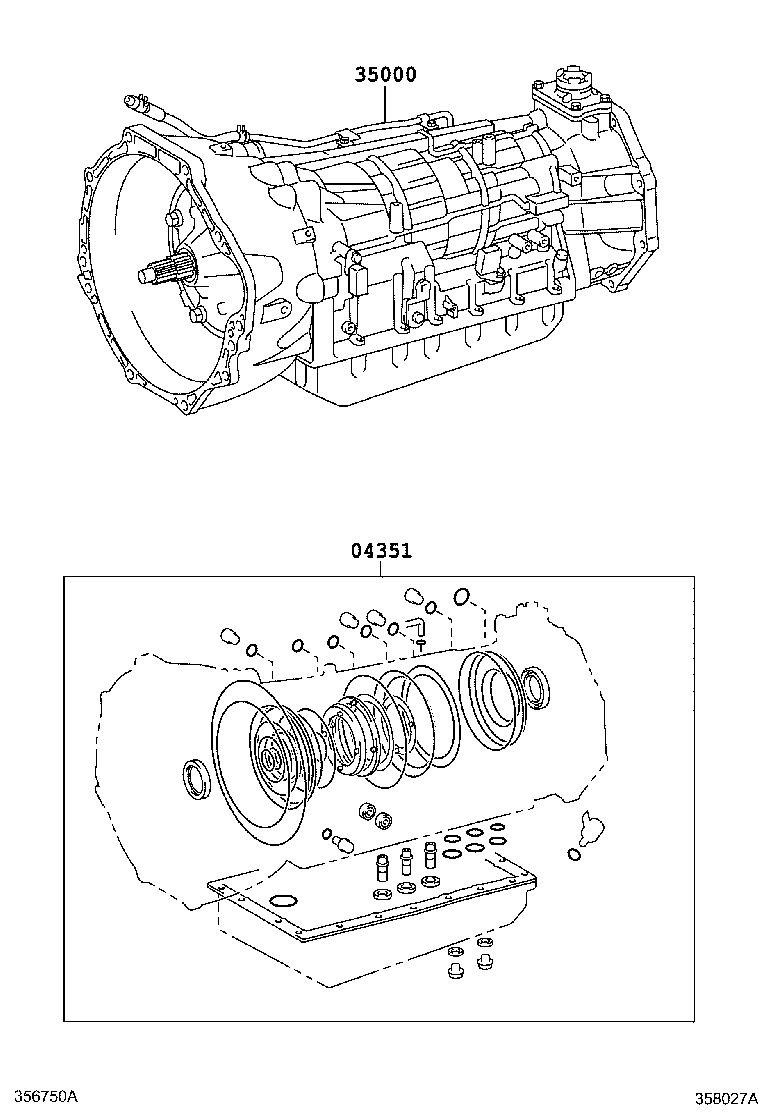

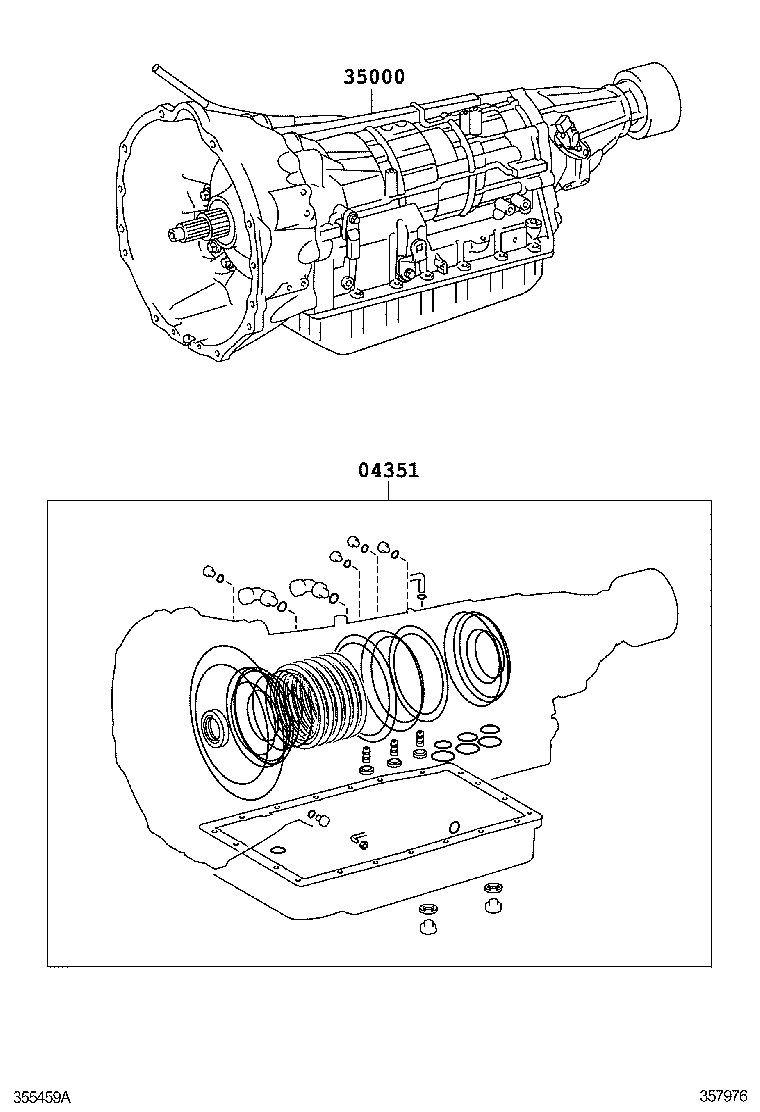

Figure 357973 357973 2011-07 → — Figure 357974A 357974A 2011-07 → — Figure 357976 357976 2011-07 → — Figure 357975B 357975B 2011-07 → — Figure 358027A 358027A 2012-04 → — Figure 358434 358434 2012-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
