Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (ATM)

9 part groups · 2 illustrations

Illustrations

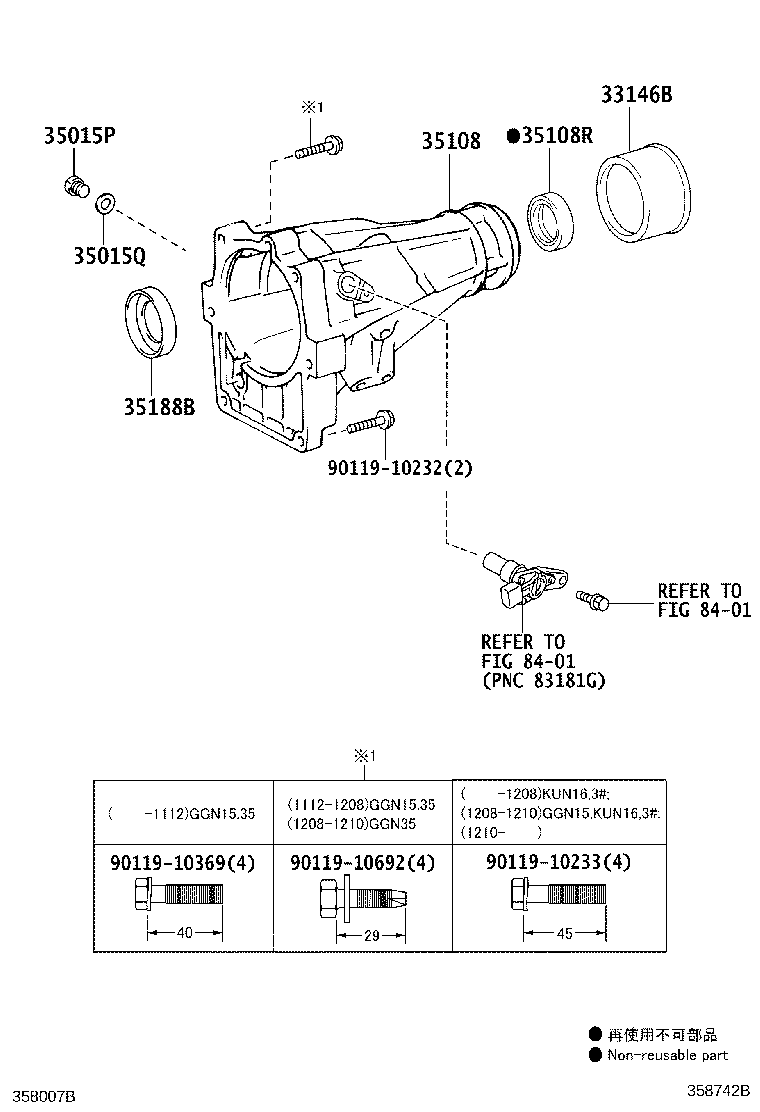

Figure 358004C 358004C 2011-07 → — Figure 358742B 358742B 2011-07 → —

Part groups

PNCDescription
33146B Deflector, Extension Housing Dust
35015P Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER)
35015Q Ring, O(FOR TRANSMISSION CASE ADAPTER PLUG)
35108 Housing Sub-assy, Extension (ATM)
35108R Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35182 Gasket, Extension Housing (ATM)
35188B Retainer, Extension Housing Bush
35189A Gasket, Extension Housing Bush Apply Tube
35847A Tube, Extension Housing Bush Apply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
