Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 8 illustrations

Illustrations

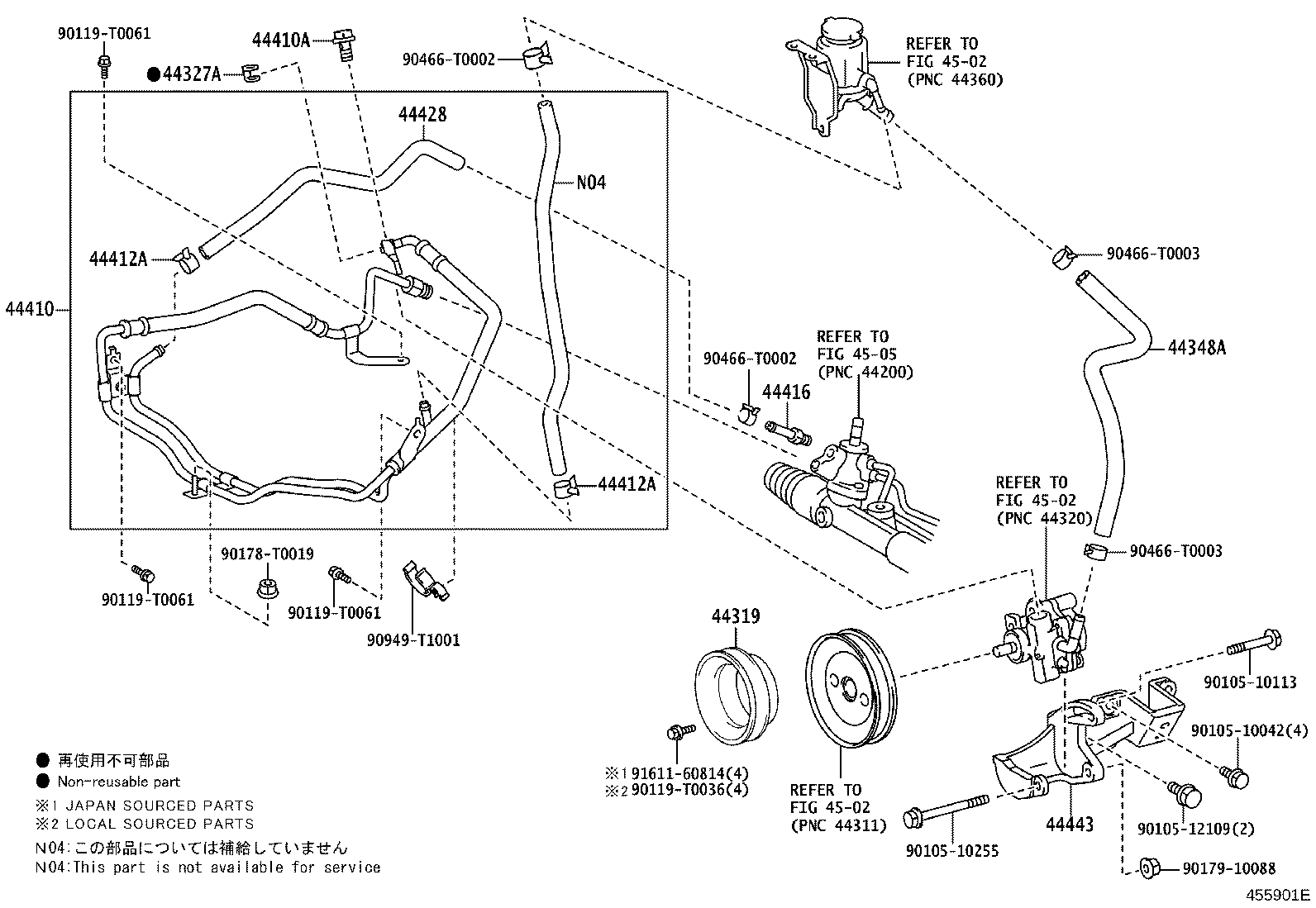

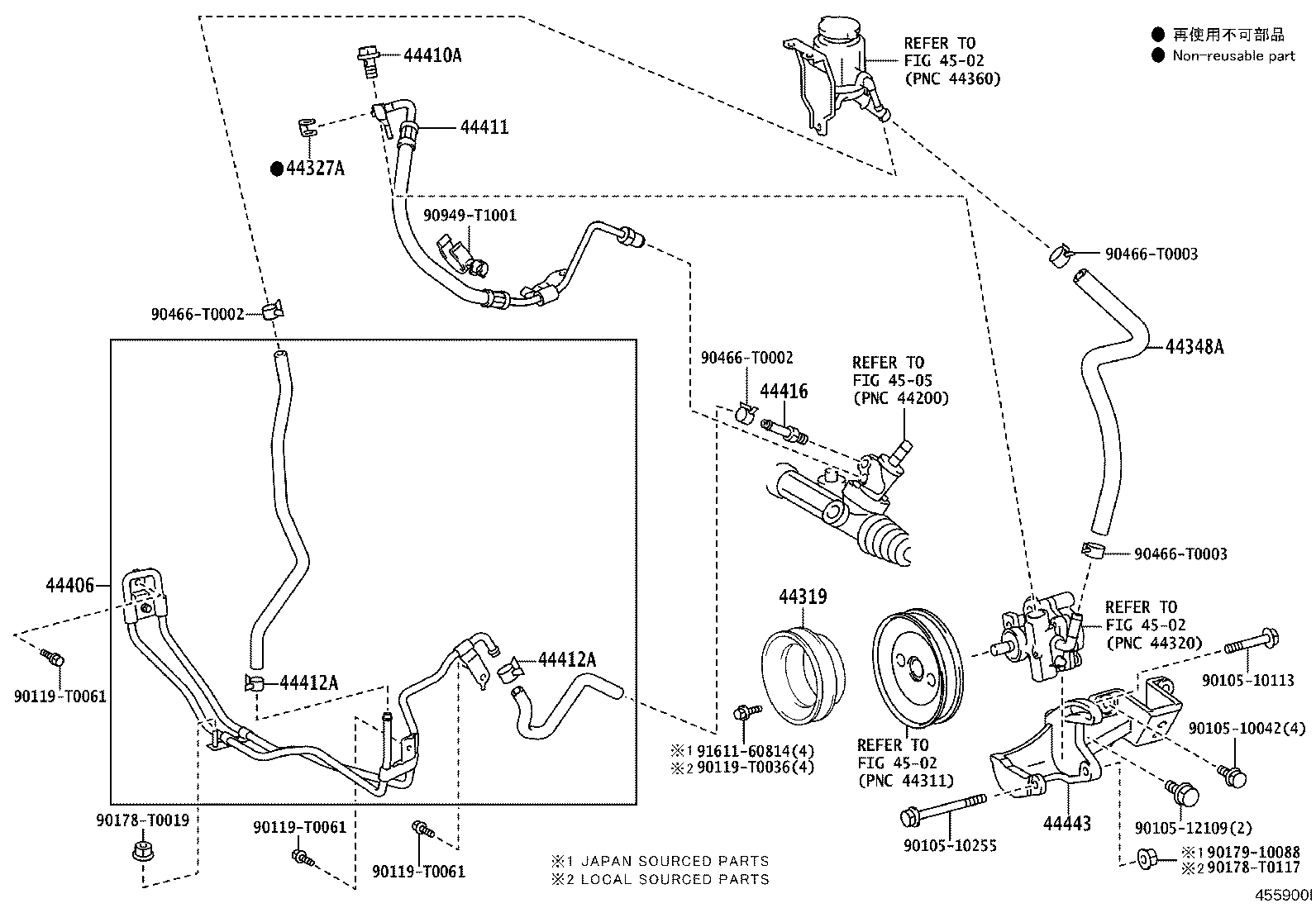

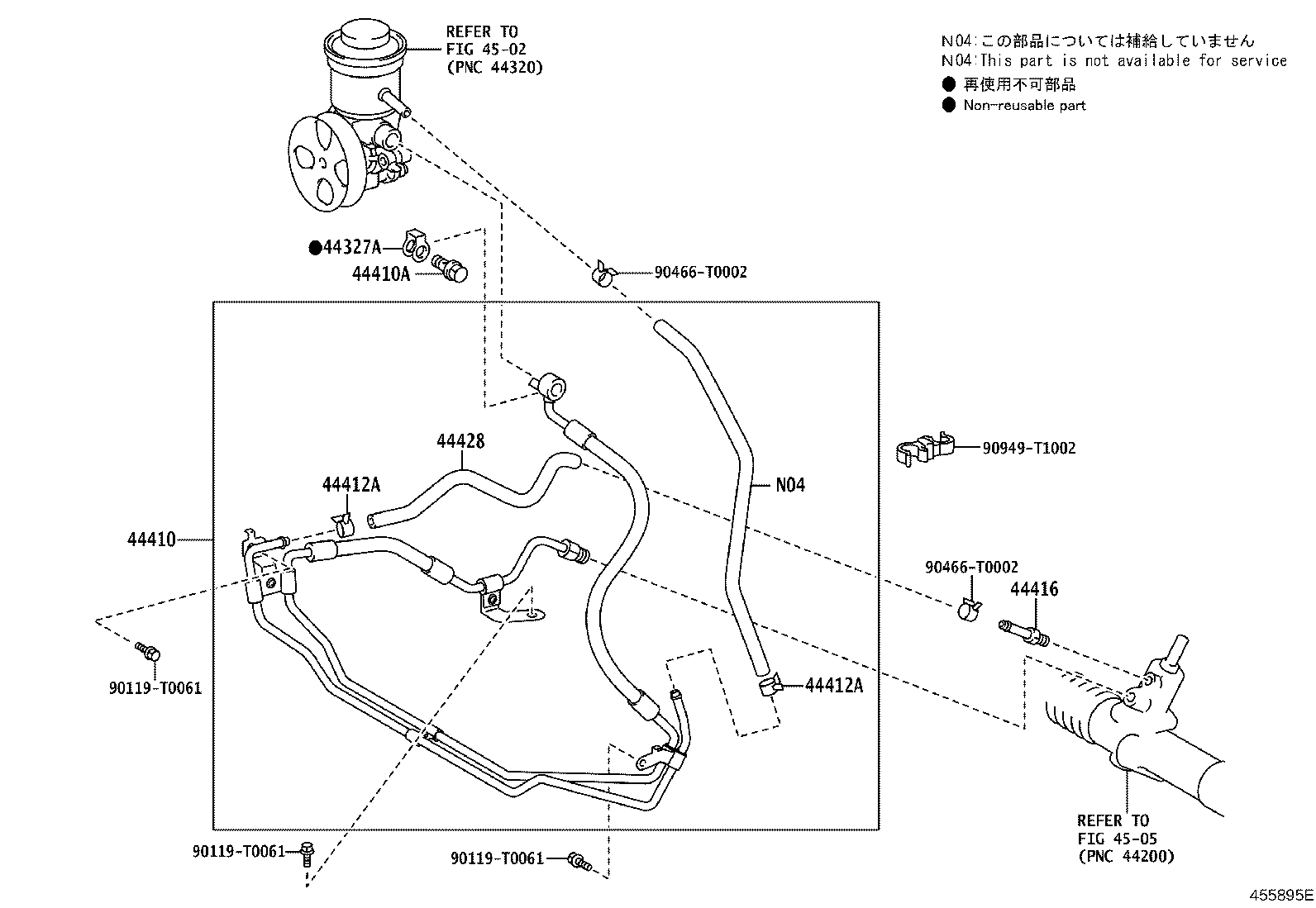

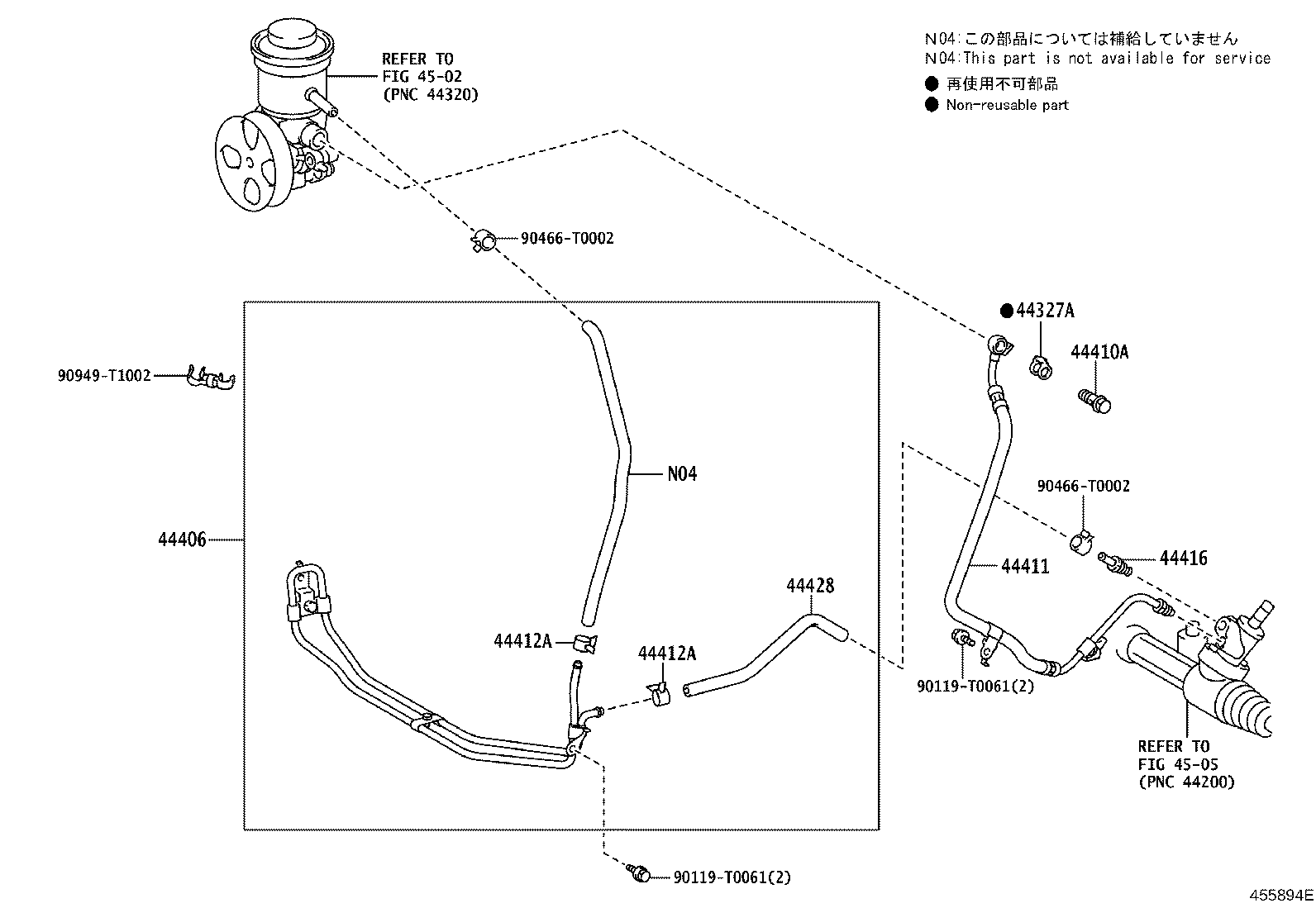

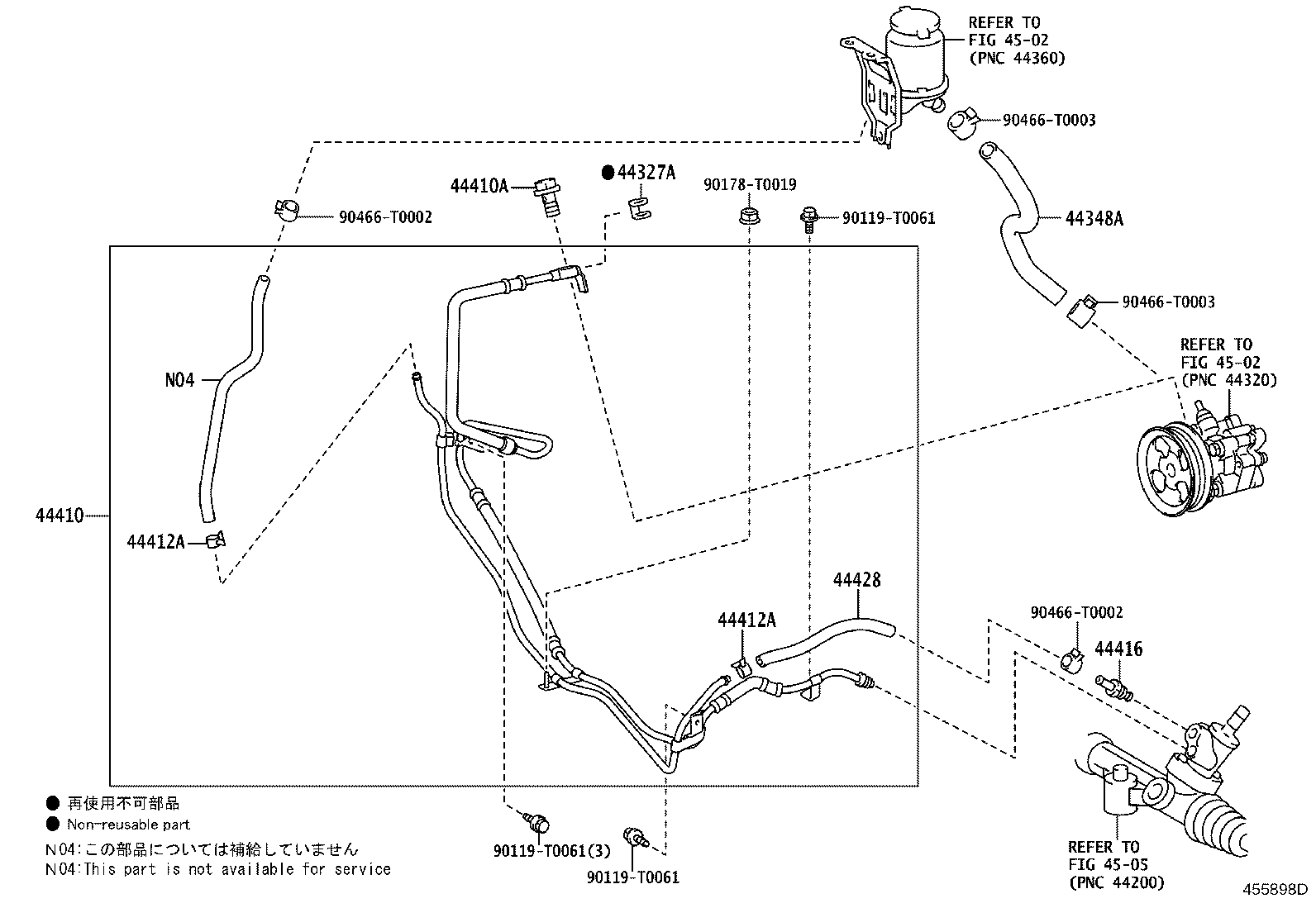

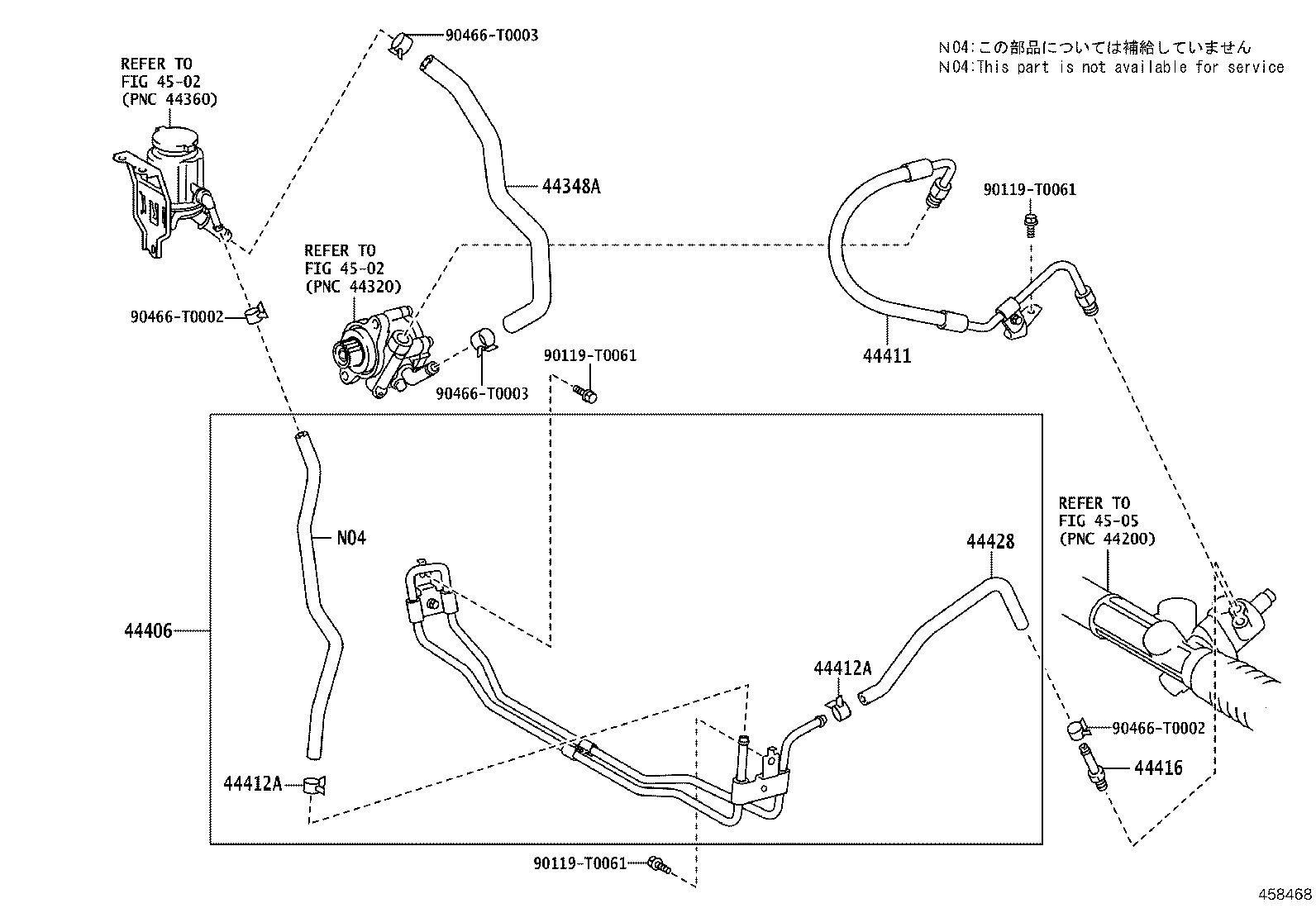

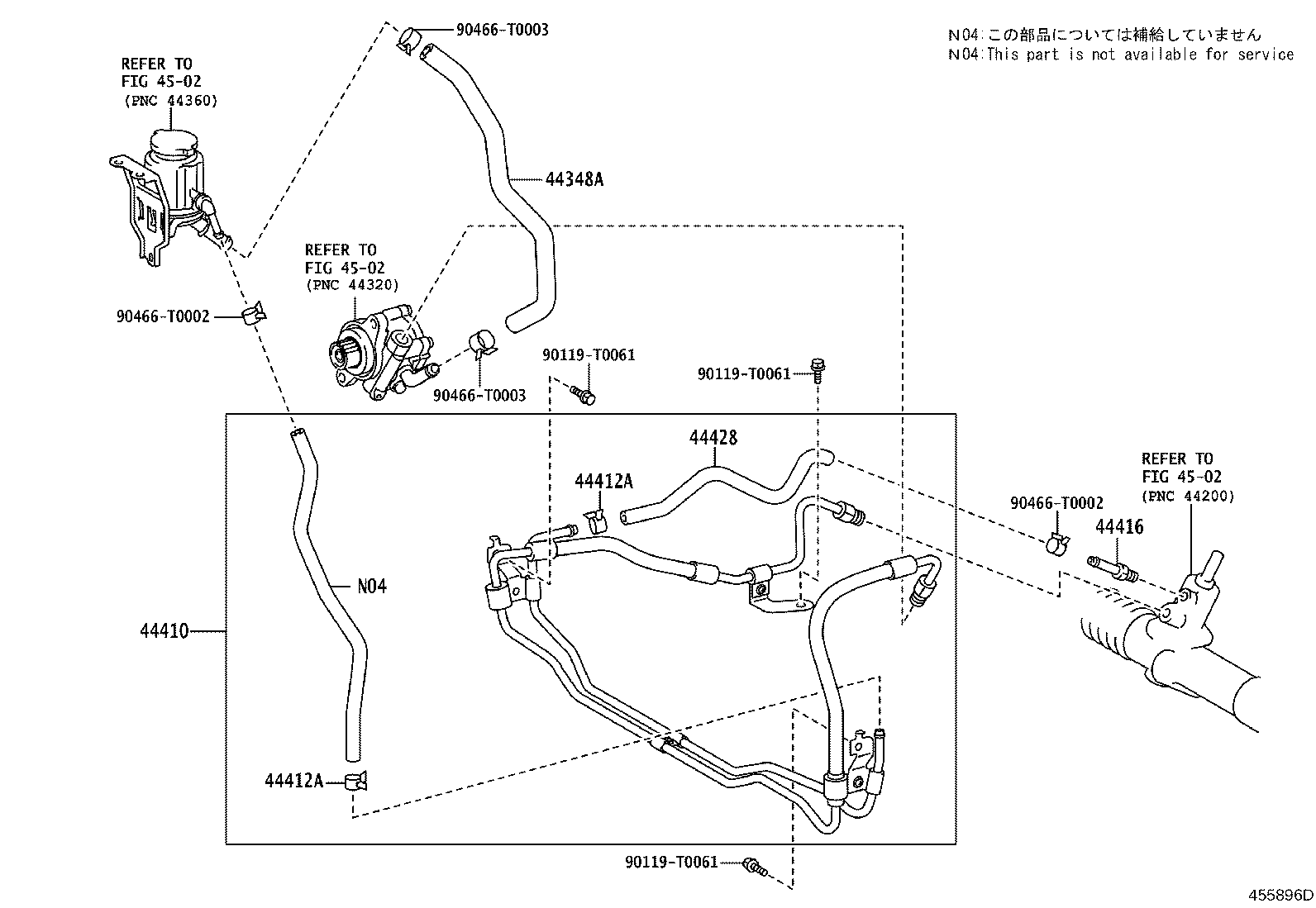

Figure 455899D 455899D 2011-07 → — Figure 458468 458468 2011-07 → — Figure 455896D 455896D 2011-07 → — Figure 455894E 455894E 2011-07 → — Figure 455895E 455895E 2011-07 → — Figure 455900I 455900I 2011-08 → — Figure 455901E 455901E 2011-08 → — Figure 455898D 455898D 2012-04 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412A Clamp, Rubber Hose Complete (FOR RETURN HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44428 Hose, Return, NO.2
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
