Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

11 part groups · 7 illustrations

Illustrations

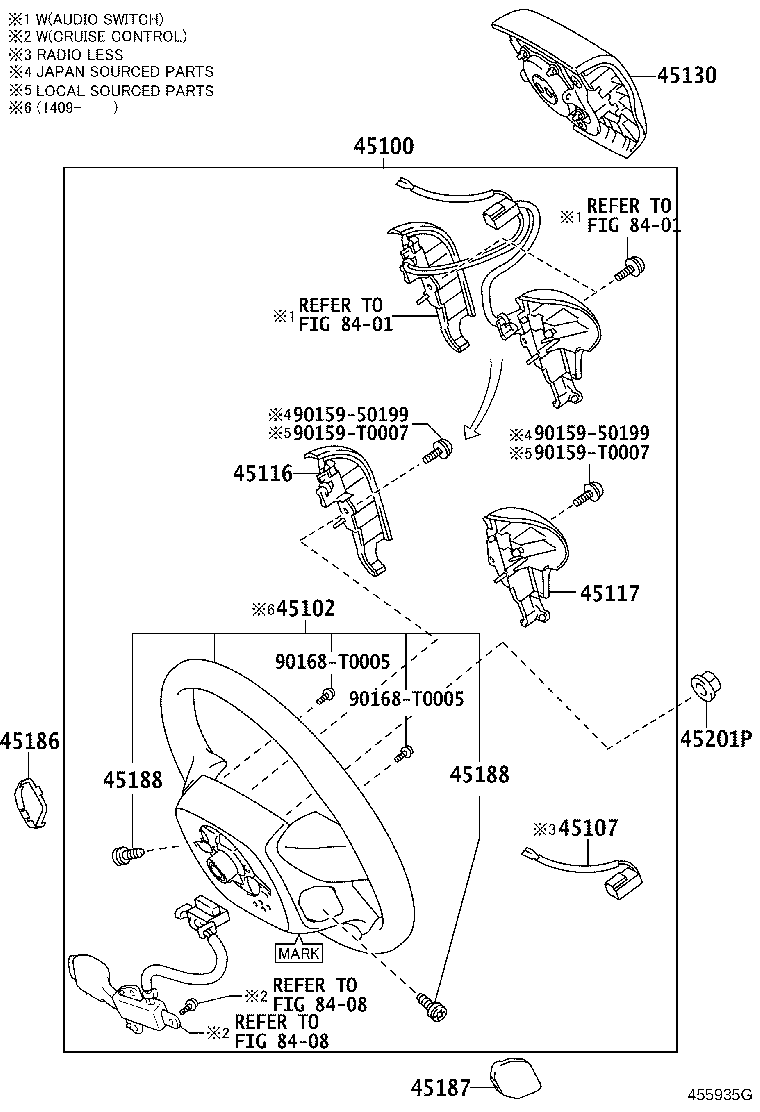

Figure 455936B 455936B 2011-07 → — Figure 455936B 455936B 2011-07 → — Figure 455936B 455936B 2011-07 → — Figure 455936B 455936B 2011-07 → — Figure 455935G 455935G 2011-07 → — Figure 455935G 455935G 2011-07 → — Figure 455935G 455935G 2011-07 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
