Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

10 part groups · 4 illustrations

Illustrations

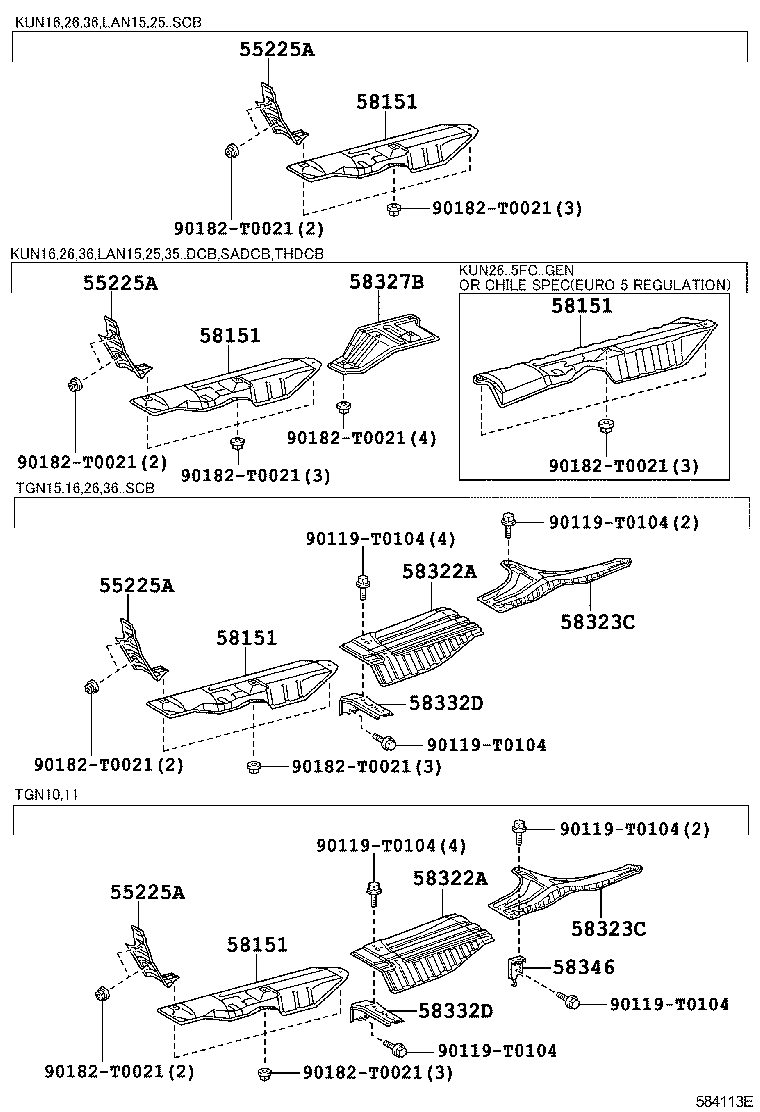

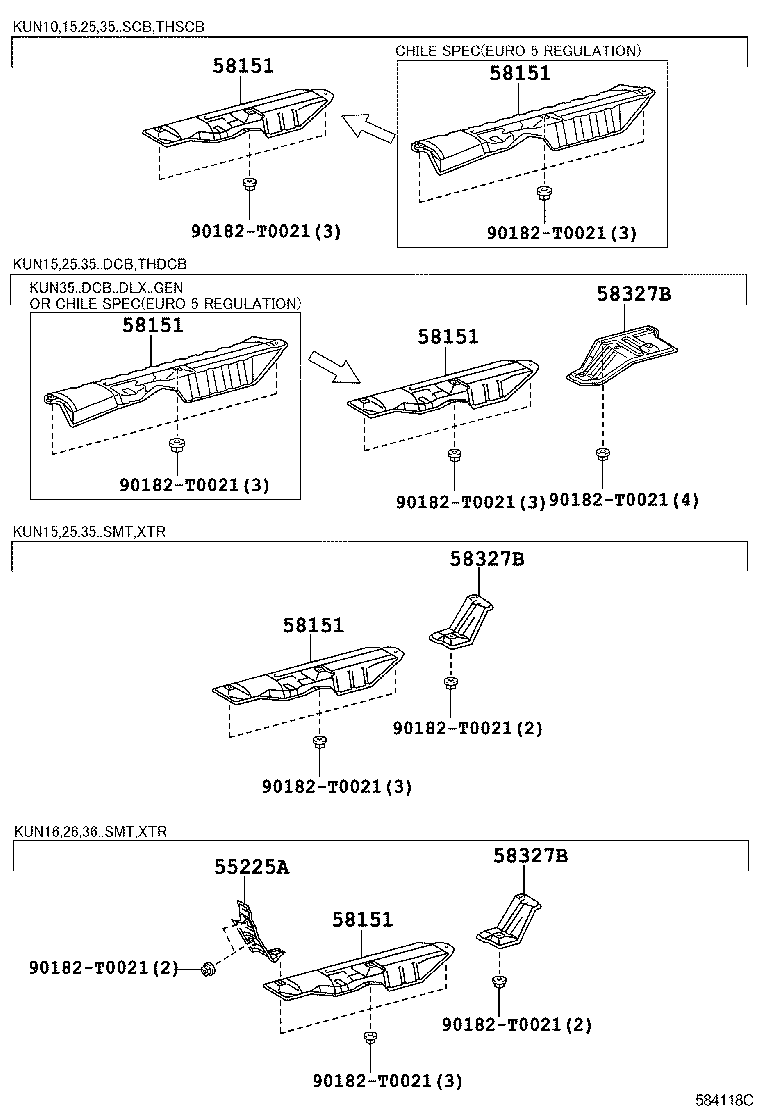

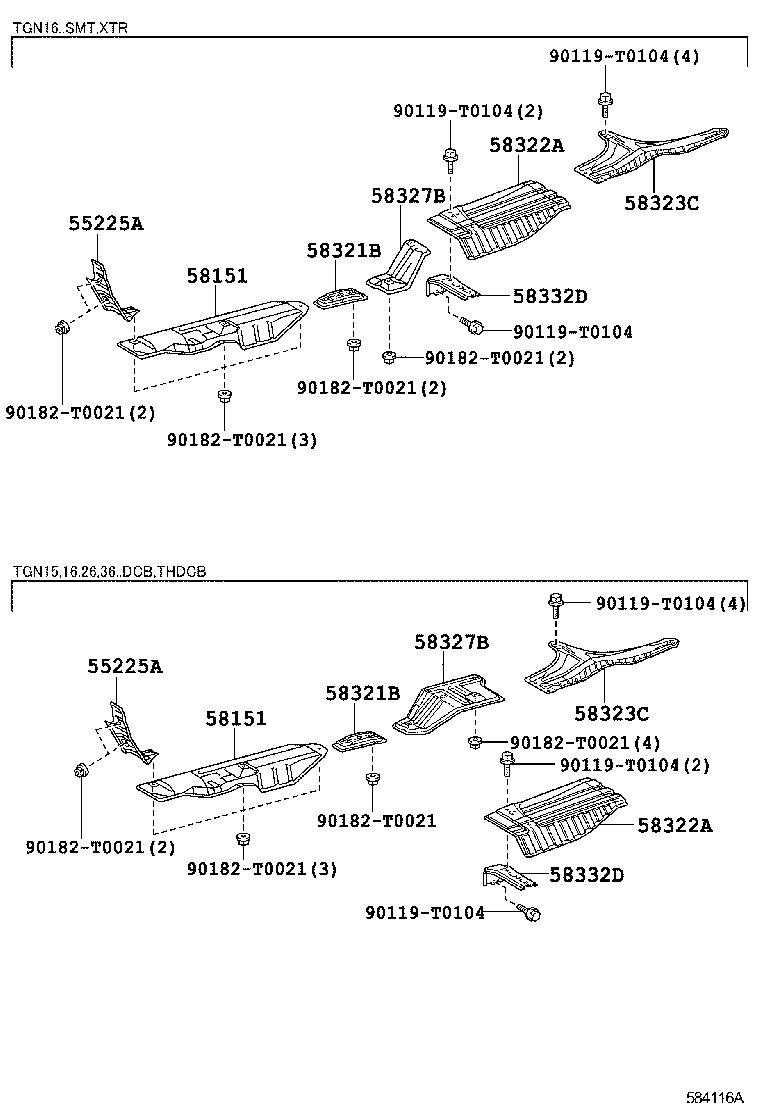

Figure 584117A 584117A 2011-07 → — Figure 584118C 584118C 2011-07 → — Figure 584113E 584113E 2011-07 → — Figure 584116A 584116A 2011-07 → —

Part groups

PNCDescription
55225A Insulator, Dash Panel Heat, NO.1
55225B Insulator, Dash Panel Heat
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58321B Insulator, Rear Floor Heat, NO.1
58322A Insulator, Rear Floor Heat, Rear
58323C Insulator, Rear Floor Heat, NO.3
58327B Insulator, Main Muffler Heat
58332D Insulator, Rear Floor Heat, NO.3
58346 Bracket, Rear Floor Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
