Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 6 illustrations

Illustrations

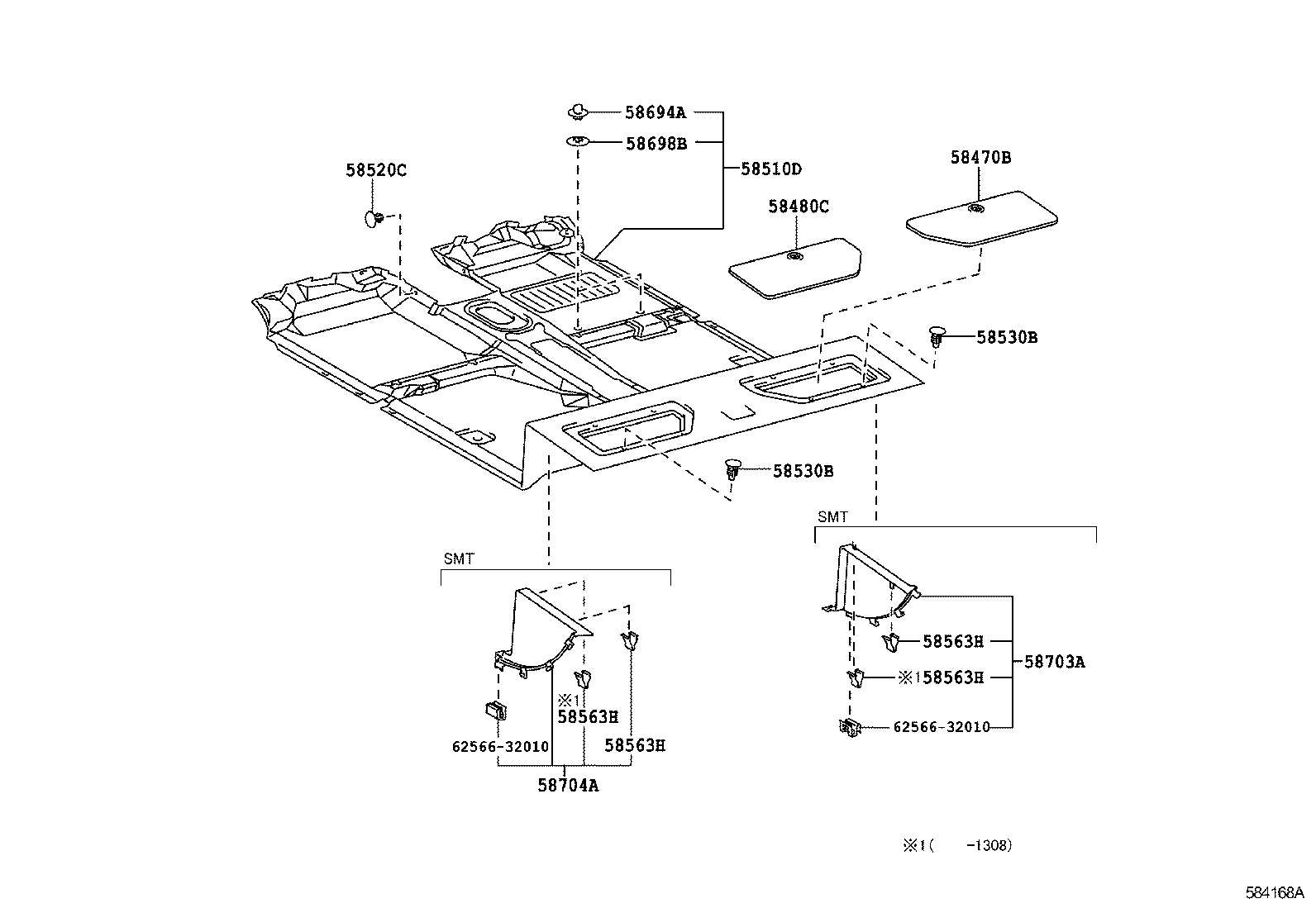

Figure 584167 584167 2011-07 → — Figure 584166C 584166C 2011-07 → — Figure 584168A 584168A 2011-07 → — Figure 584598 584598 2011-10 → — Figure 584608 584608 2011-10 → — Figure 584608 584608 2013-10 → —

Part groups

PNCDescription
58470B Cover Assy, Seat Floor Service Hole, RH
58480C Cover Assy, Seat Floor Service Hole, LH
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58563H Clip(FOR REAR FLOOR MAT)
58591 Cover, Floor Carpet
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
