Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

24 part groups · 6 illustrations

Illustrations

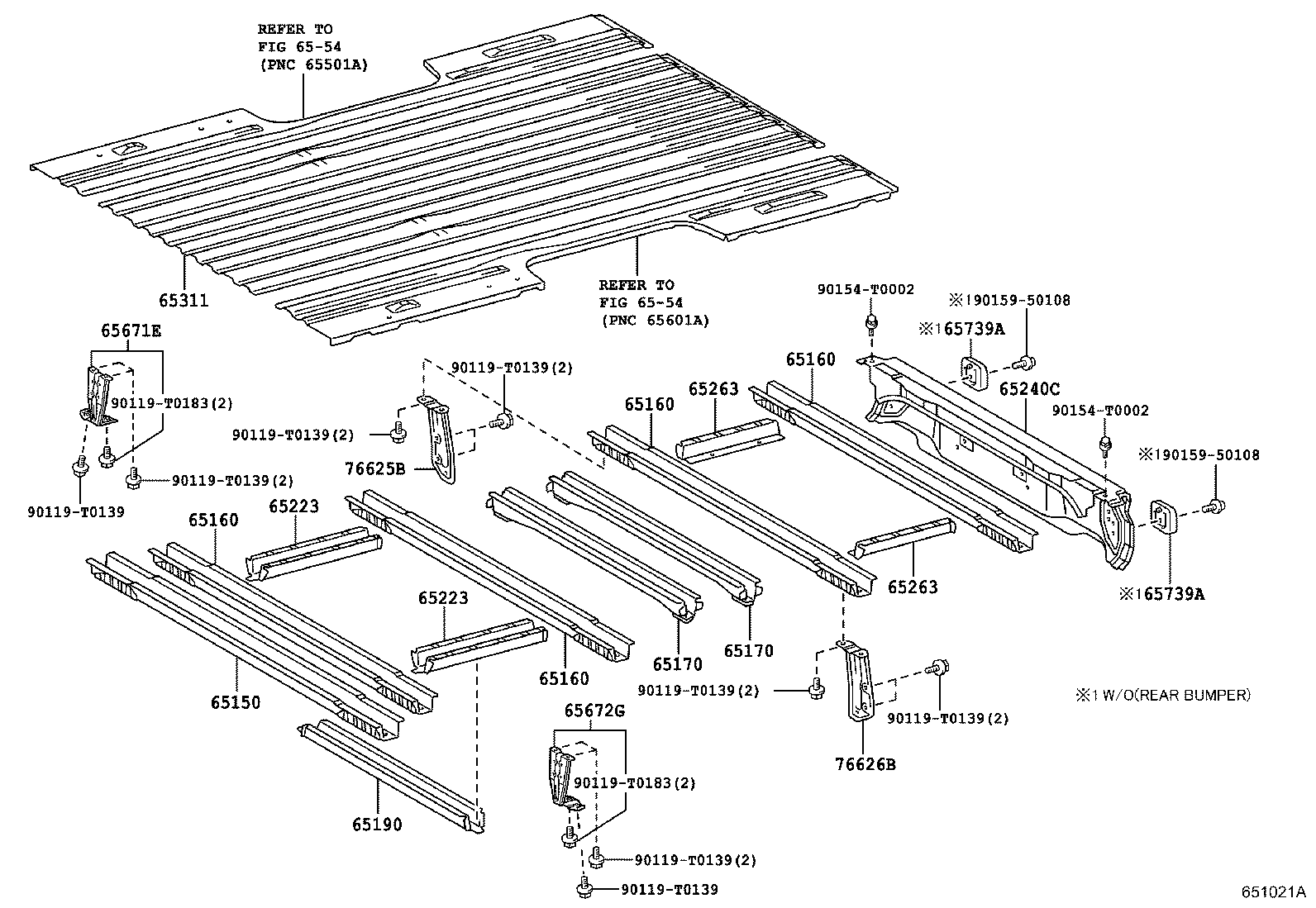

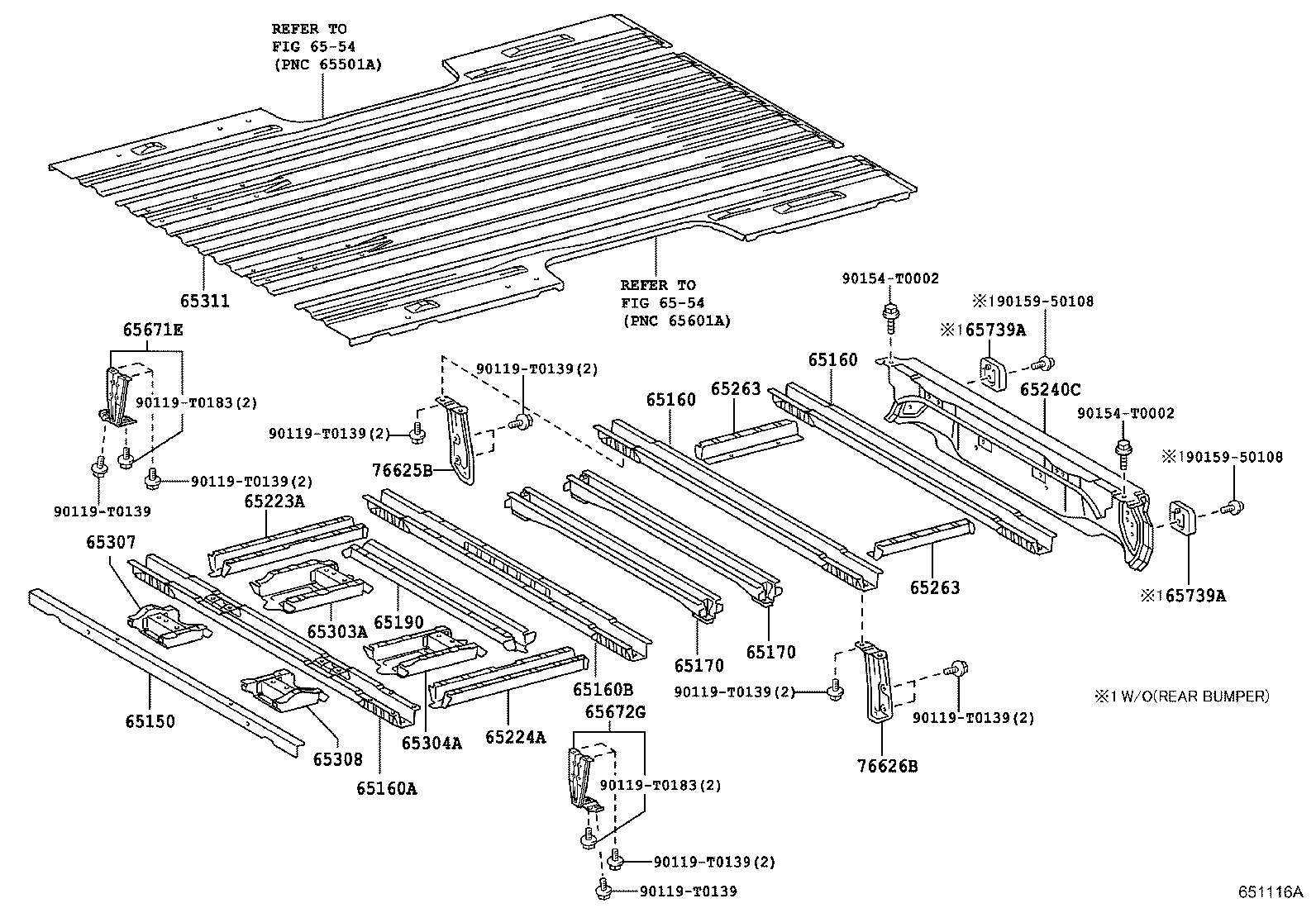

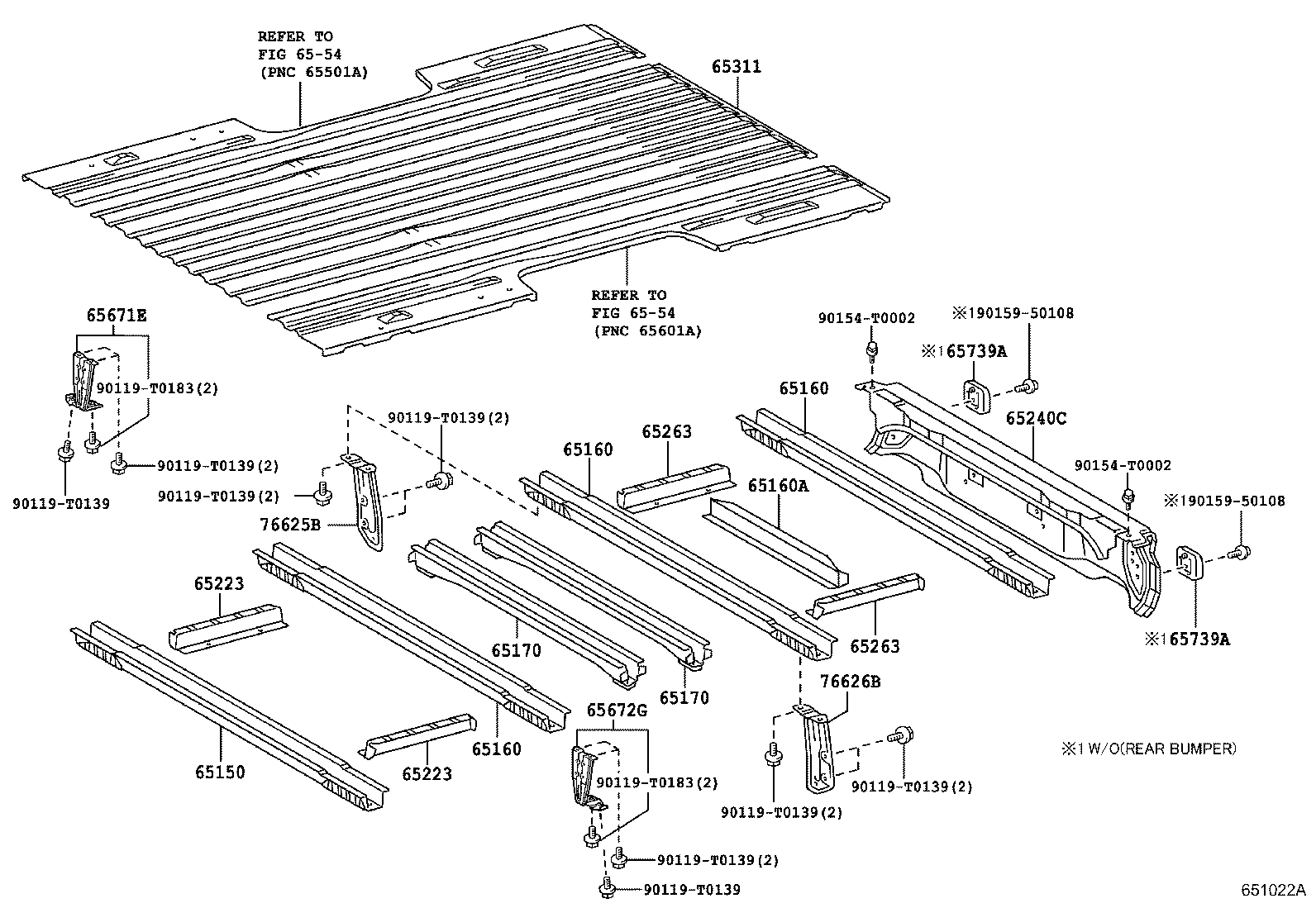

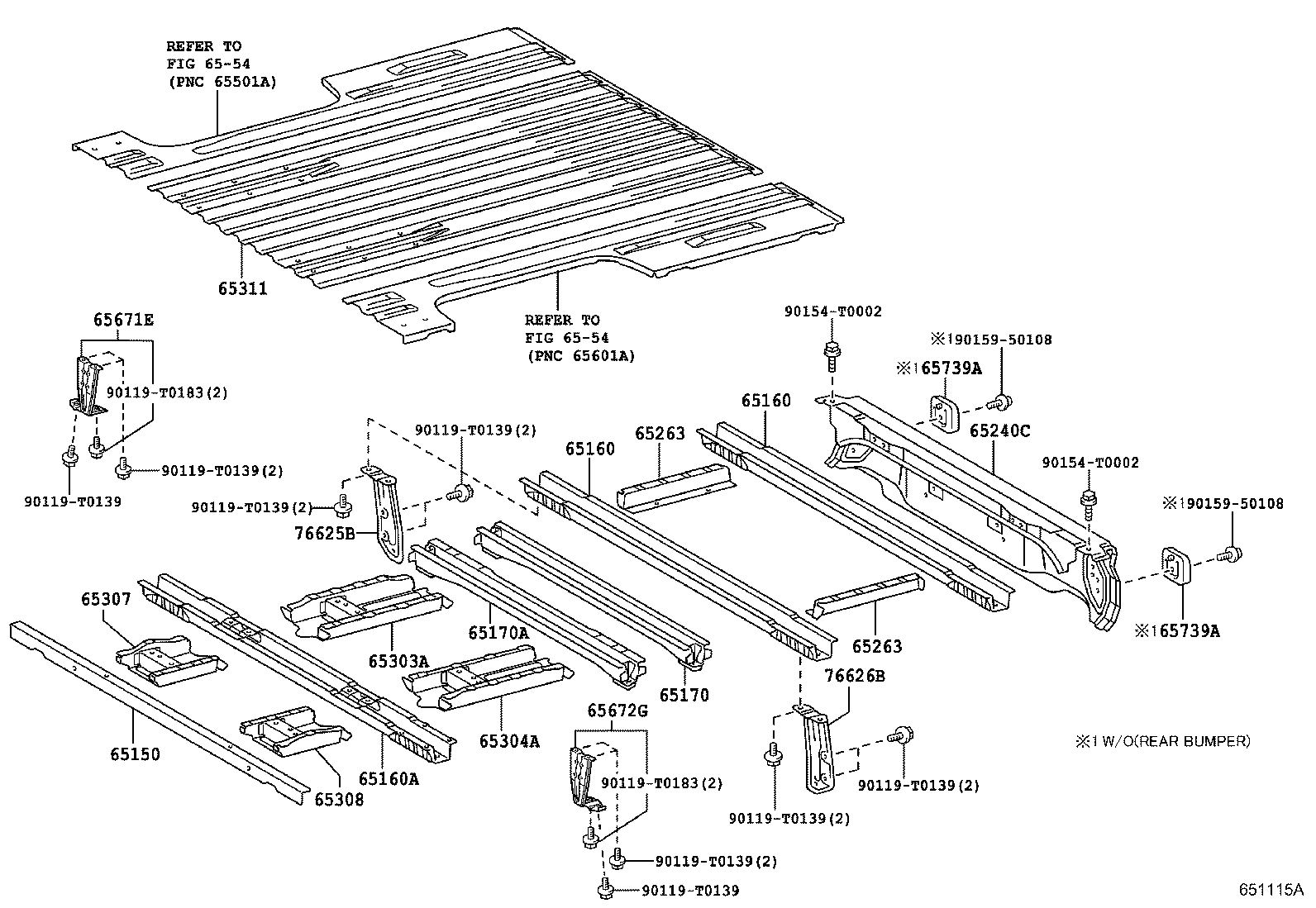

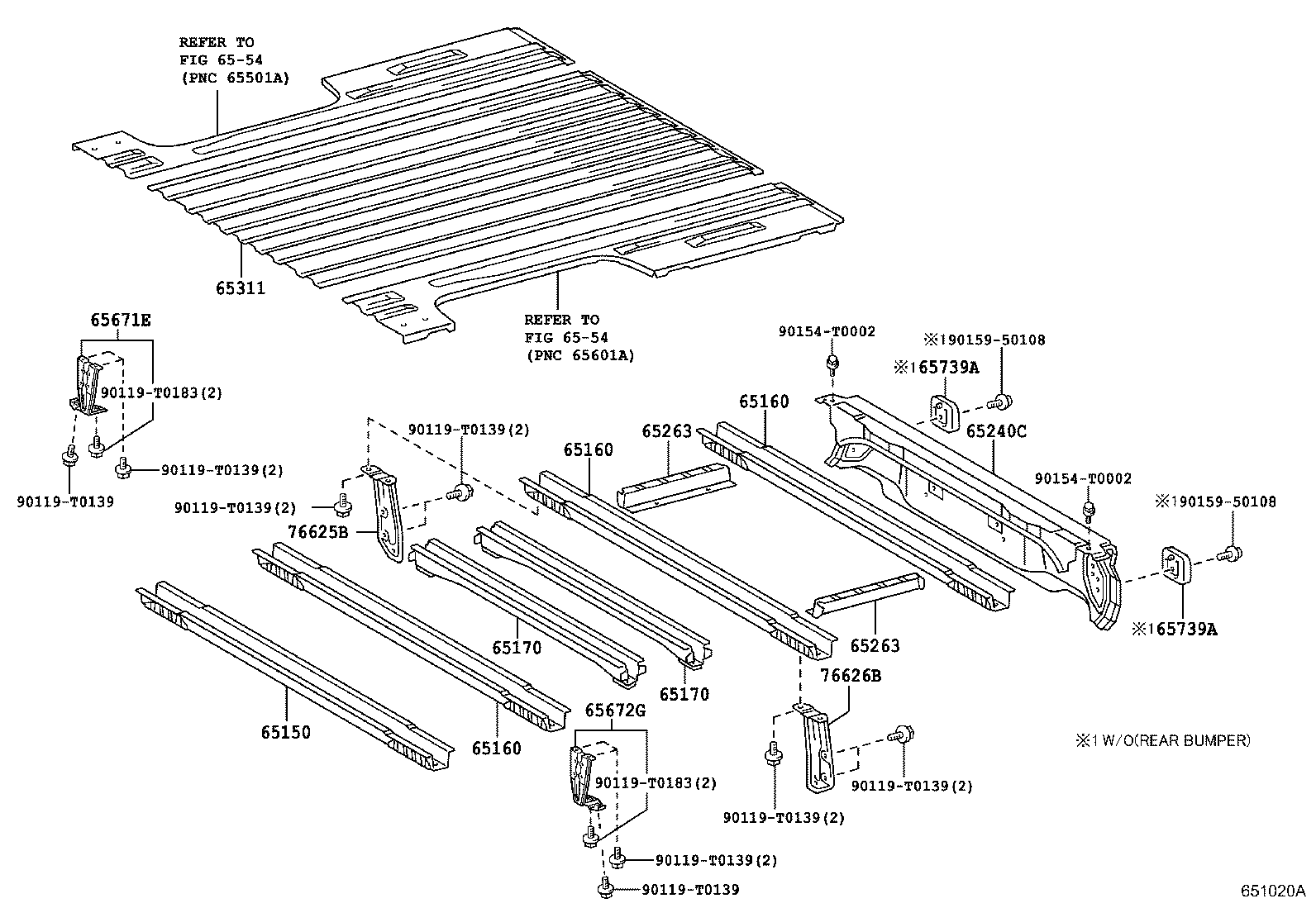

Figure 651019A 651019A 2011-07 → — Figure 651020A 651020A 2011-07 → — Figure 651021A 651021A 2011-07 → — Figure 651022A 651022A 2011-07 → — Figure 651115A 651115A 2012-05 → — Figure 651116A 651116A 2012-05 → —

Part groups

PNCDescription
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65190 Sill Assy, Cross, NO.5
65223 Reinforcement, Floor Panel, Front, NO.1 RH
65223A Reinforcement, Floor Panel, Front RH
65224A Reinforcement, Floor Panel, Front LH
65240C Sill Assy, Cross, NO.9
65263 Reinforcement, Floor Side Frame
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307 Bracket Sub-assy, Guad Frame, RH
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65671E Brace, Side Panel Skirt, Front RH
65672G Brace, Side Panel Skirt, Front LH
65739A Bumper, Tail Gate
66310J Hook Assy, Rope
66317A Cover, Rope Hook
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
