Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

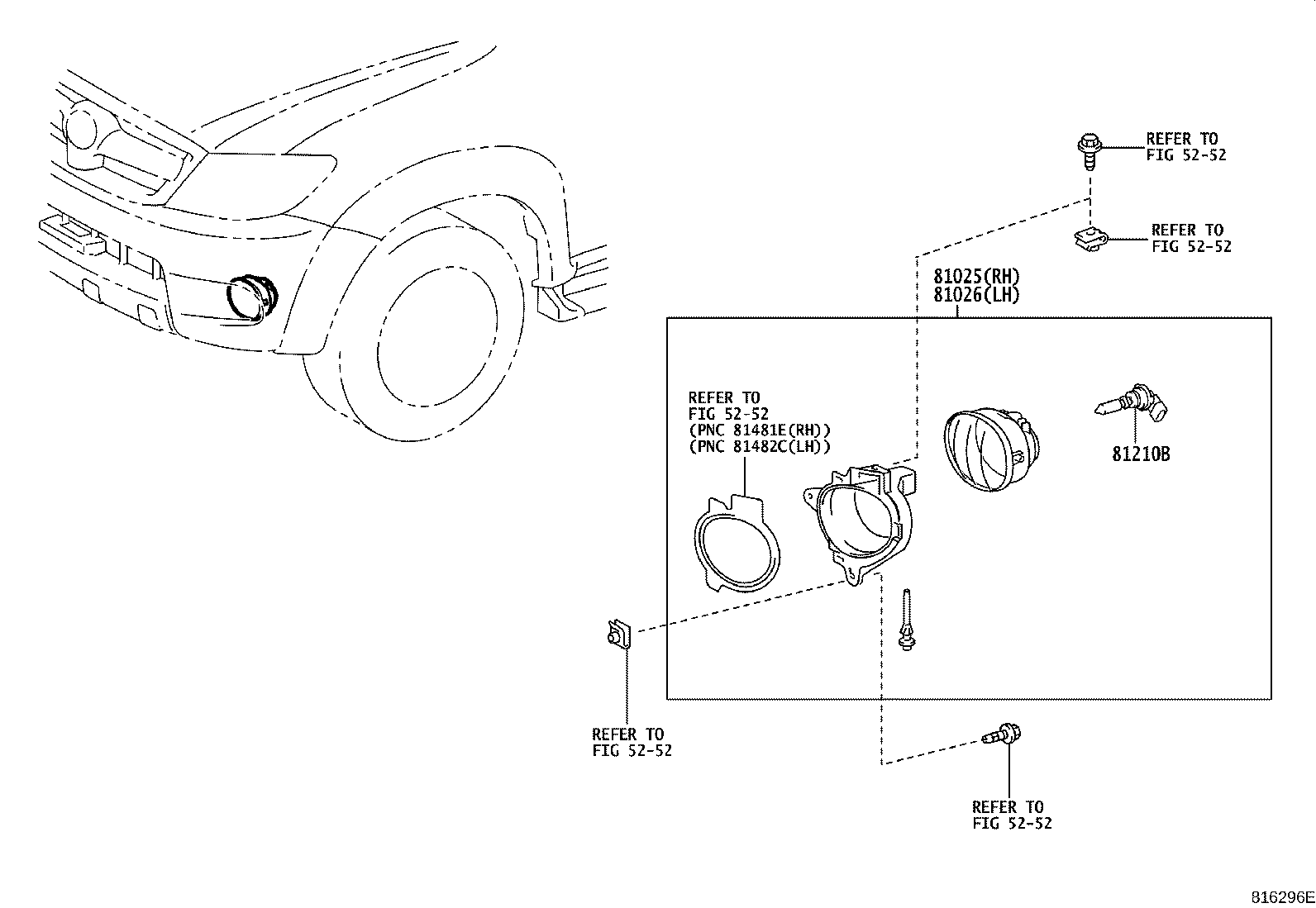

Figure 815721E 815721E 2011-07 → 2014-04 Figure 816296E 816296E 2012-12 → —

Part groups

PNCDescription
81025 Lamp Set, Fog, RH
81026 Lamp Set, Fog, LH
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
