Toyota Hilux
2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States
Supported model
Data version 2022-11
Interior Lamp

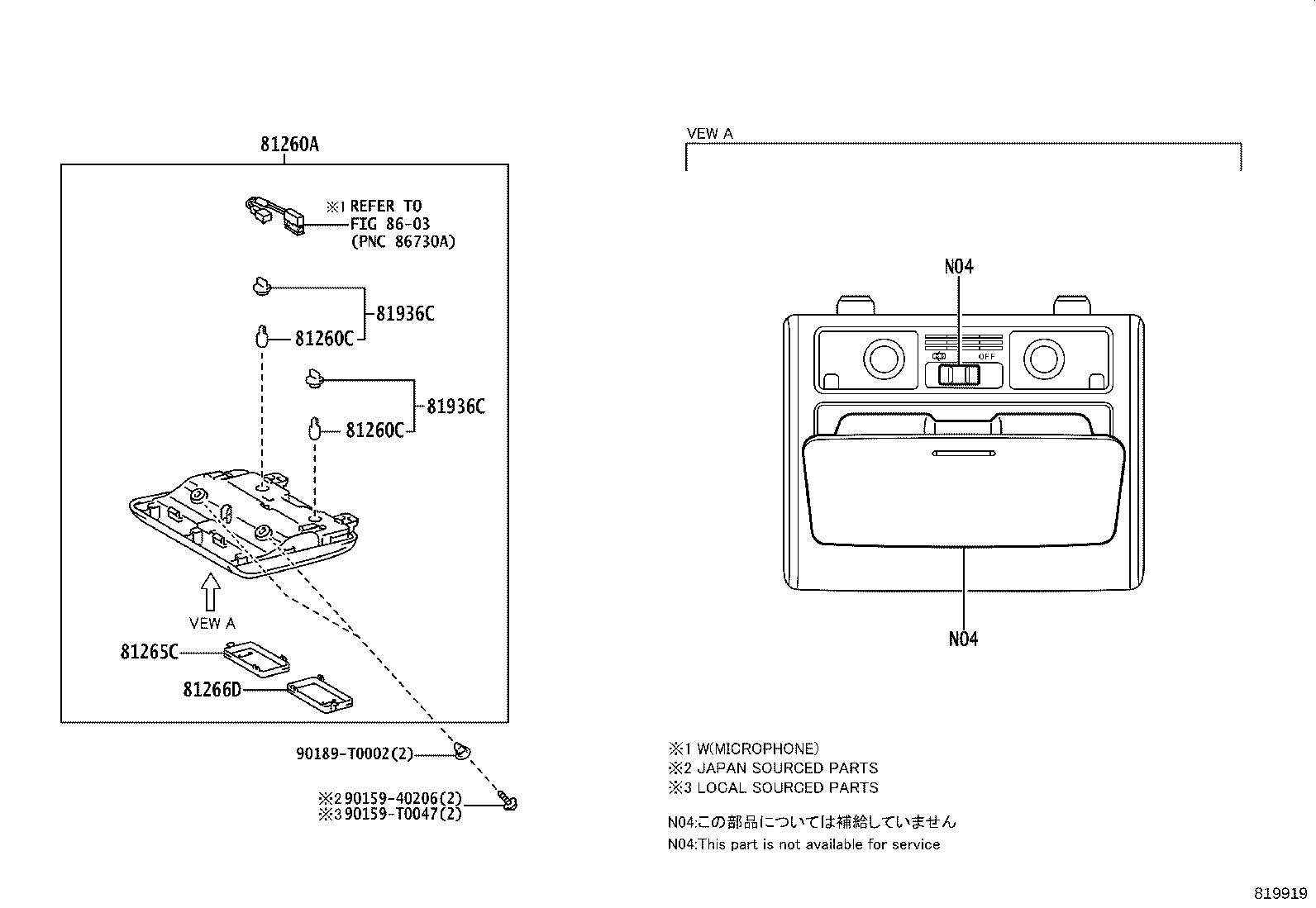

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205B | Bulb, Ash Receptacle Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81870D | Lamp Assy, Key Cylinder |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
