Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 21 illustrations

Illustrations

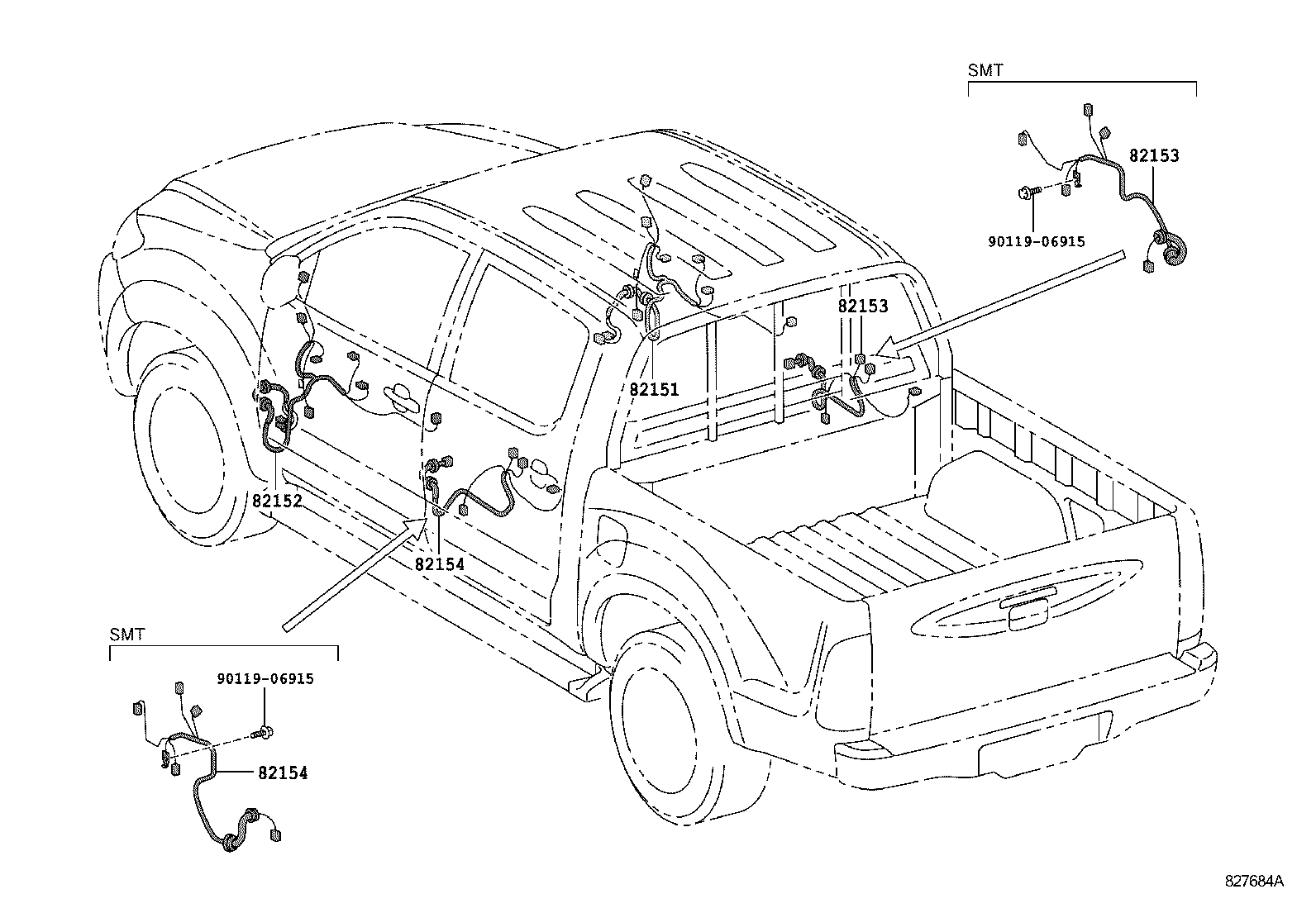

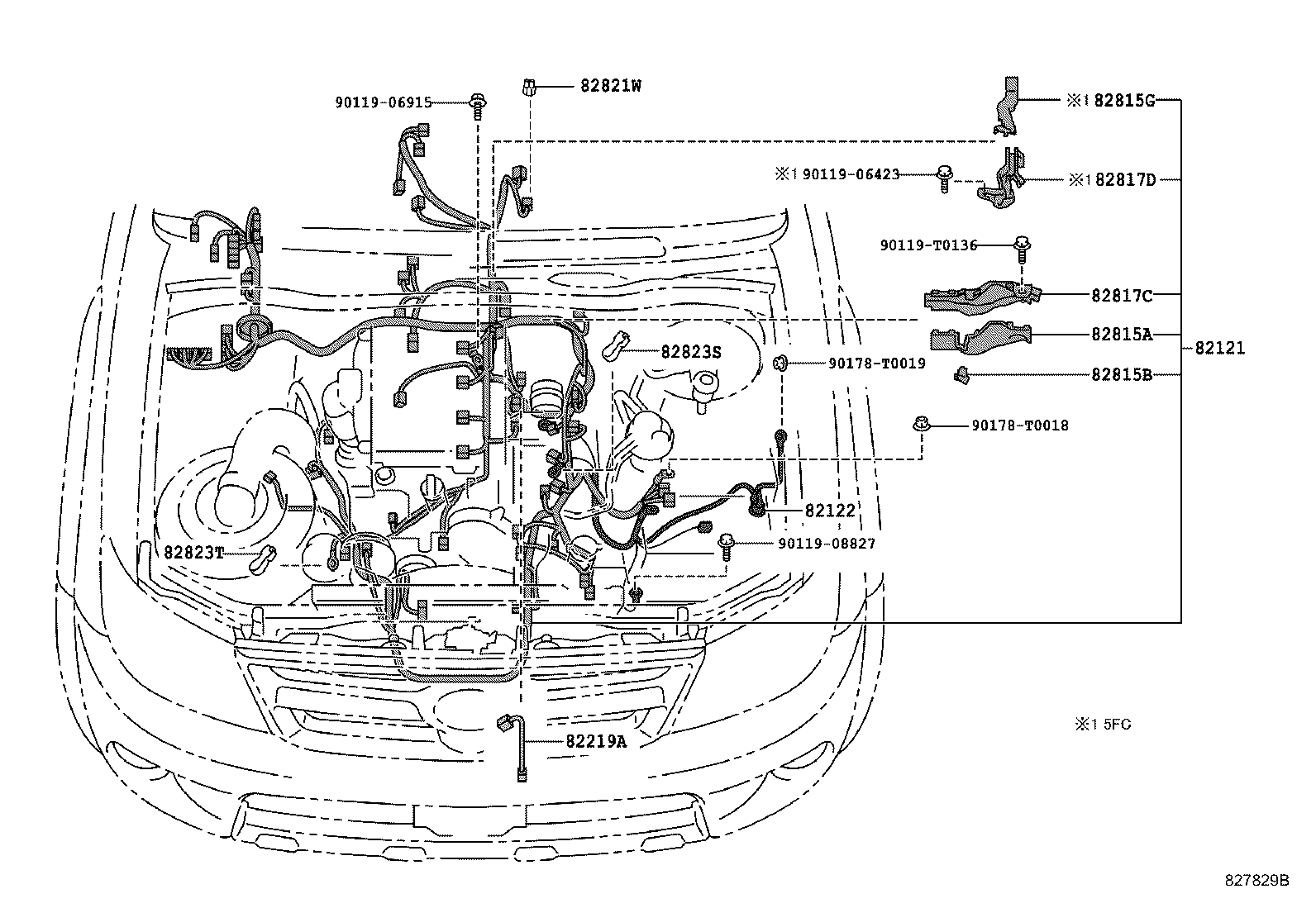

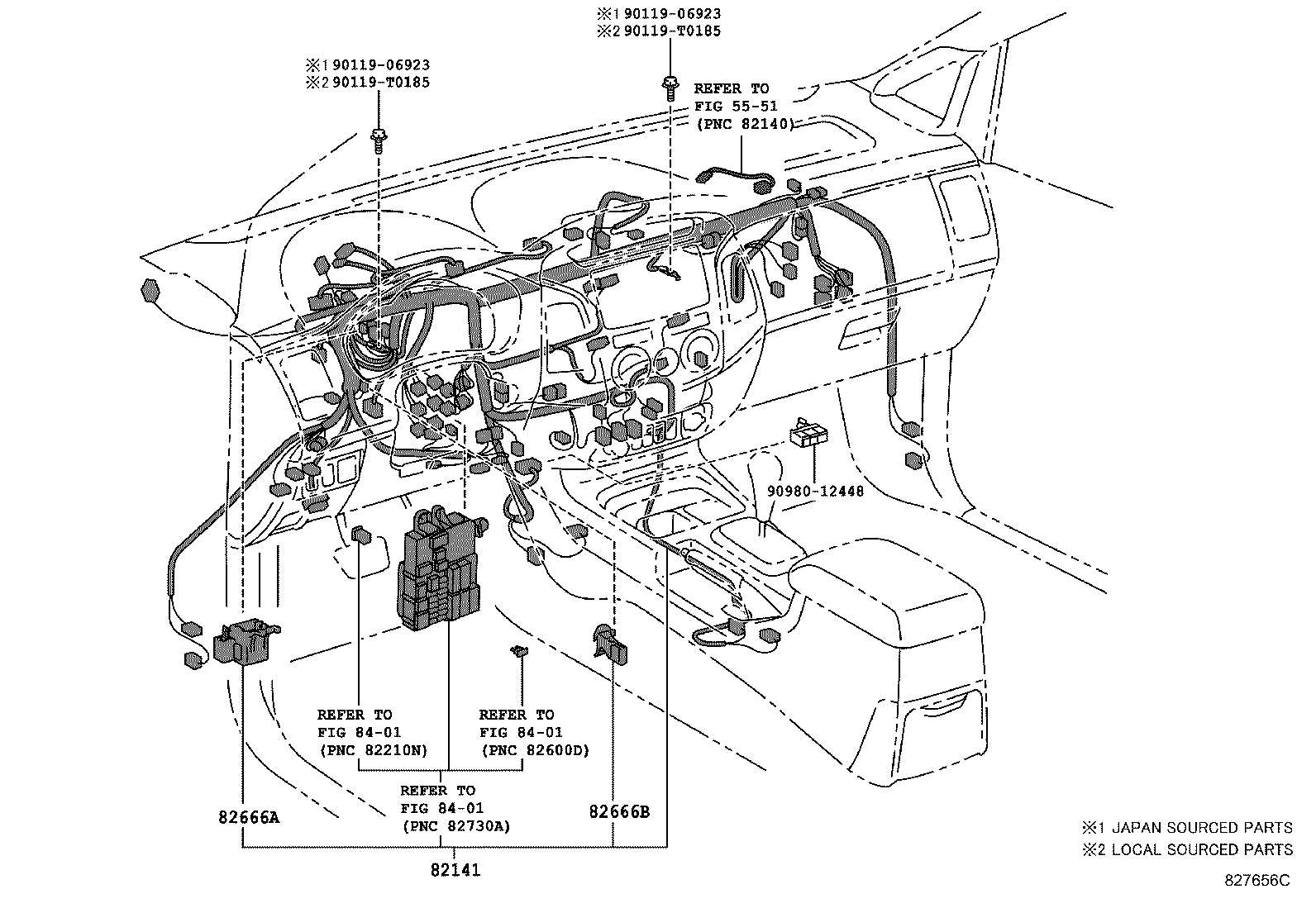

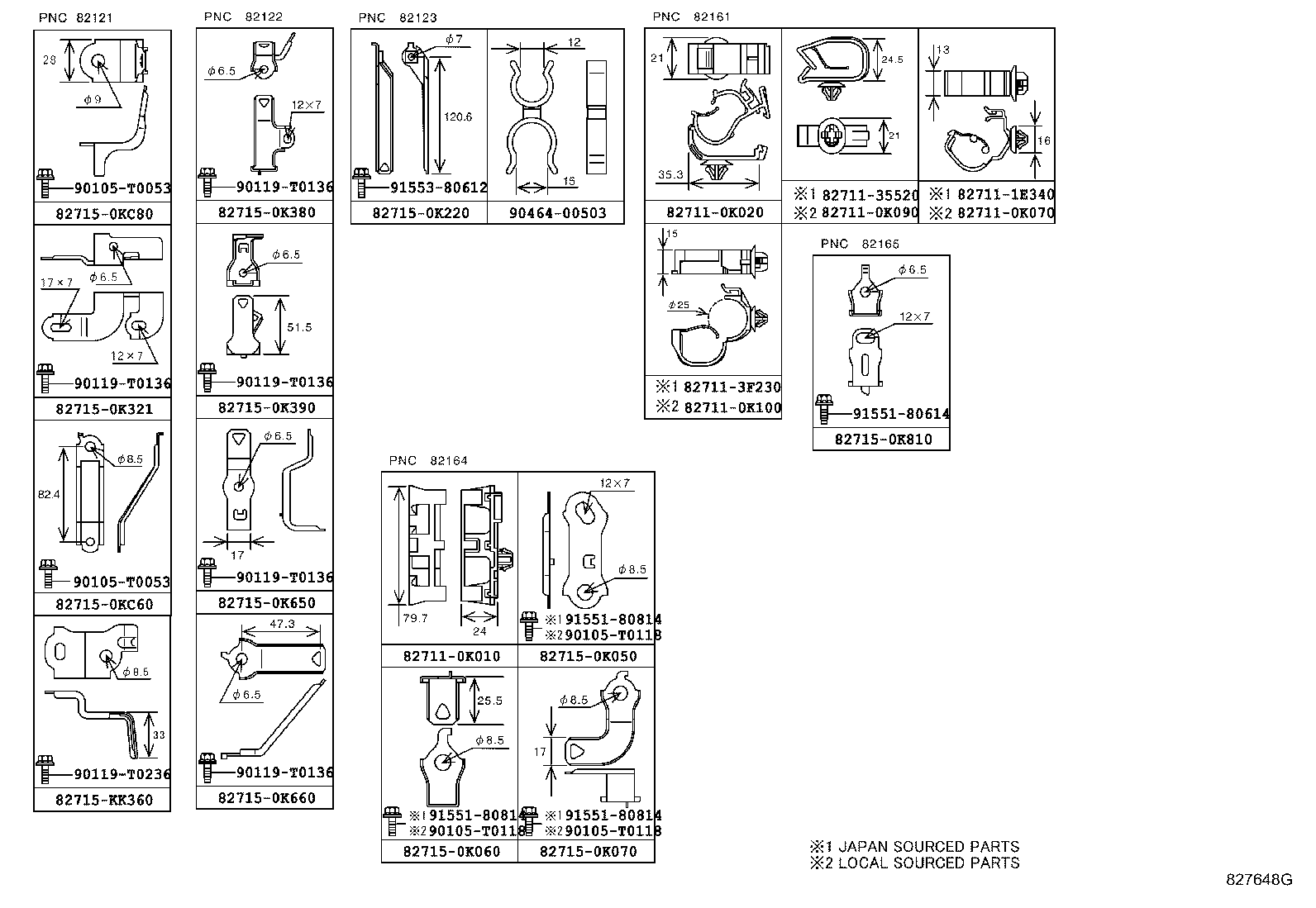

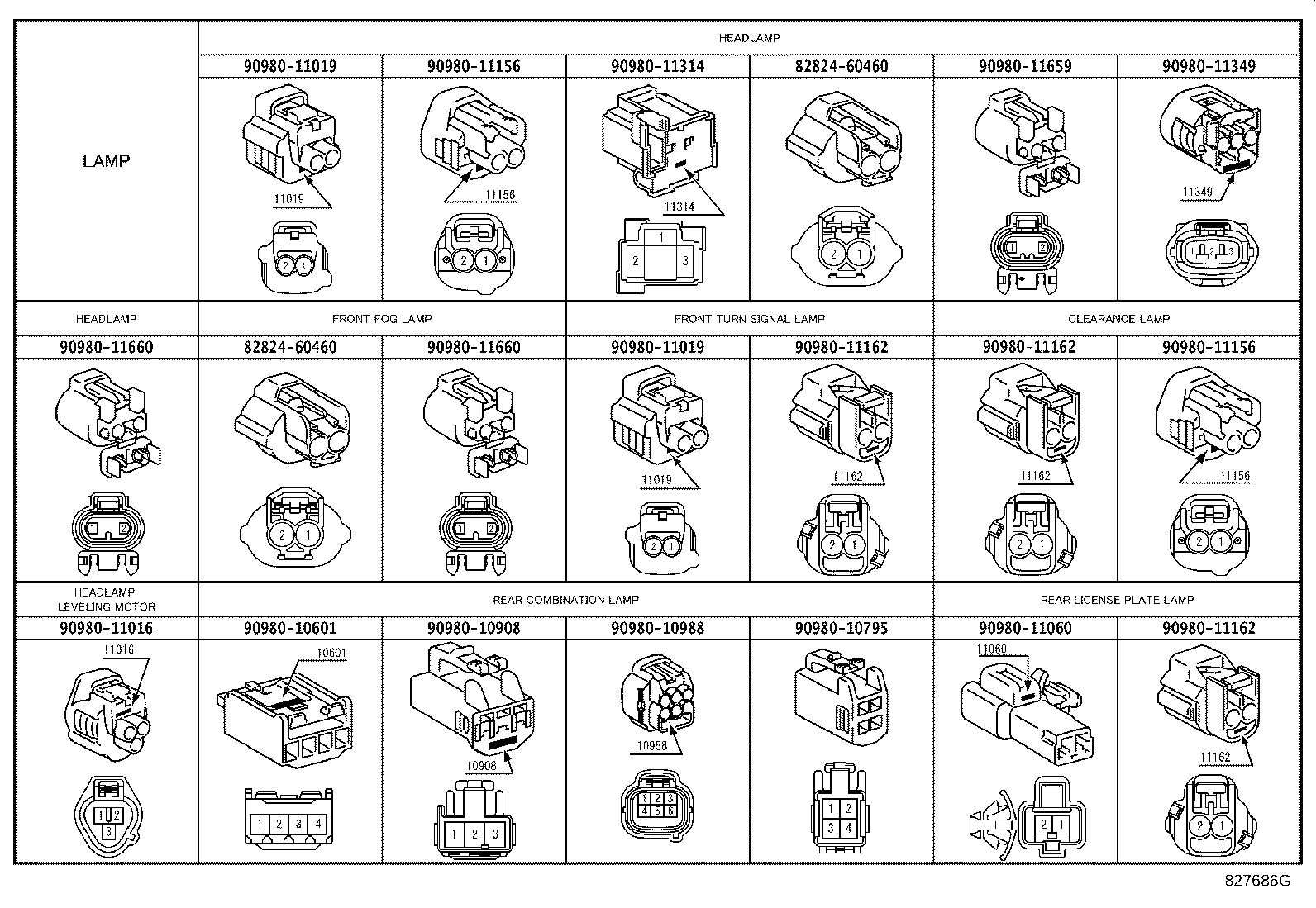

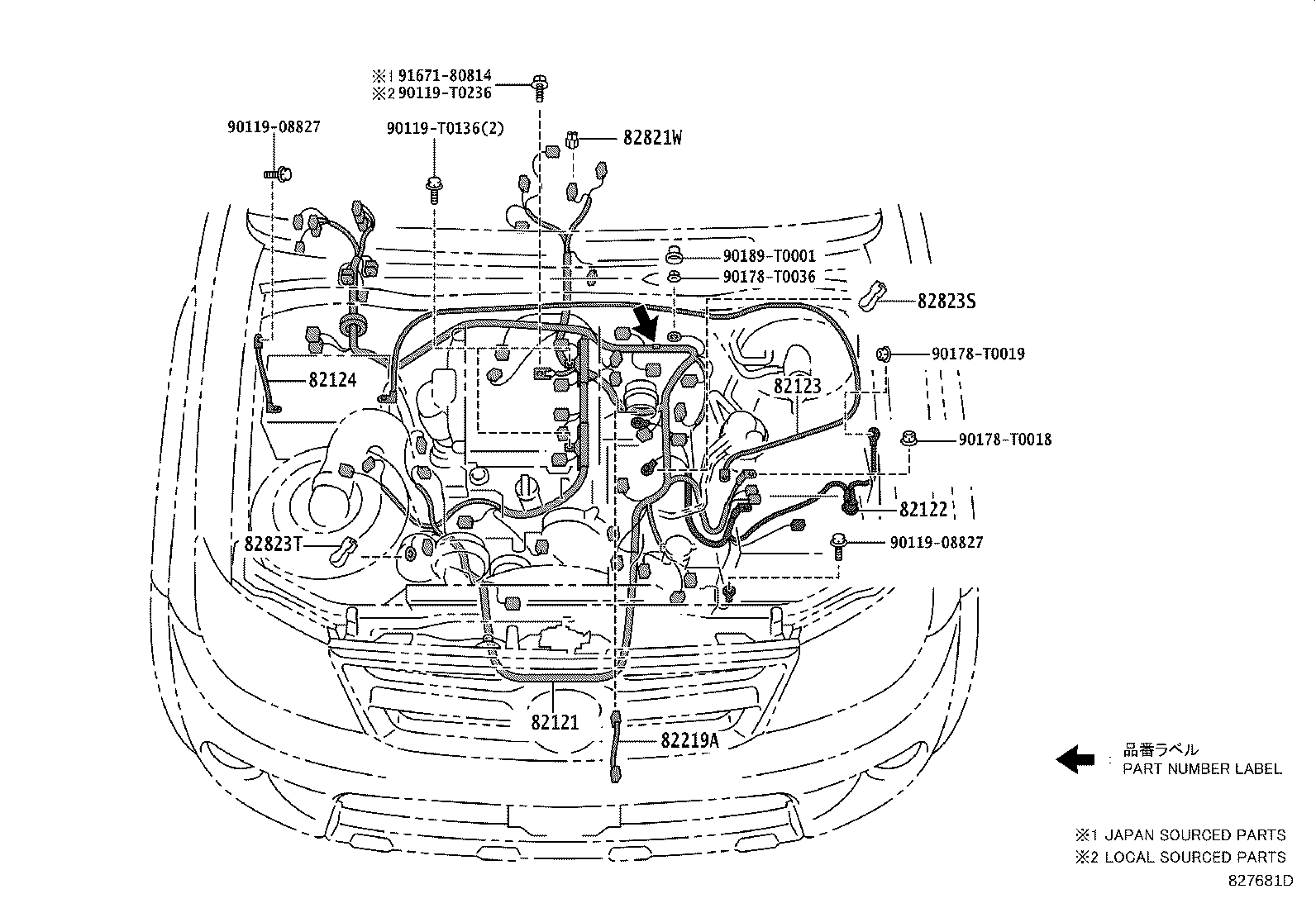

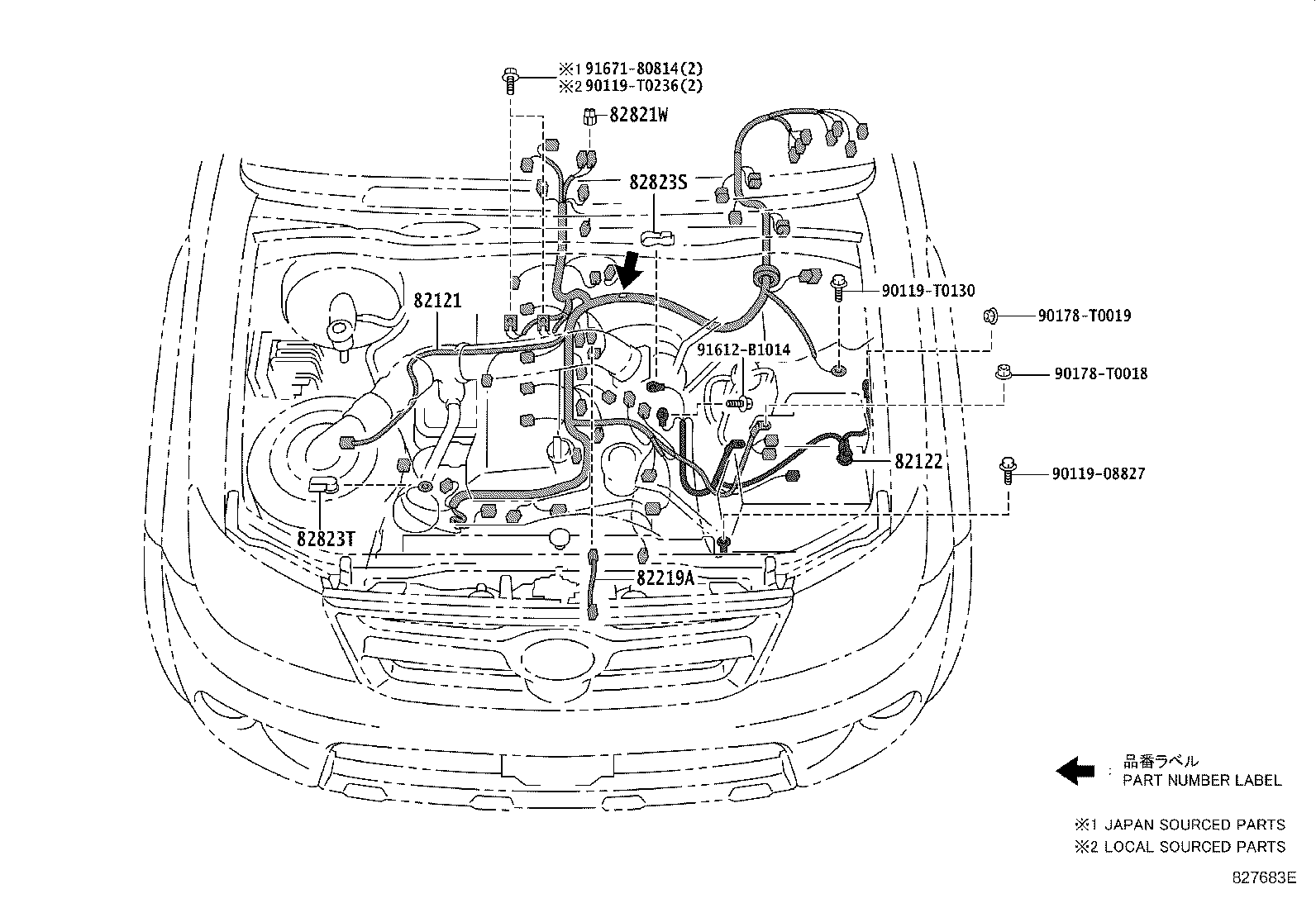

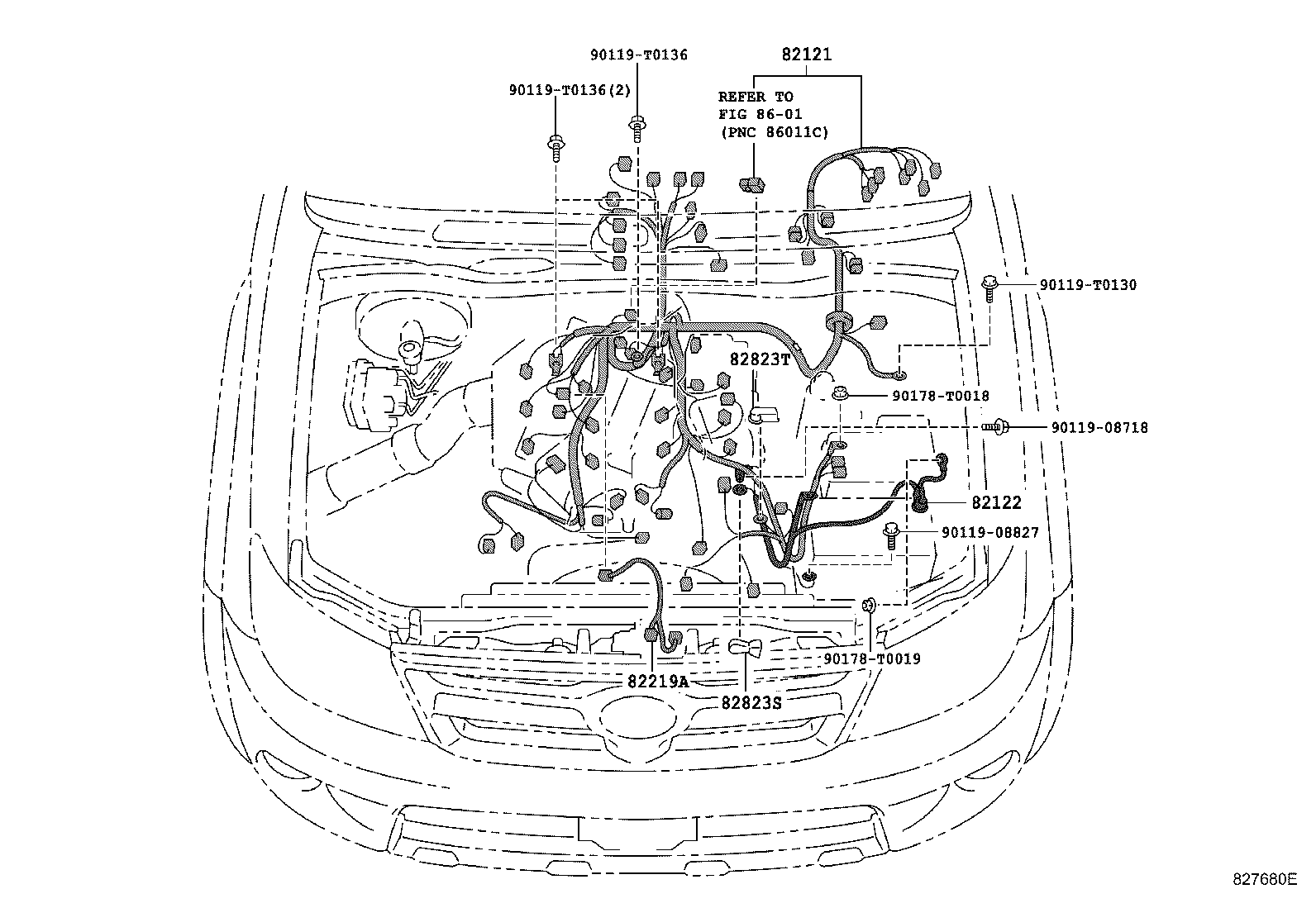

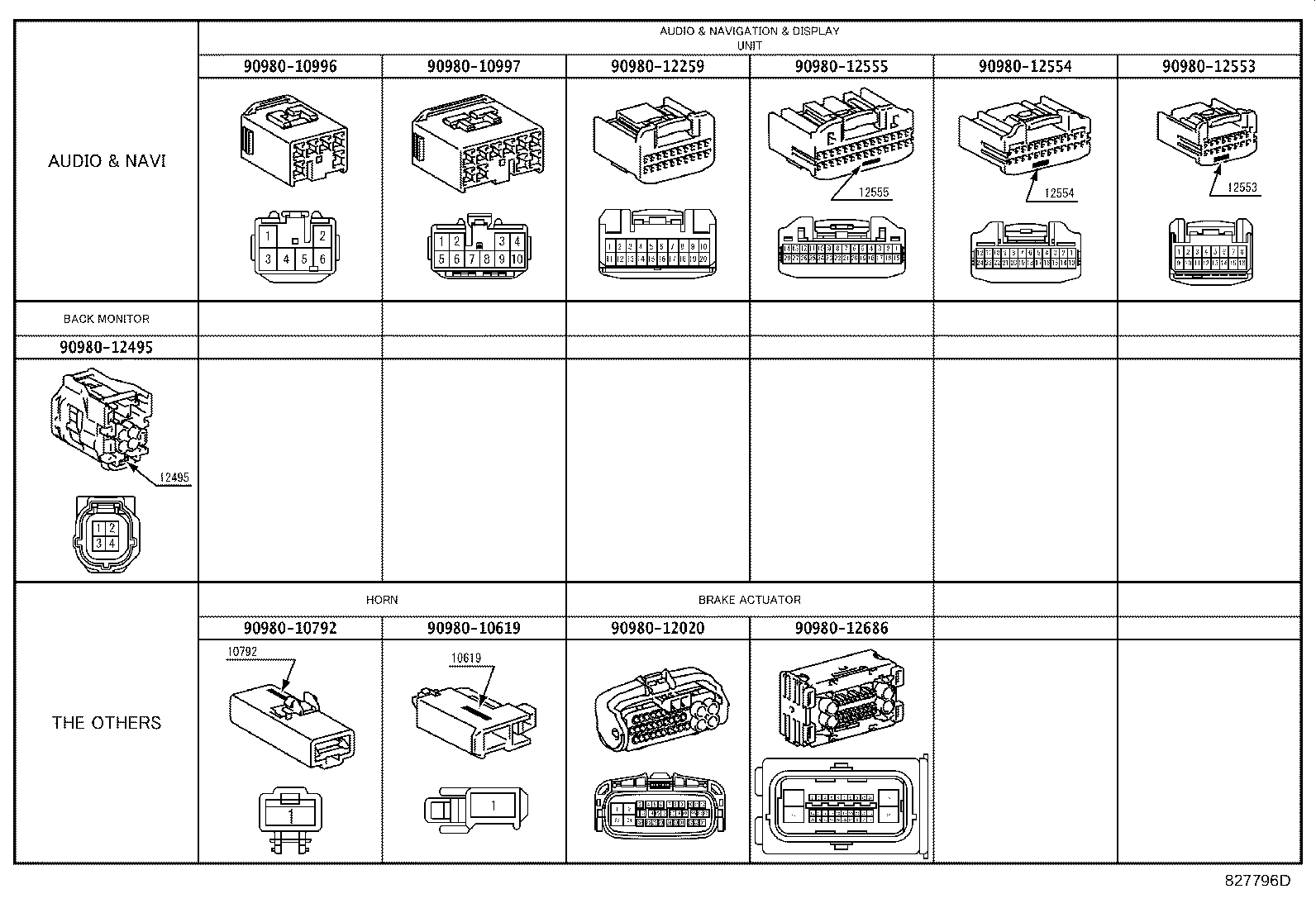

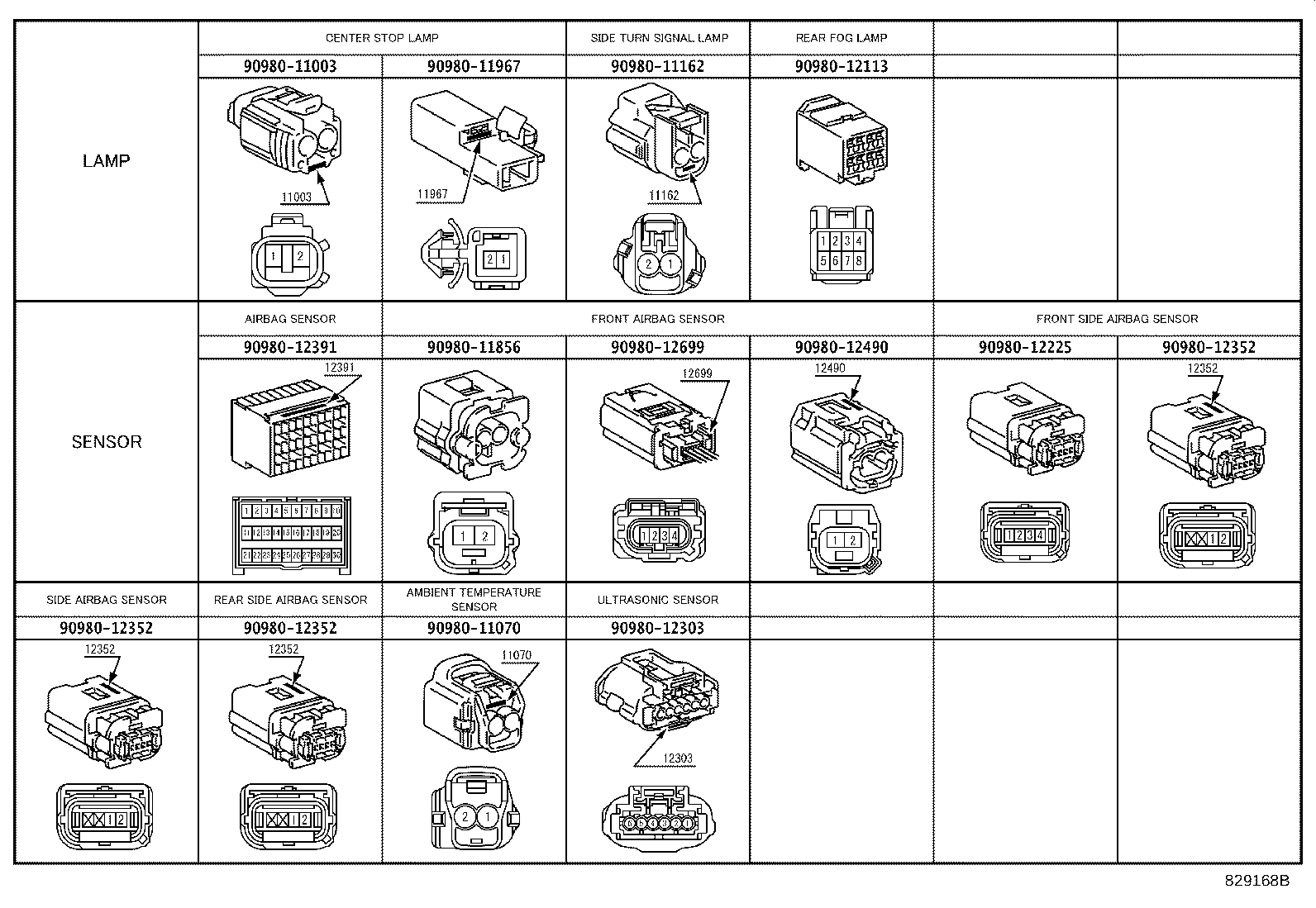

Figure 827679D 827679D 2011-07 → — Figure 827680E 827680E 2011-07 → — Figure 827681D 827681D 2011-07 → — Figure 827681D 827681D 2011-07 → — Figure 827681D 827681D 2011-07 → — Figure 827829B 827829B 2011-07 → — Figure 827683E 827683E 2011-07 → — Figure 827682A 827682A 2011-08 → — Figure 828073B 828073B 2012-04 → — Figure 827656C 827656C 2011-07 → — Figure 827657C 827657C 2011-07 → — Figure 827684A 827684A 2011-07 → — Figure 828299A 828299A 2011-07 → — Figure 827677 827677 2011-07 → — Figure 827646D 827646D 2011-07 → — Figure 827647F 827647F 2011-07 → — Figure 827648G 827648G 2011-07 → — Figure 827685 827685 2011-07 → — Figure 827686G 827686G 2011-07 → — Figure 829168B 829168B 2011-07 → — Figure 827796D 827796D 2011-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

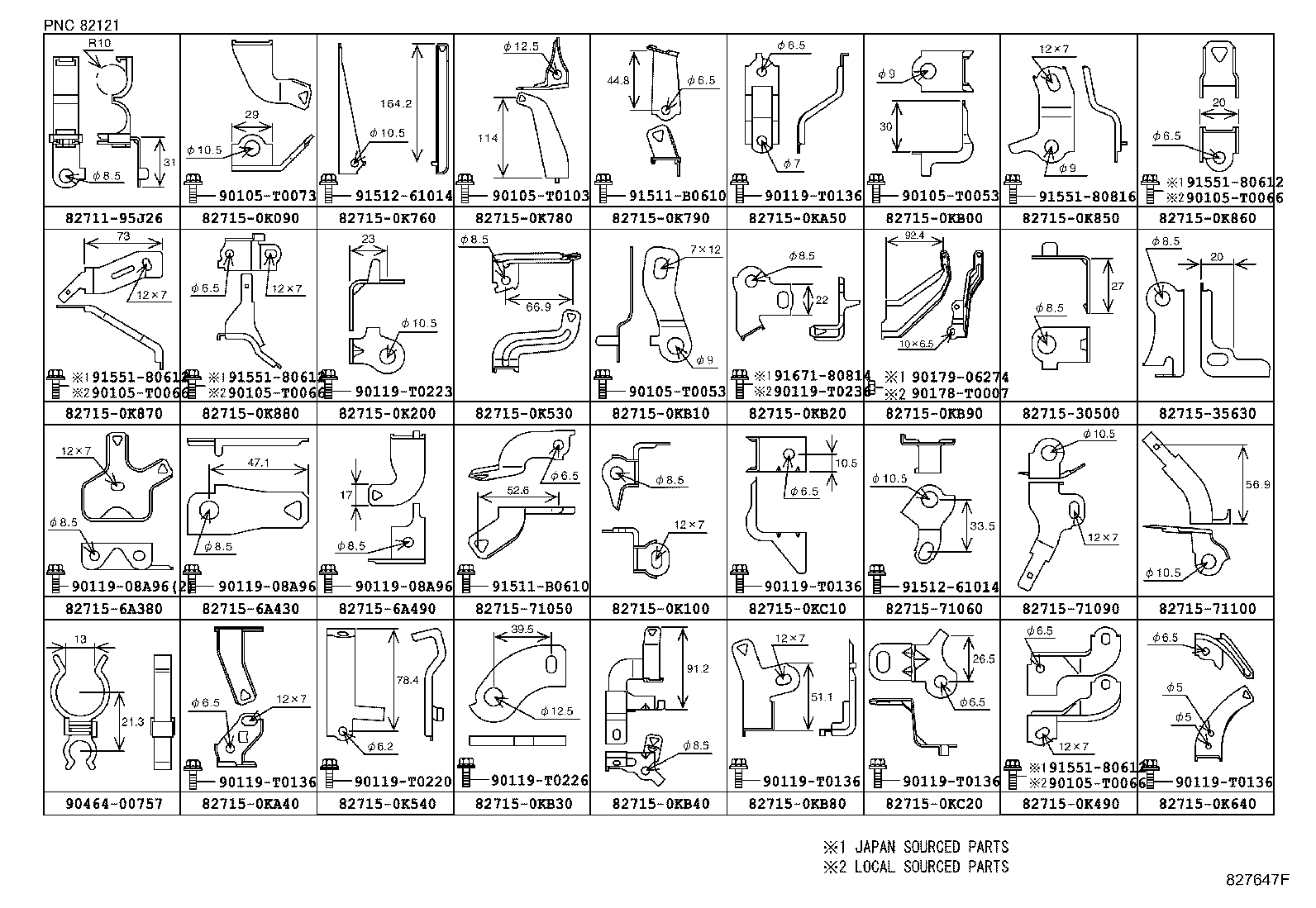

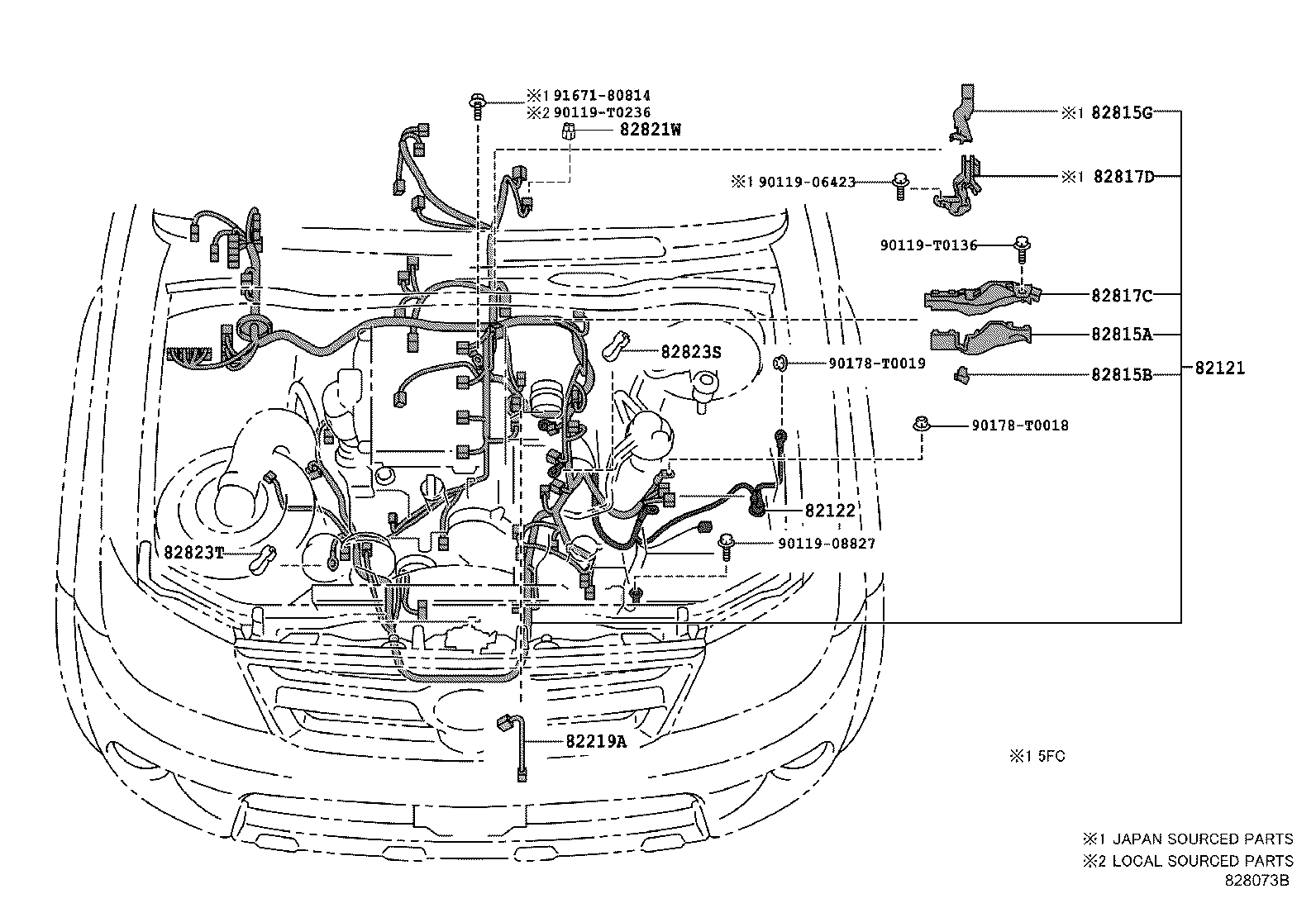

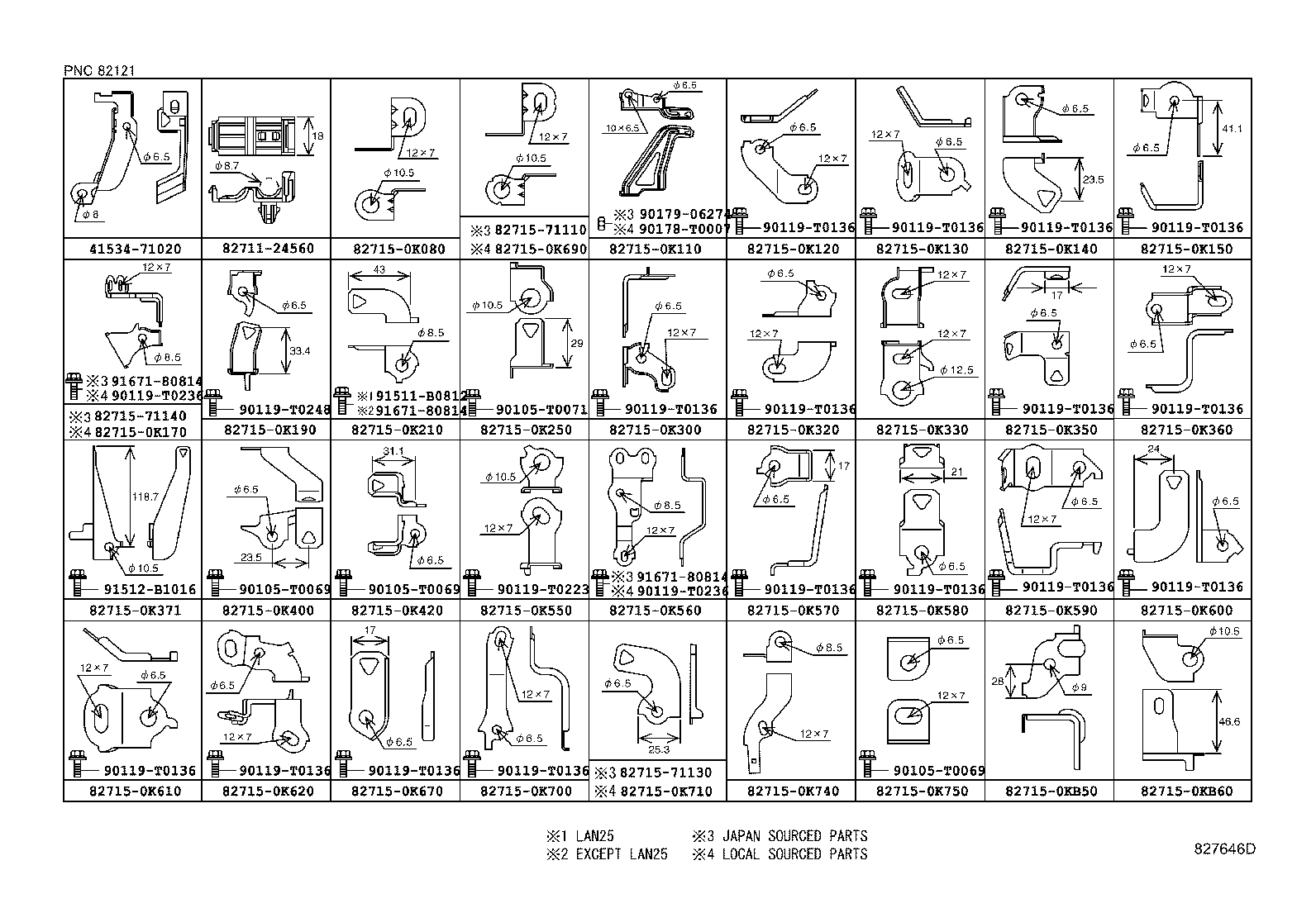

82121 Wire, Engine

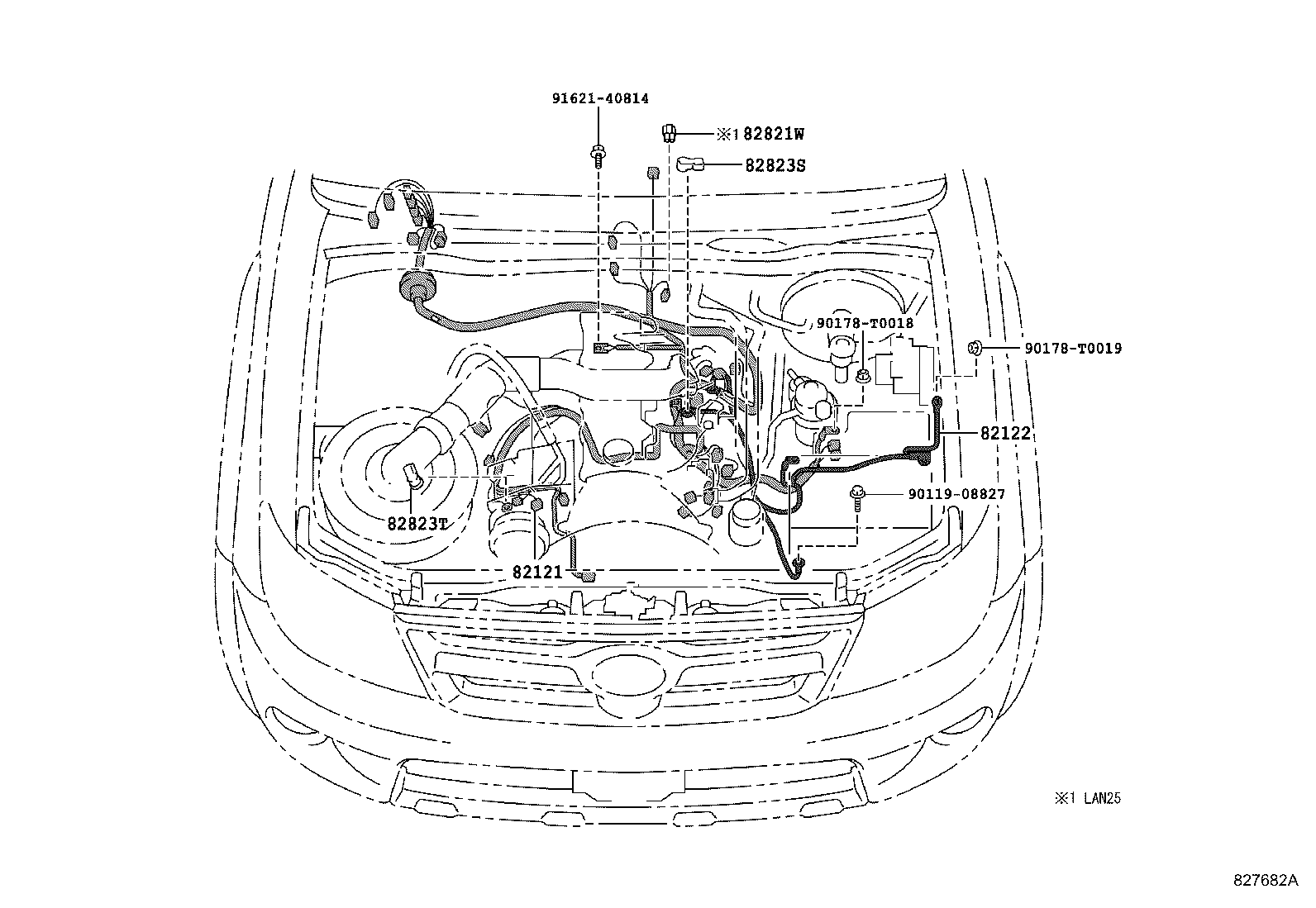

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

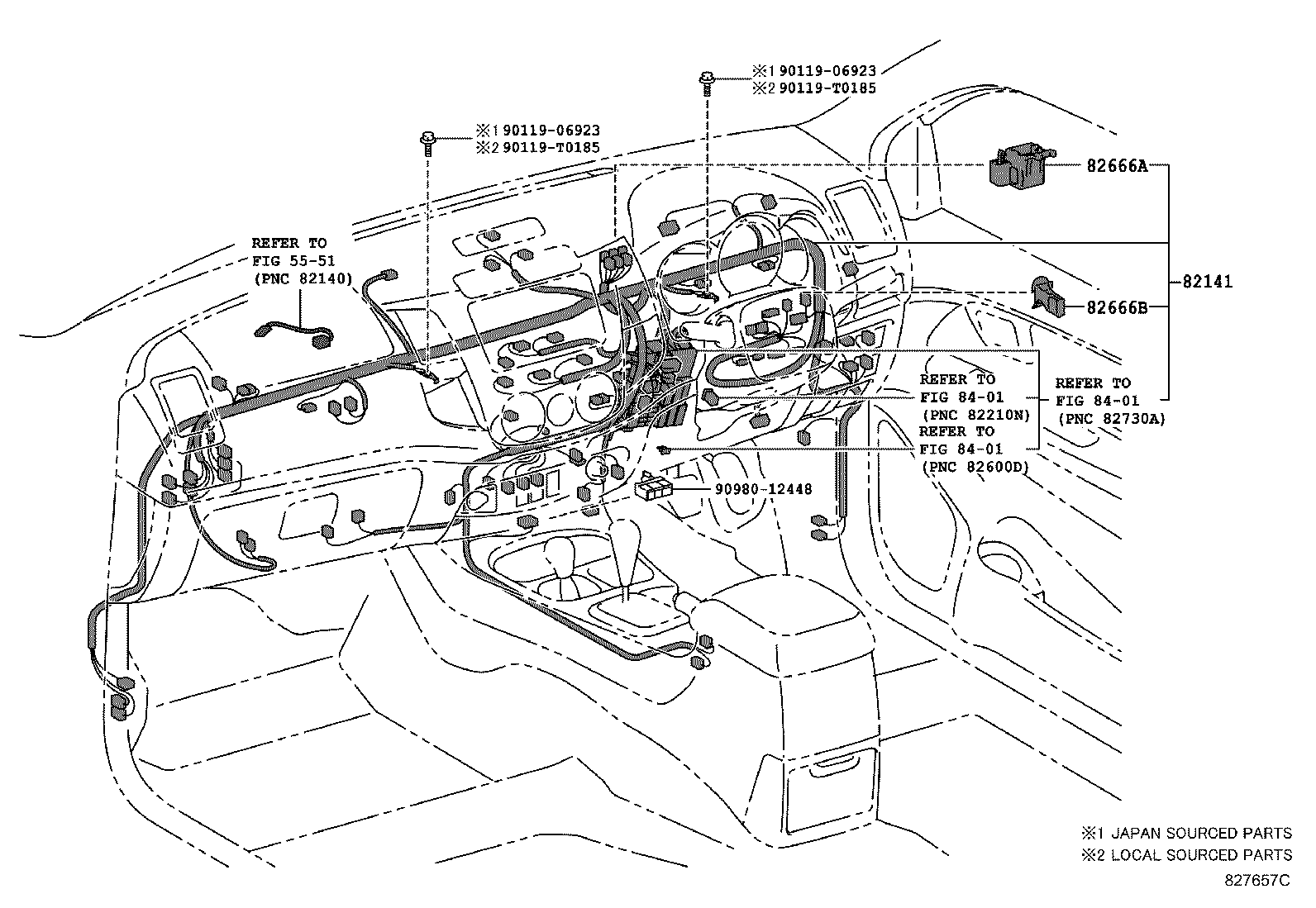

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

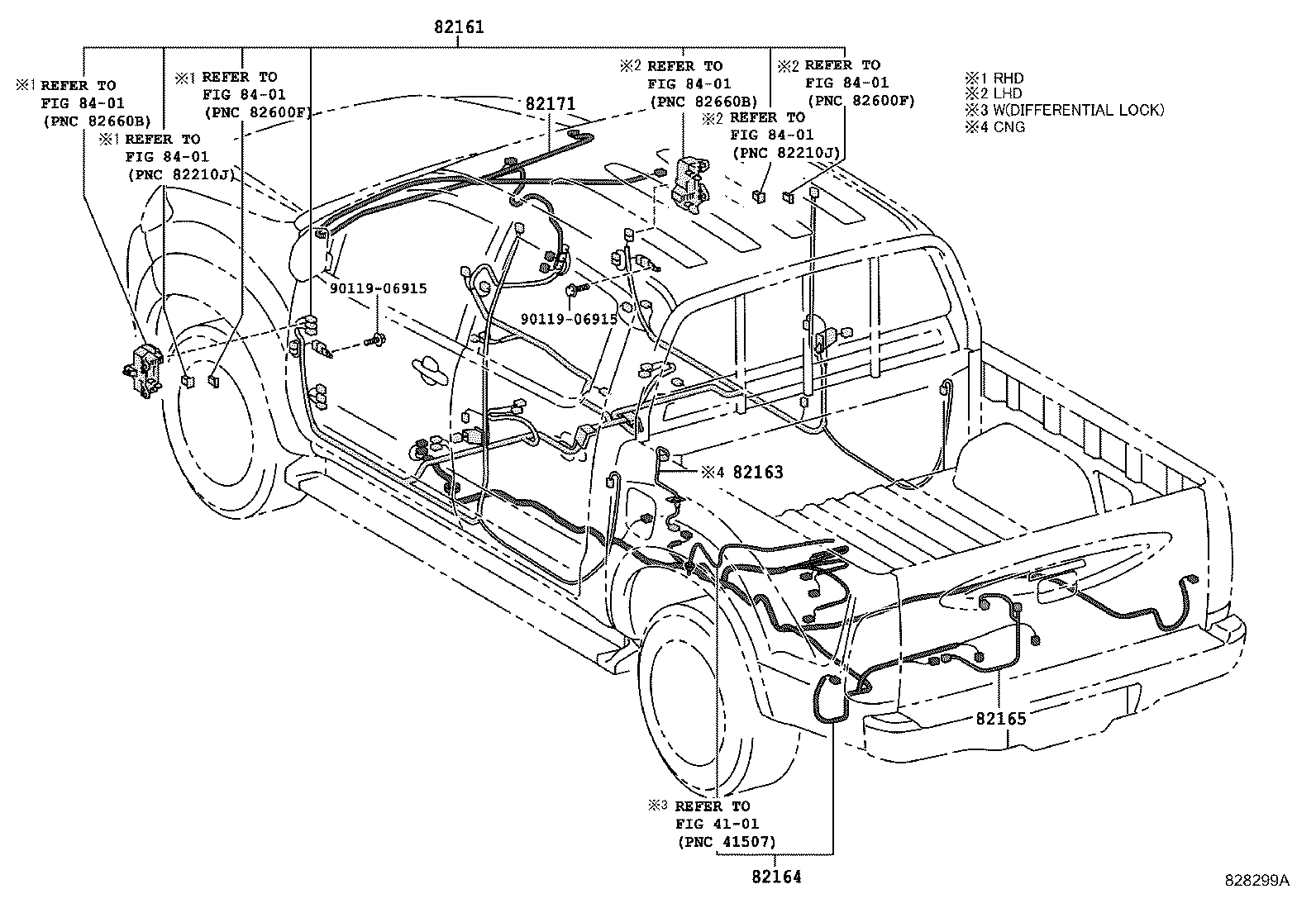

82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor

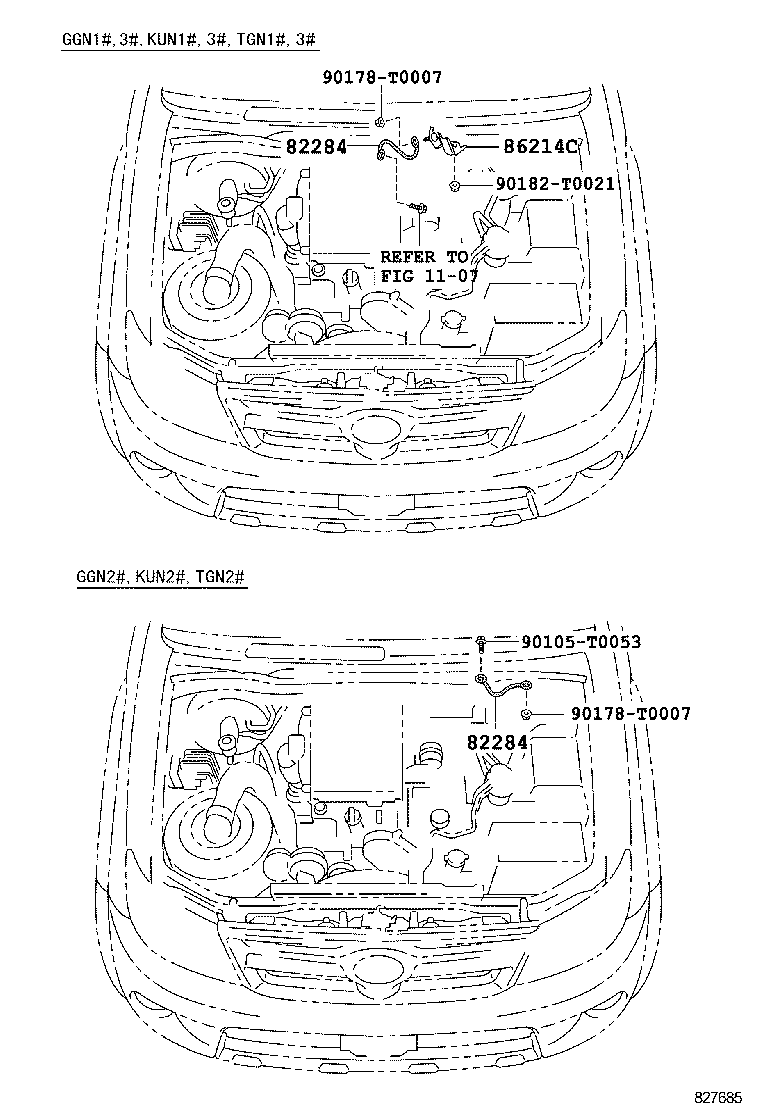

82284 Wire, Earth
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
