Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 4 illustrations

Illustrations

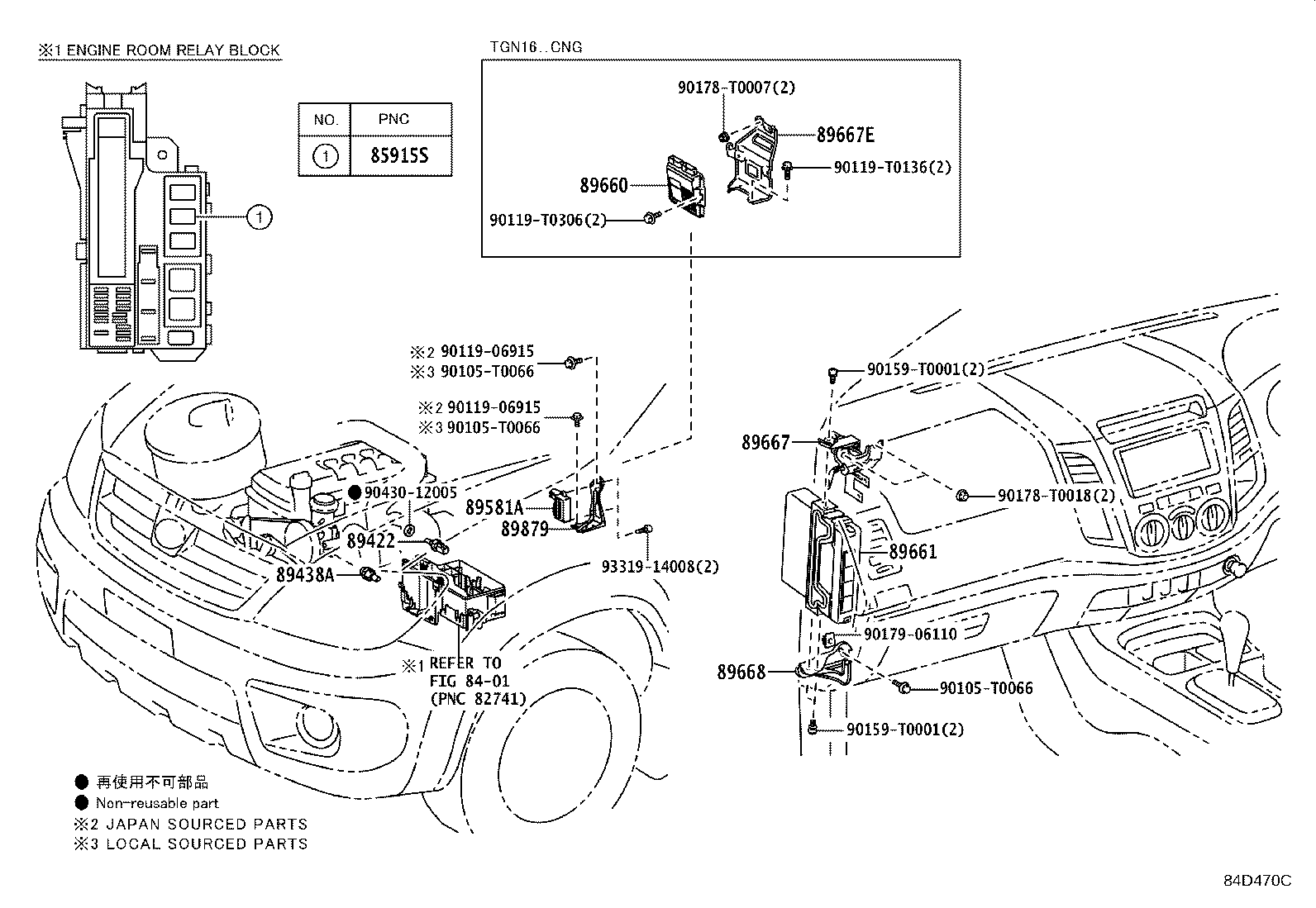

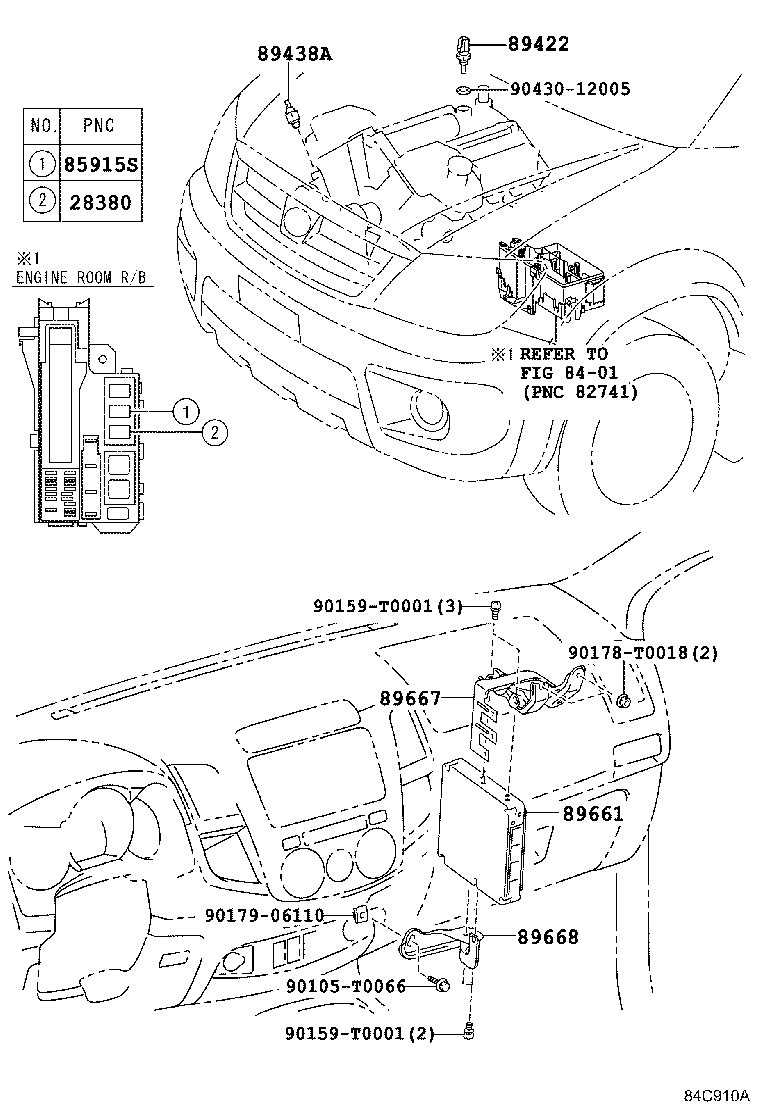

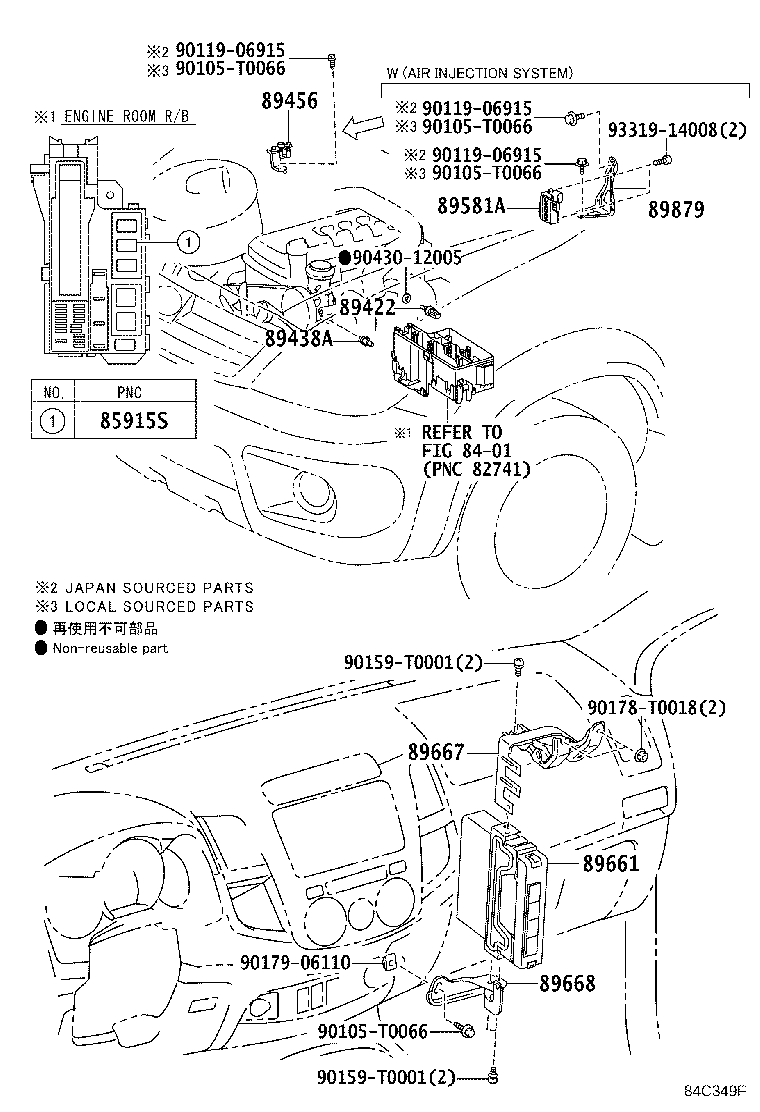

Figure 84C348B 84C348B 2011-07 → — Figure 84C910A 84C910A 2012-04 → — Figure 84C349F 84C349F 2011-07 → — Figure 84D470C 84D470C 2011-07 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89422 Sensor, Water Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89456 Resistor, Variable
89581A Driver, Air Injection Control
89660 Computer Assy, Engine Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
