Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 3 illustrations

Illustrations

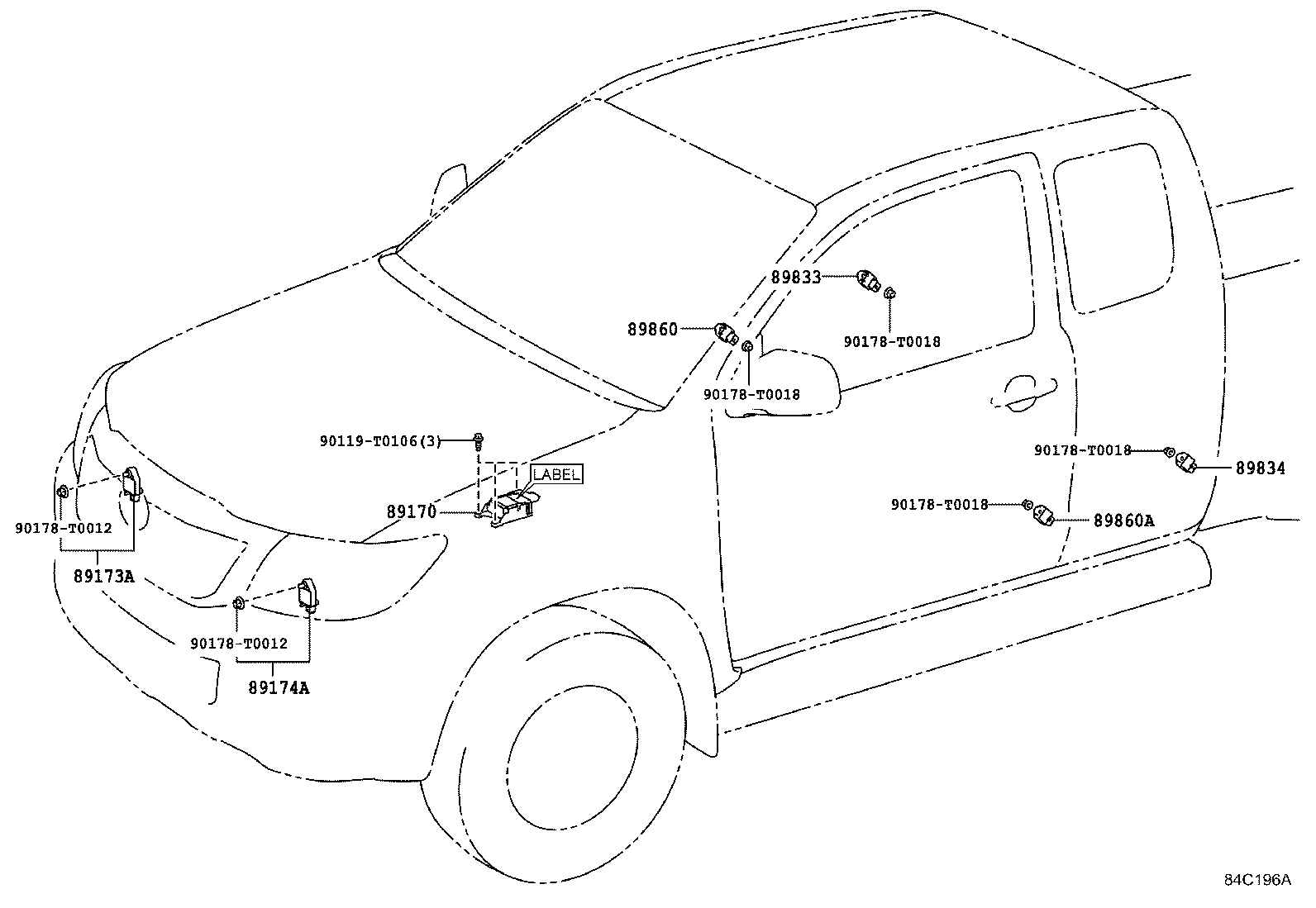

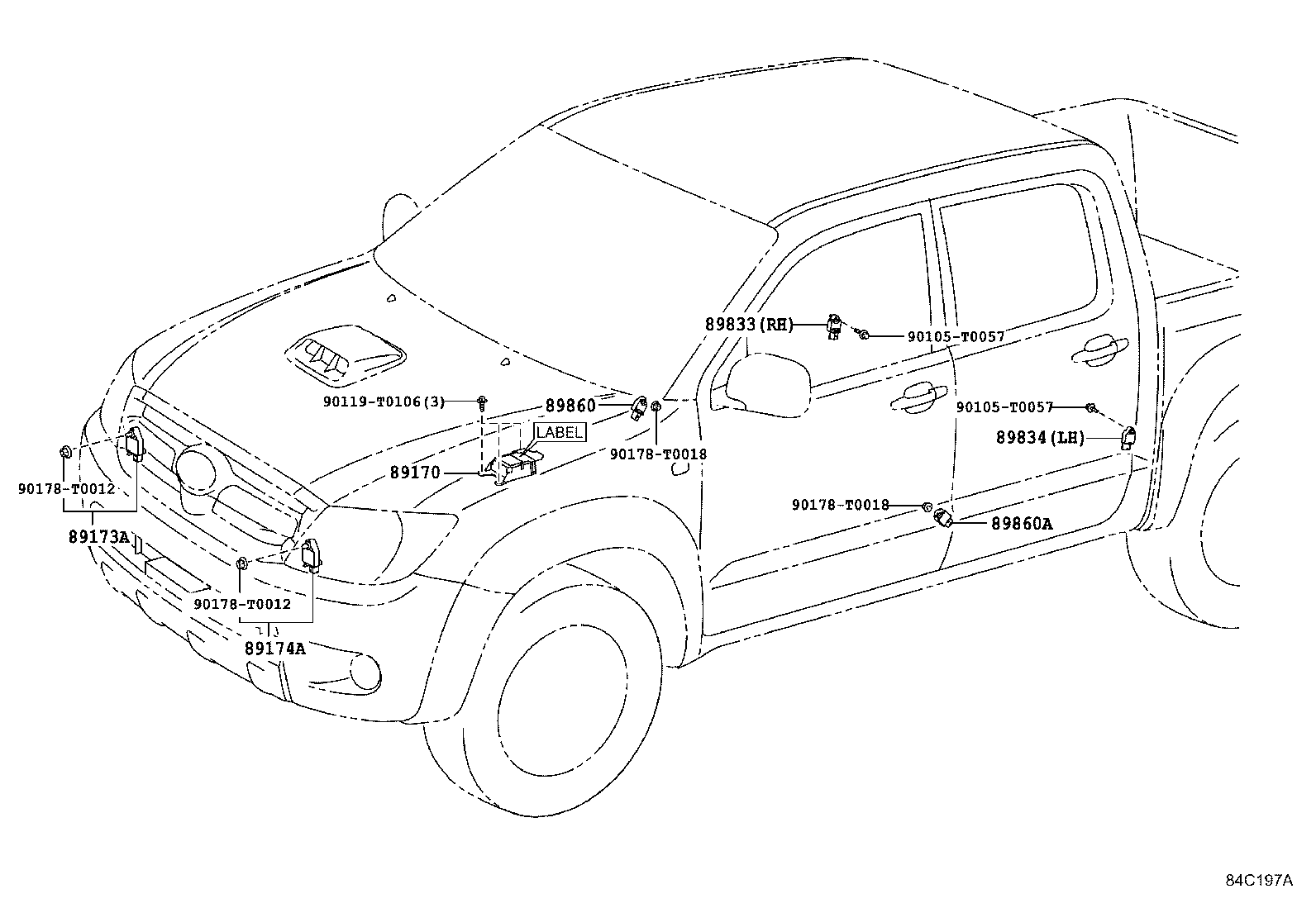

Figure 84C198A 84C198A 2011-07 → — Figure 84C196A 84C196A 2011-07 → — Figure 84C197A 84C197A 2011-07 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
