Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 10 illustrations

Illustrations

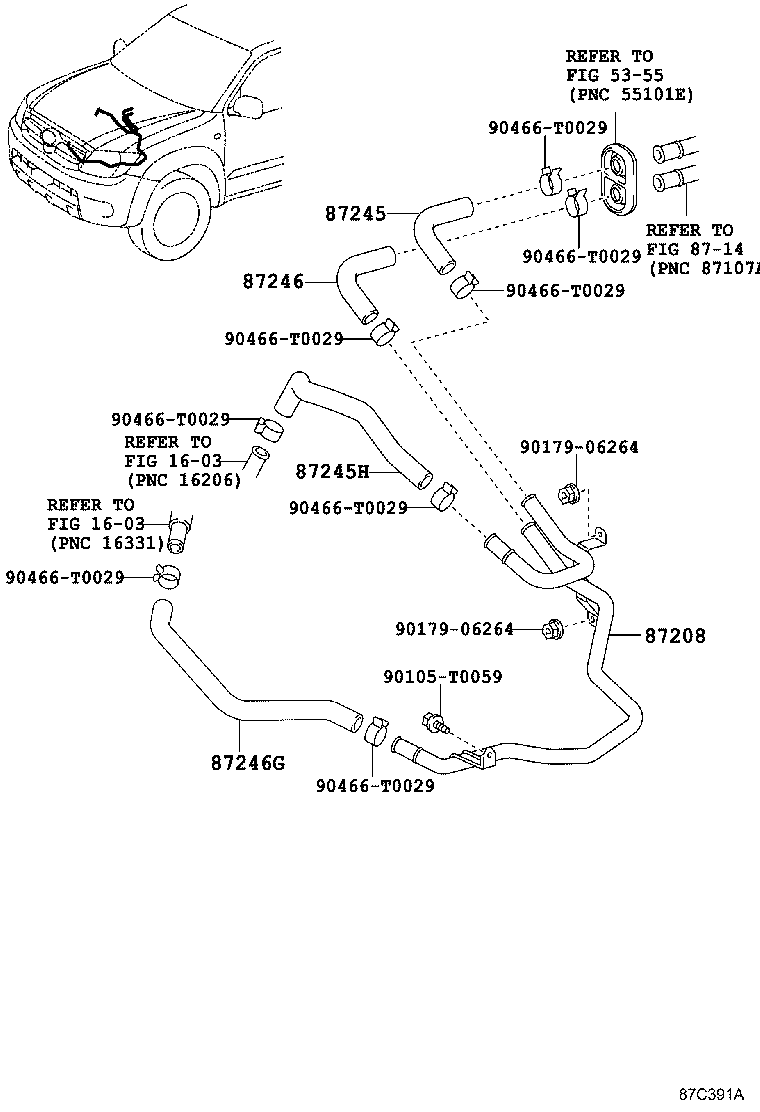

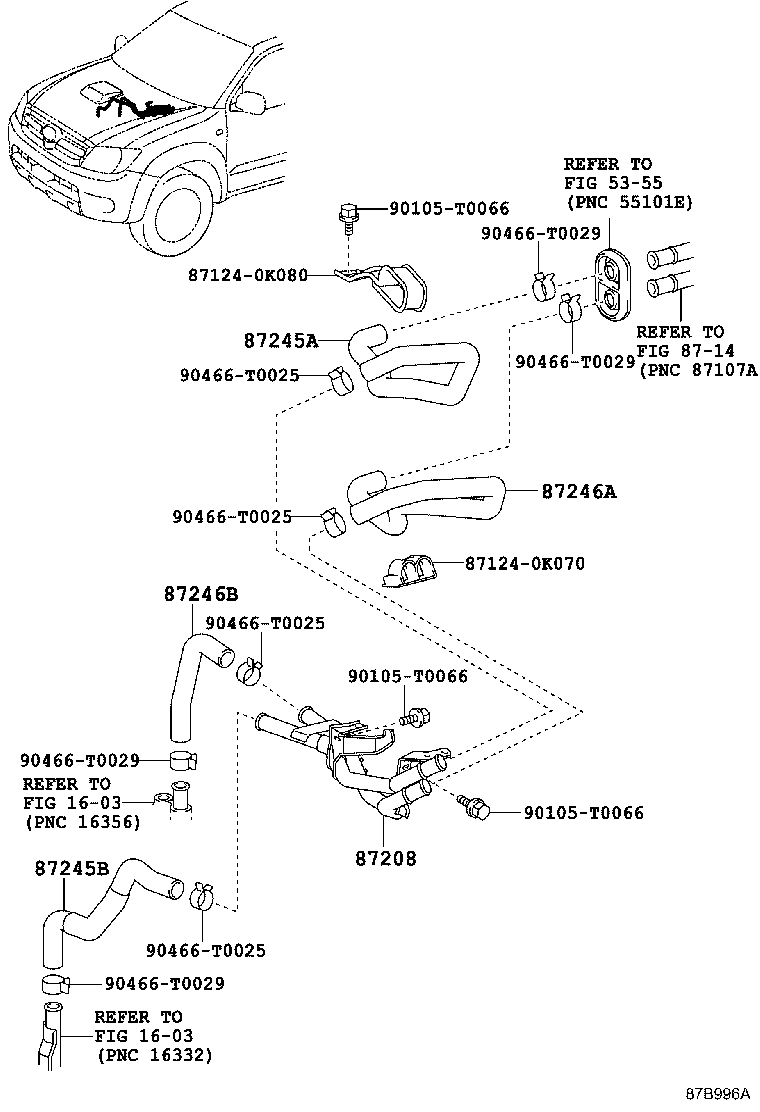

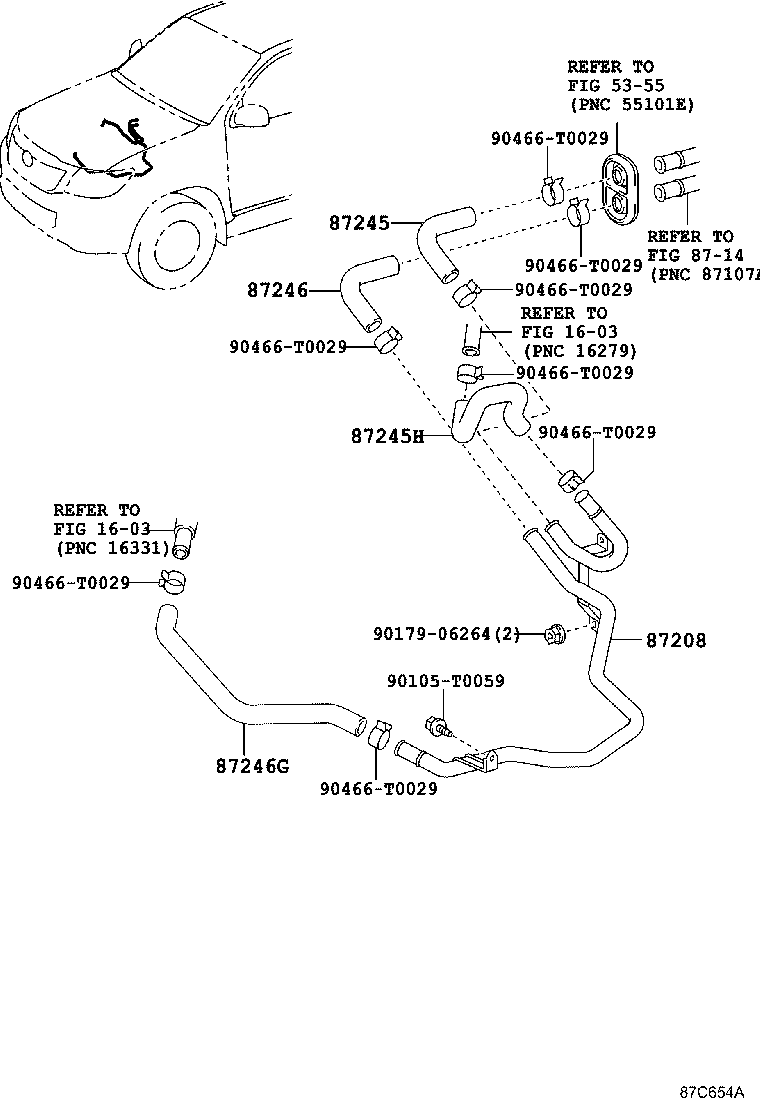

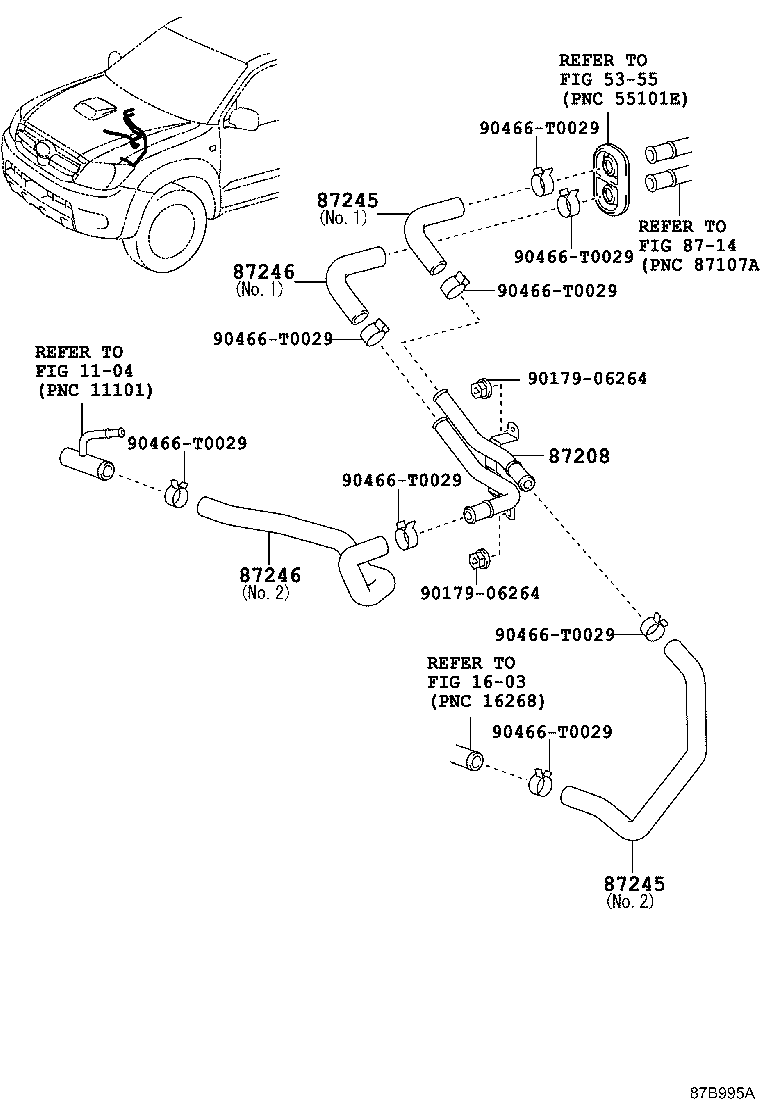

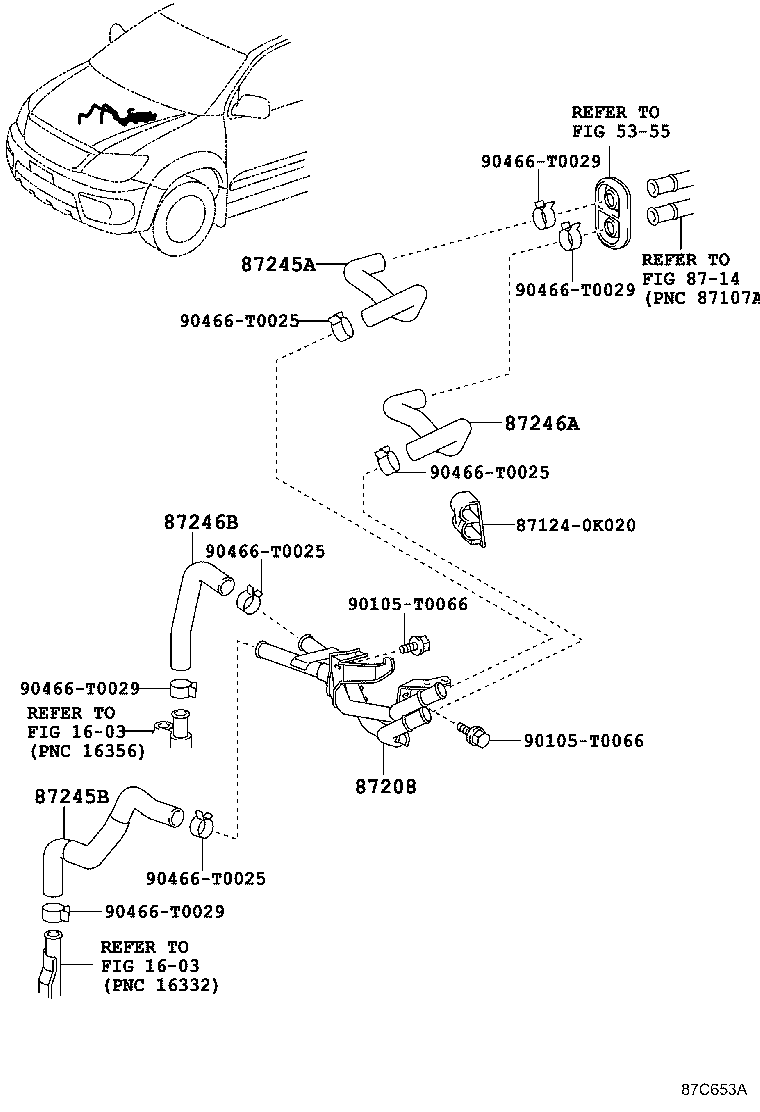

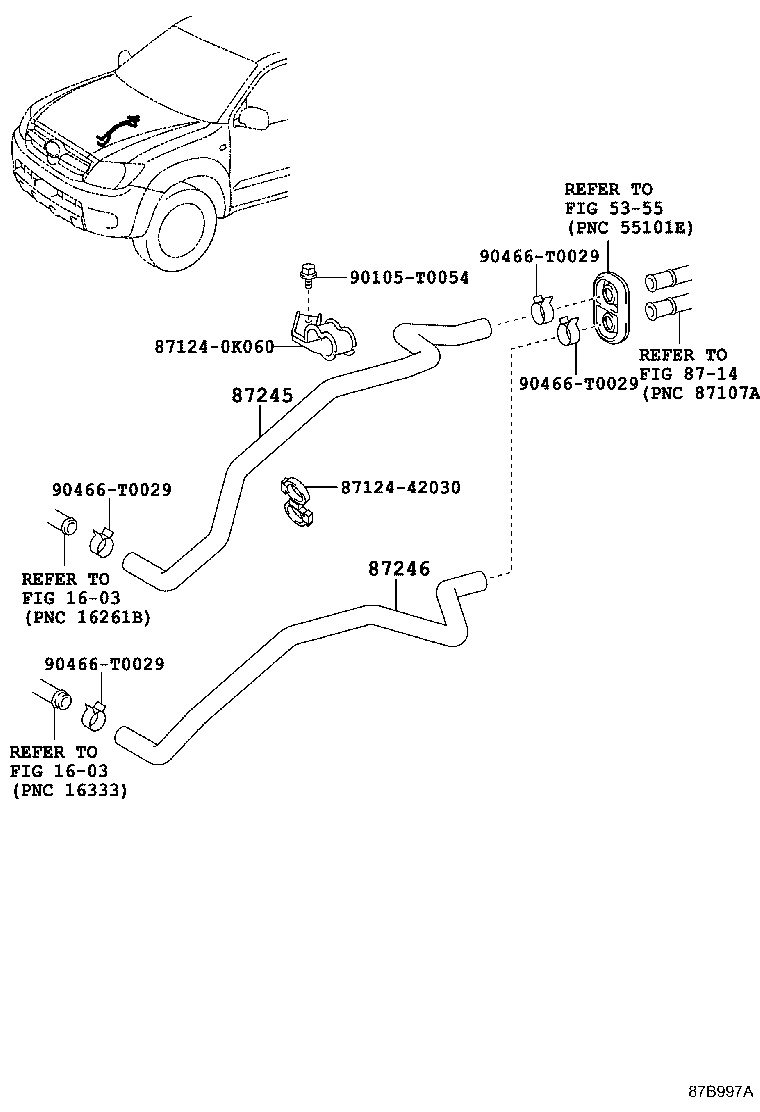

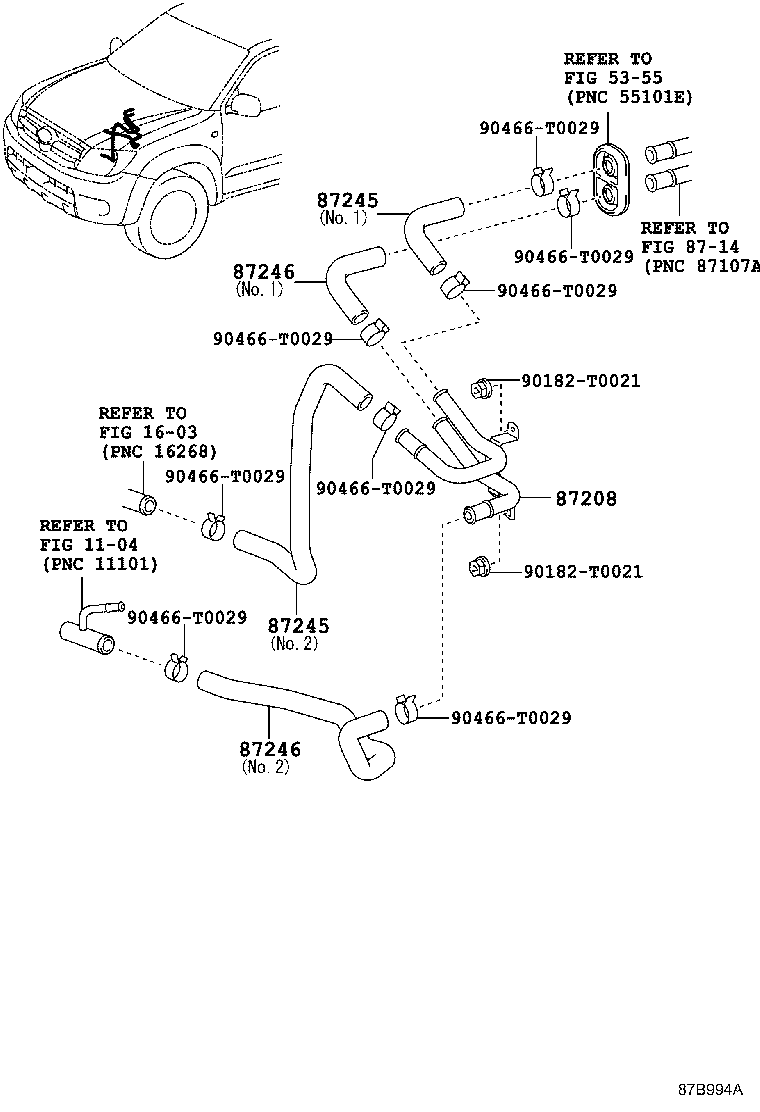

Figure 87B993C 87B993C 2011-07 → — Figure 87B994A 87B994A 2011-07 → — Figure 87B995A 87B995A 2011-07 → — Figure 87B996A 87B996A 2011-07 → — Figure 87B997A 87B997A 2011-08 → — Figure 87C391A 87C391A 2011-10 → — Figure 87C388B 87C388B 2011-10 → — Figure 87C388B 87C388B 2014-10 → — Figure 87C653A 87C653A 2012-04 → — Figure 87C654A 87C654A 2012-04 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246G Hose, Heater Water, Outlet G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
