Heating & Air Conditioning - Compressor

14 part groups · 18 illustrations

Illustrations

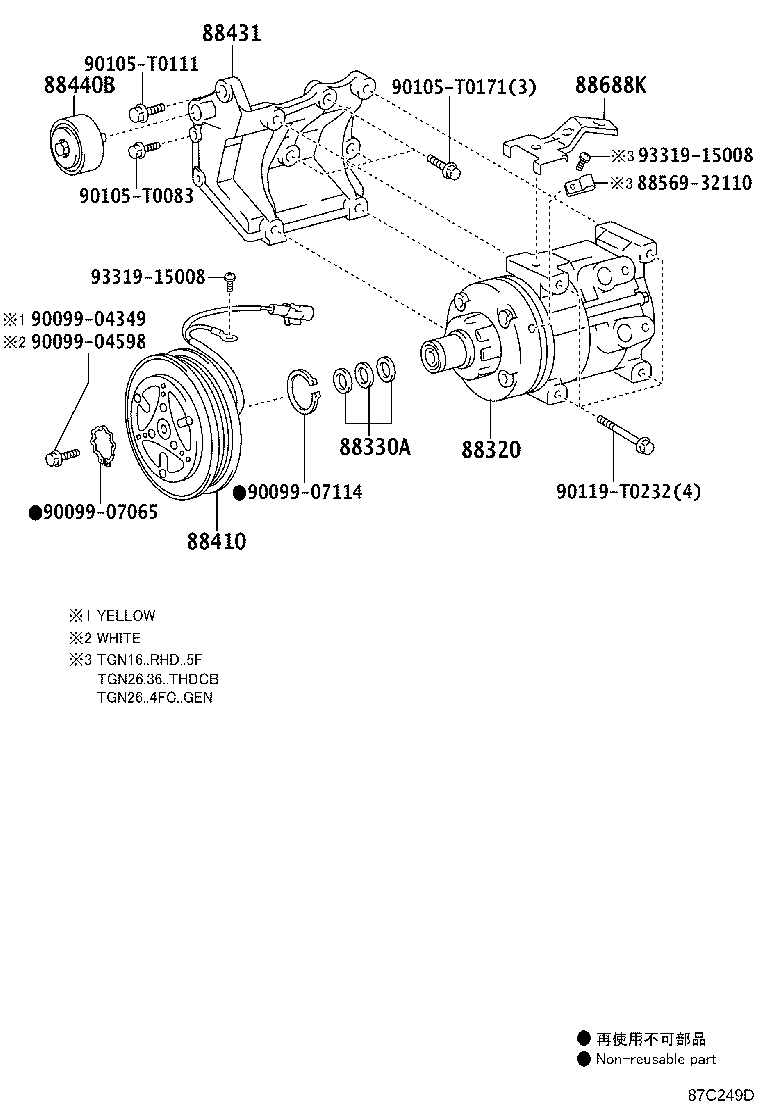

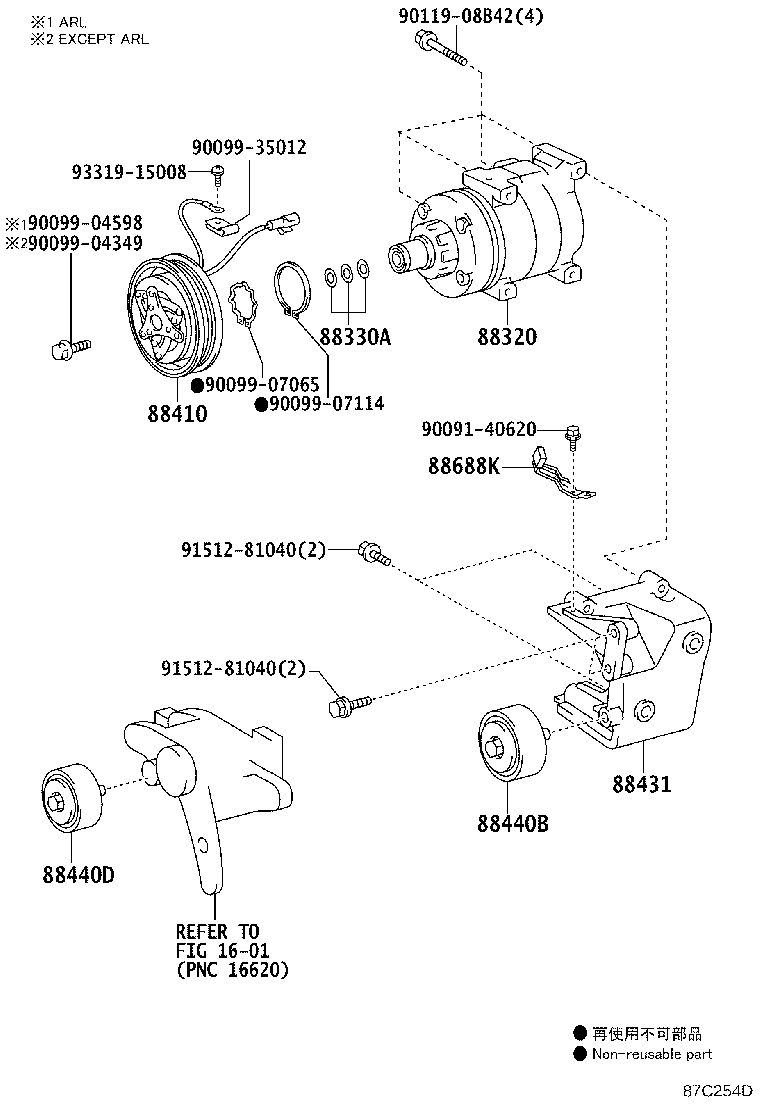

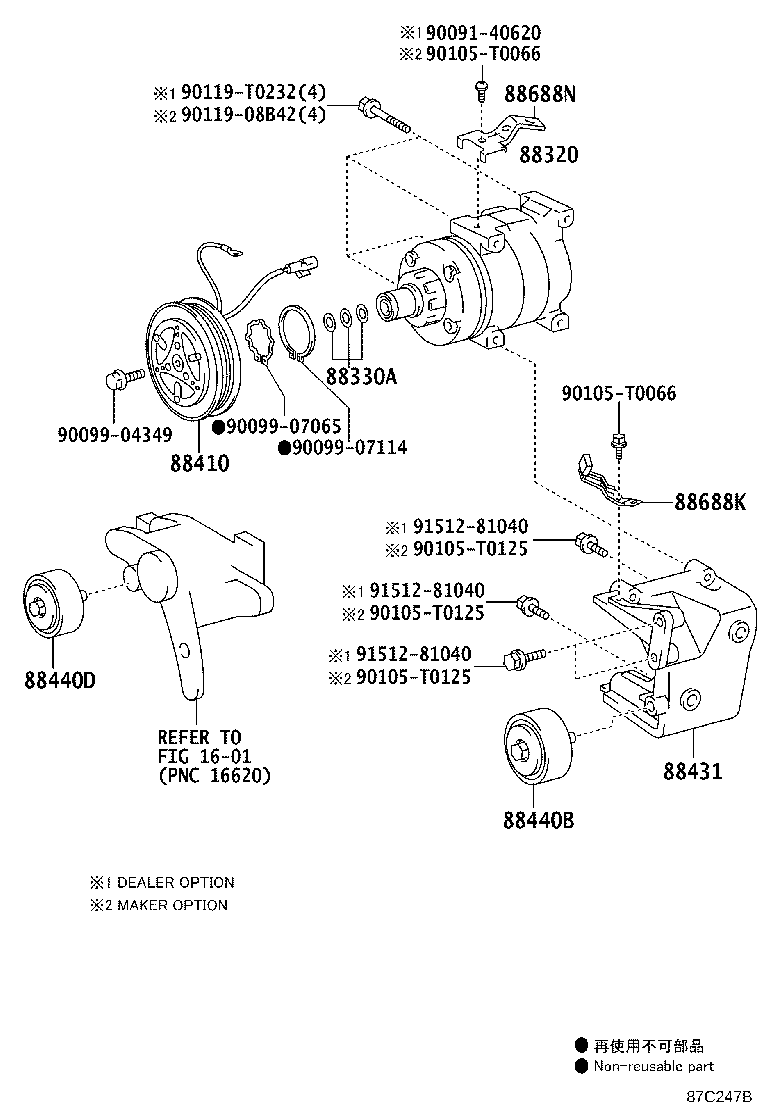

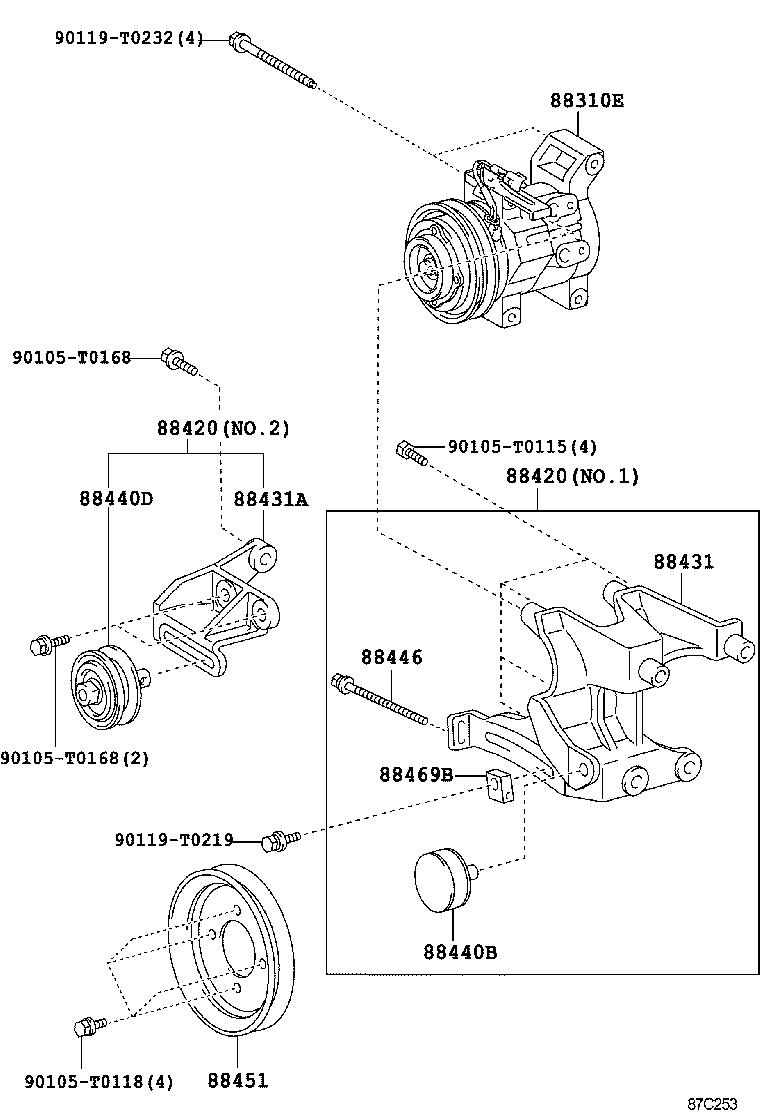

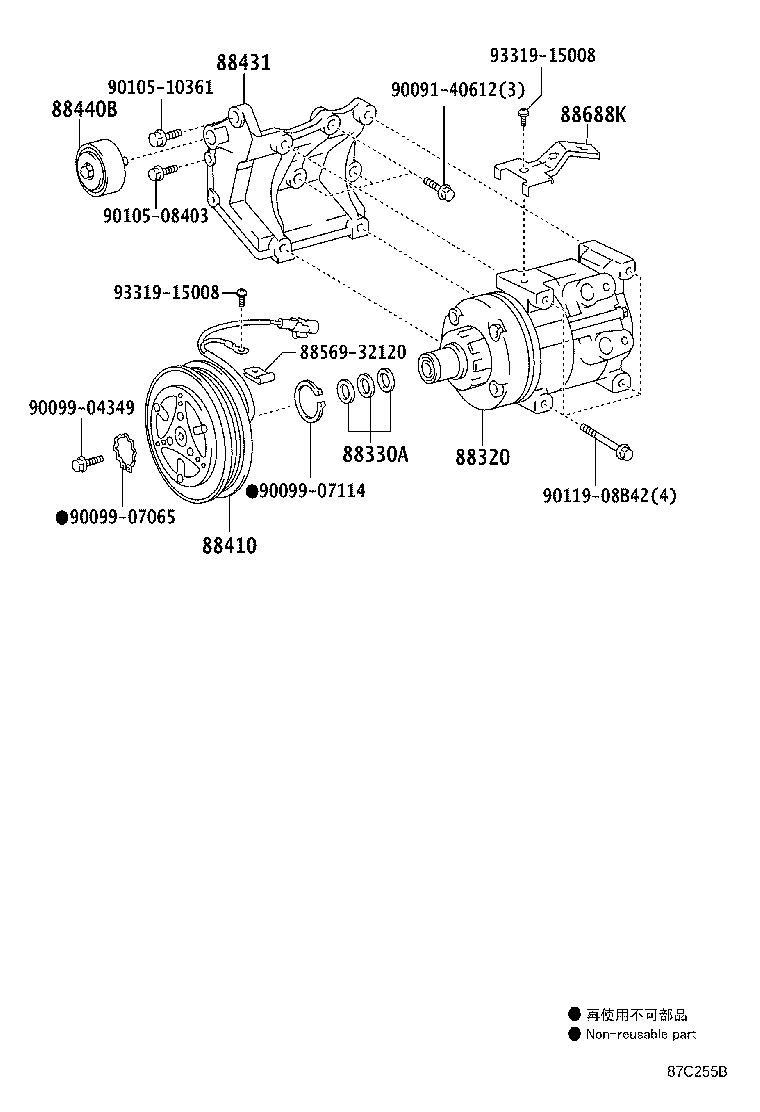

Figure 87C246B 87C246B 2011-06 → — Figure 87C246B 87C246B 2011-06 → — Figure 87C254D 87C254D 2011-06 → — Figure 87C254D 87C254D 2011-06 → — Figure 87C247B 87C247B 2011-06 → — Figure 87C249D 87C249D 2011-07 → — Figure 87C249D 87C249D 2012-05 → — Figure 87C255B 87C255B 2011-07 → — Figure 87C255B 87C255B 2011-07 → — Figure 87C255B 87C255B 2011-07 → — Figure 87C926A 87C926A 2011-07 → — Figure 87C252A 87C252A 2011-08 → — Figure 87C250A 87C250A 2011-08 → — Figure 87C250A 87C250A 2012-01 → — Figure 87C253 87C253 2011-08 → — Figure 87C251A 87C251A 2011-08 → — Figure 87C640A 87C640A 2012-02 → — Figure 87C639A 87C639A 2012-04 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88469B Collar
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
