Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

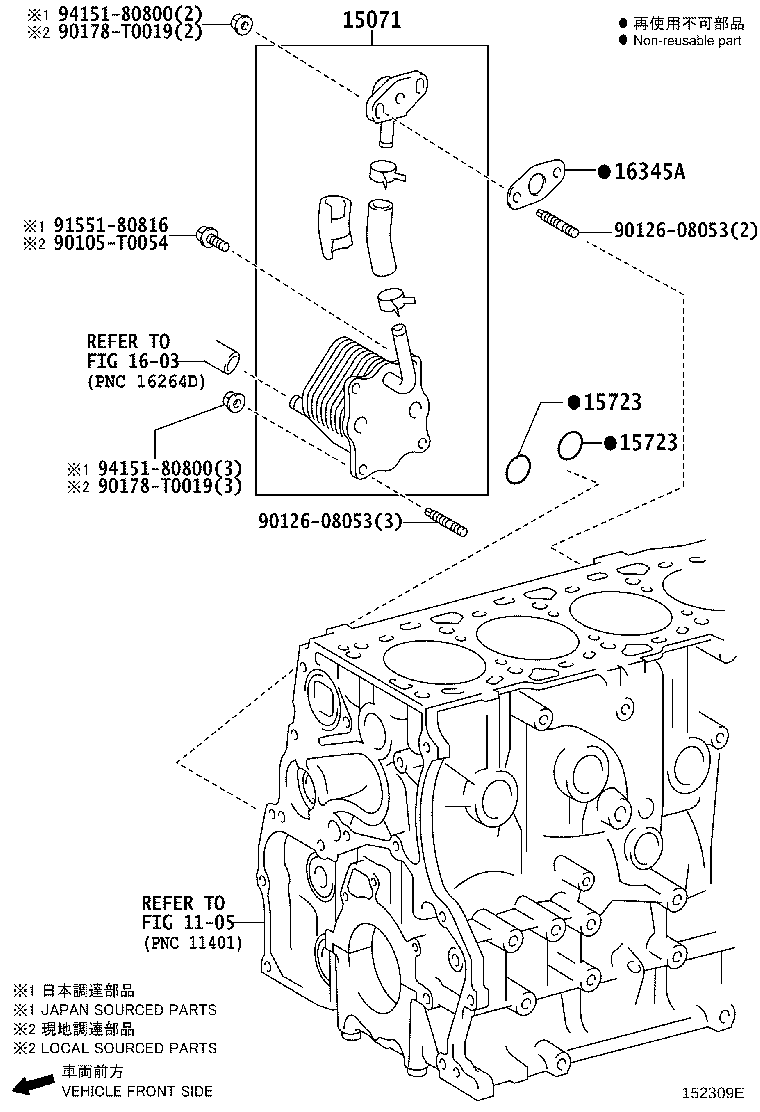

Exploded illustration 152309E 16345A — GASKET, WATER OUTLET PIPE (41 parts) 15071 — COOLER SET, ENGINE OIL (41 parts) 15723 — RING, O (41 parts) 15723 — RING, O (41 parts) 1603 — not listed in this catalogue 1105 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178T0019 — not listed in this catalogue 9012608053 — not listed in this catalogue 9012608053 — not listed in this catalogue 9155180816 — not listed in this catalogue 90105T0054 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178T0019 — not listed in this catalogue
152309E · 4 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
123 parts on this figure
