Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

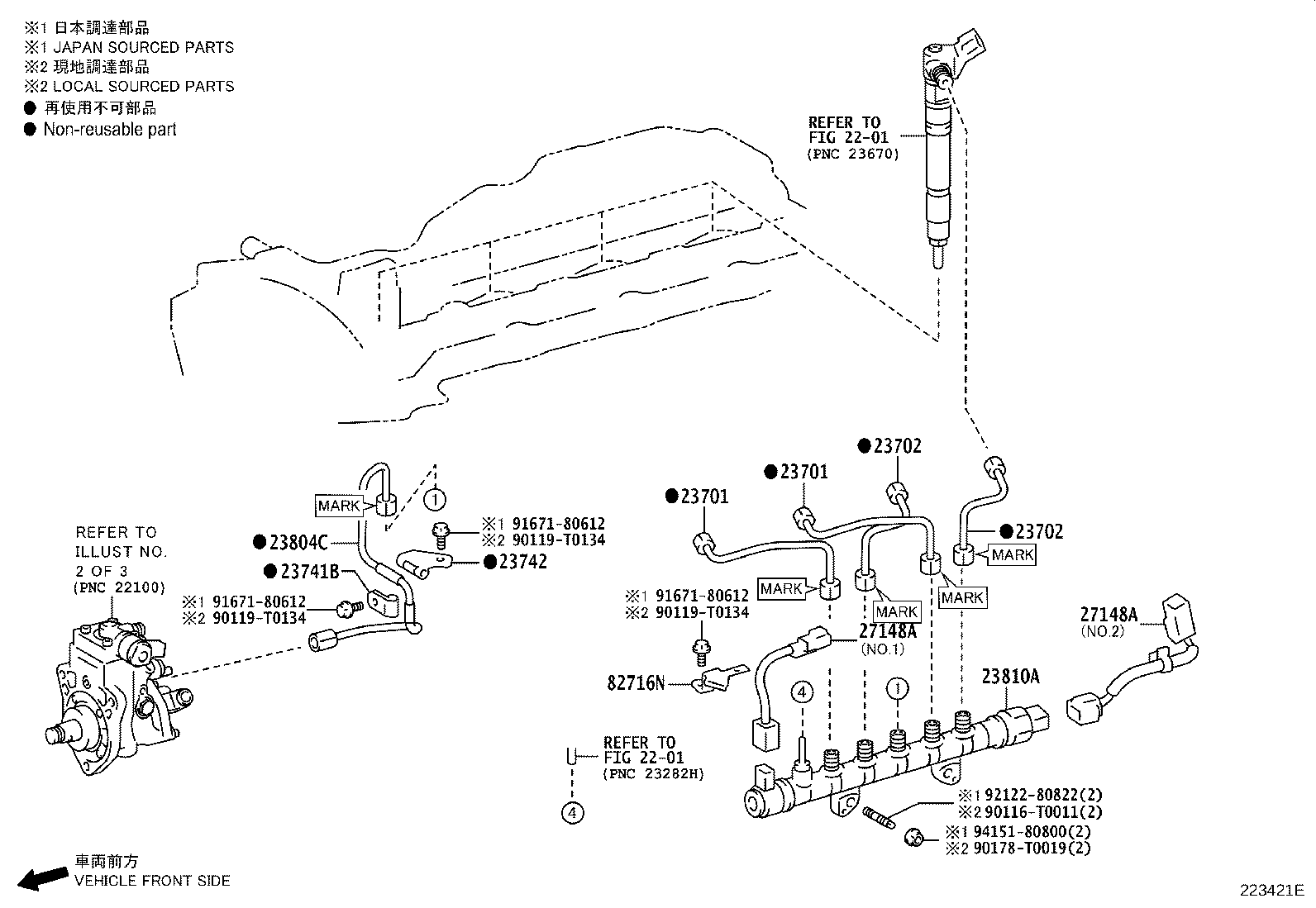

Exploded illustration 223421E 27148A — WIRE, CONNECTING (55 parts) 27148A — WIRE, CONNECTING (55 parts) 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 9167180612 — not listed in this catalogue 90119T0134 — not listed in this catalogue 9212280822 — not listed in this catalogue 90116T0011 — not listed in this catalogue 23810A — RAIL ASSY, COMMON (36 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (17 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (17 parts) 23741B — CLAMP, INJECTION PIPE (25 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (31 parts) 23804C — PIPE SUB-ASSY, FUEL INLET (41 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (17 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (17 parts) 2201 — not listed in this catalogue 2201 — not listed in this catalogue 9415180800 — not listed in this catalogue 90178T0019 — not listed in this catalogue 82716N — BRACKET, WIRING HARNESS CLAMP, NO.2 (41 parts)
223421E · 11 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
263 parts on this figure
Part number Description Fitment Price
23701 — Pipe Sub-assy, Injection, NO.1
23701-0E010 note Pipe Sub-assy, Injection, NO.1
2015-05 → 2018-12 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23701-0E011 note Pipe Sub-assy, Injection, NO.1
2018-12 → 2019-10 ended
1GDFTV UN122 ;2GDFTV GUN125 +26 —
23701-0E011 note Pipe Sub-assy, Injection, NO.1
2018-12 → 2019-11 ended
1GDFTV C GUN125 GUN123 +22 —
23701-0E012 note Pipe Sub-assy, Injection, NO.1
2019-11 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23701-0E020 note Pipe Sub-assy, Injection, NO.1
2018-07 → 2019-04 ended
2GDFTV GUN125 6FC L +3 —
23701-0E020 note Pipe Sub-assy, Injection, NO.1
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC 6FC +2 —
23701-0E020 note Pipe Sub-assy, Injection, NO.1
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC X +1 —
23701-0E021 note Pipe Sub-assy, Injection, NO.1
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23701-0E021 note Pipe Sub-assy, Injection, NO.1
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23701-0E021 note Pipe Sub-assy, Injection, NO.1
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
23701-0E021 note Pipe Sub-assy, Injection, NO.1
2019-04 → 2020-01 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23701-0E021 note Pipe Sub-assy, Injection, NO.1
2019-05 → 2020-01 ended
2GDFTV GUN125 TDC 6FC +7 —
23701-0E022 note Pipe Sub-assy, Injection, NO.1
2020-02 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
23701-0E022 note Pipe Sub-assy, Injection, NO.1
2020-02 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23701-0L010 Pipe Sub-assy, Injection, NO.1
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# DCR —
23701-0L020 Pipe Sub-assy, Injection, NO.1
2015-05 → 2017-07 ended
2KDFTV KUN125,135 HDCR —
23701-54140 Pipe Sub-assy, Injection, NO.1
2016-01 → 2020-09 ended
5LE LAN125 —
23702 — Pipe Sub-assy, Injection, NO.2
23702-0E010 note Pipe Sub-assy, Injection, NO.2
2015-05 → 2018-12 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23702-0E011 note Pipe Sub-assy, Injection, NO.2
2018-12 → 2019-10 ended
1GDFTV UN122 ;2GDFTV GUN125 +26 —
23702-0E011 note Pipe Sub-assy, Injection, NO.2
2018-12 → 2019-11 ended
1GDFTV C GUN125 GUN123 +22 —
23702-0E012 note Pipe Sub-assy, Injection, NO.2
2019-11 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23702-0E020 note Pipe Sub-assy, Injection, NO.2
2018-07 → 2019-04 ended
2GDFTV GUN125 6FC L +3 —
23702-0E020 note Pipe Sub-assy, Injection, NO.2
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC 6FC +2 —
23702-0E020 note Pipe Sub-assy, Injection, NO.2
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC X +1 —
23702-0E021 note Pipe Sub-assy, Injection, NO.2
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23702-0E021 note Pipe Sub-assy, Injection, NO.2
2019-05 → 2020-01 ended
2GDFTV GUN125 TDC 6FC +7 —
23702-0E021 note Pipe Sub-assy, Injection, NO.2
2019-04 → 2020-01 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23702-0E021 note Pipe Sub-assy, Injection, NO.2
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23702-0E021 note Pipe Sub-assy, Injection, NO.2
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
23702-0E022 note Pipe Sub-assy, Injection, NO.2
2020-02 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23702-0E022 note Pipe Sub-assy, Injection, NO.2
2020-02 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
23702-0L010 Pipe Sub-assy, Injection, NO.2
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# DCR —
23702-0L020 Pipe Sub-assy, Injection, NO.2
2015-05 → 2017-07 ended
2KDFTV KUN125,135 HDCR —
23702-54140 Pipe Sub-assy, Injection, NO.2
2016-01 → 2020-09 ended
5LE LAN125 —
23741B — Clamp, Injection Pipe
23741-0E010 note Clamp, Injection Pipe
2015-05 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23741-0E010 note Clamp, Injection Pipe
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23741-30010 note Clamp, Injection Pipe
2018-09 → 2020-10 ended
2GDFTV GUN125 ASC LA —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
23741-30010 note Clamp, Injection Pipe
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
23741-30010 note Clamp, Injection Pipe
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
23741-30010 note Clamp, Injection Pipe
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2020-10 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
23741-30010 note Clamp, Injection Pipe
2018-06 → 2020-10 ended
2GDFTV GUN125 GCC —
23741-30010 note Clamp, Injection Pipe
2018-09 → 2020-10 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
23741-30010 note Clamp, Injection Pipe
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23741-30010 note Clamp, Injection Pipe
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
23741-30010 note Clamp, Injection Pipe
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
23741-30010 note Clamp, Injection Pipe
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
23741-56010 Clamp, Injection Pipe
2016-01 → 2020-09 ended
5LE LAN125 —
23742 — Clamp, Injection Pipe, NO.2
23742-0E010 note Clamp, Injection Pipe, NO.2
2015-05 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23742-0E020 note Clamp, Injection Pipe, NO.2
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23742-0E020 note Clamp, Injection Pipe, NO.2
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23742-0E020 note Clamp, Injection Pipe, NO.2
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
23742-0E020 note Clamp, Injection Pipe, NO.2
2019-05 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
23742-0E020 note Clamp, Injection Pipe, NO.2
2018-07 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23742-0L090 note Clamp, Injection Pipe, NO.2
2015-05 → 2017-07 ended
2KDFTV KUN125,135 HDCR —
23742-0L090 note Clamp, Injection Pipe, NO.2
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# DCR —
23742-0L110 note Clamp, Injection Pipe, NO.2
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
23742-11010 note Clamp, Injection Pipe, NO.2
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2020-10 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
23742-11010 note Clamp, Injection Pipe, NO.2
2018-06 → 2020-10 ended
2GDFTV GUN125 GCC —
23742-11010 note Clamp, Injection Pipe, NO.2
2018-09 → 2020-10 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
23742-11010 note Clamp, Injection Pipe, NO.2
2018-09 → 2020-10 ended
2GDFTV GUN125 ASC LA —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23742-11010 note Clamp, Injection Pipe, NO.2
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23742-11010 note Clamp, Injection Pipe, NO.2
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
23742-11010 note Clamp, Injection Pipe, NO.2
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
23804C — Pipe Sub-assy, Fuel Inlet
23804-0E010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-12 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23804-0E011 note Pipe Sub-assy, Fuel Inlet
2018-12 → 2019-11 ended
1GDFTV C GUN125 GUN123 +22 —
23804-0E011 note Pipe Sub-assy, Fuel Inlet
2018-12 → 2019-10 ended
1GDFTV UN122 ;2GDFTV GUN125 +26 —
23804-0E012 note Pipe Sub-assy, Fuel Inlet
2019-11 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
23804-0E030 note Pipe Sub-assy, Fuel Inlet
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC X +1 —
23804-0E030 note Pipe Sub-assy, Fuel Inlet
2018-07 → 2019-04 ended
2GDFTV GUN125 TDC 6FC +2 —
23804-0E030 note Pipe Sub-assy, Fuel Inlet
2018-07 → 2019-04 ended
2GDFTV GUN125 6FC L +3 —
23804-0E031 note Pipe Sub-assy, Fuel Inlet
2019-05 → 2020-01 ended
2GDFTV GUN125 TDC 6FC +7 —
23804-0E031 note Pipe Sub-assy, Fuel Inlet
2019-04 → 2020-01 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23804-0E031 note Pipe Sub-assy, Fuel Inlet
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
23804-0E031 note Pipe Sub-assy, Fuel Inlet
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23804-0E031 note Pipe Sub-assy, Fuel Inlet
2019-04 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23804-0E032 note Pipe Sub-assy, Fuel Inlet
2020-02 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
23804-0E032 note Pipe Sub-assy, Fuel Inlet
2020-02 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23804-0L010 Pipe Sub-assy, Fuel Inlet
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2018-09 → 2019-02 ended
2GDFTV GUN125 ASC LA —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2018-09 → 2019-02 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2019-02 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2018-06 → 2019-02 ended
2GDFTV GUN125 GCC —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
23804-11010 note Pipe Sub-assy, Fuel Inlet
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
23804-11011 note Pipe Sub-assy, Fuel Inlet
2019-02 → 2019-09 ended
2GDFTV GUN125 ASC LA —
23804-11011 note Pipe Sub-assy, Fuel Inlet
2019-02 → 2019-09 ended
2GDFTV 2GDFTV GUN125 GUN120,125 +9 —
23804-11012 note Pipe Sub-assy, Fuel Inlet
2019-10 → 2020-10 ended
2GDFTV 2GDFTV GUN125 GUN120,125 +9 —
23804-11012 note Pipe Sub-assy, Fuel Inlet
2019-10 → 2020-10 ended
2GDFTV GUN125 ASC LA —
23810A — Rail Assy, Common
23810-0E010 note Rail Assy, Common
2015-05 → 2019-05 ended
2GDFTV TV C;1GDFTV DC +65 —
23810-0E010 note Rail Assy, Common
2015-05 → 2019-06 ended
2GDFTV 6FC UN125,135 RL,IDN);2GDFTV +49 —
23810-0E011 note Rail Assy, Common
2019-06 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# DCR,HDCR —
23810-0E020 note Rail Assy, Common
2015-11 → 2020-10 ended
1GDFTV GUN126,136 IART —
23810-0E030 note Rail Assy, Common
2019-05 → 2019-07 ended
2GDFTV GUN125 TDC 6FC +7 —
23810-0E030 note Rail Assy, Common
2018-07 → 2019-07 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23810-0E030 note Rail Assy, Common
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
23810-0E030 note Rail Assy, Common
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23810-0E030 note Rail Assy, Common
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
23810-0E031 note Rail Assy, Common
2019-08 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
23810-0E031 note Rail Assy, Common
2019-08 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
23810-0L030 Rail Assy, Common
2015-05 → 2020-06 ended
1KDFTV,2KDFTV KUN112,12#,13# —
23810-11030 note Rail Assy, Common
2018-06 → 2019-01 ended
2GDFTV GUN125 GCC —
23810-11030 note Rail Assy, Common
2015-05 → 2019-01 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
23810-11030 note Rail Assy, Common
2018-09 → 2019-01 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
23810-11030 note Rail Assy, Common
2018-09 → 2019-01 ended
2GDFTV GUN125 ASC LA —
23810-11030 note Rail Assy, Common
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
23810-11030 note Rail Assy, Common
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
23810-11030 note Rail Assy, Common
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
23810-11030 note Rail Assy, Common
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
23810-11030 note Rail Assy, Common
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23810-11030 note Rail Assy, Common
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
23810-11030 note Rail Assy, Common
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
23810-11030 note Rail Assy, Common
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
23810-11030 note Rail Assy, Common
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
23810-11030 note Rail Assy, Common
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
23810-11030 note Rail Assy, Common
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
23810-11030 note Rail Assy, Common
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
23810-11031 note Rail Assy, Common
2019-02 → 2020-10 ended
2GDFTV GUN125 ASC LA —
23810-11031 note Rail Assy, Common
2019-02 → 2020-10 ended
2GDFTV 2GDFTV GUN125 GUN120,125 +9 —
27148A — Wire, Connecting
27148-0E020 note Wire, Connecting
2015-05 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# DCR,HDCR —
27148-0E030 note Wire, Connecting
2015-05 → 2021-05 ended
1GDFTV,2GDFTV GUN112,12#,13# —
27148-0E050 note Wire, Connecting
2019-05 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
27148-0E050 note Wire, Connecting
2018-07 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
27148-0E050 note Wire, Connecting
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
27148-0E050 note Wire, Connecting
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
27148-0E050 note Wire, Connecting
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
27148-0E060 note Wire, Connecting
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC 6FC +2 —
27148-0E060 note Wire, Connecting
2018-07 → 2019-05 ended
2GDFTV GUN125 TDC X +1 —
27148-0E060 note Wire, Connecting
2018-07 → 2020-05 ended
2GDFTV GUN125 TSC 6FC;1GDFTV,2GDFTV +2 —
27148-0E060 note Wire, Connecting
2019-05 → 2020-05 ended
2GDFTV GUN125 TDC 6FC +7 —
27148-11020 note Wire, Connecting
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
27148-11020 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
27148-11020 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
27148-11020 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
27148-11020 note Wire, Connecting
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
27148-11020 note Wire, Connecting
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
27148-11020 note Wire, Connecting
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
27148-11020 note Wire, Connecting
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
27148-11020 note Wire, Connecting
2015-05 → 2020-10 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
27148-11020 note Wire, Connecting
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
27148-11020 note Wire, Connecting
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
27148-11020 note Wire, Connecting
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
27148-11020 note Wire, Connecting
2018-06 → 2020-10 ended
2GDFTV GUN125 GCC —
27148-11020 note Wire, Connecting
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
27148-11020 note Wire, Connecting
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
27148-11020 note Wire, Connecting
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
27148-11020 note Wire, Connecting
2018-09 → 2020-10 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
27148-11020 note Wire, Connecting
2018-09 → 2020-10 ended
2GDFTV GUN125 ASC LA —
27148-11020 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
27148-11020 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
27148-11020 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
27148-11020 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
27148-11030 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 GCC —
27148-11030 note Wire, Connecting
2015-05 → 2020-10 ended
2GDFTV 5 C,TSC) GUN120;2GDFTV +22 —
27148-11030 note Wire, Connecting
2015-05 → 2017-08 ended
2GDFTV GUN135 GEN —
27148-11030 note Wire, Connecting
2016-08 → 2017-08 ended
2GDFTV GUN125 M GEN —
27148-11030 note Wire, Connecting
2018-09 → 2020-10 ended
2GDFTV GUN125 ASC LA —
27148-11030 note Wire, Connecting
2018-09 → 2020-10 ended
2GDFTV GUN125 PH;2GDFTV GUN125 +5 —
27148-11030 note Wire, Connecting
2018-06 → 2020-10 ended
2GDFTV GUN125 GCC —
27148-11030 note Wire, Connecting
2017-10 → 2018-09 ended
1GDFTV GUN126 ADC 6F +2 —
27148-11030 note Wire, Connecting
2018-06 → 2018-09 ended
2GDFTV GUN125 RHD TDC +3 —
27148-11030 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
27148-11030 note Wire, Connecting
2015-05 → 2018-06 ended
2GDFTV GUN125 TDC (M,S) +6 —
27148-11030 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
27148-11030 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
27148-11030 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TSC GCC;2GDFTV +4 —
27148-11030 note Wire, Connecting
2017-08 → 2018-06 ended
2GDFTV GUN125 TDC 6F +2 —
27148-11030 note Wire, Connecting
2015-11 → 2018-08 ended
1GDFTV GUN126,136 6F HDCR +1 —
27148-11030 note Wire, Connecting
2015-05 → 2018-09 ended
2GDFTV 2GDFTV D GUN125 +27 —
27148-11030 note Wire, Connecting
2015-05 → 2018-09 ended
1GDFTV GUN126 6F M +5 —
27148-11030 note Wire, Connecting
2017-08 → 2018-09 ended
2GDFTV GUN125 LHD TDC +2 —
27148-11030 note Wire, Connecting
2017-08 → 2018-09 ended
1GDFTV .GUN126 GUN136 TDC +11 —
27148-11030 note Wire, Connecting
2017-08 → 2018-09 ended
2GDFTV GEN;2GDFTV GUN125 GUN125 +15 —
27148-11030 note Wire, Connecting
2017-10 → 2018-09 ended
2GDFTV GUN125 LHD SSC +5 —
82716N — Bracket, Wiring Harness Clamp, NO.2
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2016-10 → 2018-10 ended
GUN125,135 ADC 6F LA —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2021-05 ended
GUN112,12#,13# DCR,HDCR —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2018-10 ended
GUN126 ADC 6FC M +1 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2018-10 ended
GUN125,135 ADC 6F LA;GUN126 +4 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-08 → 2018-10 ended
GUN125,135 ADC 6F LA;GUN126 +4 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-07 → 2019-05 ended
GUN125 TDC 6FC L +1 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-07 → 2019-05 ended
GUN125 TDC 6FC L +1 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-07 → 2019-05 ended
GUN125 TDC X GEN —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2019-05 → 2020-05 ended
GUN125 TDC 6FC L +5 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2015-11 → 2020-10 ended
GUN136 .6FC IV3;GUN126 M +7 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2016-10 → 2020-10 ended
GUN126 ADC 6F (M,S) +1 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2020-10 ended
GUN125 ASC LA;GUN125,126,135 HDCR +5 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2020-10 ended
GUN126 ADC 6F X —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2020-10 ended
GUN126 ADC X;GUN135 ASC +7 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-07 → 2020-10 ended
GUN125 TSC 6FC;GUN135 6FC +4 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-10 → 2020-10 ended
GUN125,135 ADC LA;GUN126 ADC +3 —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2018-10 → 2020-10 ended
GUN126 ADC 6F X —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2016-10 → 2017-10 ended
GUN125,126,13# 6F HDCR BZAGT —
82715-0KD00 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2018-08 ended
GUN125,135 ADC LA;GUN126 ADC +3 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-06 ended
GUN125 TSC GCC;GUN125 6FC +2 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2017-08 ended
GUN135 GEN —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2016-08 → 2017-08 ended
GUN125 M GEN —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2018-09 → 2020-10 ended
GUN125 ASC LA —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2018-09 → 2020-10 ended
GUN125 PH;GUN125 6FC LA;GUN135 +2 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2018-06 ended
GUN125 TDC (M,S) GCC;GUN125 +4 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2018-06 → 2020-10 ended
GUN125 GCC —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2018-06 ended
GUN125 GCC —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2018-06 ended
GUN125 TDC (M,S) GCC;GUN125 +4 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-06 ended
GUN125 TSC GCC;GUN125 6FC +2 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-06 ended
GUN125 TDC 6F (L,M) +1 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2018-09 ended
GUN125 LHD SSC S;GUN125 +3 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2020-10 ended
GUN120;GUN135 (ADC,TDC,TXT) RL,LA,TH) 6F +14 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-06 ended
GUN125 TDC 6F (L,M) +1 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-11 → 2018-08 ended
GUN126,136 6F HDCR BZAGT —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2018-09 ended
GUN125 N135 RL,BZAGT) ASC +20 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2015-05 → 2018-09 ended
GUN126 6F M LA;GUN126 +3 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-09 ended
GUN125 LHD TDC M +1 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-09 ended
GUN136 LA;GUN126 6F X +7 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-08 → 2018-09 ended
GUN125 (H,M) TXT GEN +11 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2018-06 → 2018-09 ended
GUN125 RHD TDC 6F +2 —
82715-6AC20 note Bracket, Wiring Harness Clamp, NO.2
2017-10 → 2018-09 ended
GUN126 ADC 6F (M,S) +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
