Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

15 part groups · 11 illustrations

Illustrations

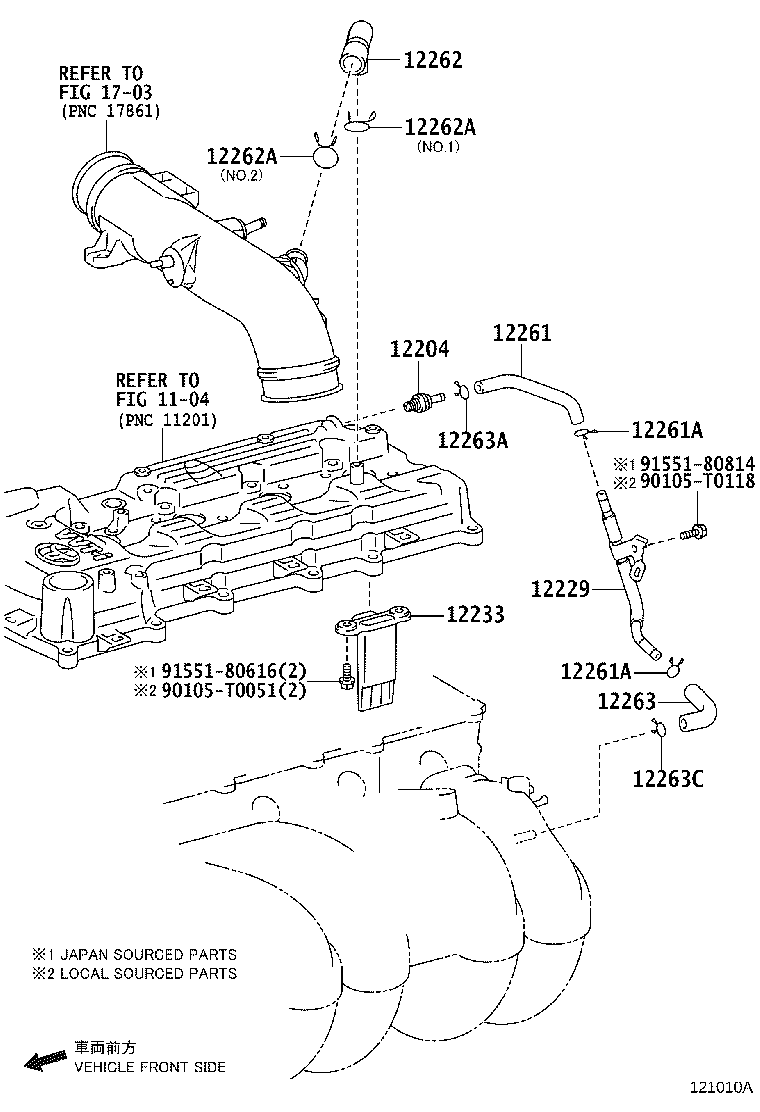

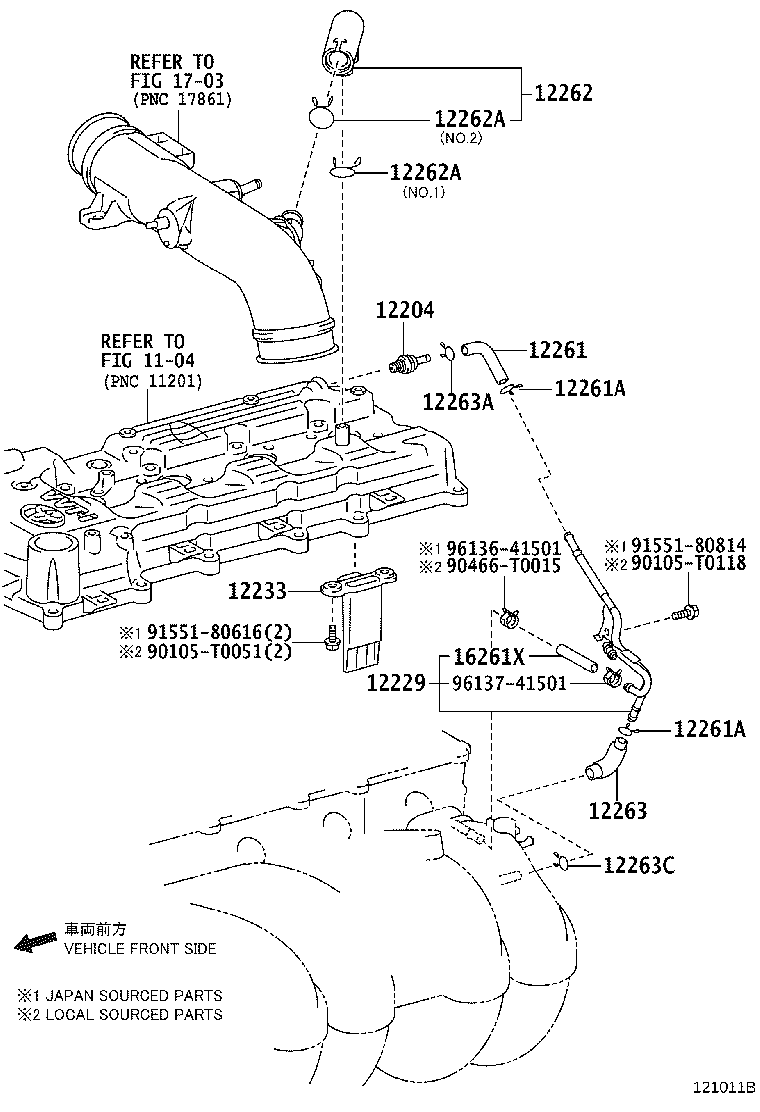

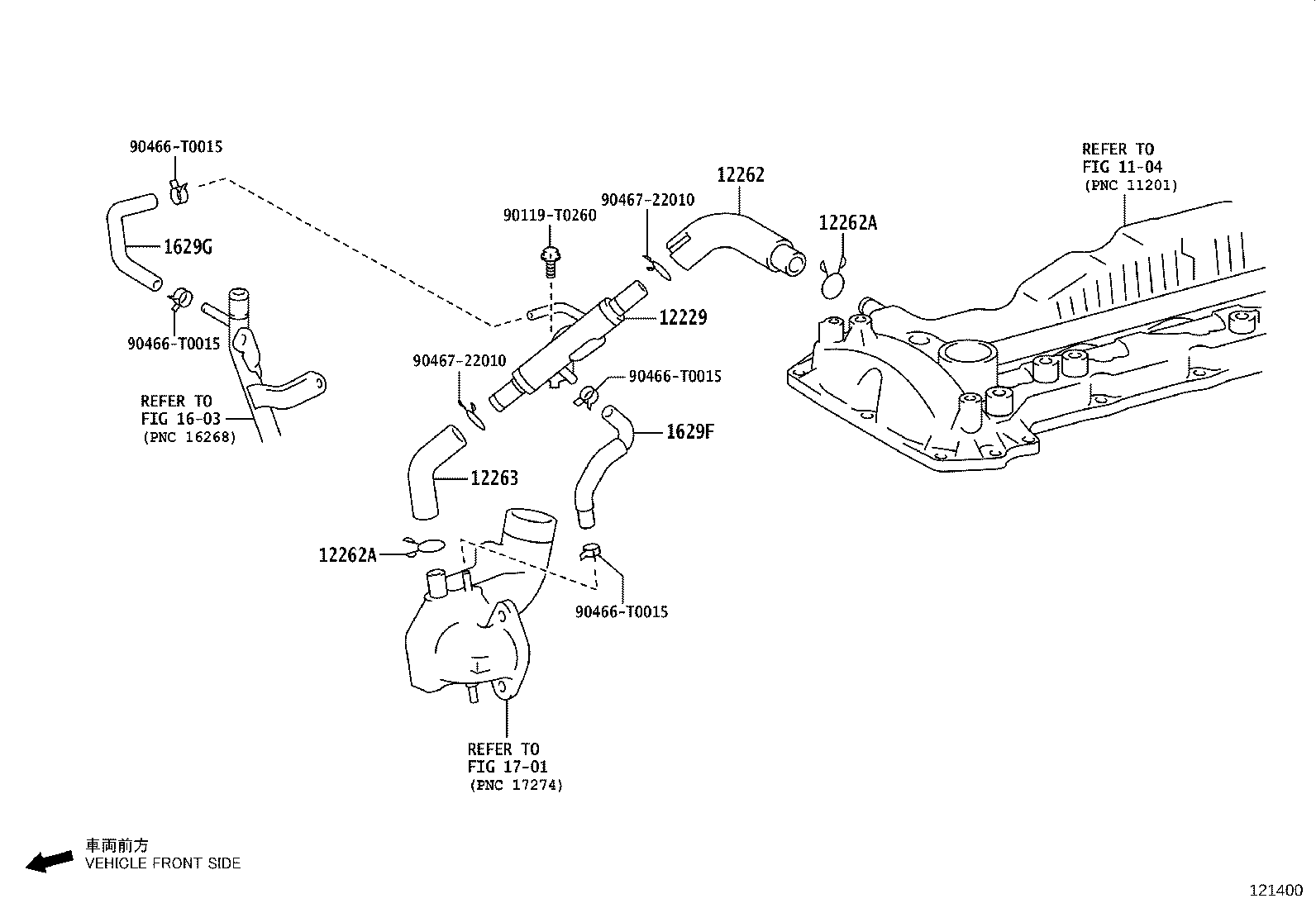

Figure 121399 121399 2015-05 → — Figure 121400 121400 2015-05 → — Figure 121400 121400 2015-05 → — Figure 121400 121400 2015-05 → — Figure 121400 121400 2015-05 → — Figure 121007A 121007A 2015-05 → — Figure 121003A 121003A 2015-05 → — Figure 121004A 121004A 2015-05 → — Figure 121062A 121062A 2016-01 → — Figure 121010A 121010A 2015-05 → — Figure 121011B 121011B 2015-05 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12233 Connector, Ventilation NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263C Clip(FOR VENTILATION HOSE)
12278 Insulator, Ventilation Hose Heat
16261X Hose, Water
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
