Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

18 part groups · 8 illustrations

Illustrations

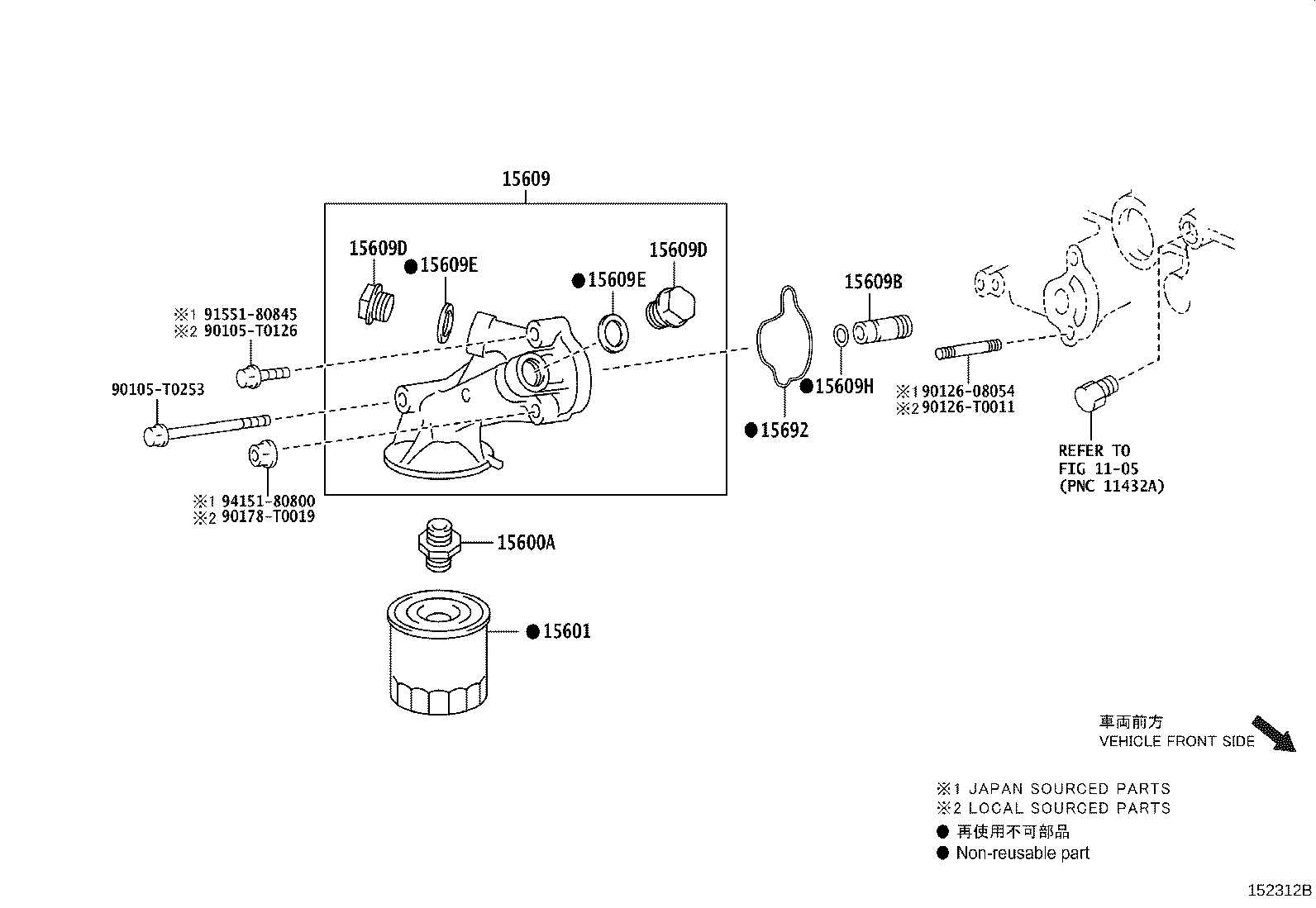

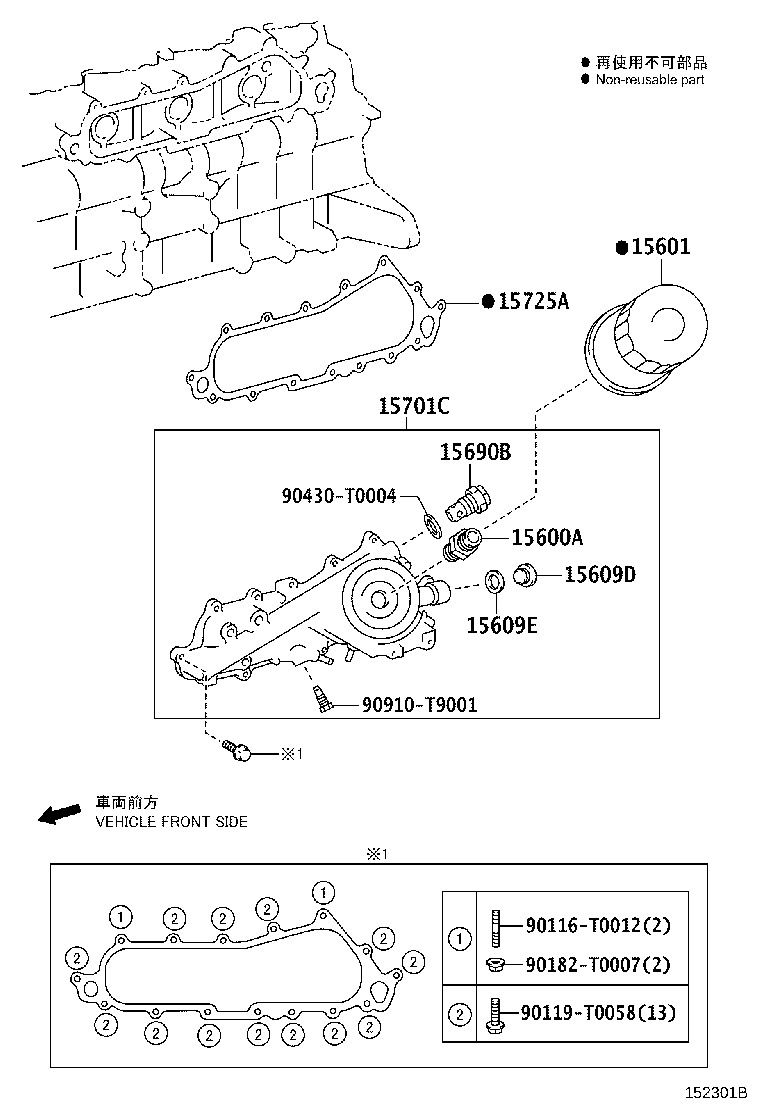

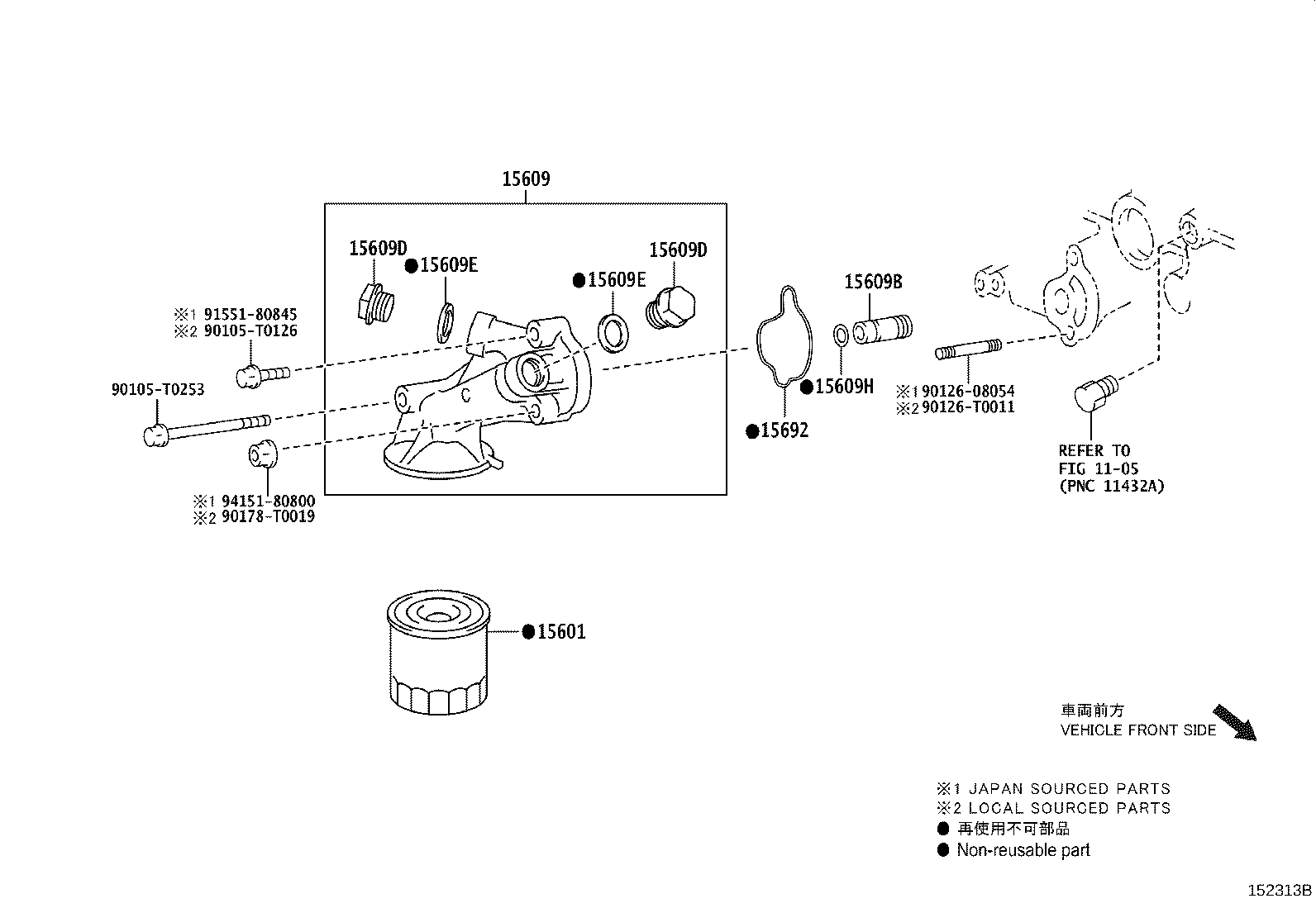

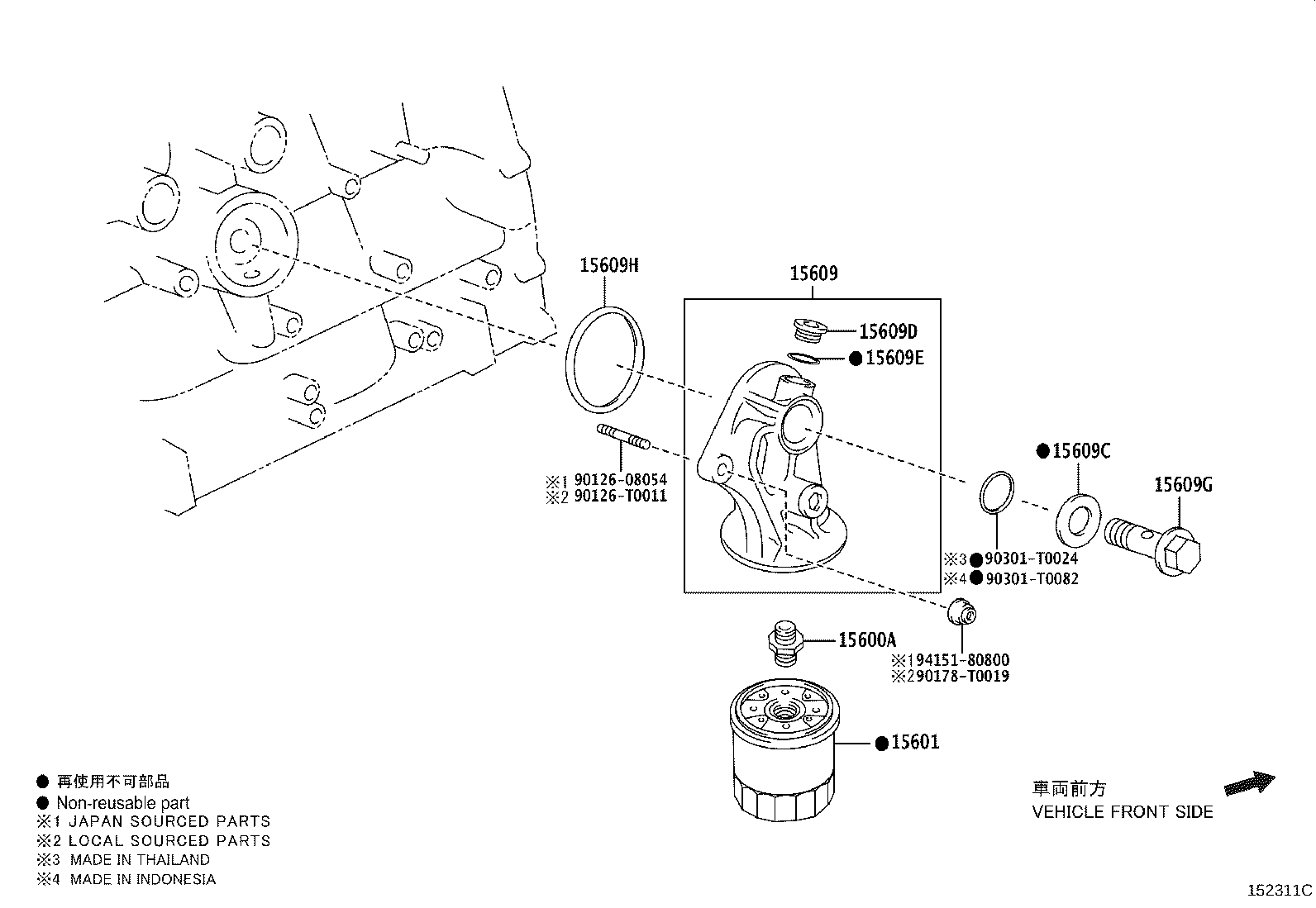

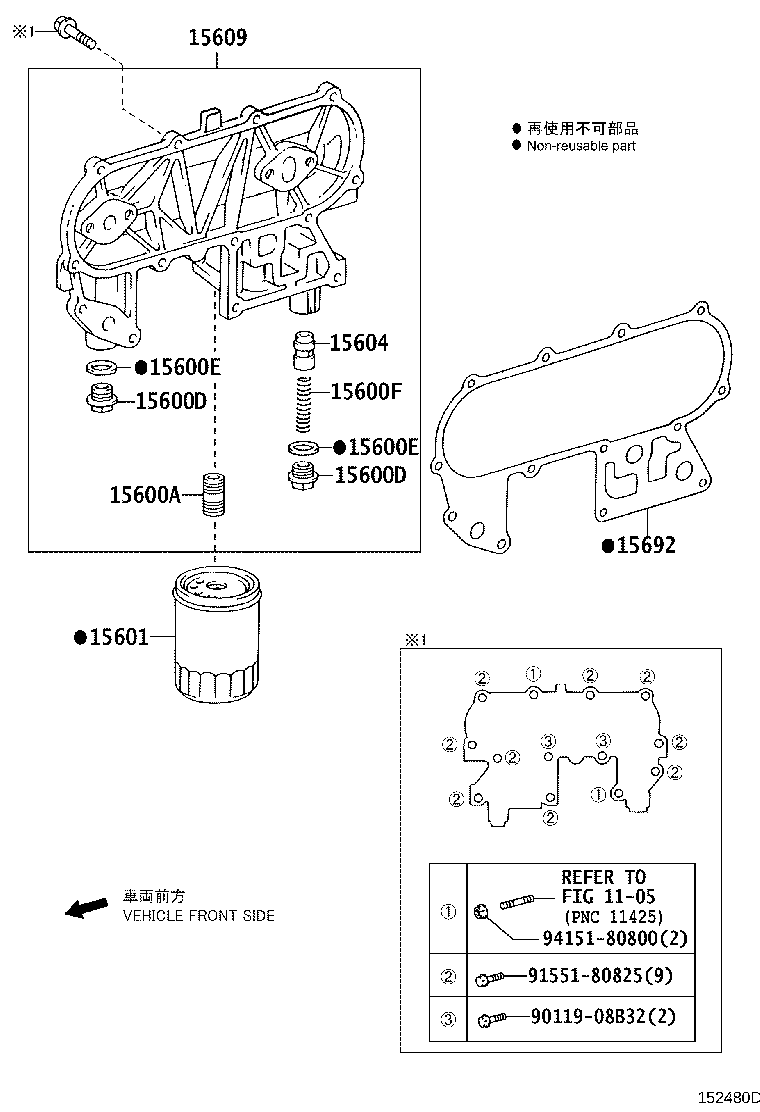

Figure 152305C 152305C 2015-05 → — Figure 152307D 152307D 2015-05 → — Figure 152301B 152301B 2015-05 → — Figure 152480D 152480D 2016-01 → — Figure 152311C 152311C 2015-05 → — Figure 152312B 152312B 2015-05 → — Figure 152312B 152312B 2015-05 → — Figure 152313B 152313B 2015-05 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15609H Ring, O(FOR OIL FILTER BRACKET)
15677 Bracket, Oil Filter
15690B Valve Assy, Oil Cooler Relief
15692 Gasket, Oil Filter Bracket
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
