Toyota Hilux
2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States
Supported model
Data version 2022-11
Manifold
73 part groups · 18 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 12216C | Plate, Oil Baffle |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15407F | Clamp OR Clip, Oil Hose |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |

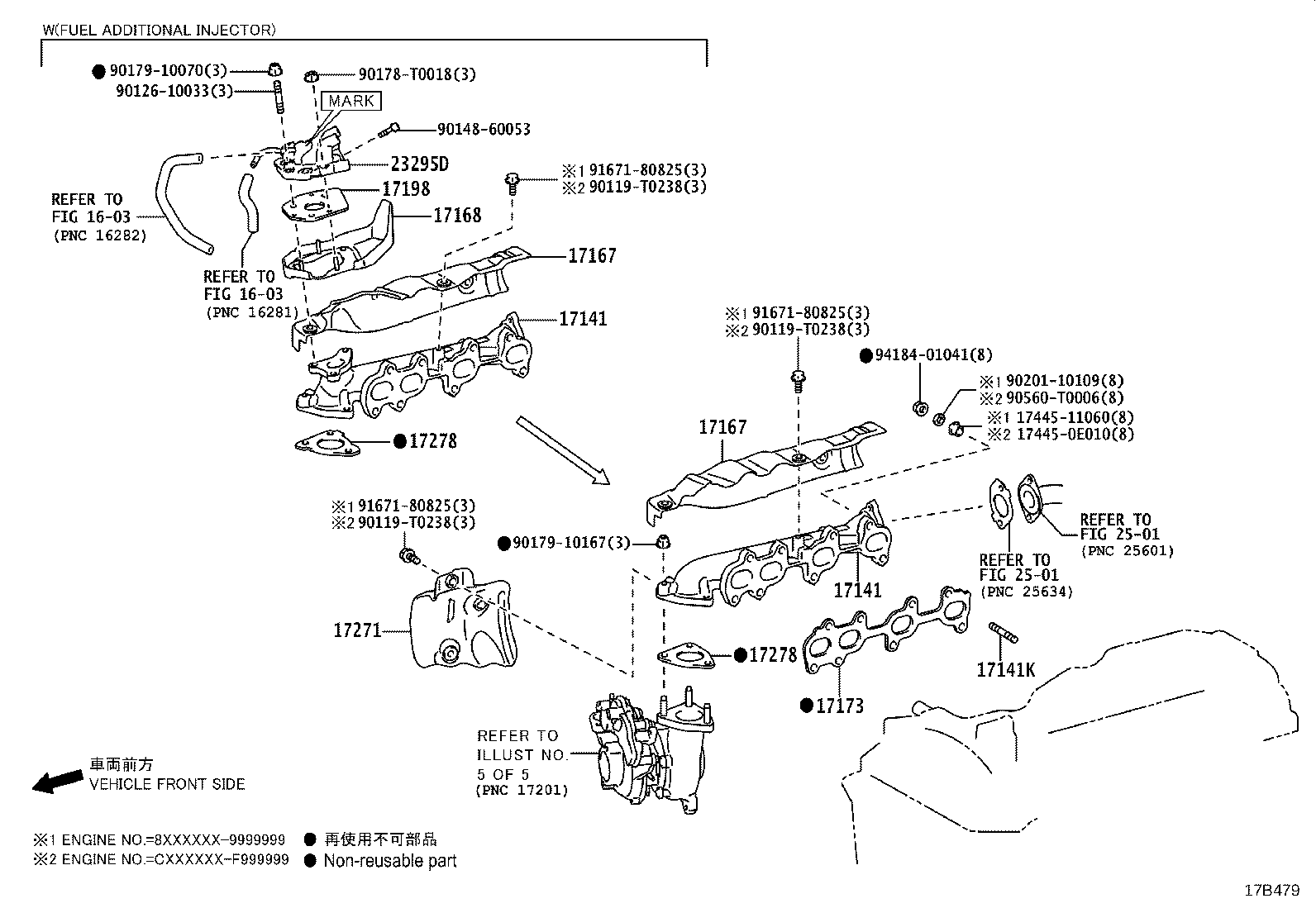

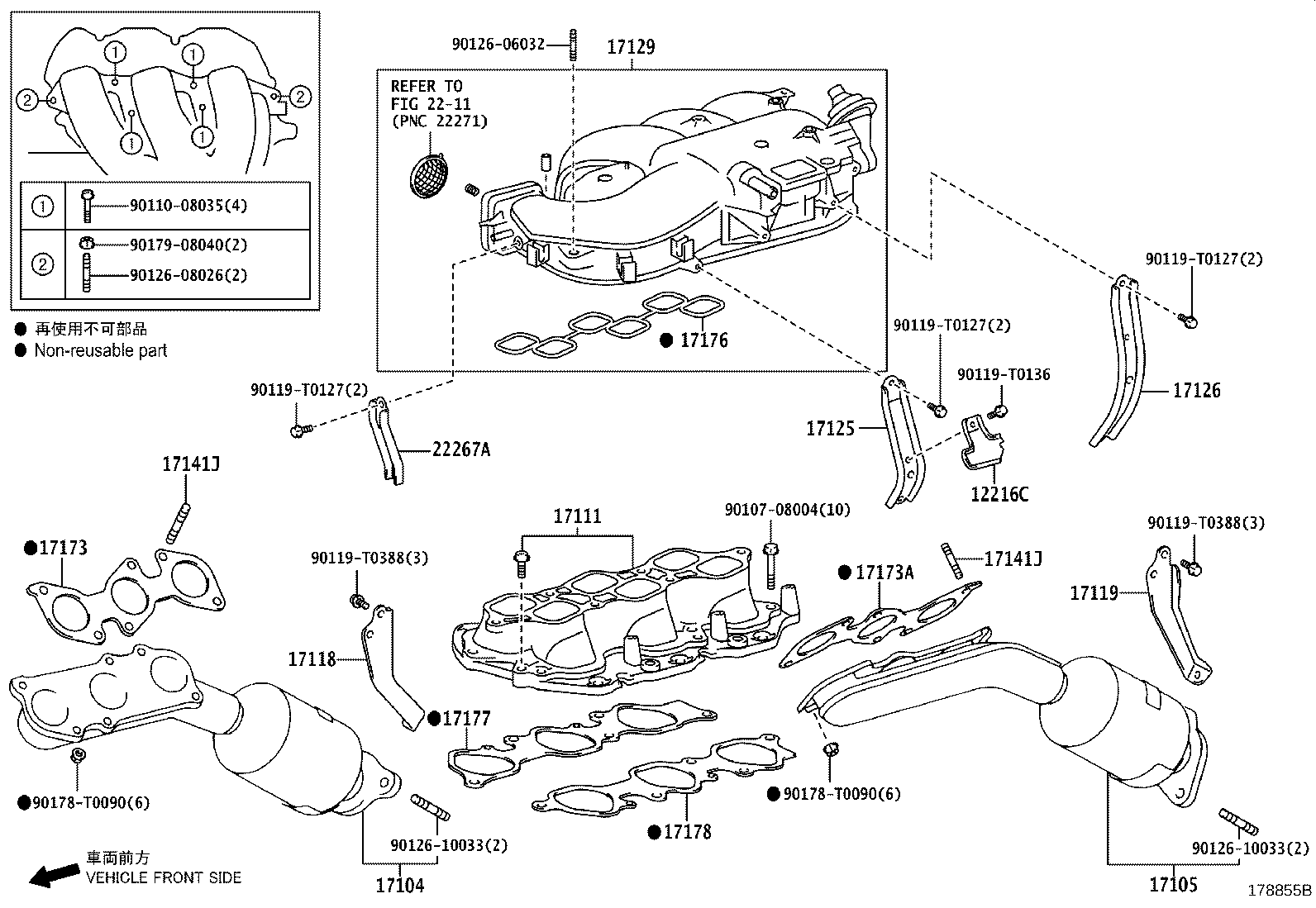

| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17105 | Manifold Sub-assy, Exhaust, LH |

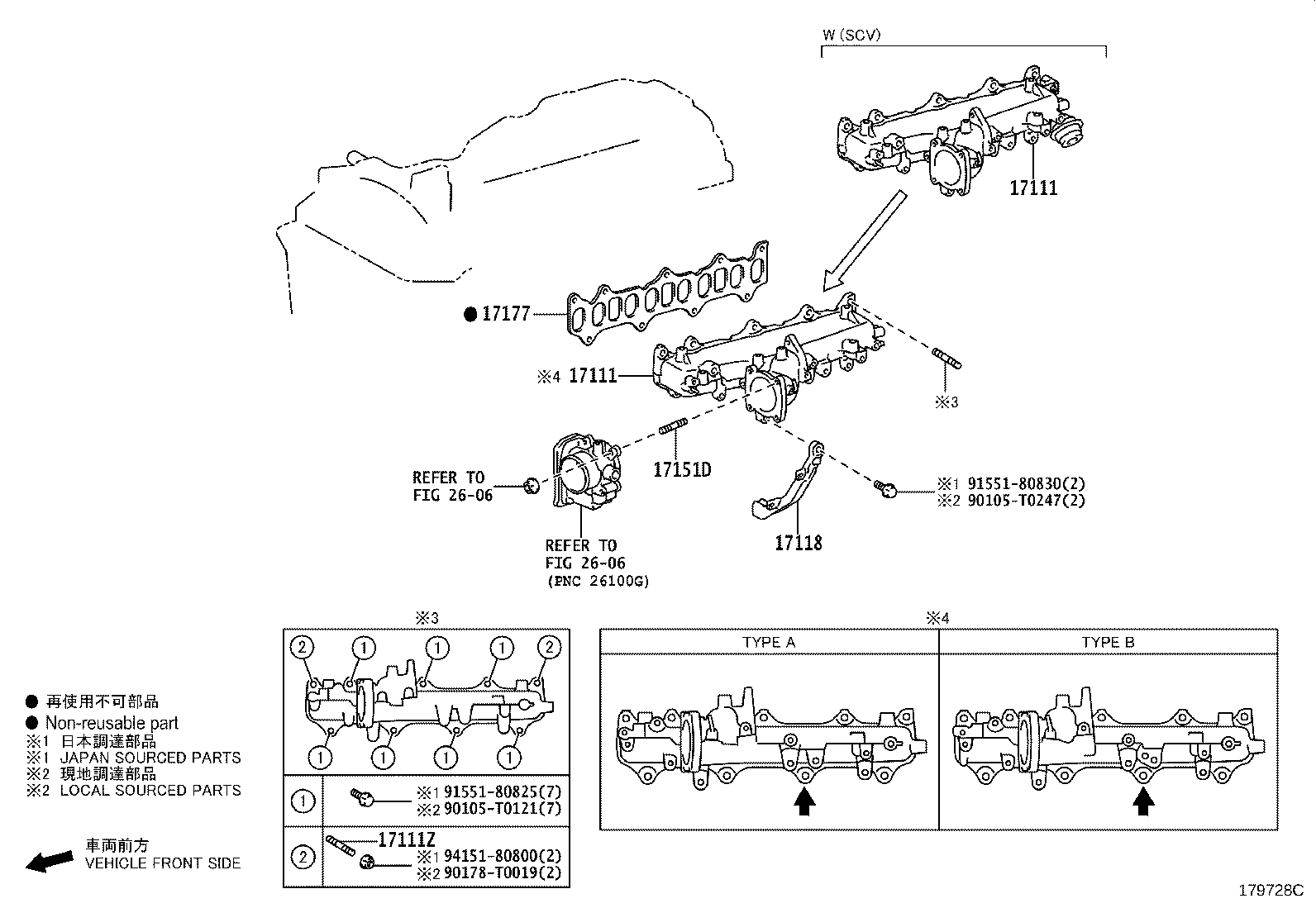

| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17118 | Stay, Manifold |
| 17118B | Insulator, Intake Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17130 | Pipe, Intake |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17136 | Insulator, Intake Manifold, NO.2 |
| 17139 | Stay, Manifold, NO.2 |

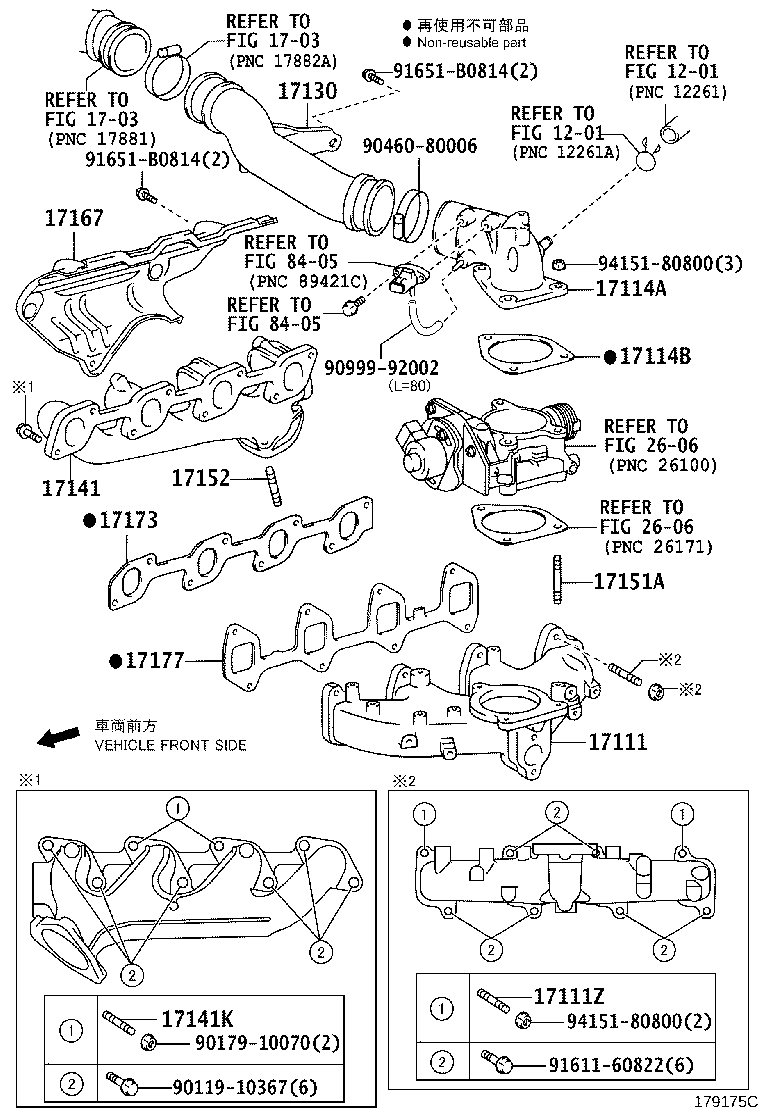

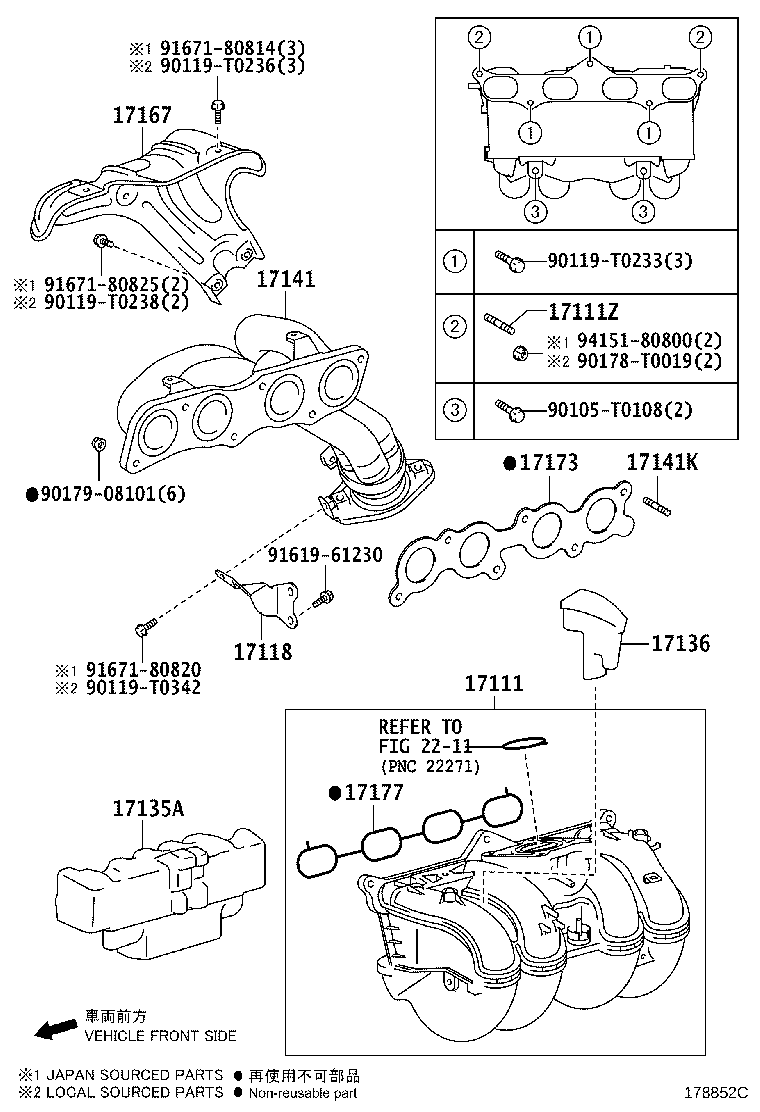

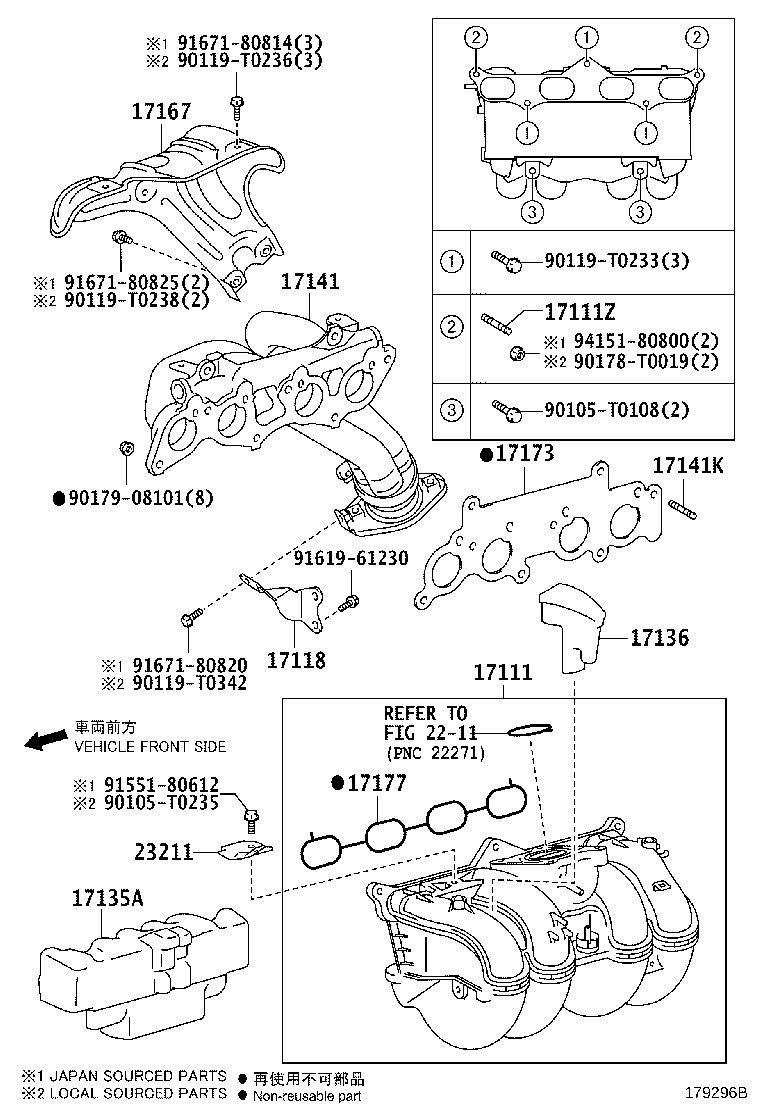

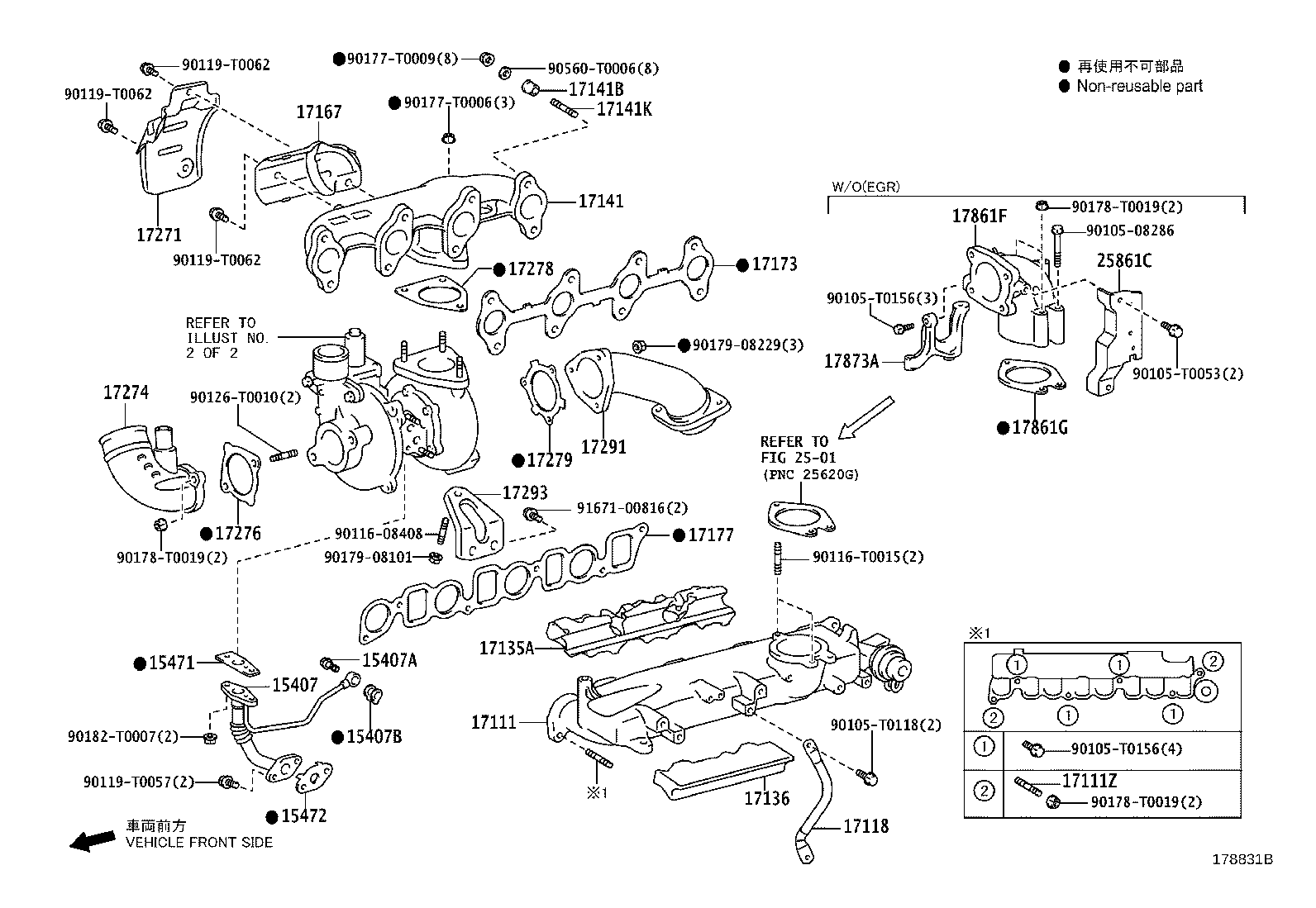

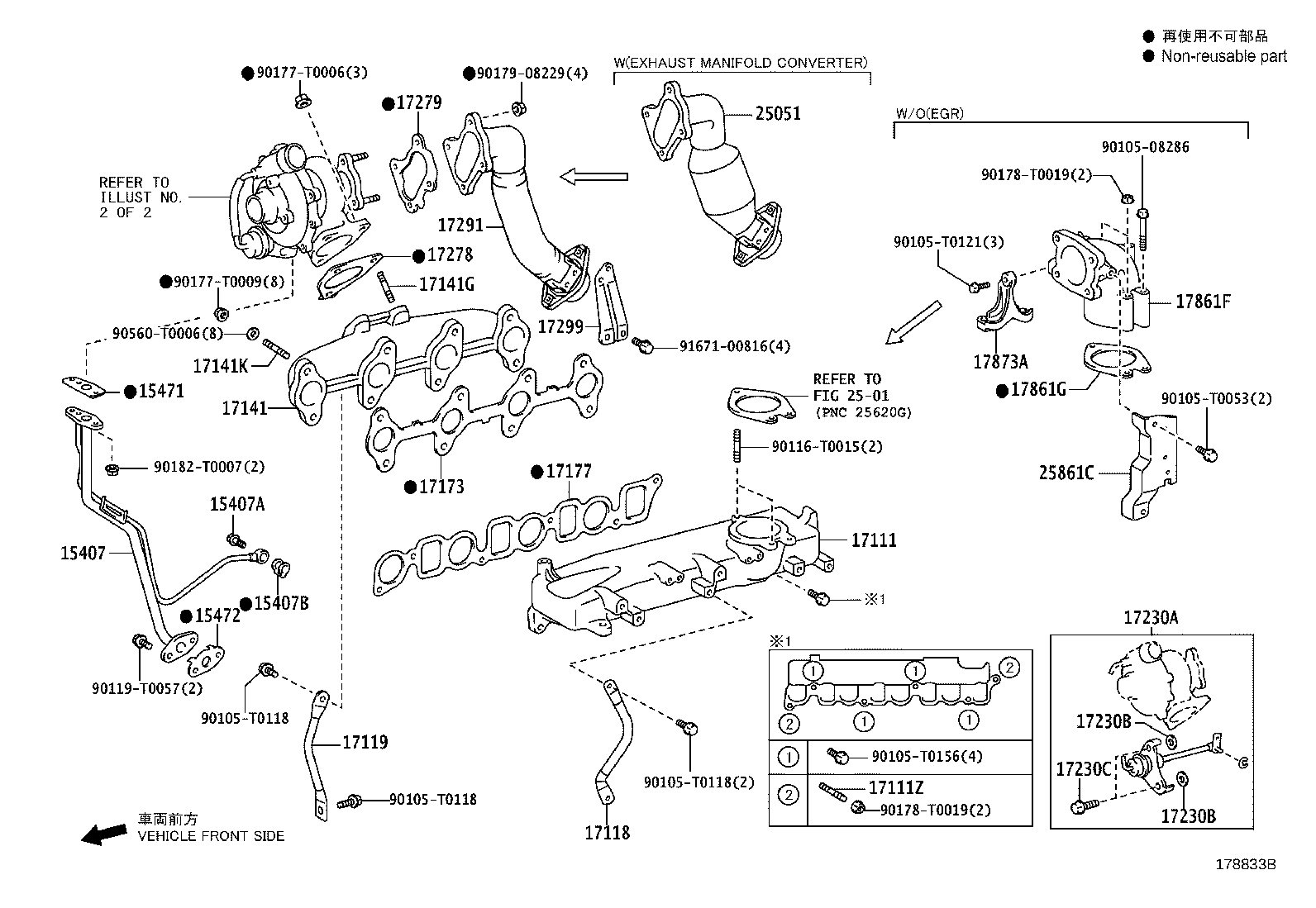

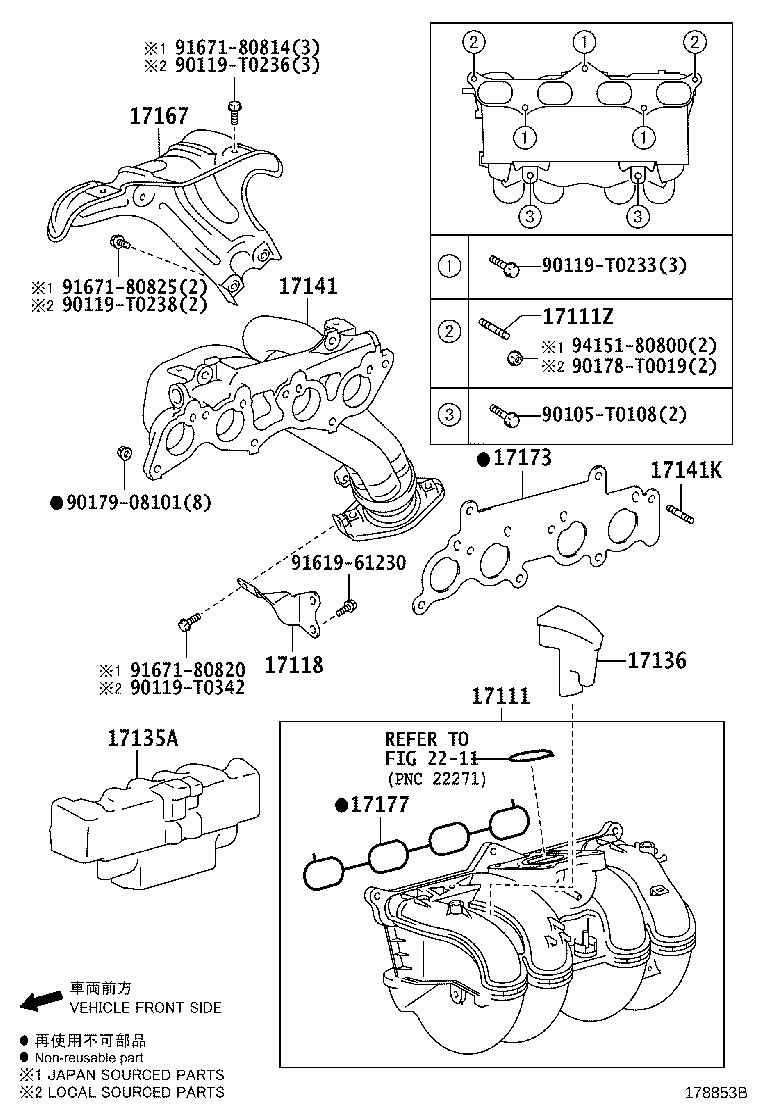

| 17141 | Manifold, Exhaust |
| 17141B | Collar(FOR EXHAUST MANIFOLD) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17151D | Bolt, Stud(MANIFOLD TO THROTTLE BODY) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17198 | Gasket, Exhaust Manifold, NO.2 |

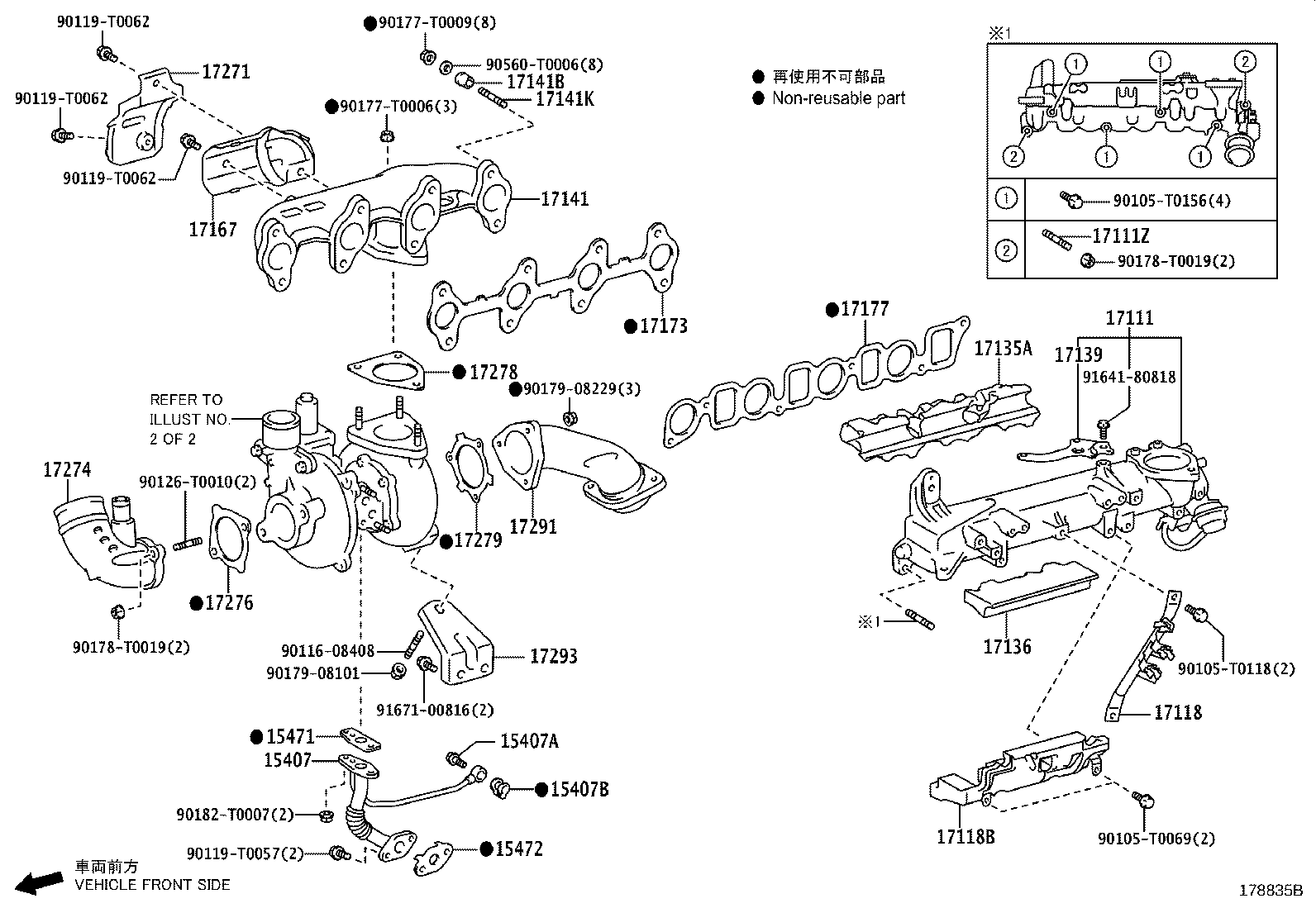

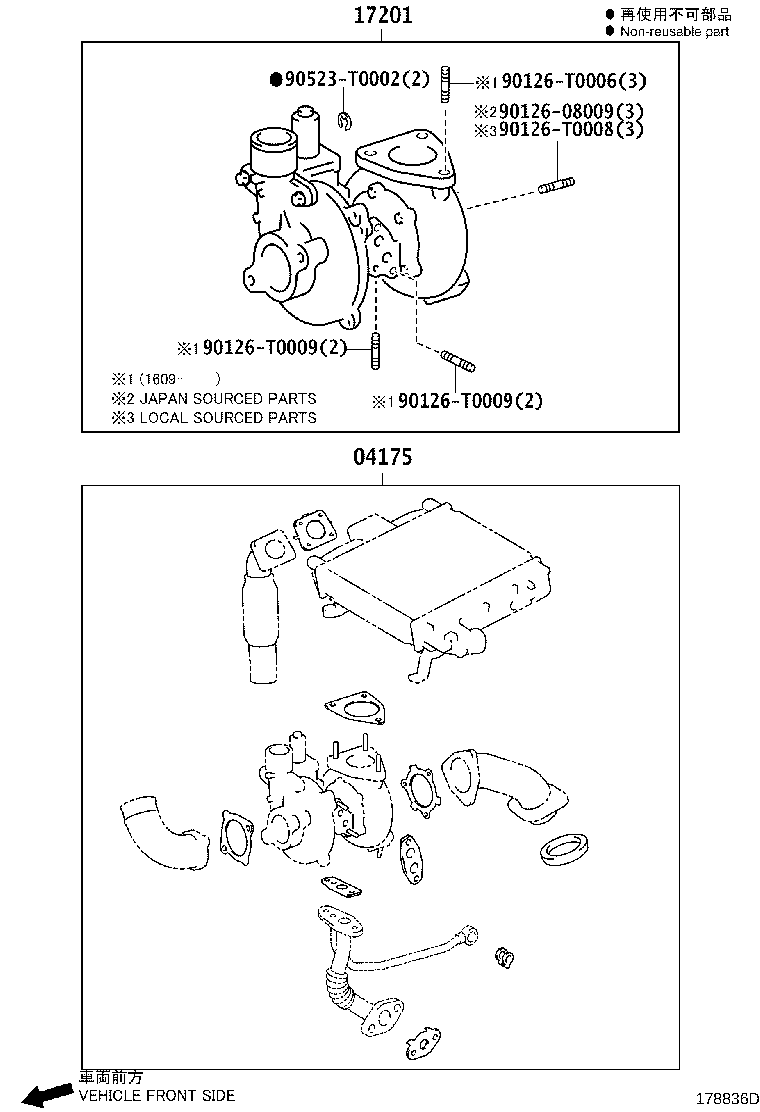

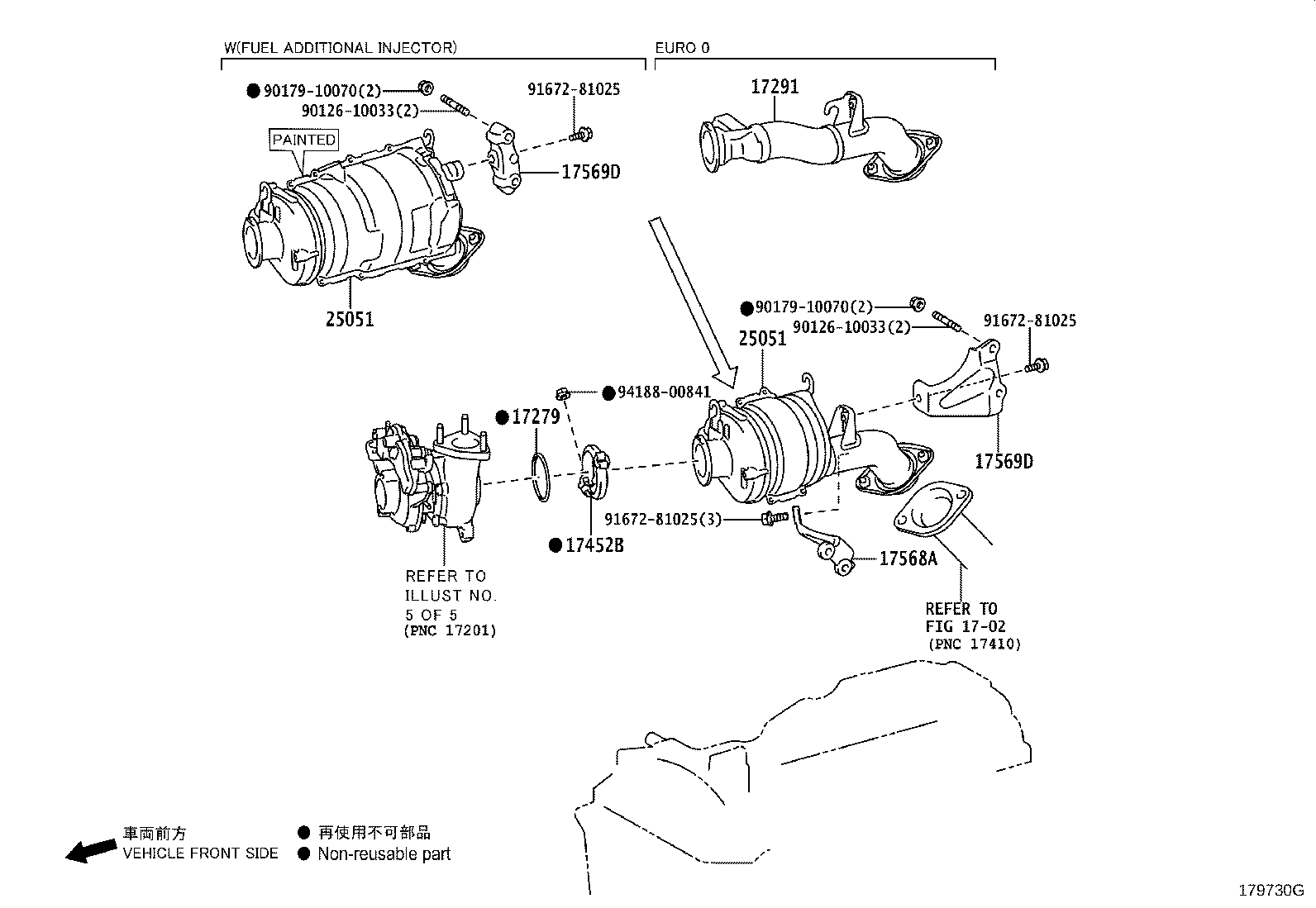

| 17201 | Turbocharger Sub-assy |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17230C | Bolt, W/Washer(FOR REPAIR ACTUATOR SET) |
| 17271 | Insulator, Turbo, NO.1 |
| 17274 | Elbow, Compressor Inlet |
| 17275 | Elbow, Compressor Outlet |
| 17276 | Gasket, Compressor Inlet |
| 17277 | Gasket, Compressor Outlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17293B | Bolt(FOR TURBOCHARGER STAY) |
| 17293C | Nut(FOR TURBOCHARGER STAY) |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17298 | Stay, Compressor Elbow |
| 17299 | Stay, Turbine Outlet Elbow |
| 17452B | Clamp, Exhaust Pipe |
| 17568A | Stay, Exhaust Pipe Support |
| 17569D | Stay, Exhaust Pipe Support, NO.2 |
| 17861F | Connector, Intake Air |
| 17861G | Gasket, Intake Air Connector |
| 17873A | Bracket, Intake Air Connector, NO.2 |
| 22267A | Bracket, Throttle Body |
| 23211 | Bracket, Wire |
| 23295D | Holder, Injector, NO.1 |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25861C | Bracket, Vacuum Switching Valve |
| 89674 | Motor, Turbocharger Variable Nozzle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
