Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 10 illustrations

Illustrations

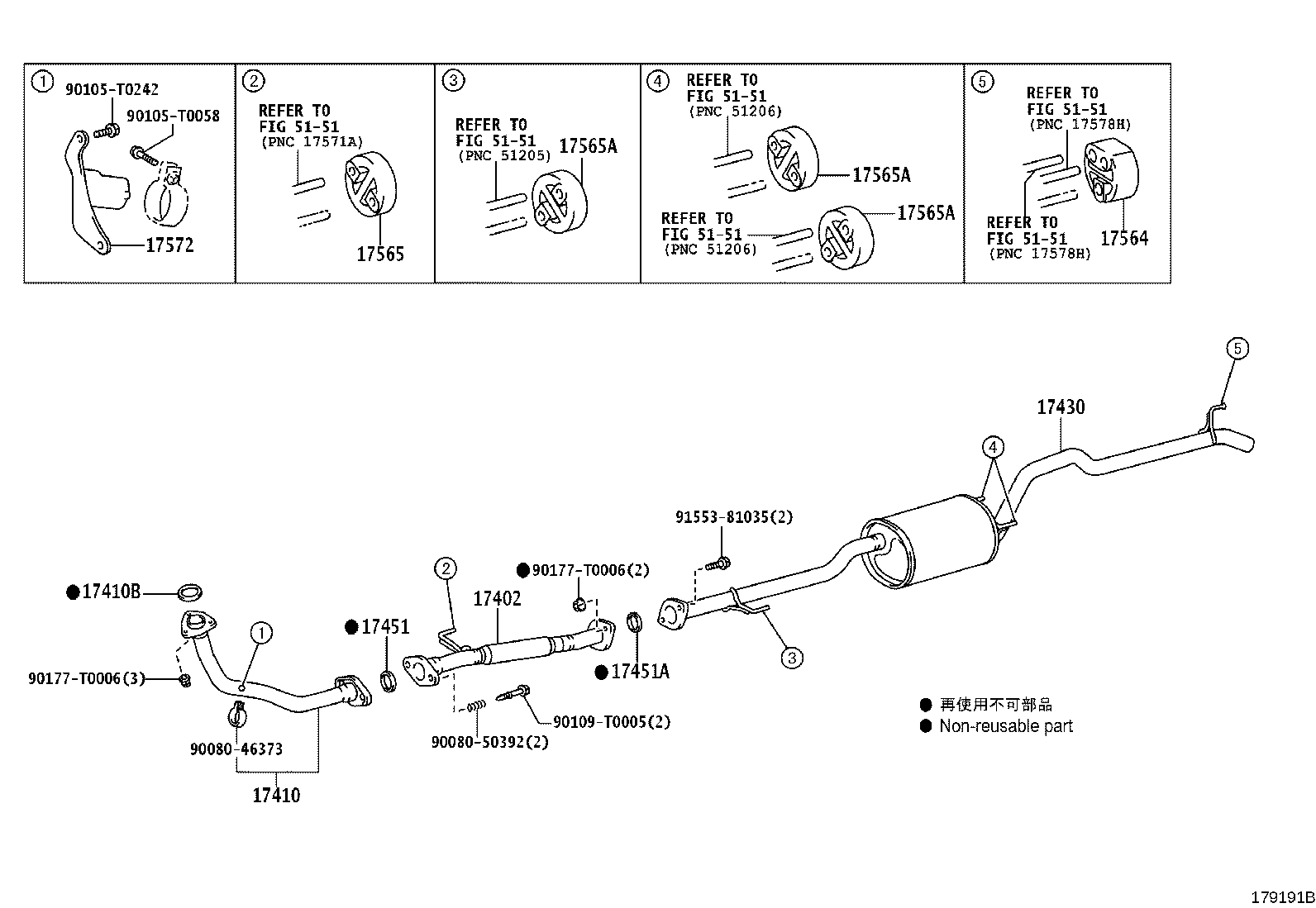

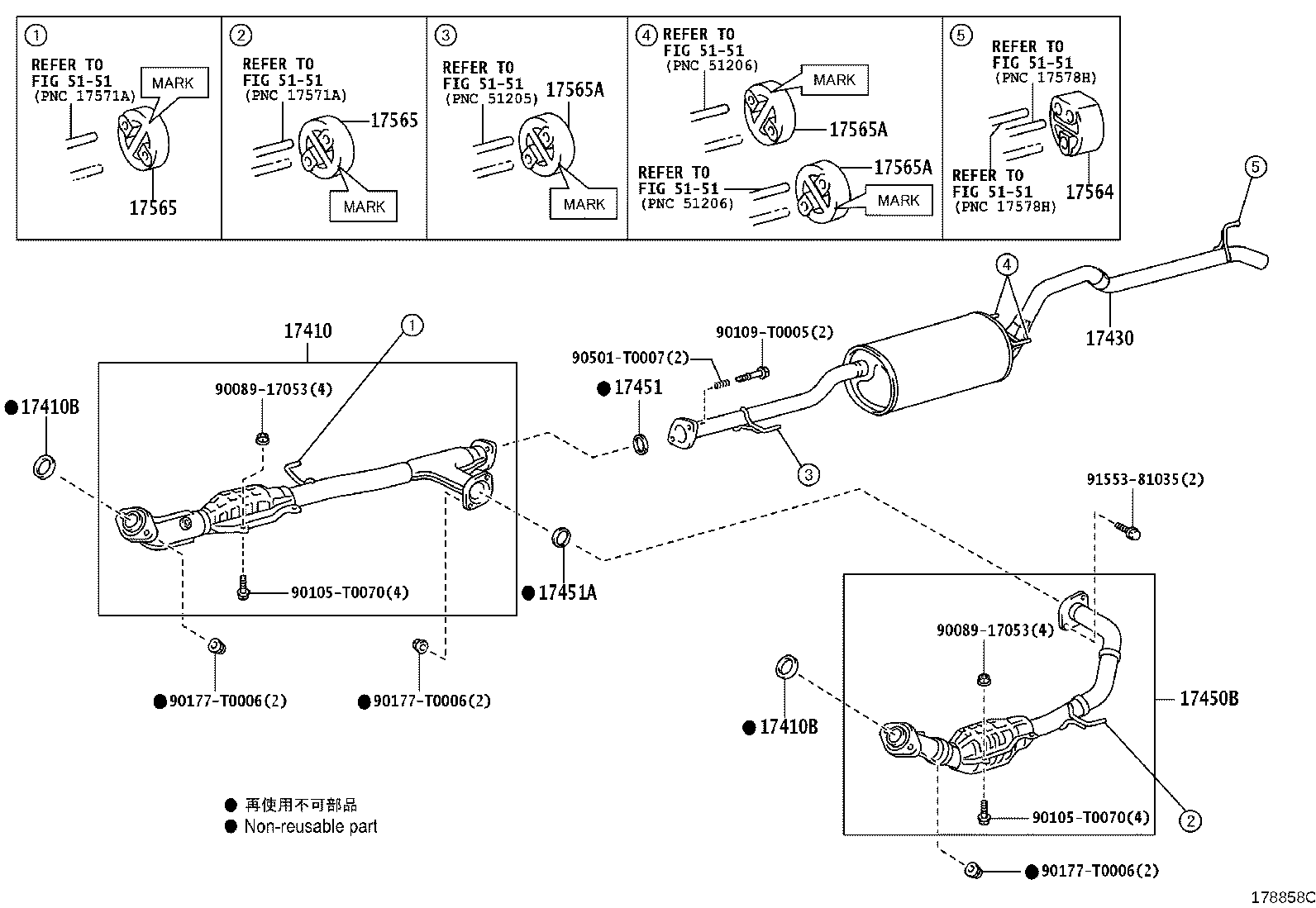

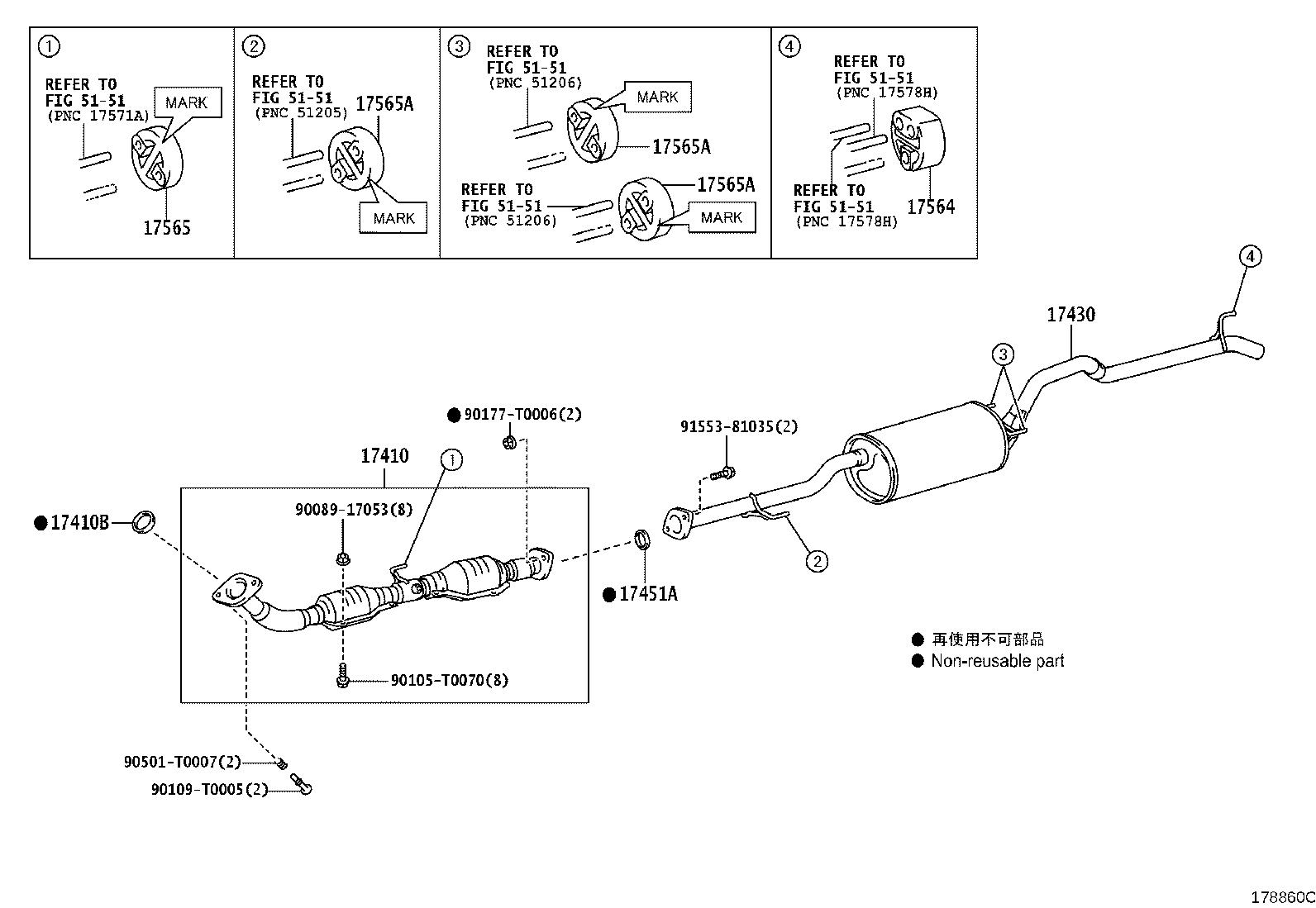

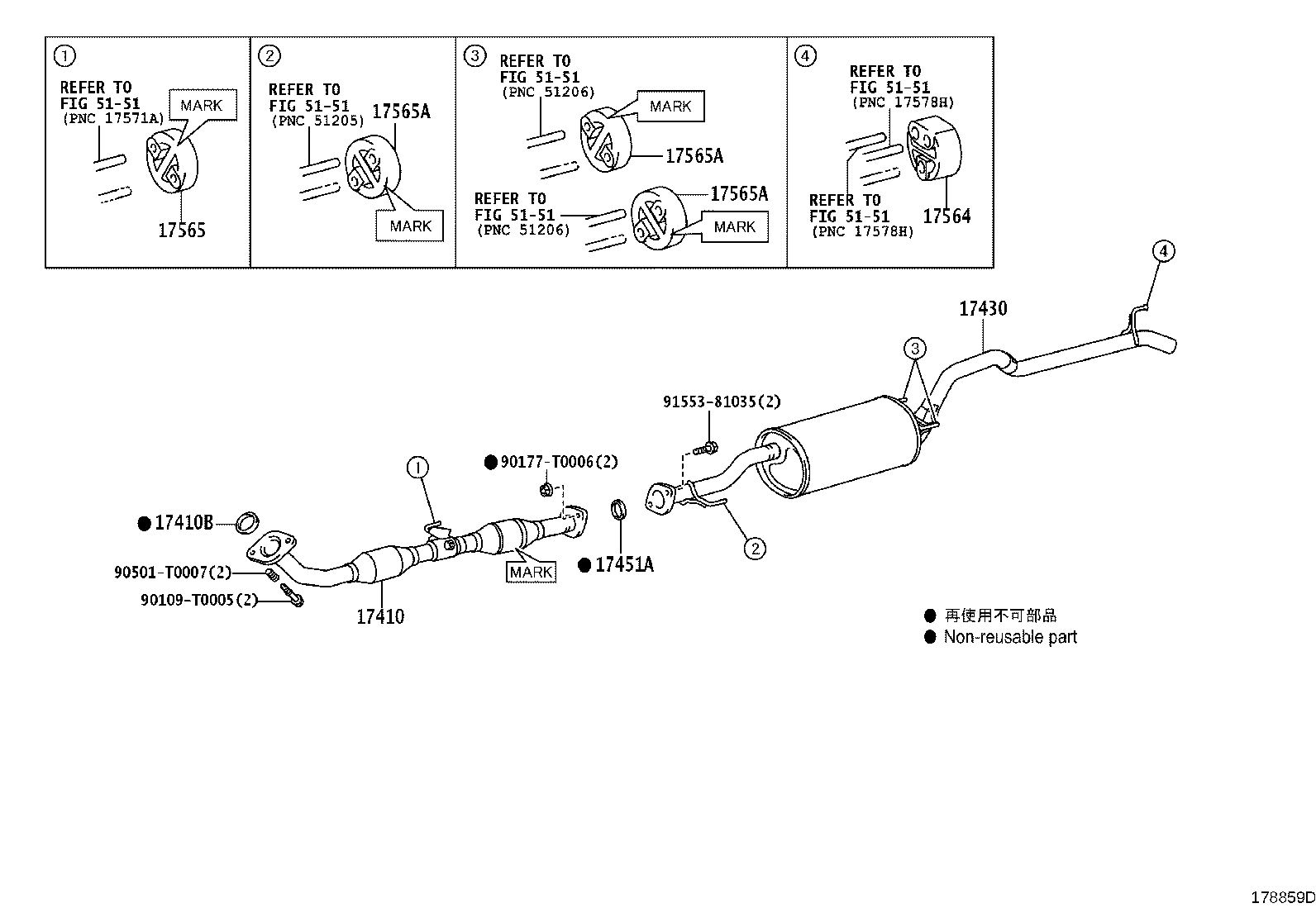

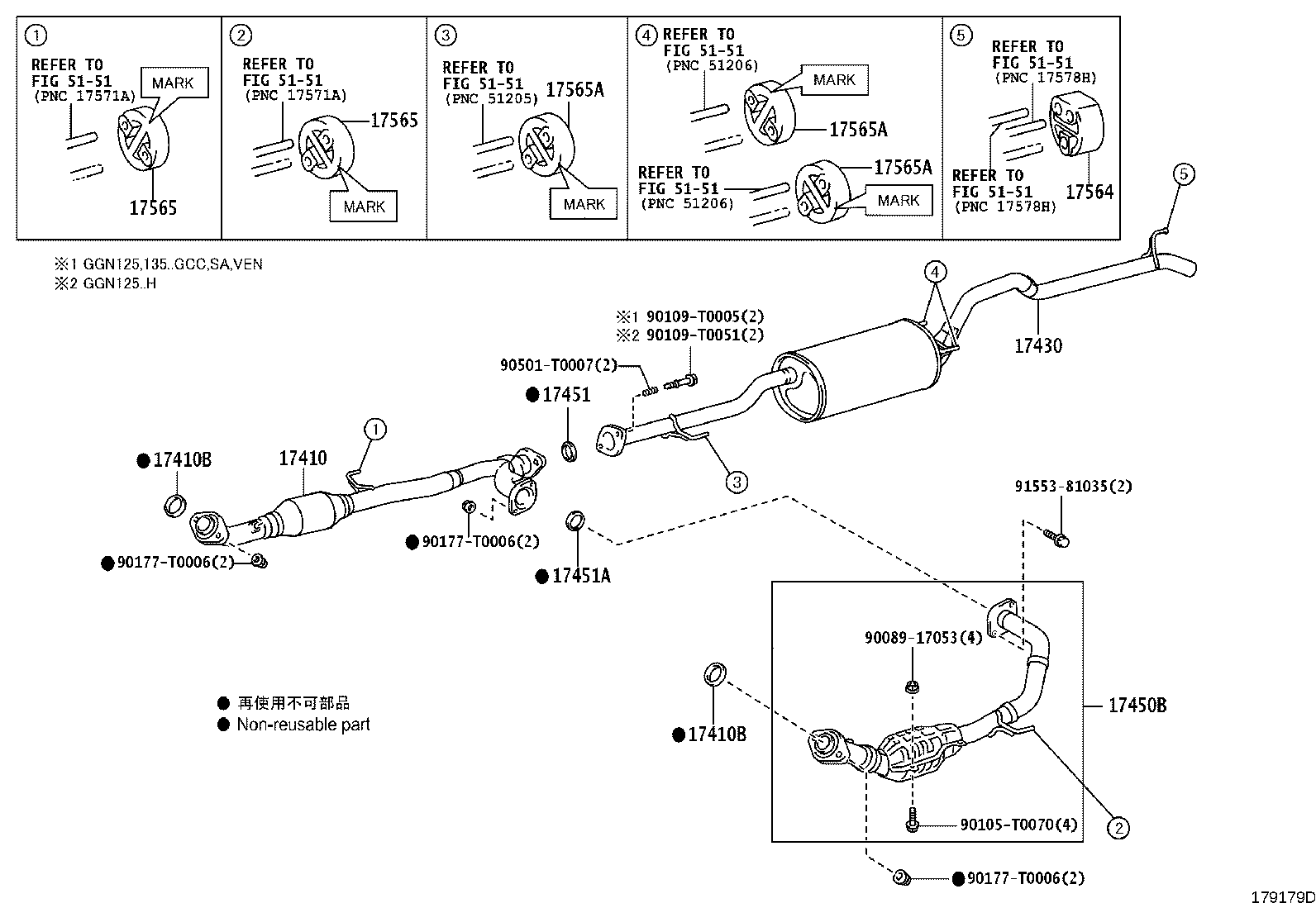

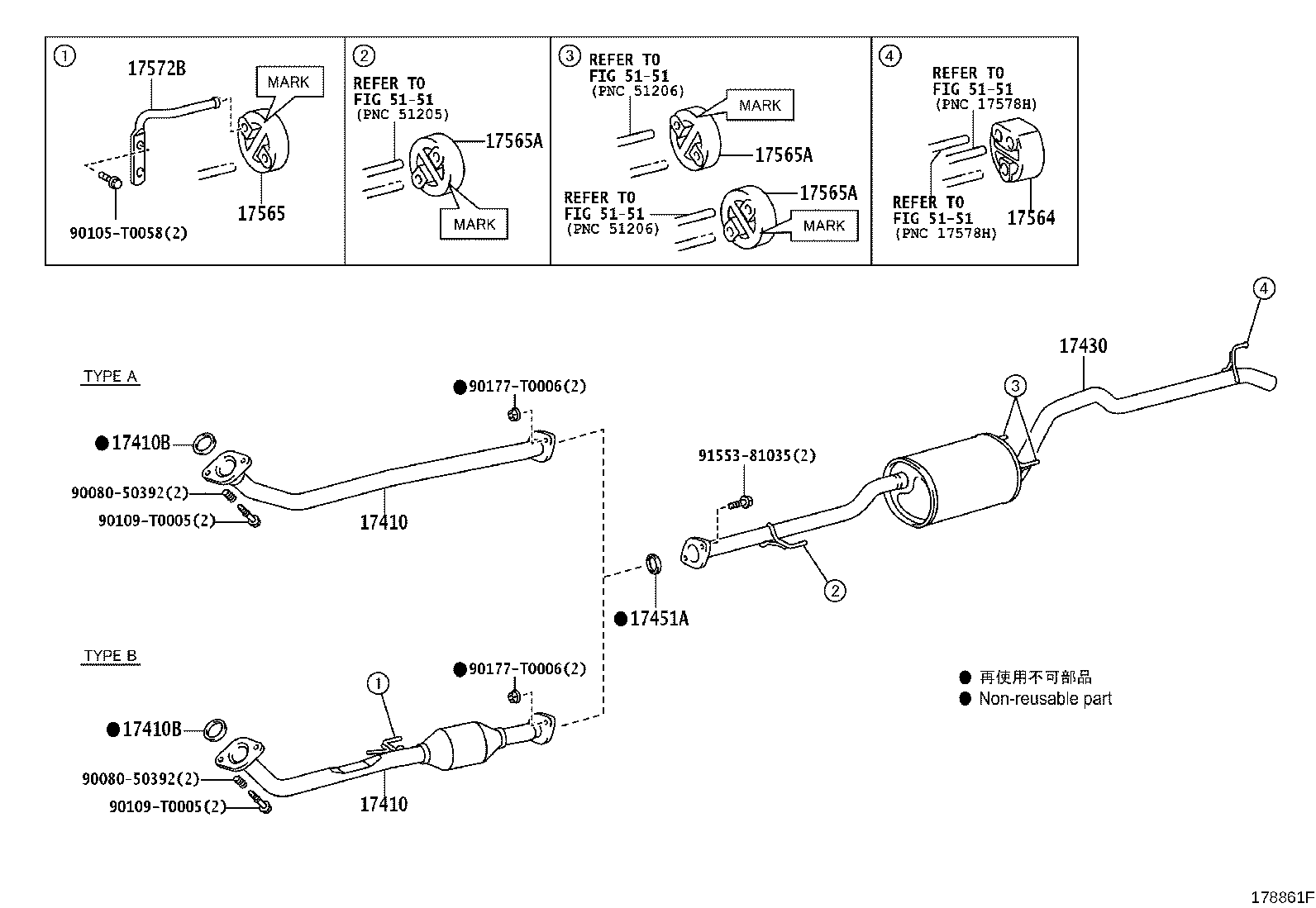

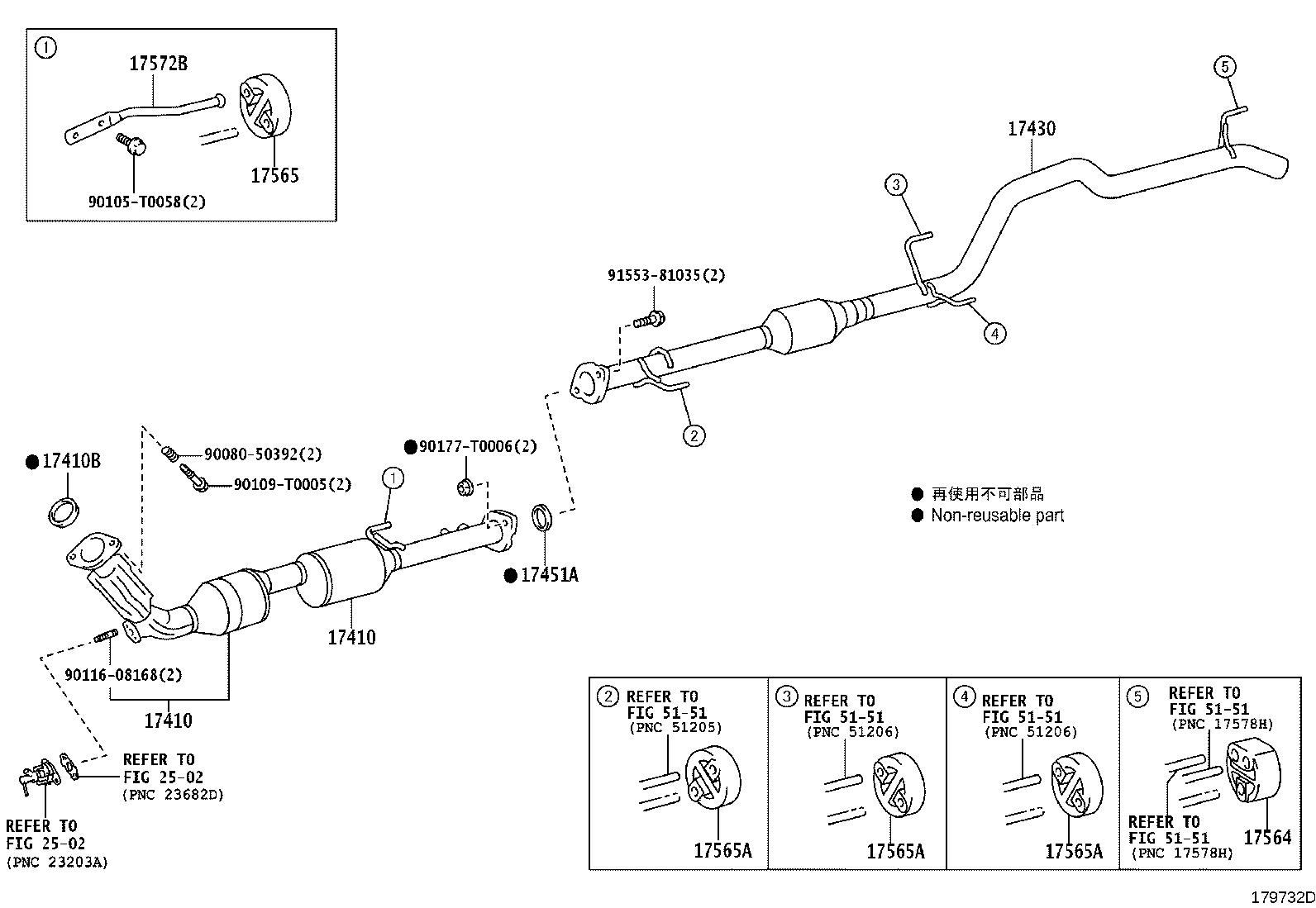

Figure 179731C 179731C 2015-05 → 2017-08 Figure 179731C 179731C 2015-05 → — Figure 179731C 179731C 2015-05 → — Figure 179732D 179732D 2017-08 → — Figure 178858C 178858C 2015-05 → — Figure 179179D 179179D 2016-01 → — Figure 178861F 178861F 2015-05 → — Figure 178859D 178859D 2015-05 → — Figure 178860C 178860C 2015-05 → — Figure 179191B 179191B 2016-01 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
