Starter

17 part groups · 21 illustrations

Illustrations

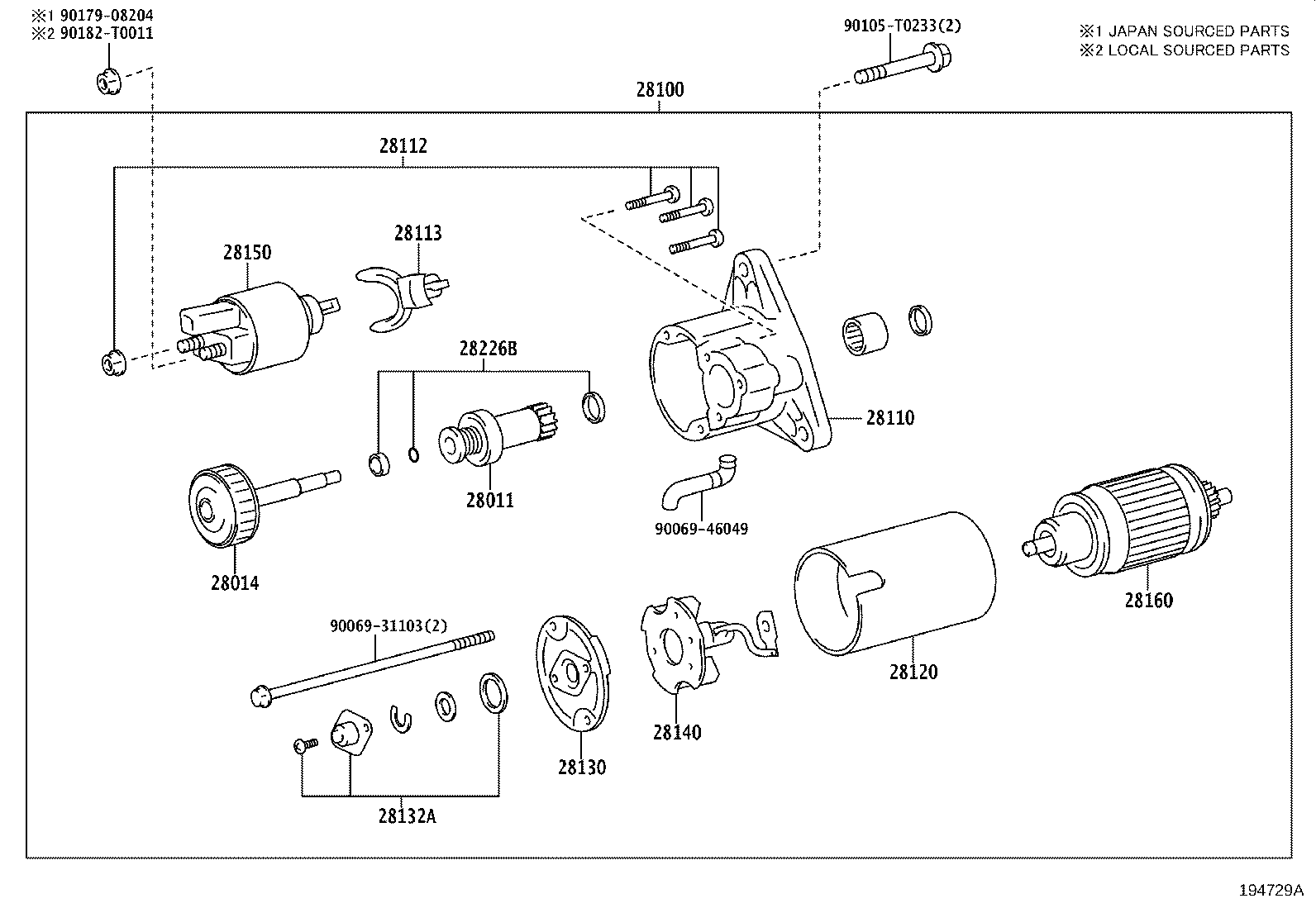

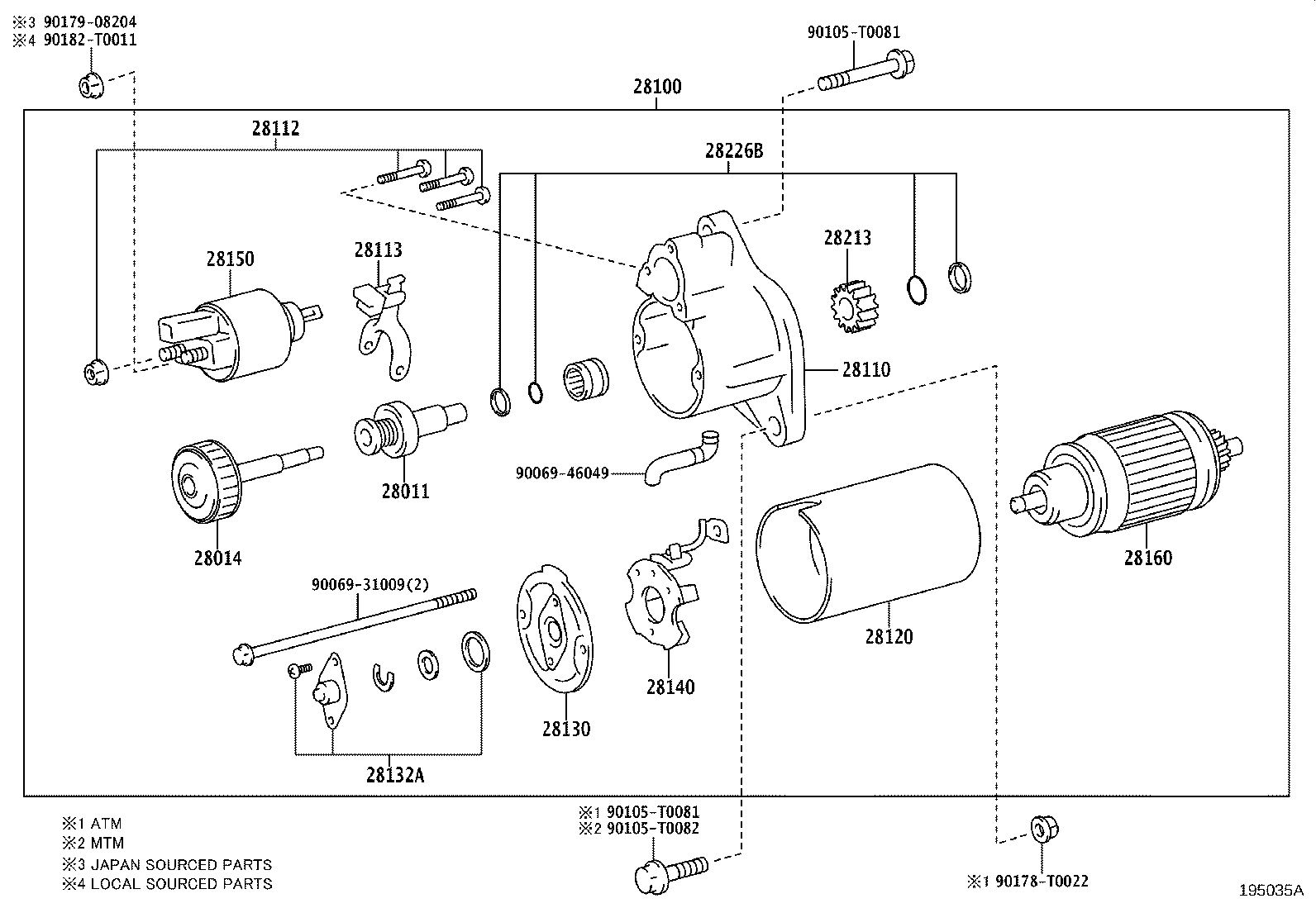

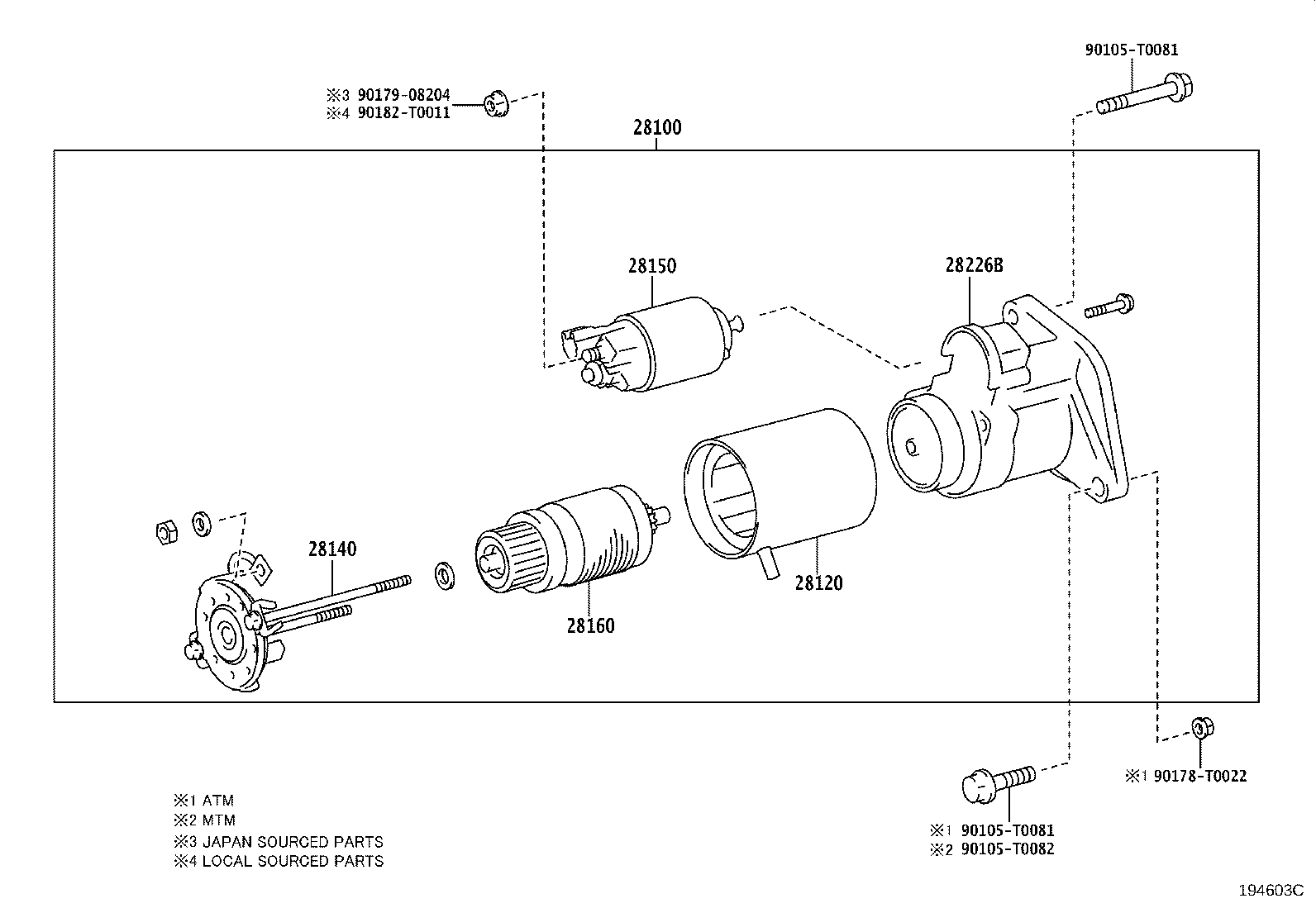

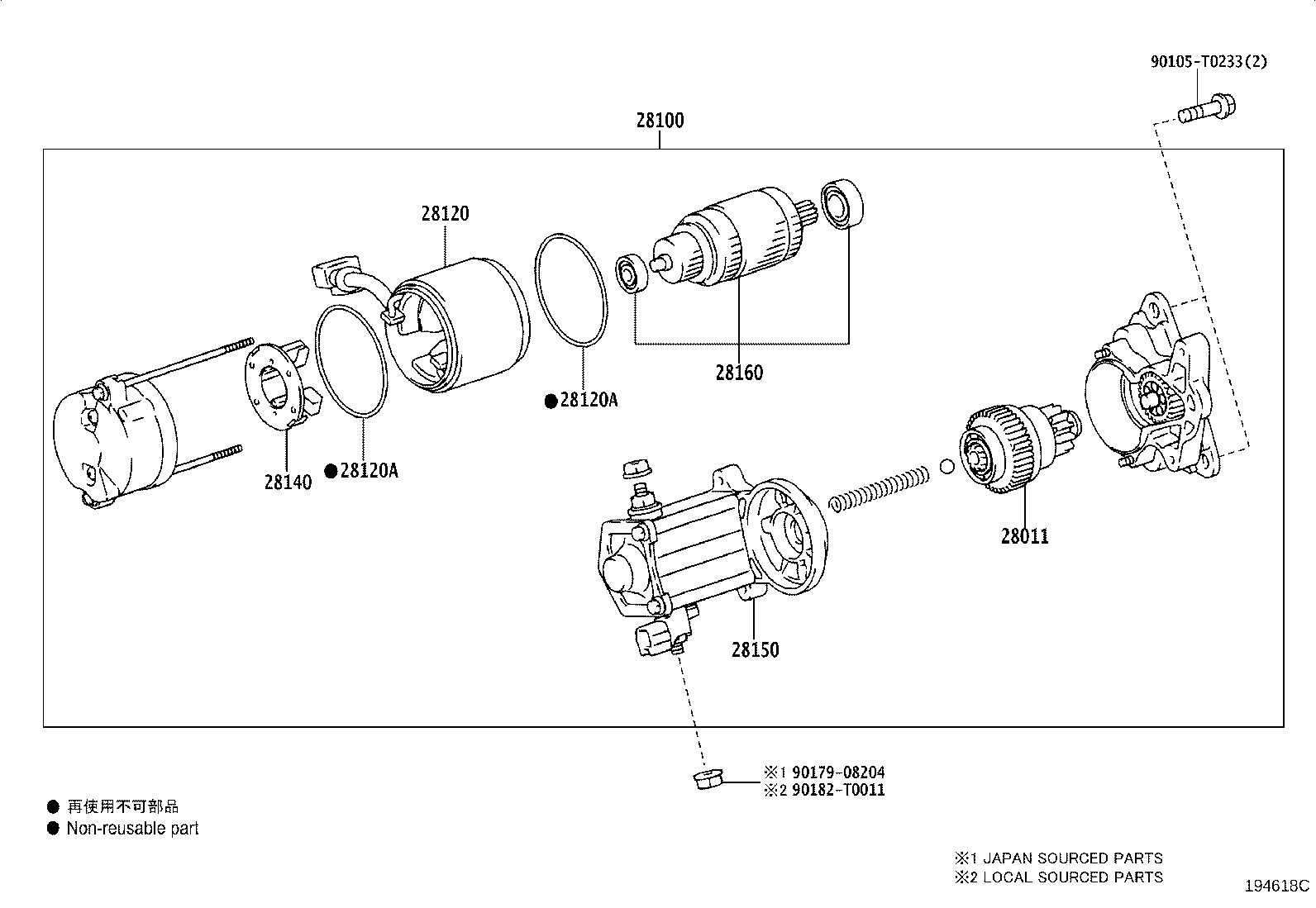

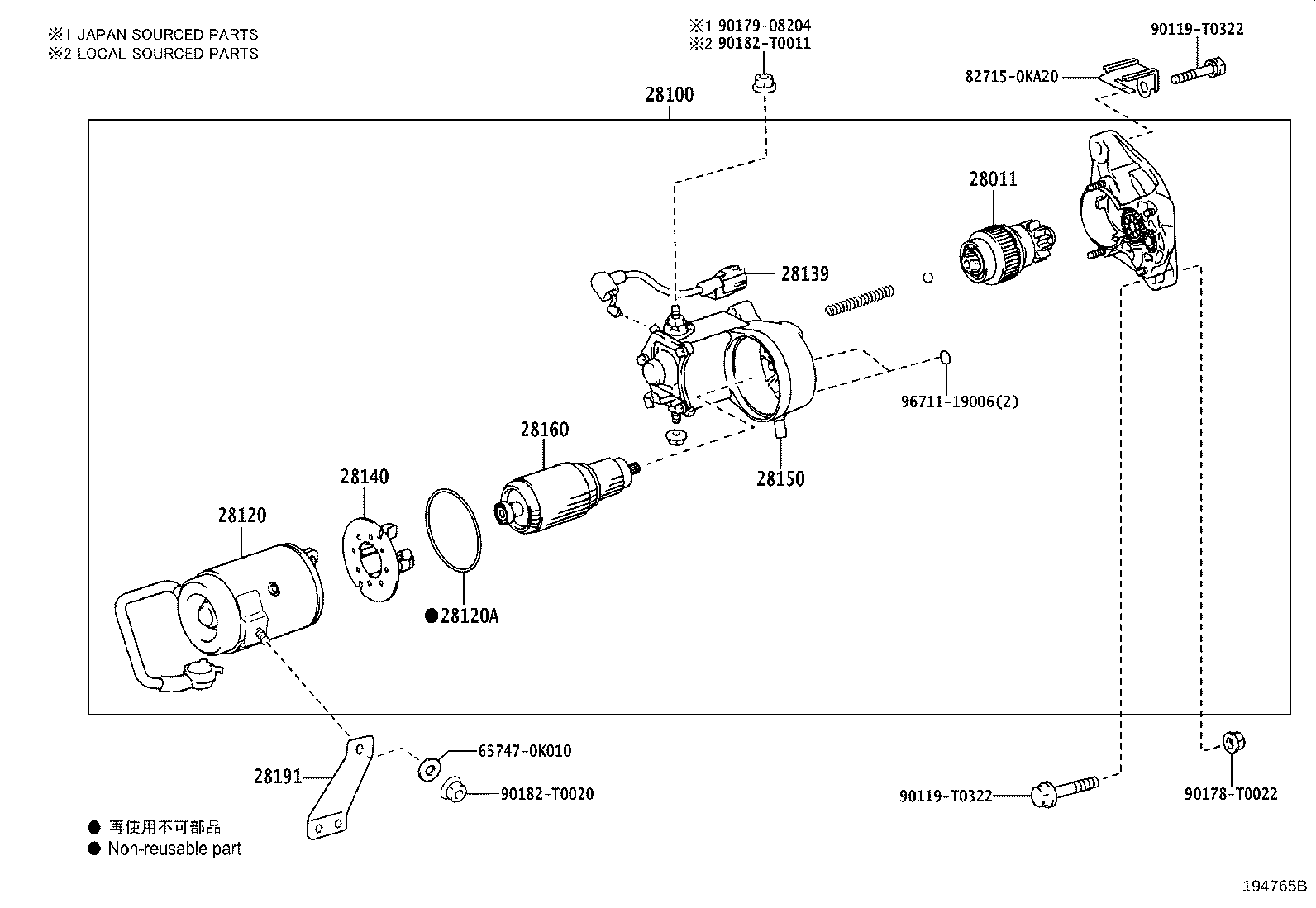

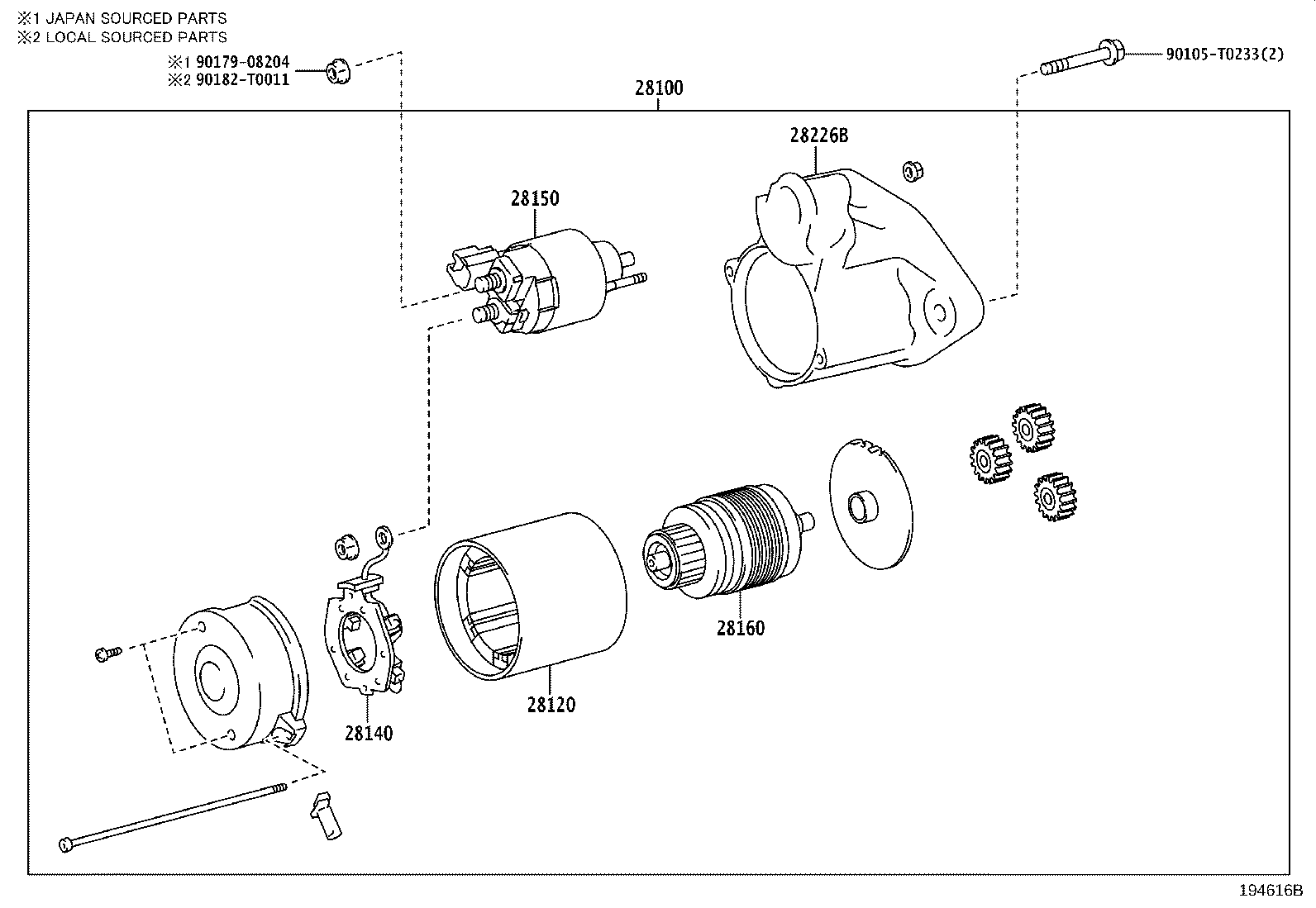

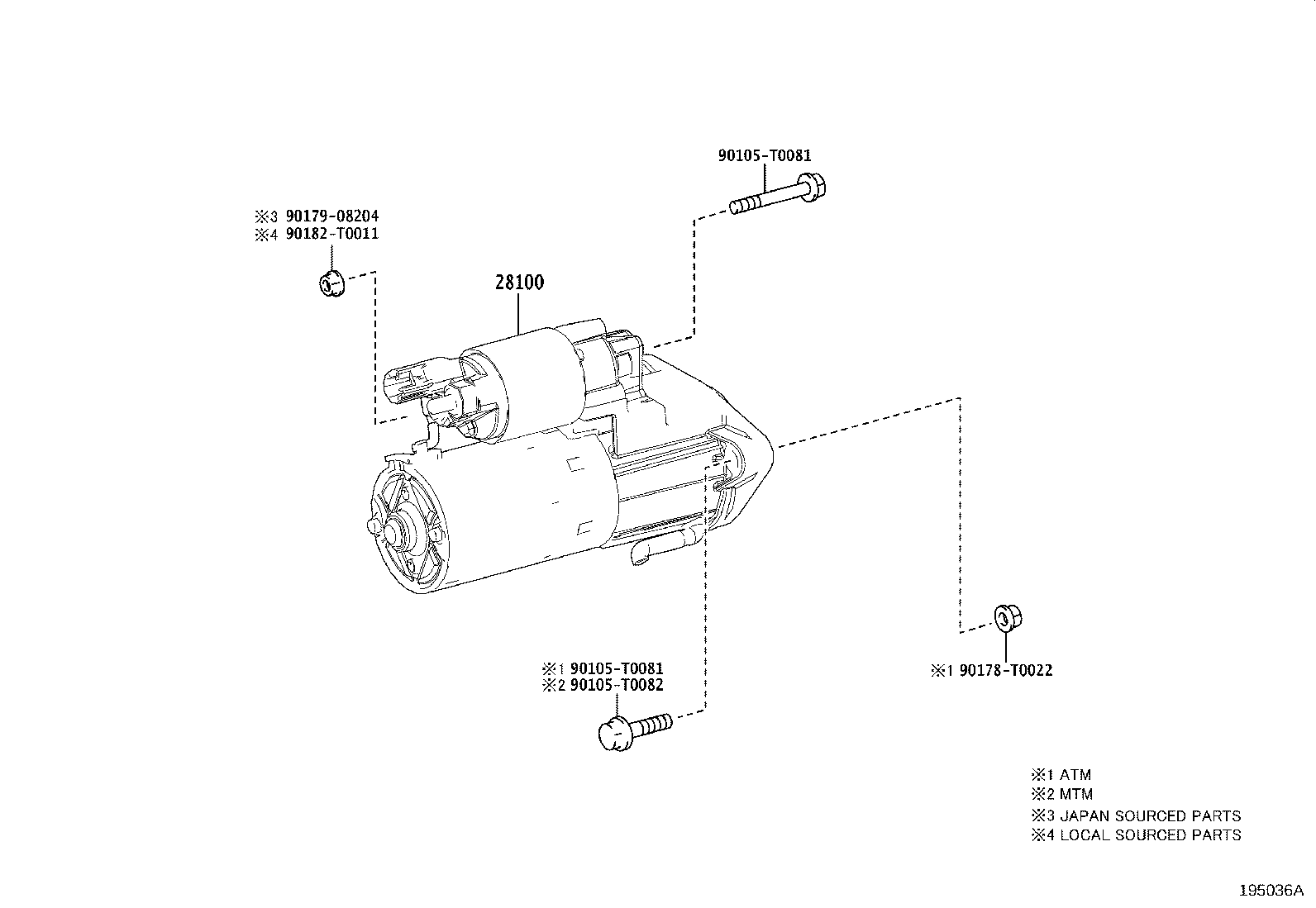

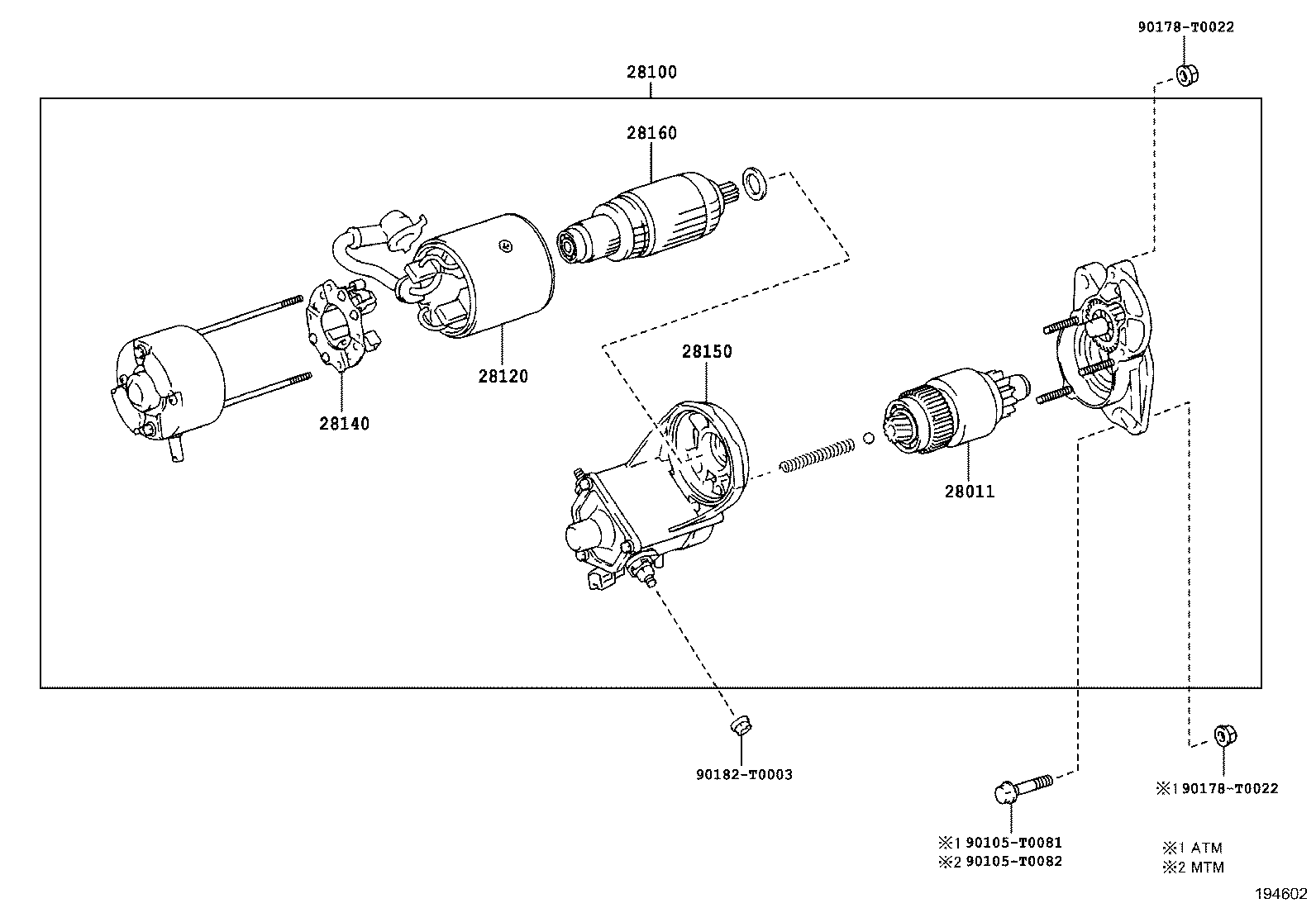

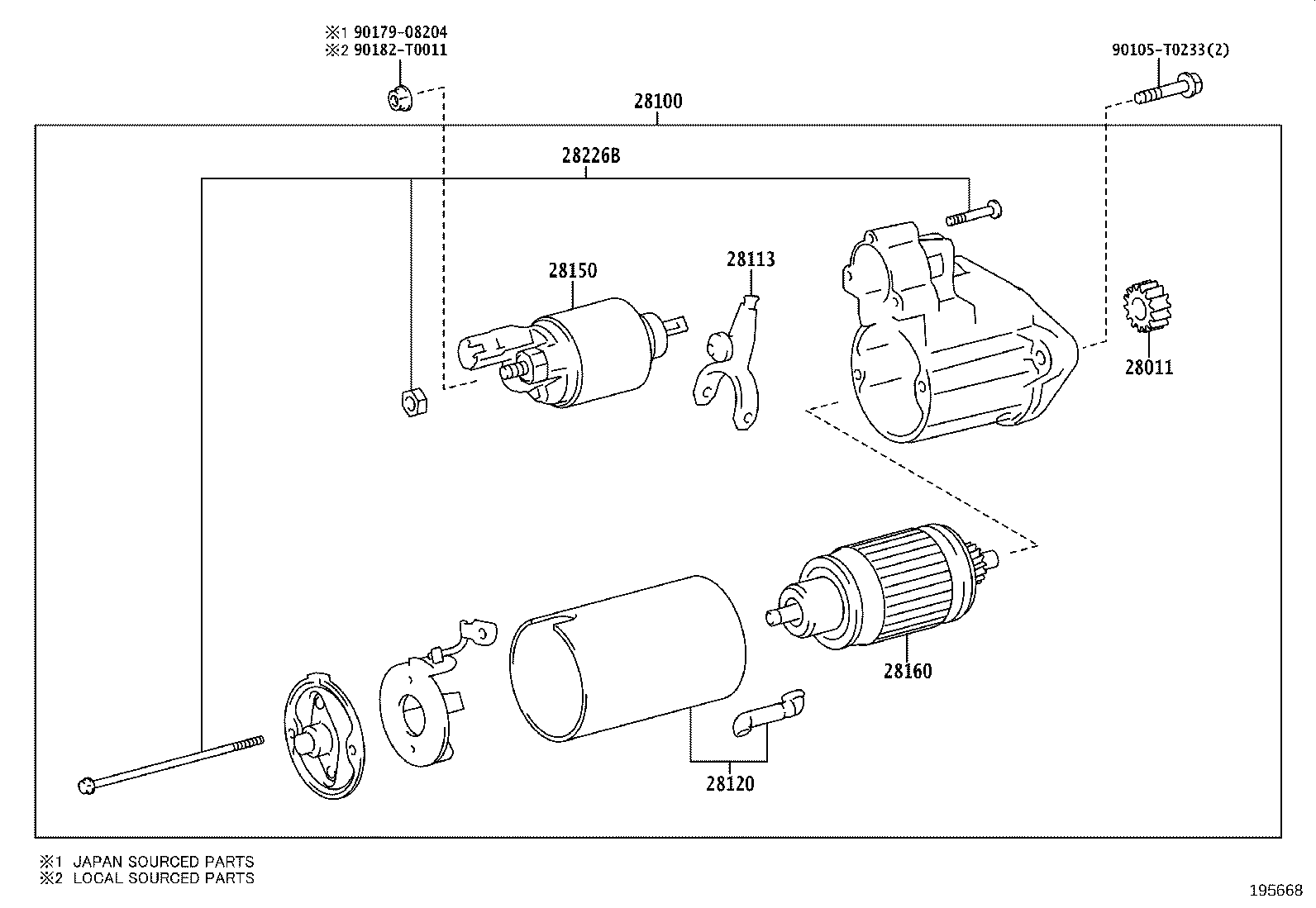

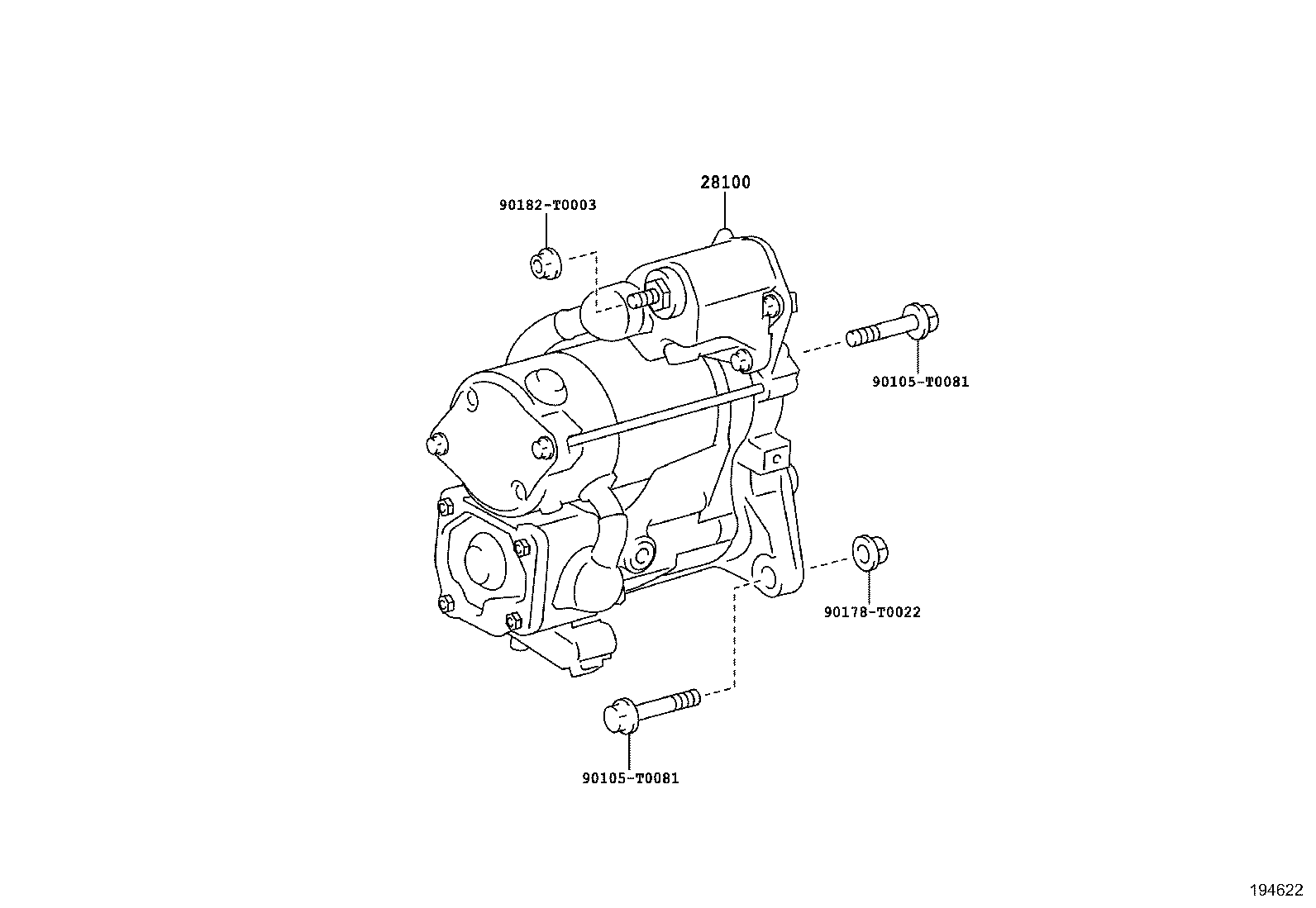

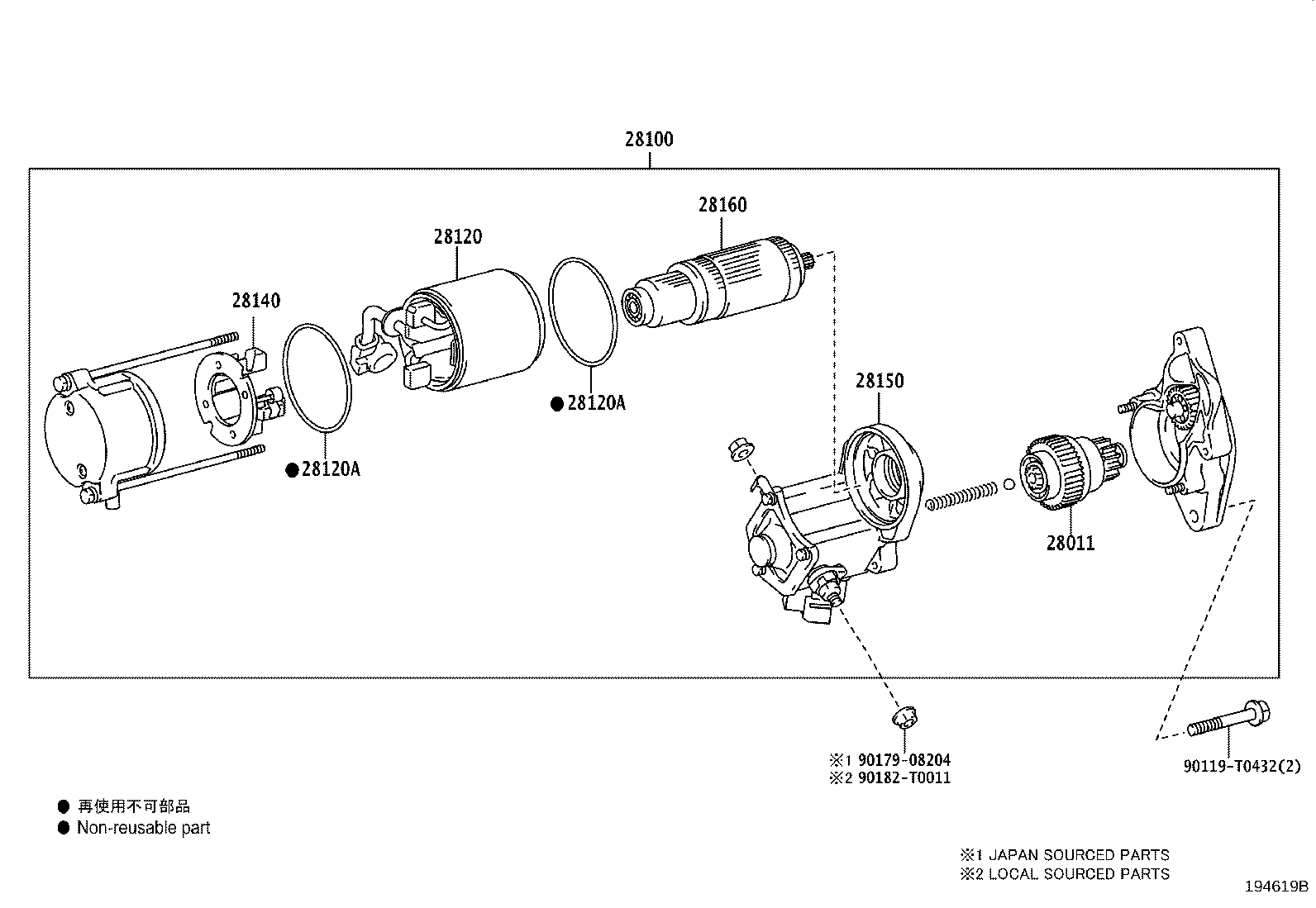

Figure 194617B 194617B 2015-05 → — Figure 194617B 194617B 2015-05 → — Figure 194617B 194617B 2015-05 → — Figure 194617B 194617B 2015-05 → — Figure 194617B 194617B 2015-05 → — Figure 194603C 194603C 2015-05 → — Figure 194603C 194603C 2015-05 → — Figure 194603C 194603C 2015-05 → — Figure 194603C 194603C 2015-05 → — Figure 194603C 194603C 2015-05 → — Figure 194622 194622 2015-05 → — Figure 194602 194602 2015-05 → — Figure 194619B 194619B 2015-05 → — Figure 194616B 194616B 2015-05 → — Figure 194618C 194618C 2015-05 → — Figure 195035A 195035A 2015-11 → — Figure 194729A 194729A 2015-11 → — Figure 195036A 195036A 2016-01 → — Figure 195027A 195027A 2016-01 → — Figure 195668 195668 2017-10 → — Figure 194765B 194765B 2016-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28014 Shaft Sub-assy, Planet Carrier
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28191 Stay, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
