Exhaust Gas Recirculation System

22 part groups · 35 illustrations

Illustrations

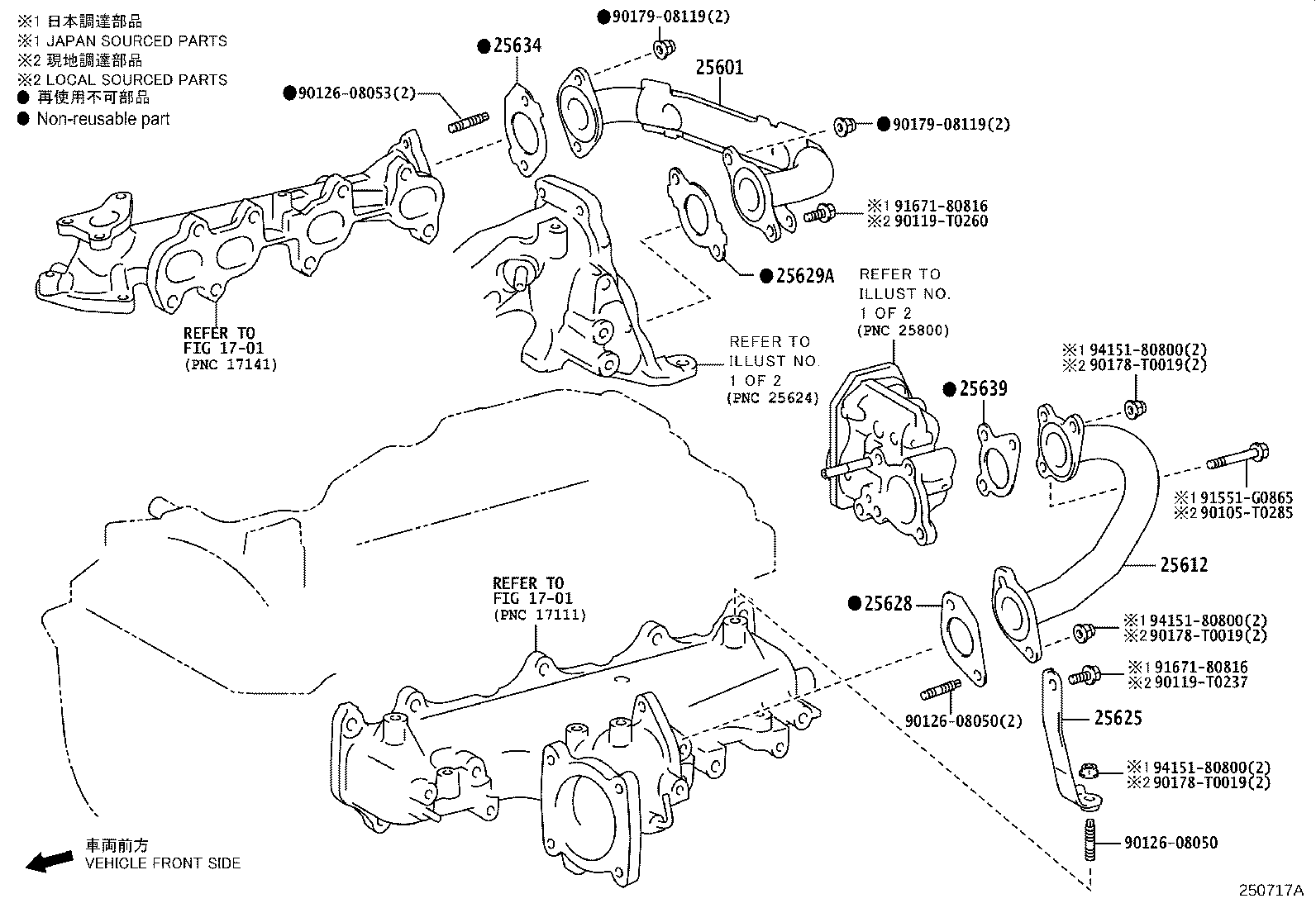

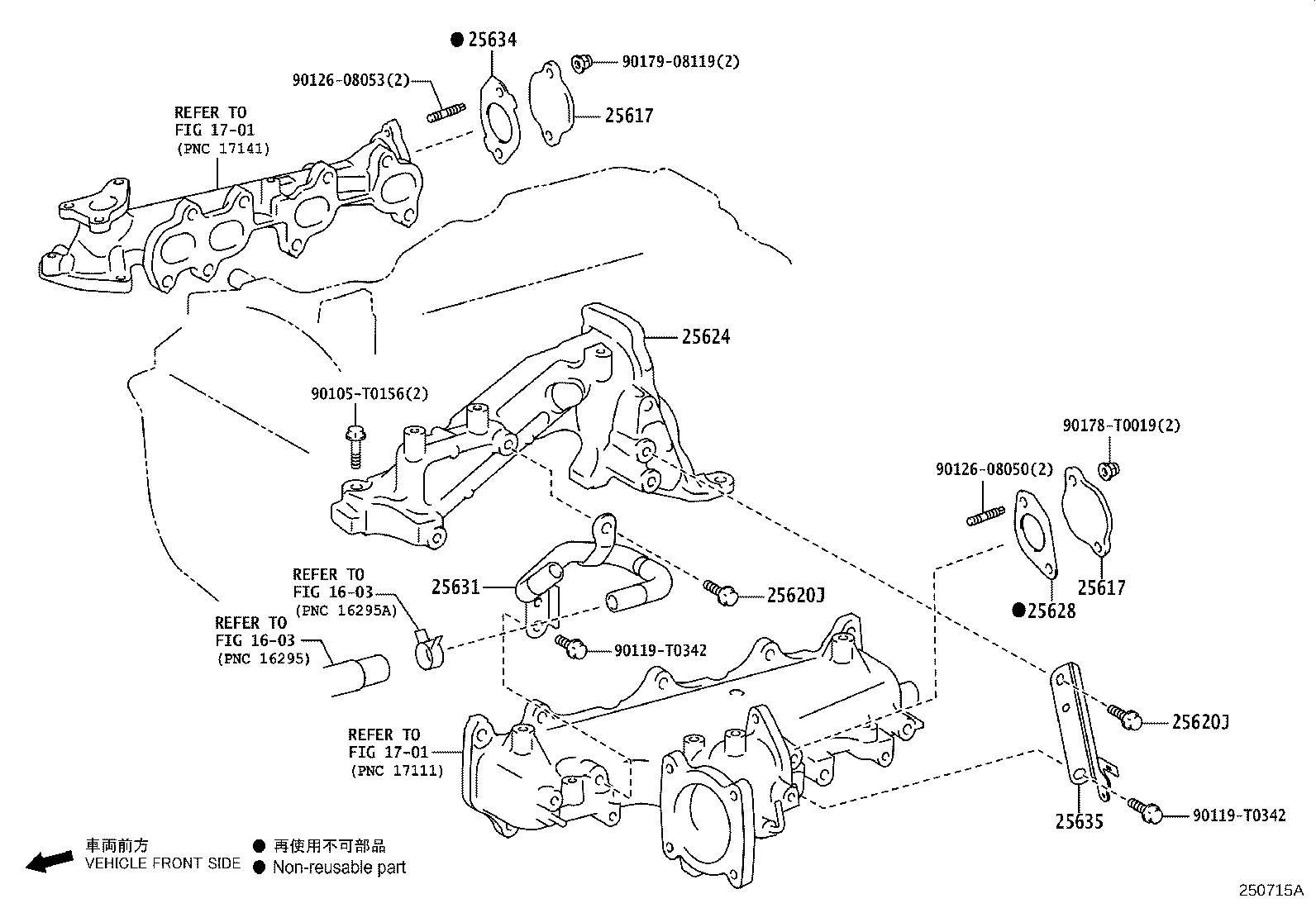

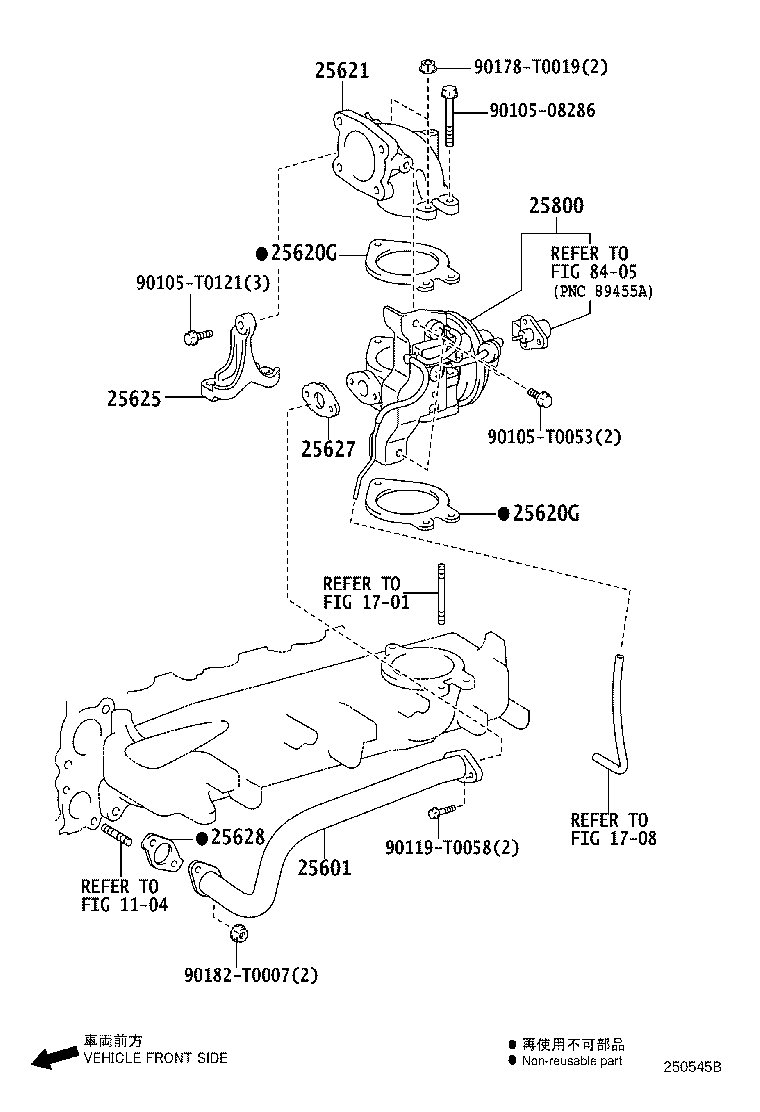

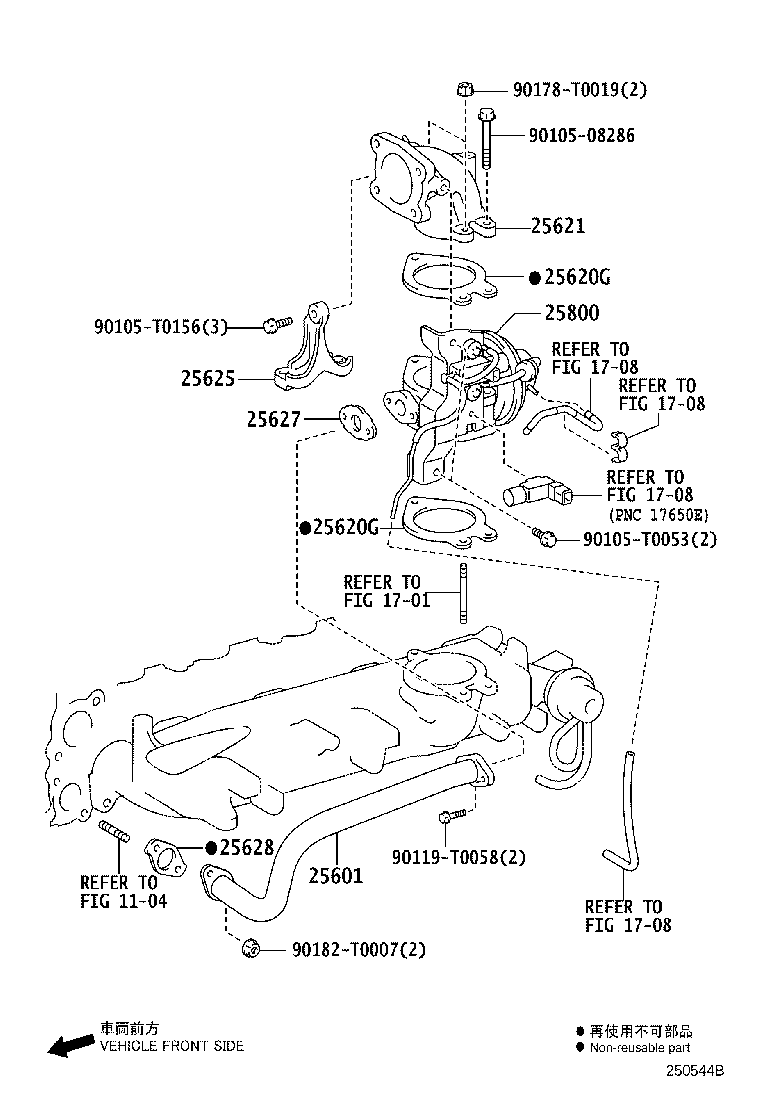

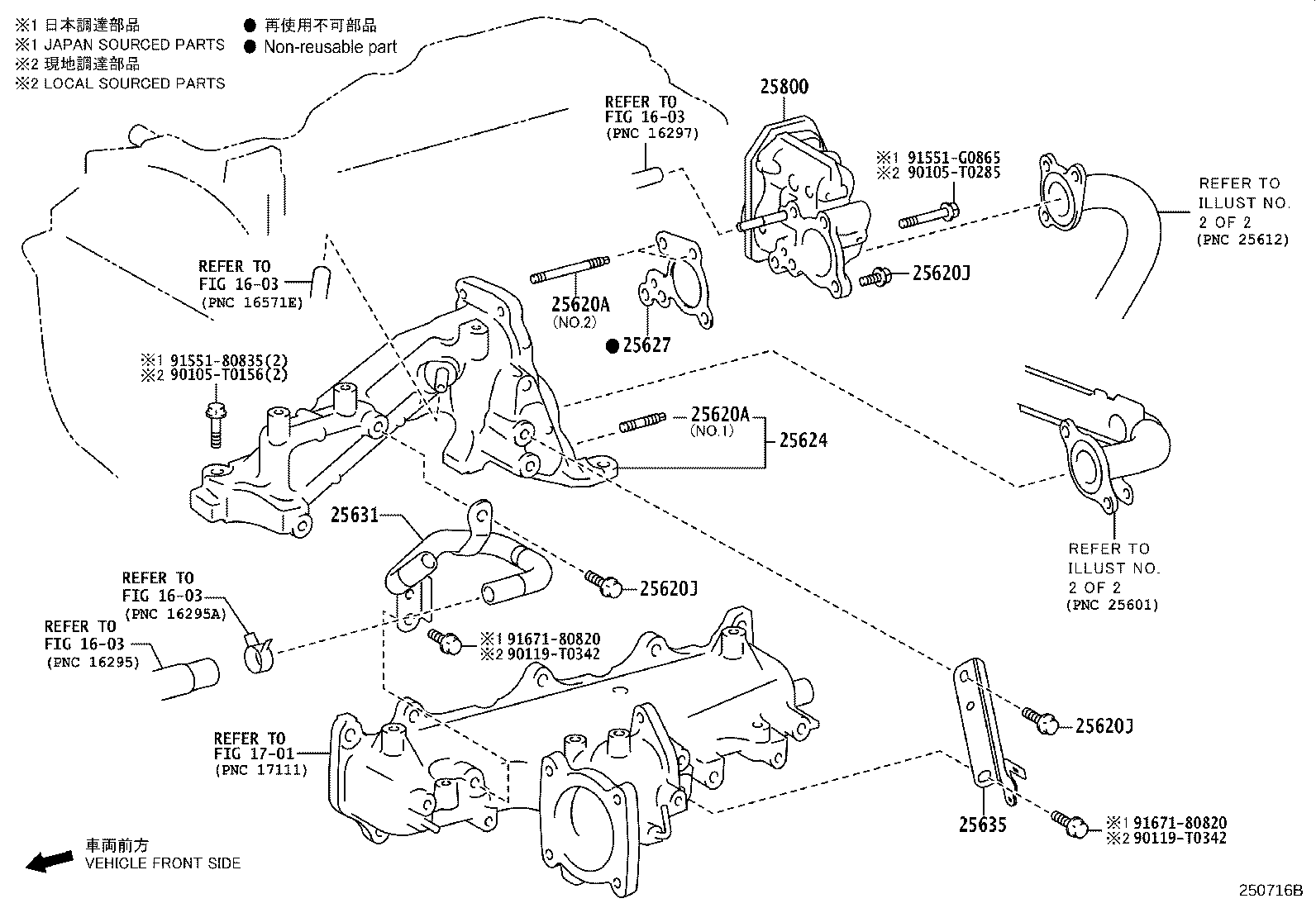

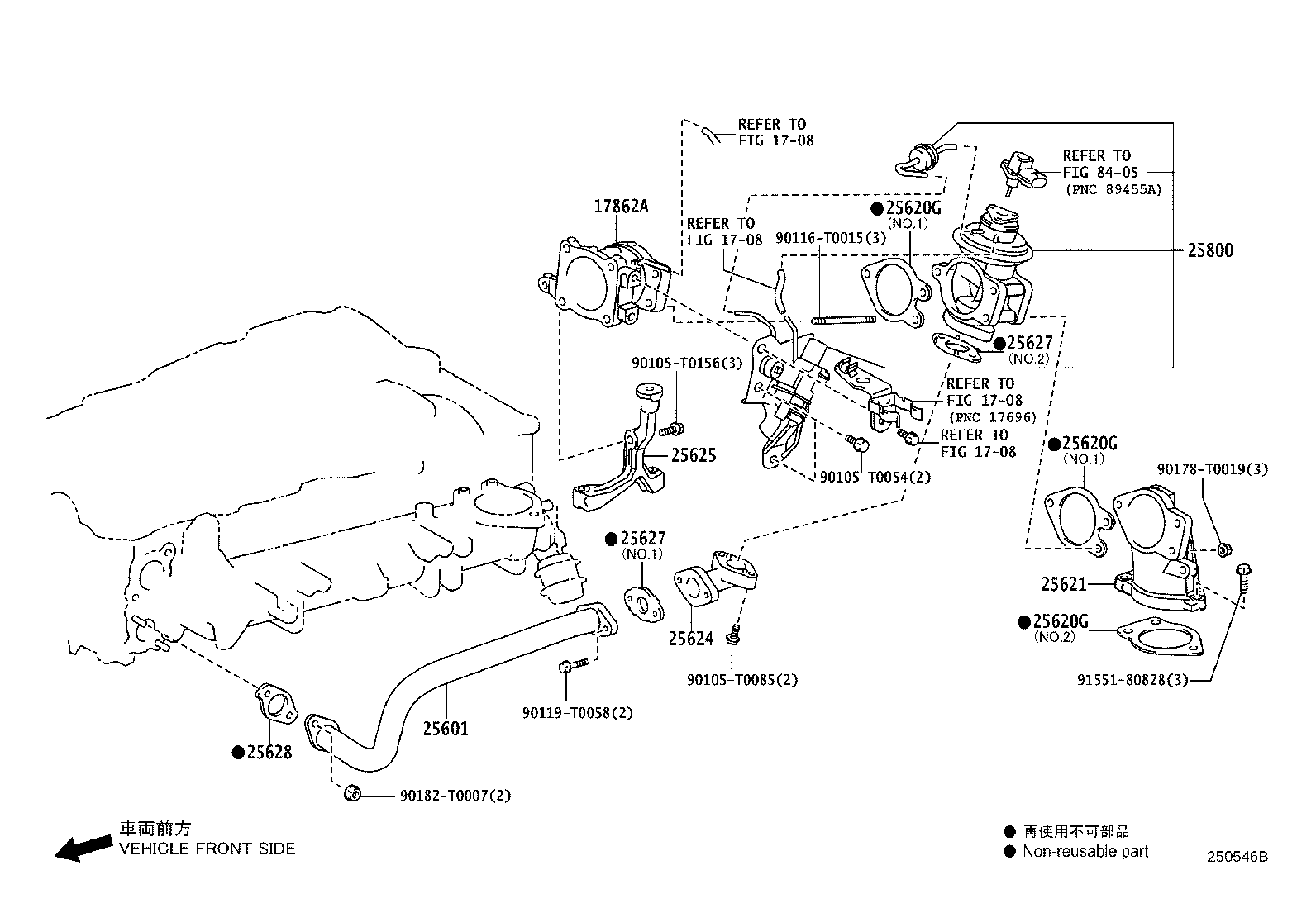

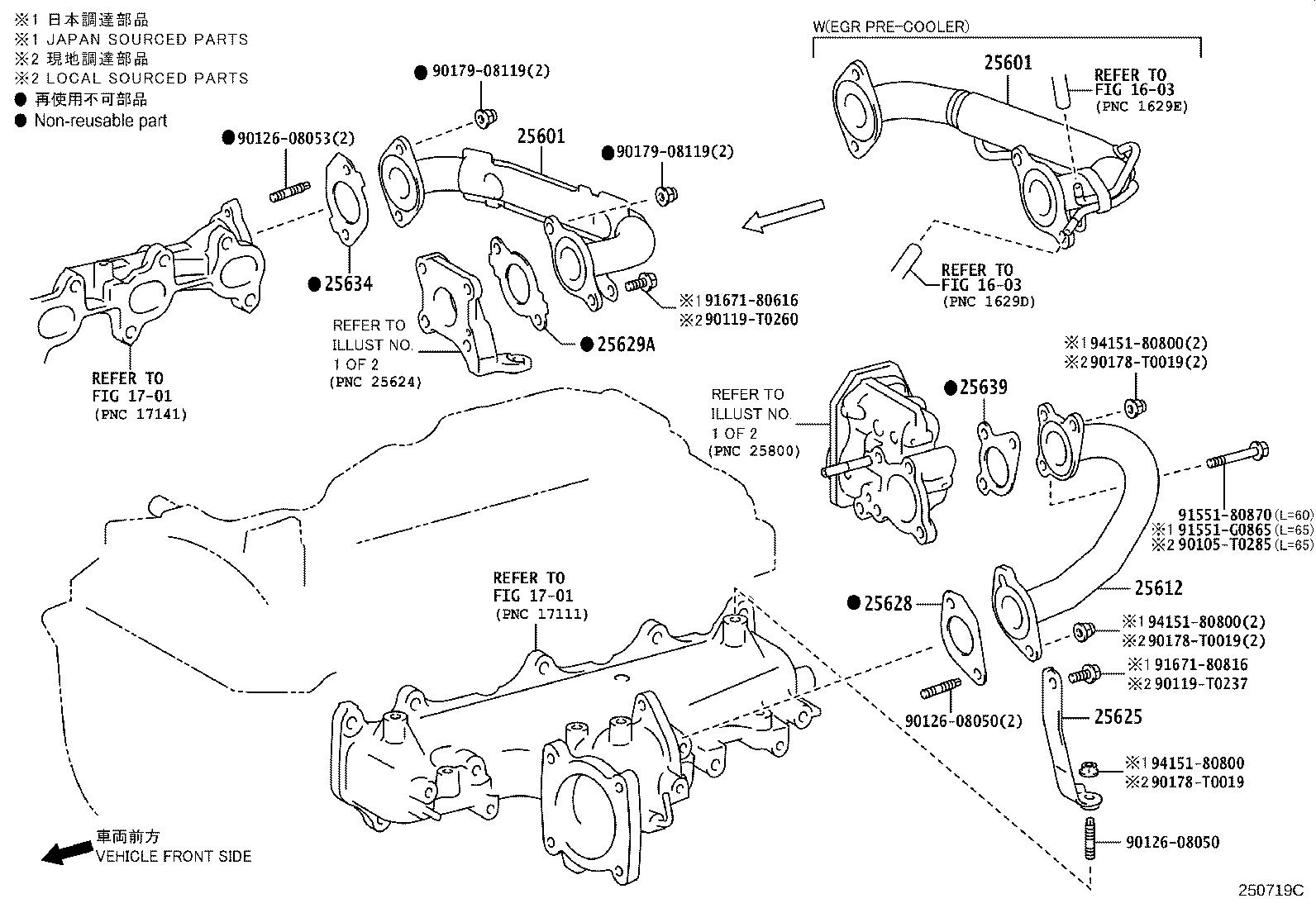

Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250718A 250718A 2015-05 → — Figure 250716B 250716B 2015-05 → — Figure 250716B 250716B 2015-05 → — Figure 250716B 250716B 2015-05 → — Figure 250716B 250716B 2015-05 → — Figure 250716B 250716B 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250719C 250719C 2015-05 → — Figure 250717A 250717A 2015-05 → — Figure 250717A 250717A 2015-05 → — Figure 250717A 250717A 2015-05 → — Figure 250717A 250717A 2015-05 → — Figure 250717A 250717A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250715A 250715A 2015-05 → — Figure 250544B 250544B 2015-05 → — Figure 250545B 250545B 2015-05 → — Figure 250546B 250546B 2015-05 → —

Part groups

PNCDescription
17862A Connector, Intake Air, NO.2
25601 Pipe Sub-assy, Egr, NO.1
25612 Pipe, Egr, NO.2
25617 Plate, Egr Hole Cover
25620A Bolt, Stud(FOR EGR VALVE)
25620G Gasket, Diesel Throttle
25620J Bolt(FOR EGR VALVE)
25621 Connector, Intake Air(FOR GASKET)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25631 Stay, Egr Pipe, NO.1
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25639 Gasket, Egr Pipe, NO.3
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
