Toyota Hilux
2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States
Supported model
Data version 2022-11

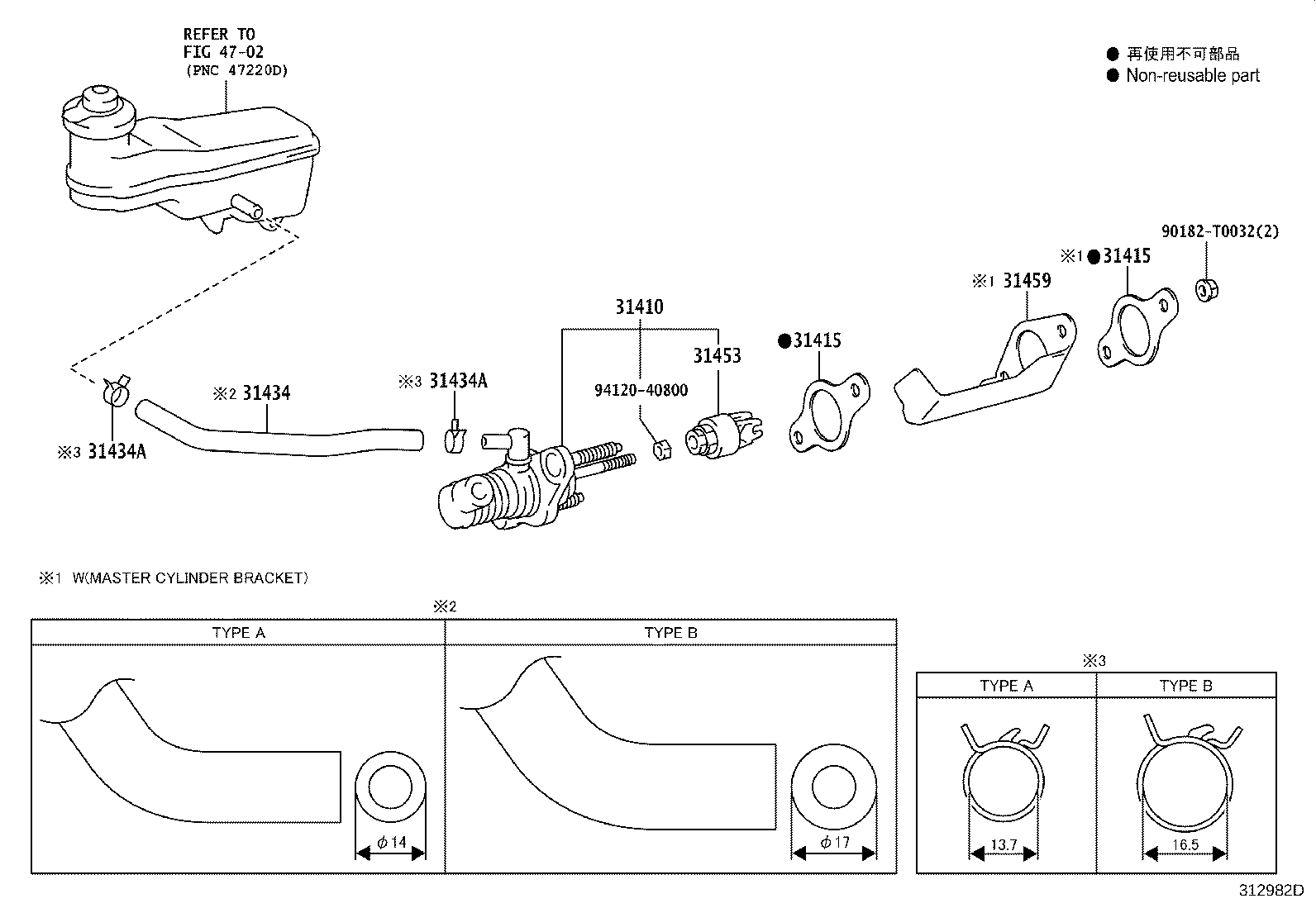

Clutch Master Cylinder
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31410 | Cylinder Assy, Clutch Master |
| 31415 | Gasket, Clutch Master Cylinder |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31459 | Bracket, Clutch Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
