Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

15 part groups · 8 illustrations

Illustrations

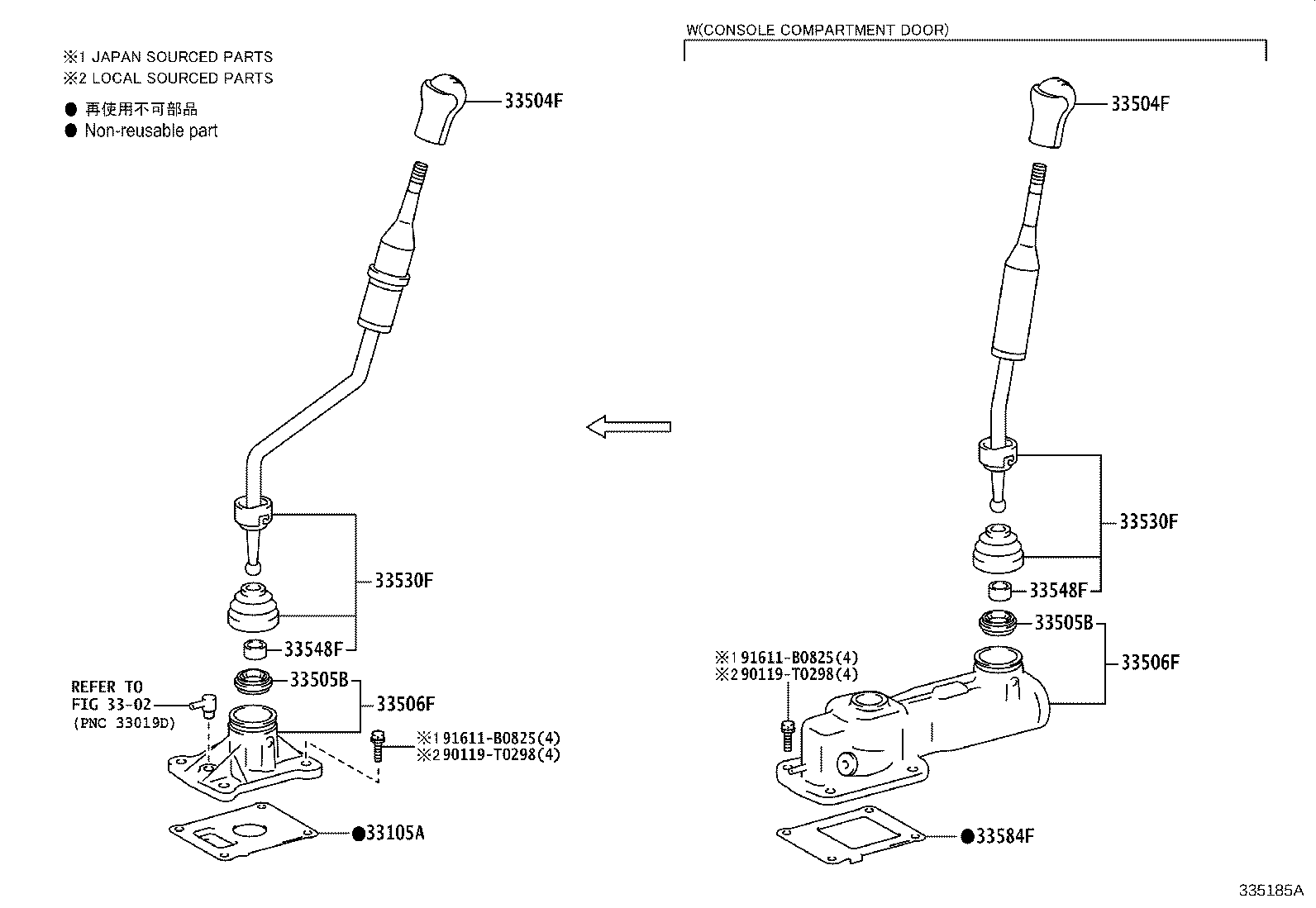

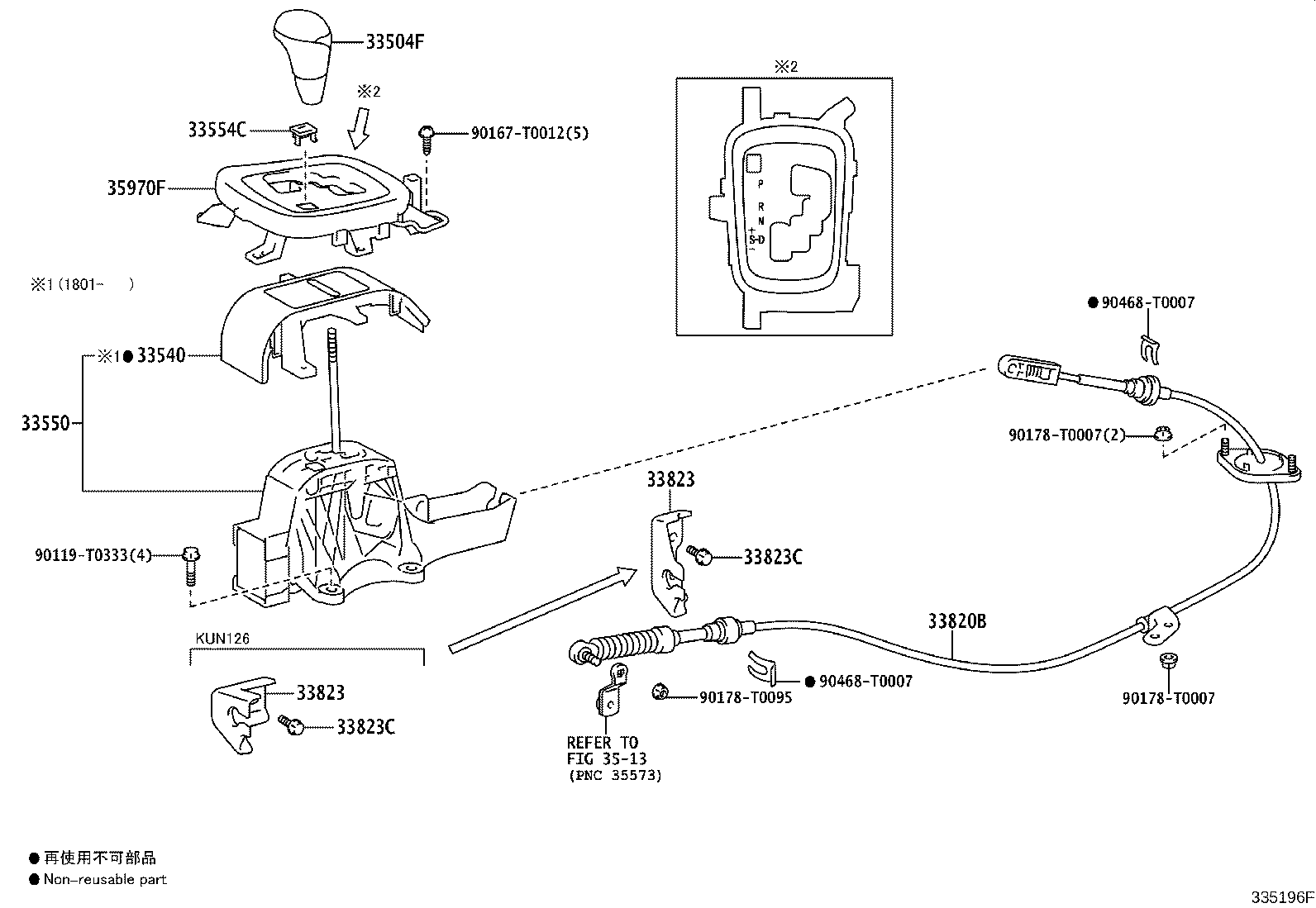

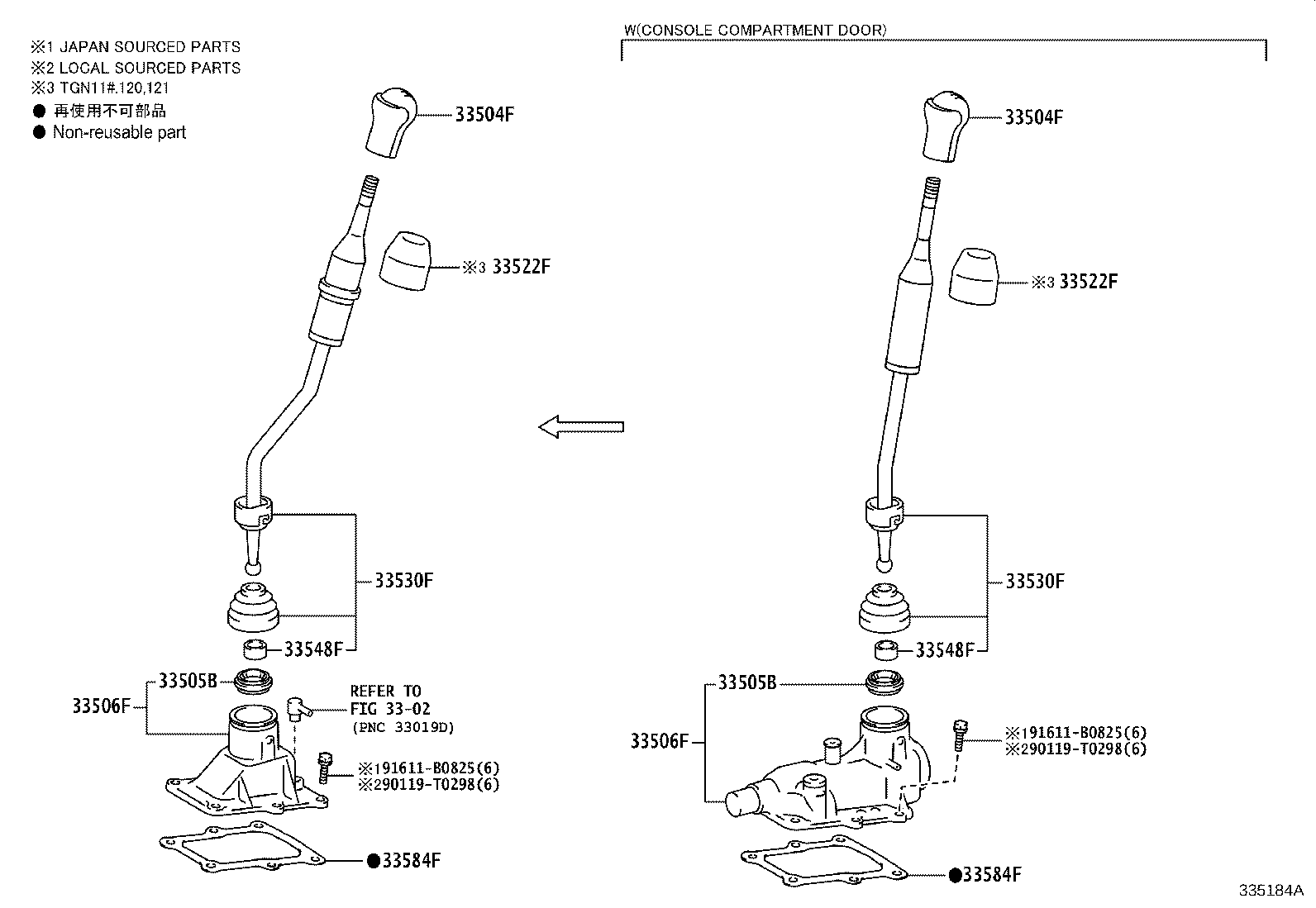

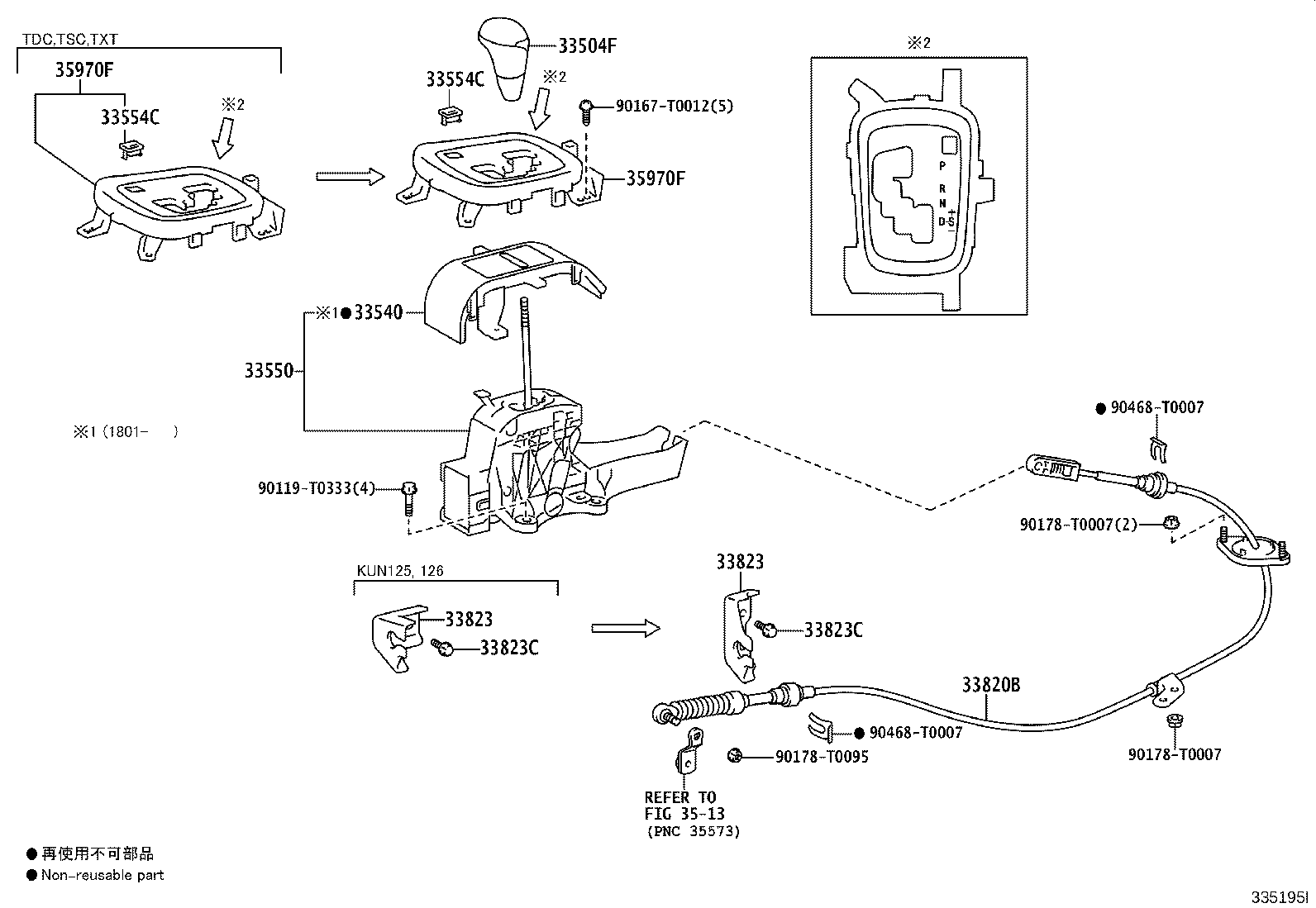

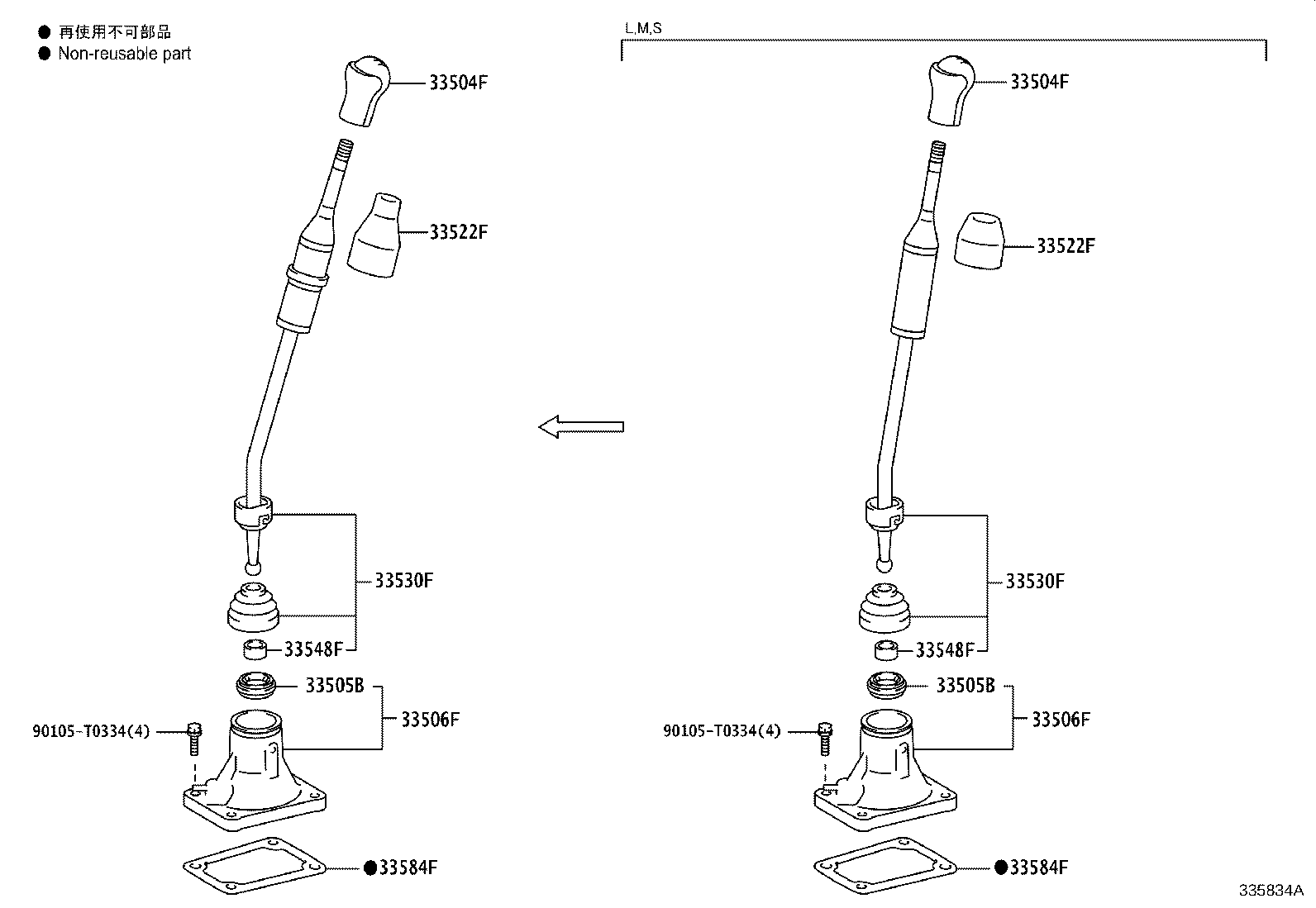

Figure 335183A 335183A 2015-05 → — Figure 335184A 335184A 2015-05 → — Figure 335185A 335185A 2015-05 → — Figure 335193B 335193B 2015-05 → — Figure 335194B 335194B 2015-05 → — Figure 335195I 335195I 2015-05 → — Figure 335196F 335196F 2015-05 → — Figure 335834A 335834A 2018-06 → —

Part groups

PNCDescription
33105A Deflector Sub-assy, Extension Housing Oil(MTM)
33504F Knob Sub-assy, Shift Lever
33505B Seat Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33522F Seat, Shift Lever Plate (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33540 Plate Assy, Shift Lever
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
