Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Housing & Differential

55 part groups · 44 illustrations

Illustrations

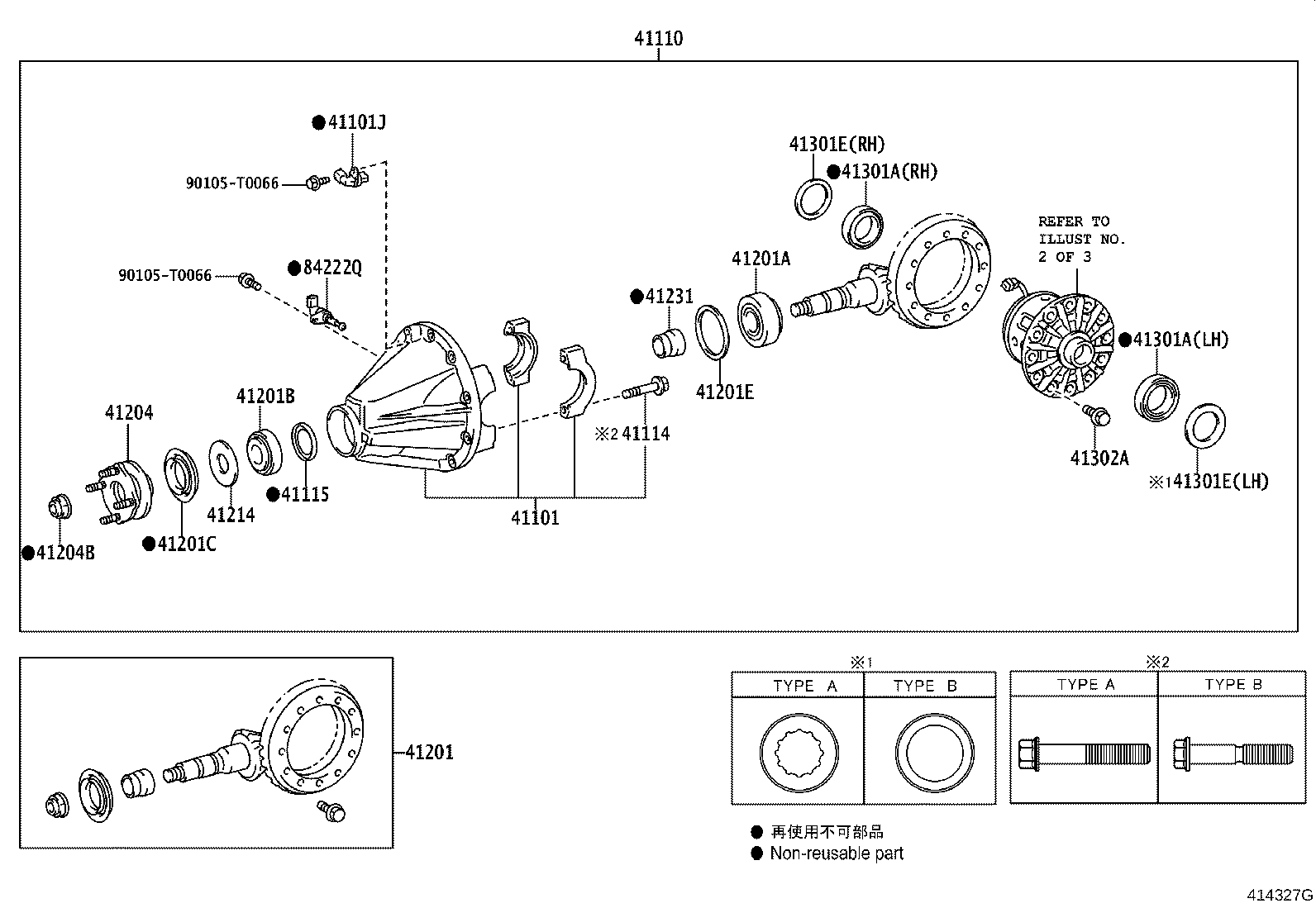

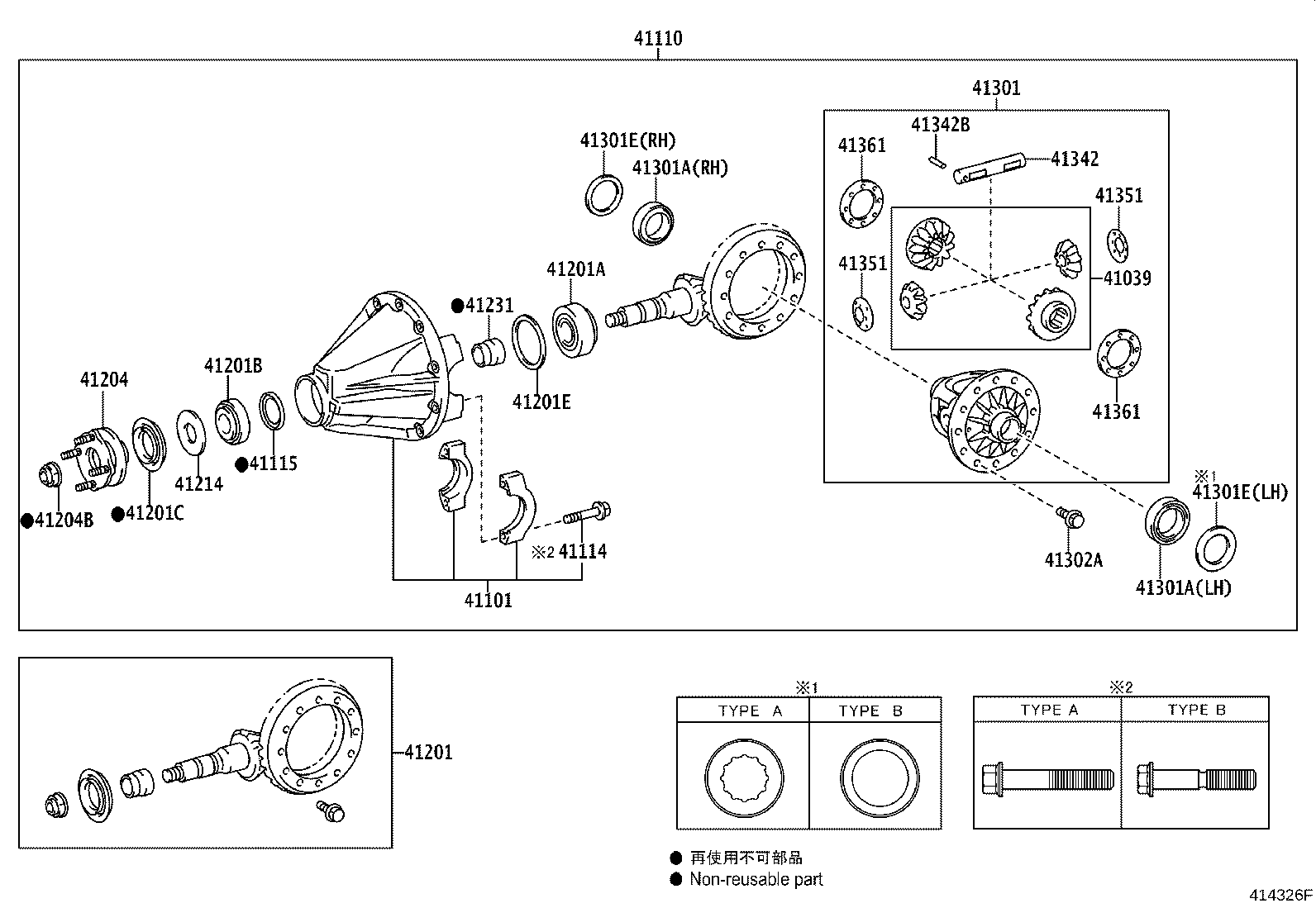

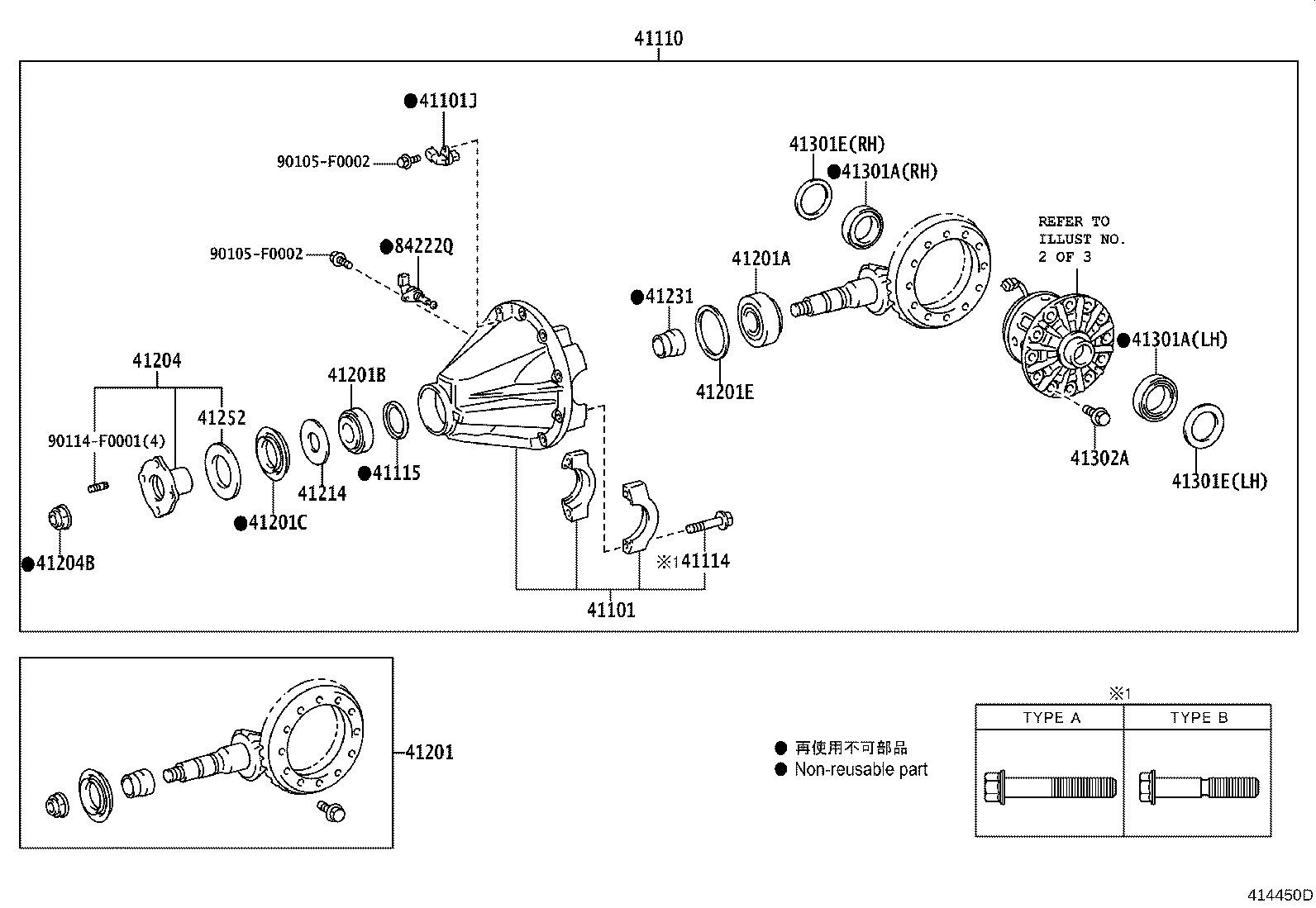

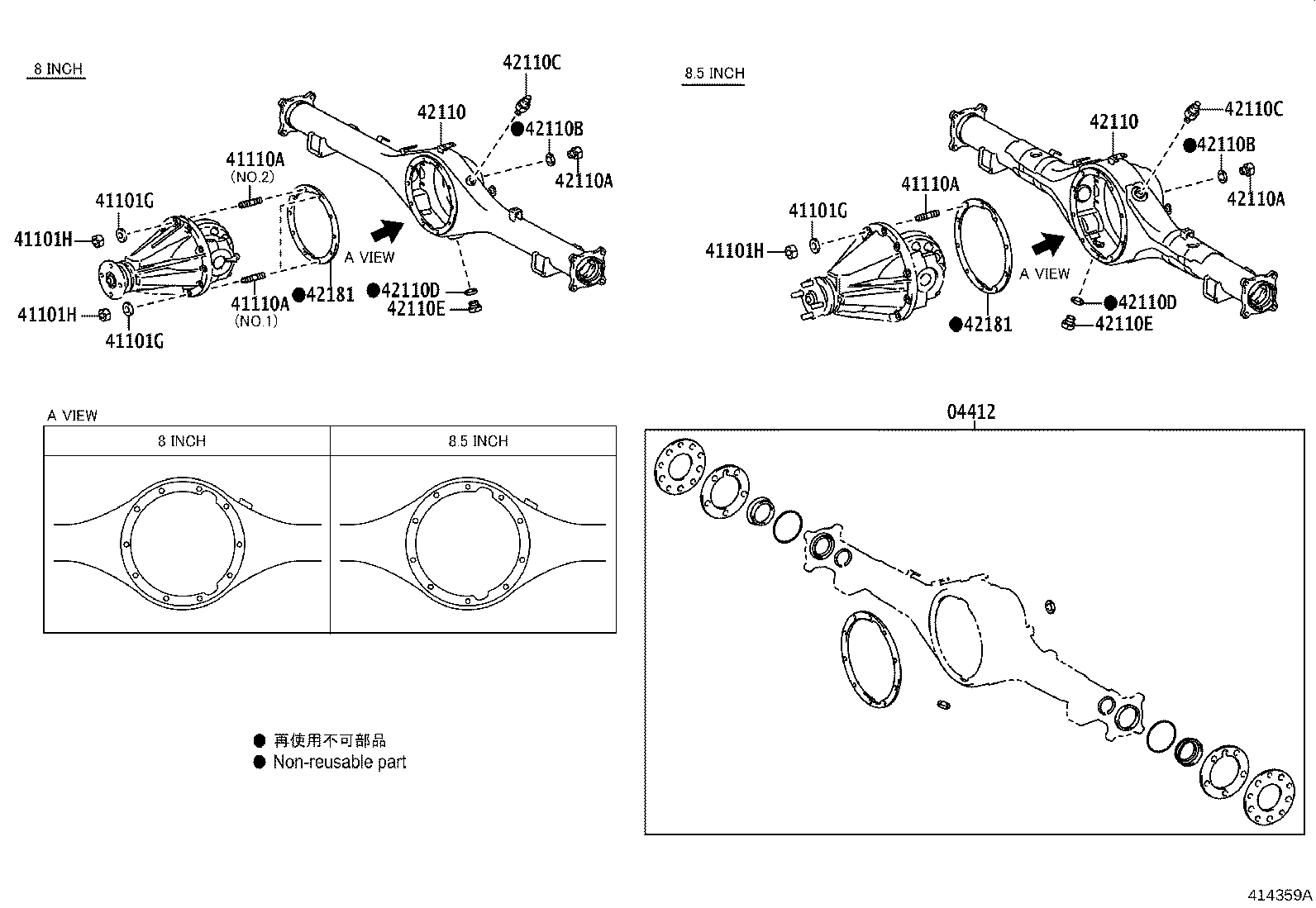

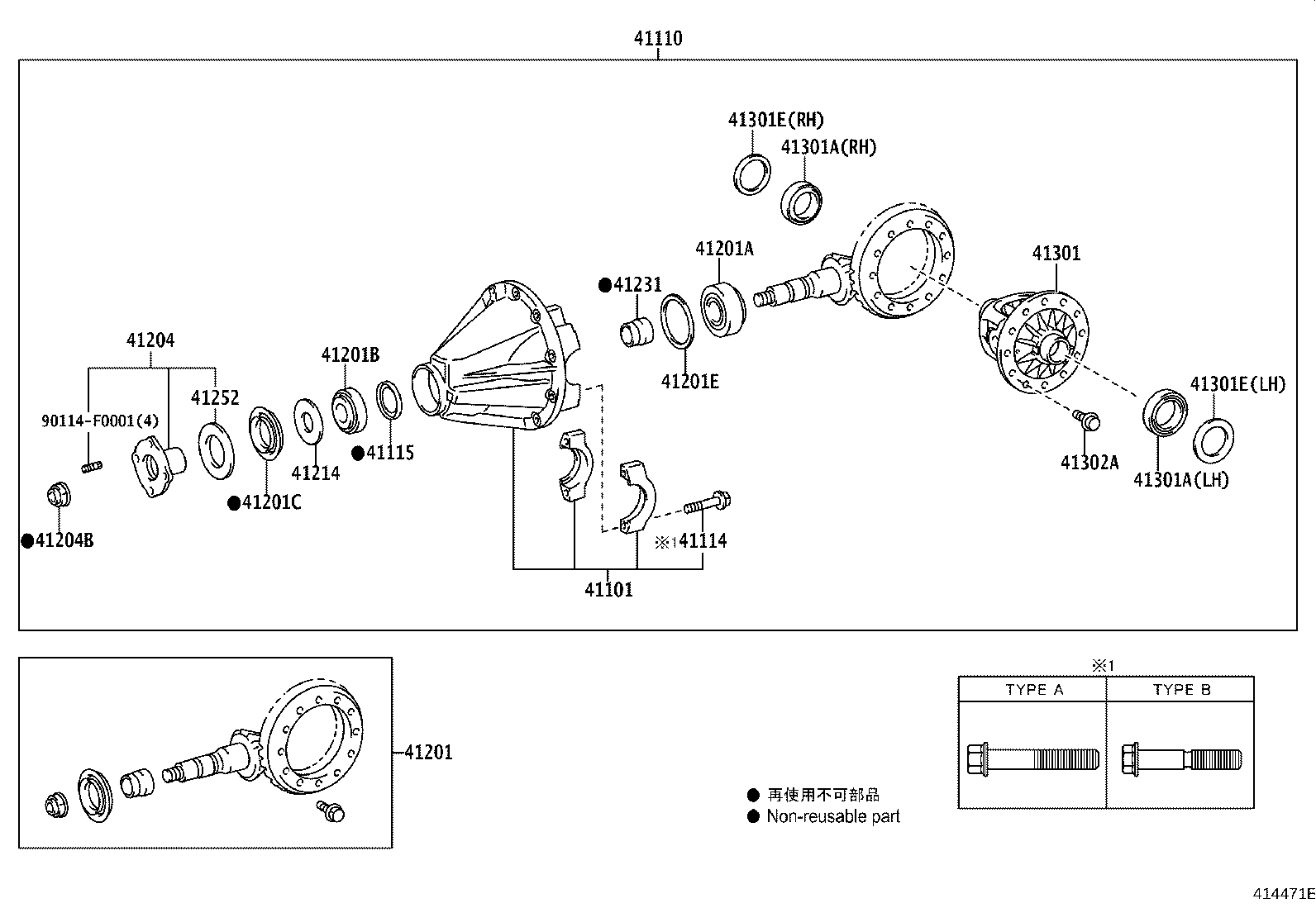

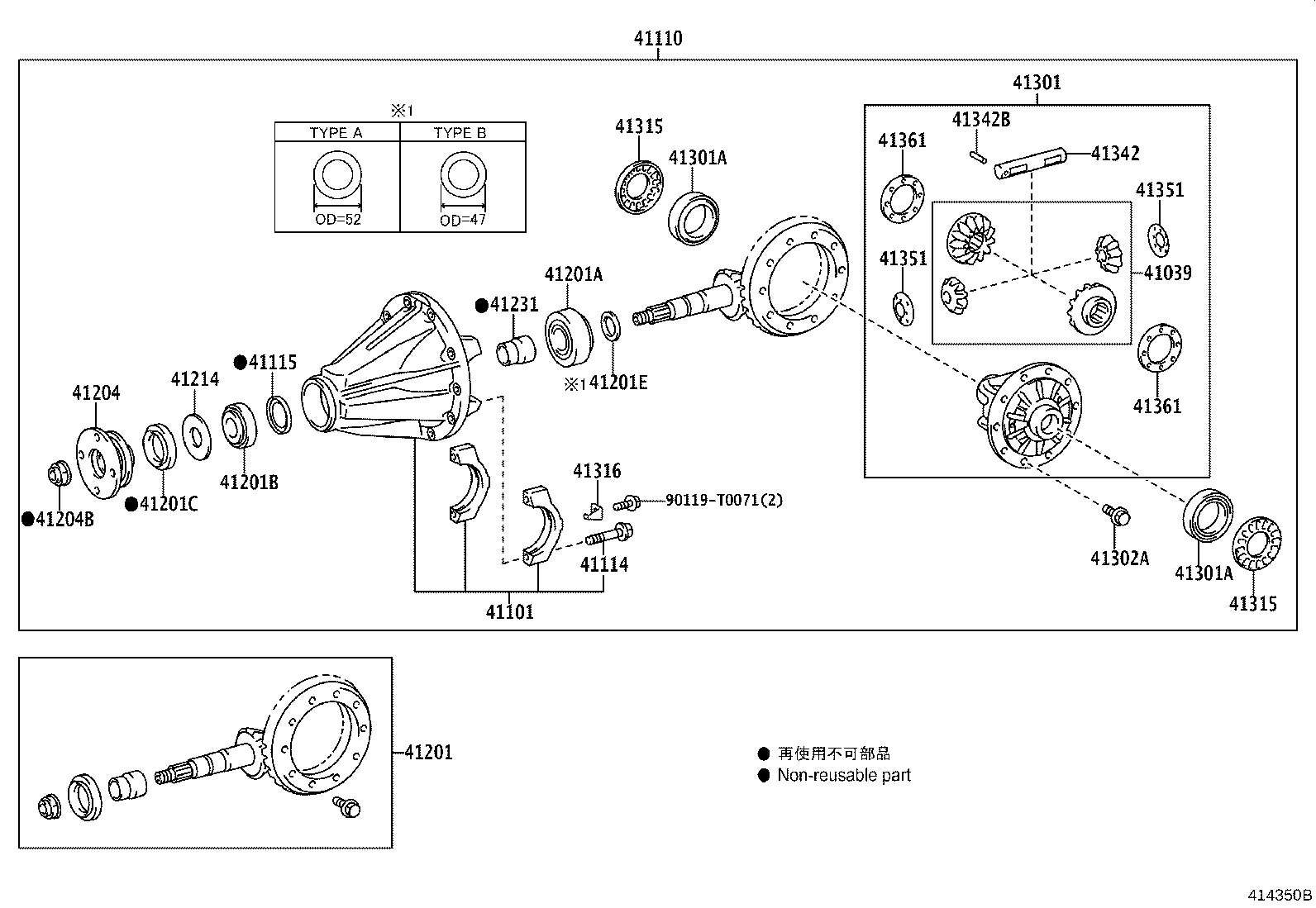

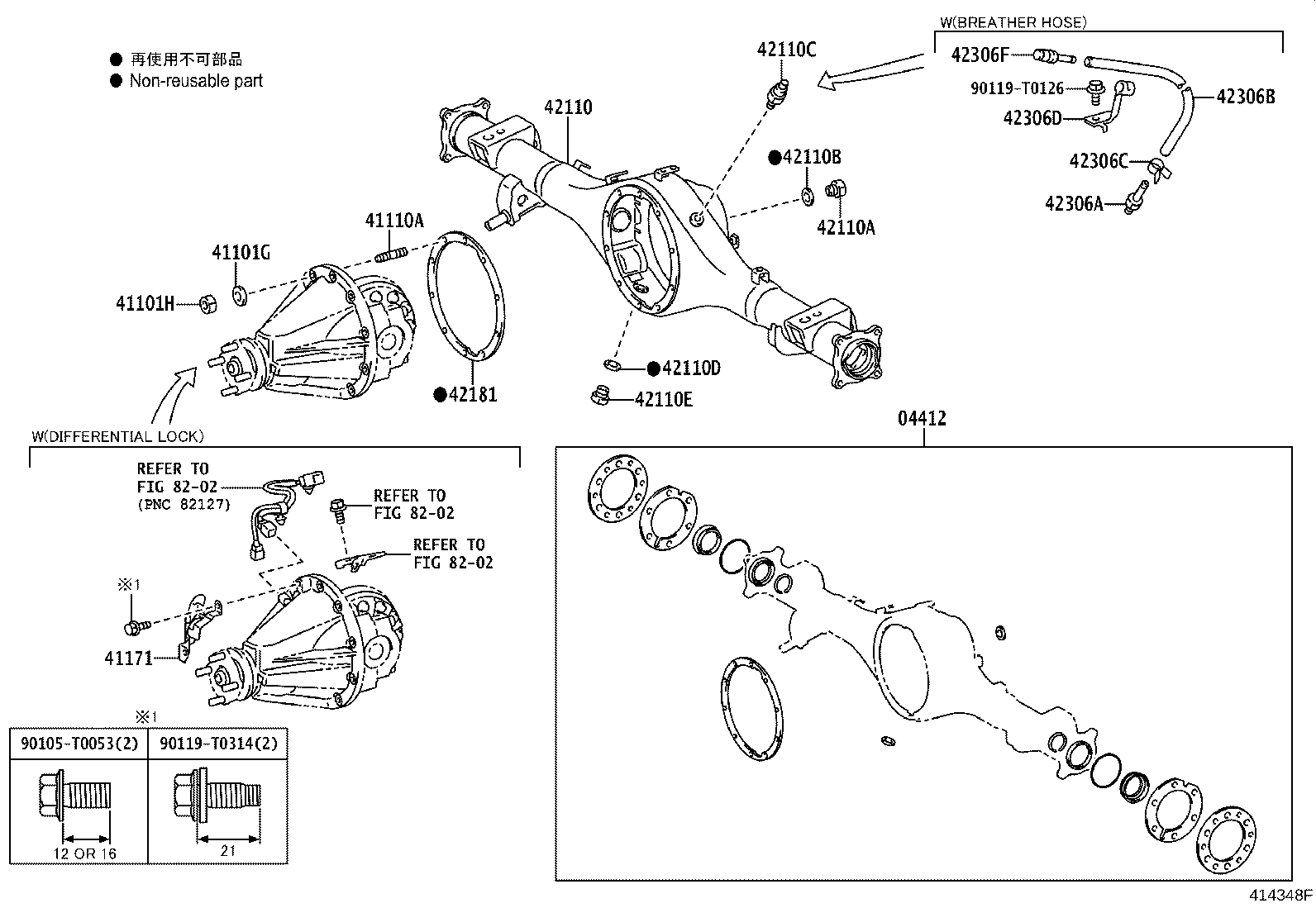

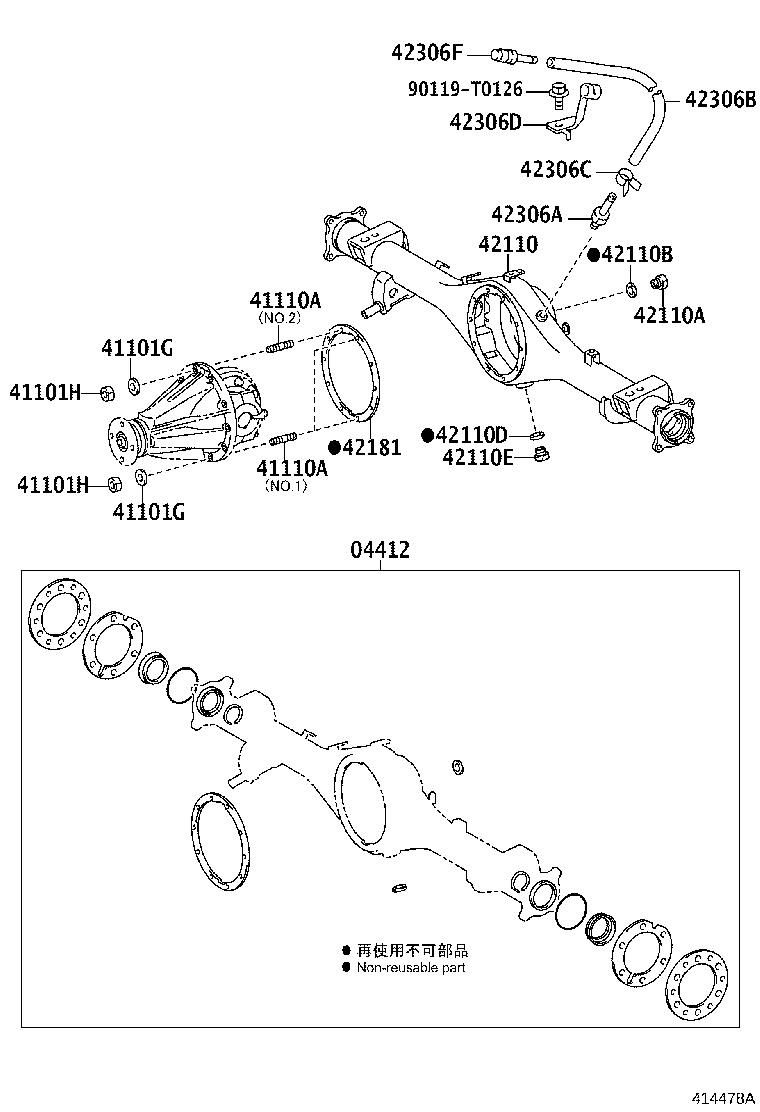

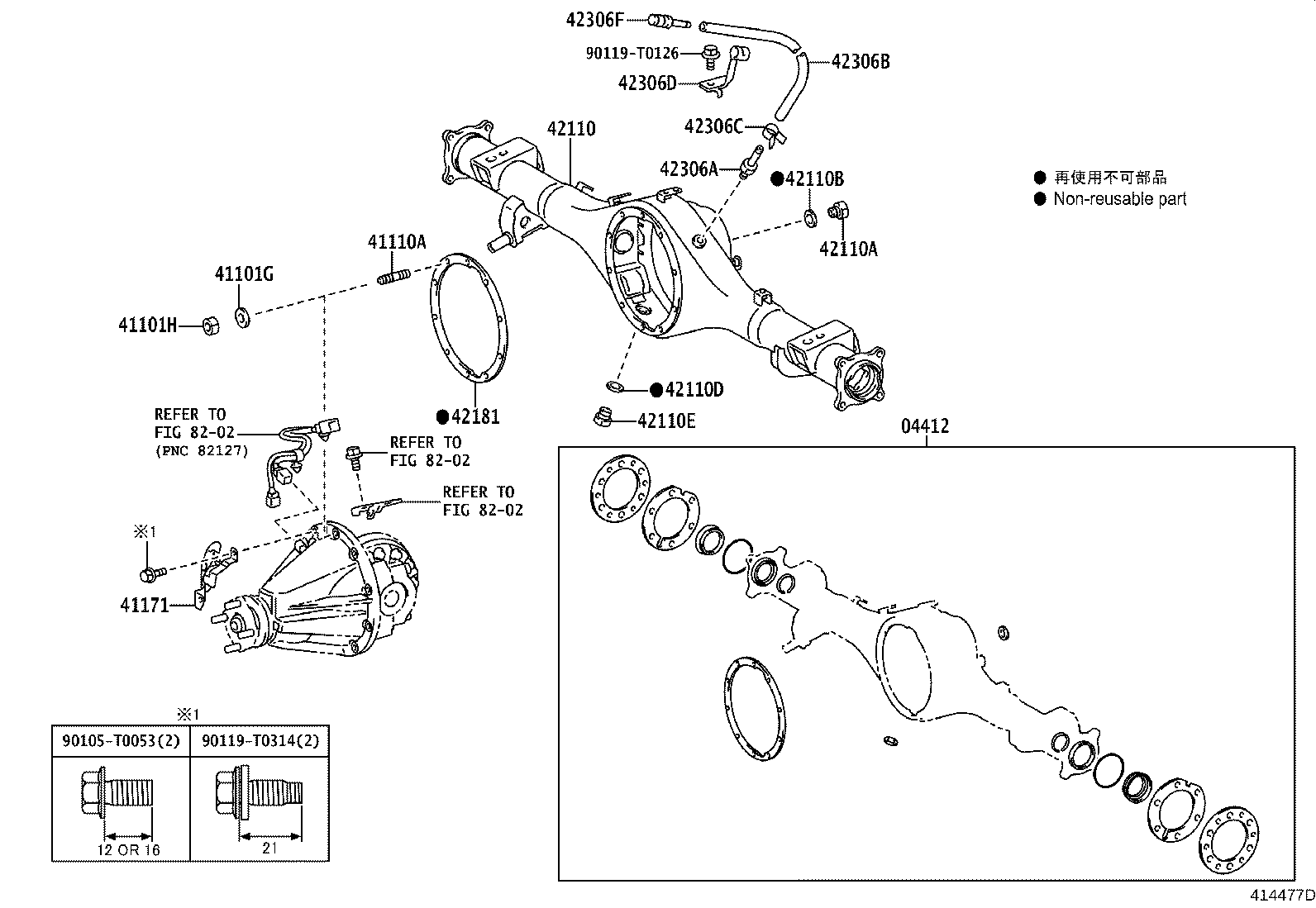

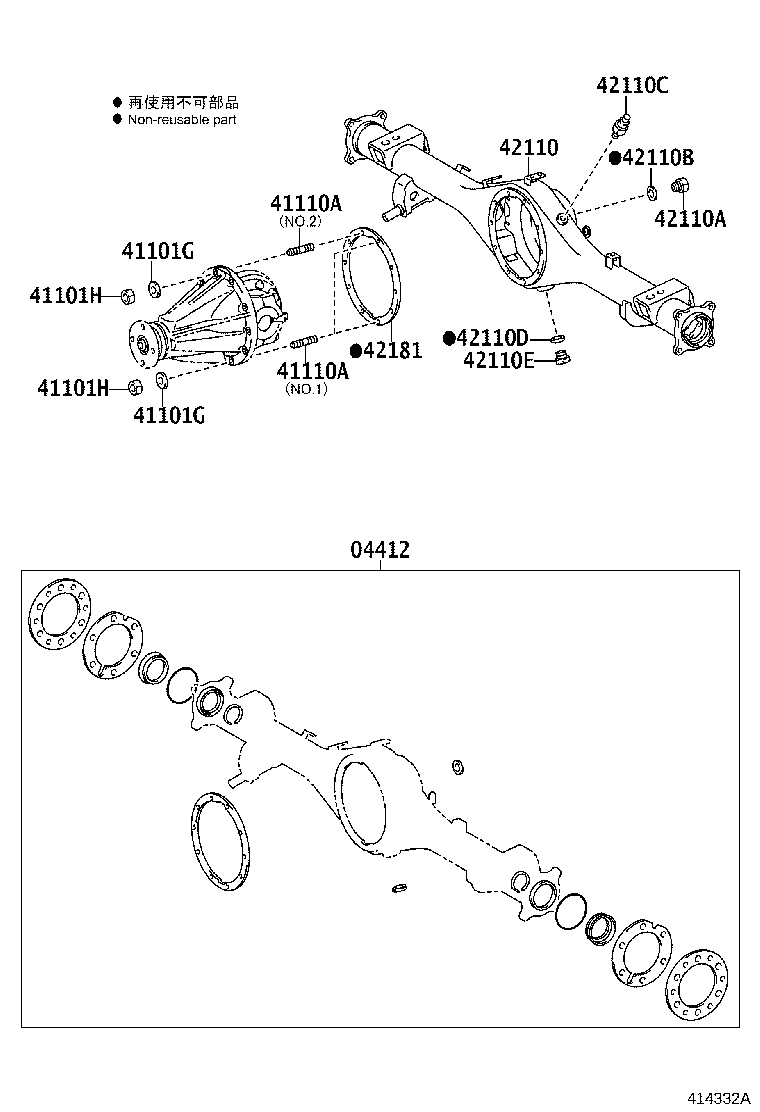

Figure 414325D 414325D 2015-05 → — Figure 414350B 414350B 2015-05 → — Figure 414326F 414326F 2015-05 → — Figure 414326F 414326F 2015-05 → — Figure 414326F 414326F 2015-05 → — Figure 414326F 414326F 2015-05 → — Figure 414326F 414326F 2015-05 → — Figure 414326F 414326F 2015-11 → 2016-03 Figure 414326F 414326F 2015-11 → 2016-03 Figure 414326F 414326F 2018-08 → 2020-06 Figure 414471E 414471E 2016-01 → — Figure 414471E 414471E 2016-01 → — Figure 414471E 414471E 2016-01 → — Figure 414471E 414471E 2016-01 → — Figure 414471E 414471E 2016-03 → — Figure 414471E 414471E 2016-03 → — Figure 414471E 414471E 2016-03 → — Figure 414471E 414471E 2020-06 → — Figure 414327G 414327G 2015-05 → — Figure 414327G 414327G 2015-05 → — Figure 414327G 414327G 2015-05 → — Figure 414327G 414327G 2016-04 → — Figure 414327G 414327G 2018-08 → 2020-06 Figure 414450D 414450D 2015-11 → — Figure 414450D 414450D 2015-11 → — Figure 414450D 414450D 2015-11 → — Figure 414450D 414450D 2015-11 → — Figure 414450D 414450D 2016-01 → — Figure 414450D 414450D 2016-01 → — Figure 414450D 414450D 2016-01 → — Figure 414450D 414450D 2019-10 → — Figure 414450D 414450D 2020-06 → — Figure 414454E 414454E 2015-05 → — Figure 414359A 414359A 2015-05 → — Figure 414359A 414359A 2015-05 → — Figure 414332A 414332A 2015-05 → — Figure 414348F 414348F 2015-05 → — Figure 414348F 414348F 2015-05 → — Figure 414348F 414348F 2015-11 → — Figure 414348F 414348F 2015-11 → — Figure 414348F 414348F 2016-01 → — Figure 414348F 414348F 2019-10 → — Figure 414478A 414478A 2016-01 → — Figure 414477D 414477D 2016-01 → —

Part groups

PNCDescription
04412 Gasket Kit, Rear Differential Carrier
41039 Gear Kit, Differential, Rear
41101 Carrier Sub-assy, Differential, Rear
41101G Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
41101H Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
41101J Connector, Wiring Harness
41110 Carrier Assy, Differential, Rear
41110A Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
41114 Bolt, Rear Differential Bearing Cap
41115 Ring, Differential Oil Storage
41171 Protector, Differential, Rear
41201 Final Gear Kit, Differential, Rear
41201A Bearing (FOR REAR DRIVE PINION REAR)
41201B Bearing (FOR REAR DRIVE PINION FRONT)
41201C Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
41201E Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41204 Flange Sub-assy, Rear Drive Pinion Companion, Rear
41204B Nut (FOR REAR DRIVE PINION)
41214 Slinger, Rear Differential Drive Pinion Oil
41231 Spacer, Rear Differential Drive Pinion Bearing
41252 Deflector, Dust (FOR REAR DIFFERENTIAL)
41301 Case Sub-assy, Rear Differential
41301A Bearing(FOR REAR DIFFERENTIAL CASE)
41301E Shim(FOR DIFFERENTIAL CASE)
41302 Case Sub-assy, Rear Differential
41302A Bolt(FOR REAR DIFFERENTIAL CASE)
41303E Case Sub-assy, Electronic Differential Lock
41315 Nut, Rear Differential Bearing Adjusting
41316 Lock, Rear Differential Bearing Adjusting Nut
41342 Shaft, Rear Differential Pinion
41342B Pin, Straight (FOR REAR DIFFERENTIAL PINION SHAFT)
41342M Shaft, Rear Differential Pinion, NO.2
41343 Pin, Rear Differential Pinion Shaft
41351 Washer, Rear Differential Pinion Thrust
41361 Washer, Rear Differential Side Gear Thrust, NO.1
41362 Washer, Rear Differential Side Gear Thrust, NO.2
41363 Washer, Rear Differential Side Gear Thrust, NO.3
41367 Washer, Differential Solenoid
41417 Spring, Differential Lock
41433A Ring, Differential Lock Cam
41451H Coil, Differential Lock
41474A Plate, Differential Lock Position
42110 Housing Assy, Rear Axle
42110A Plug (FOR REAR AXLE HOUSING FILLER)
42110B Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
42110C Plug, Breather (FOR REAR AXLE HOUSING)
42110D Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
42110E Plug (FOR REAR AXLE HOUSING DRAIN)
42181 Gasket, Rear Differential Carrier
42306A Union (FOR REAR AXLE BREATHER HOUSE)
42306B Hose (FOR REAR AXLE BREATHER)
42306C Clip, Hose (FOR REAR AXLE BREATHER HOSE)
42306D Clamp (FOR REAR AXLE BRATHER HOSE)
42306F Plug, Breather (FOR REAR AXLE)
84222Q Switch, Differential Lock Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
