Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 12 illustrations

Illustrations

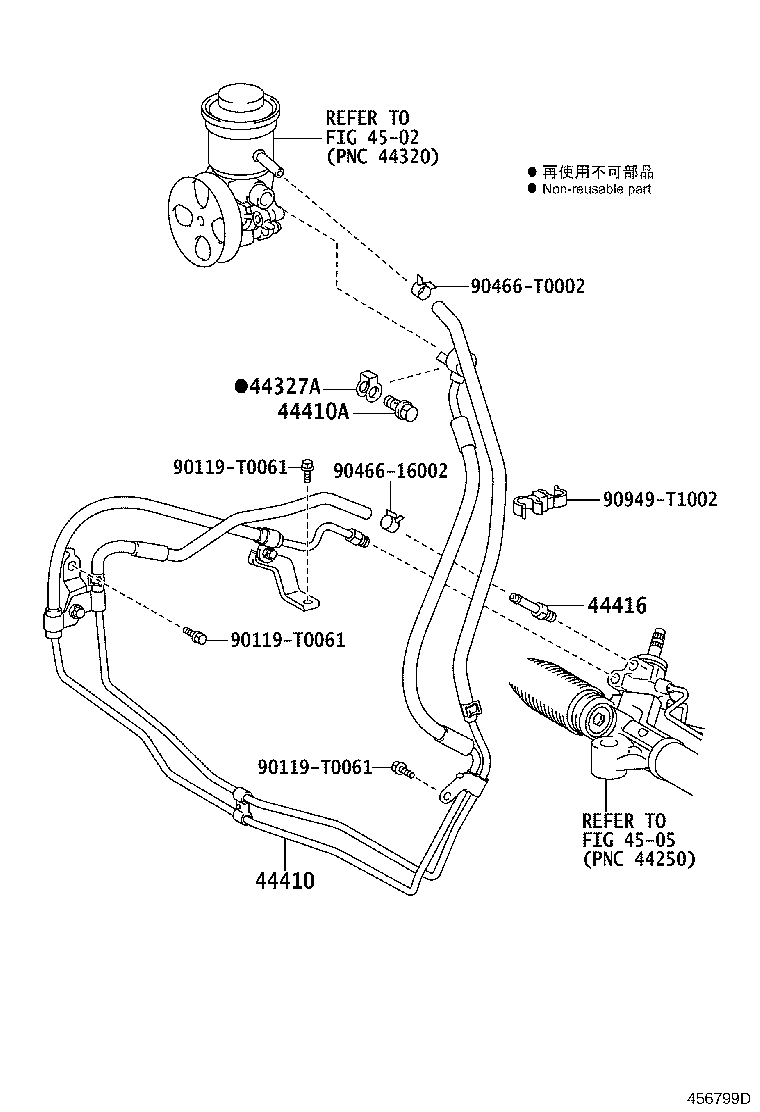

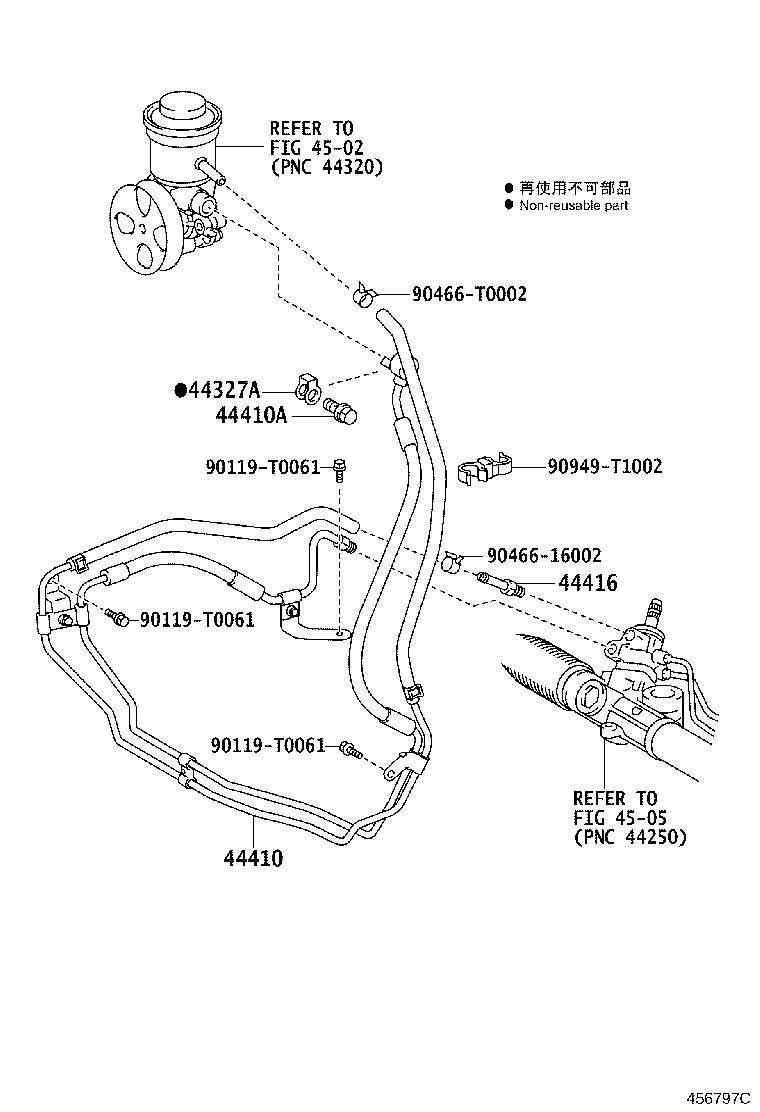

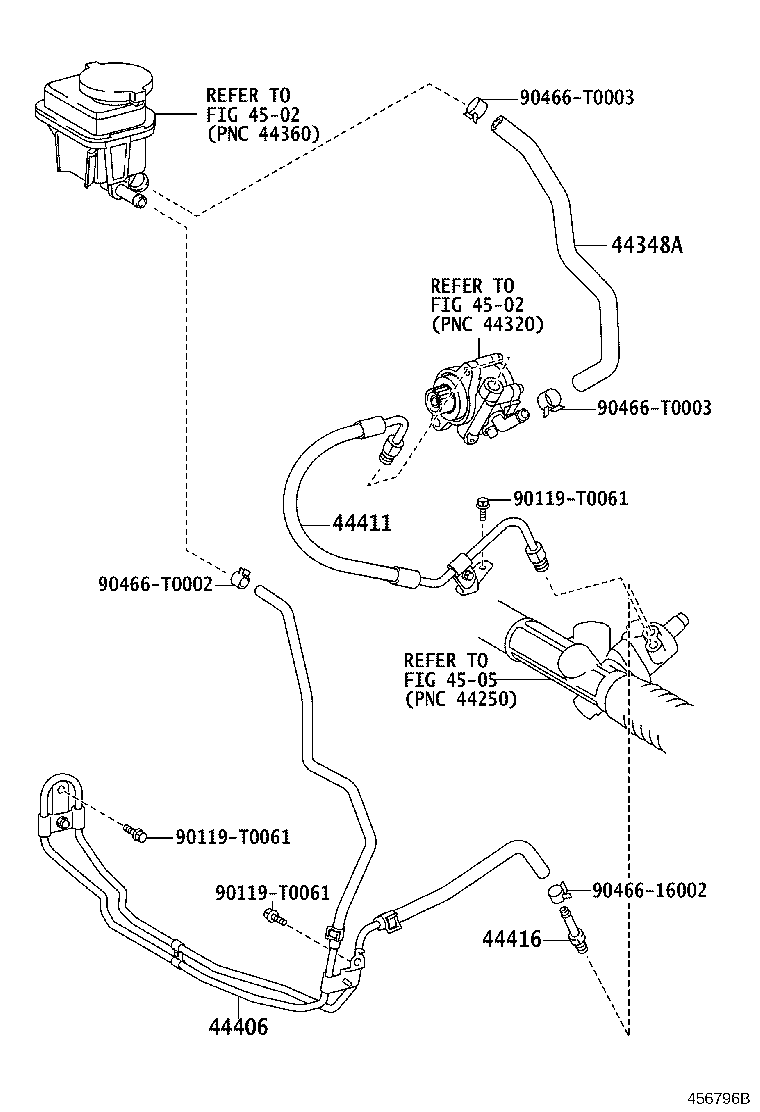

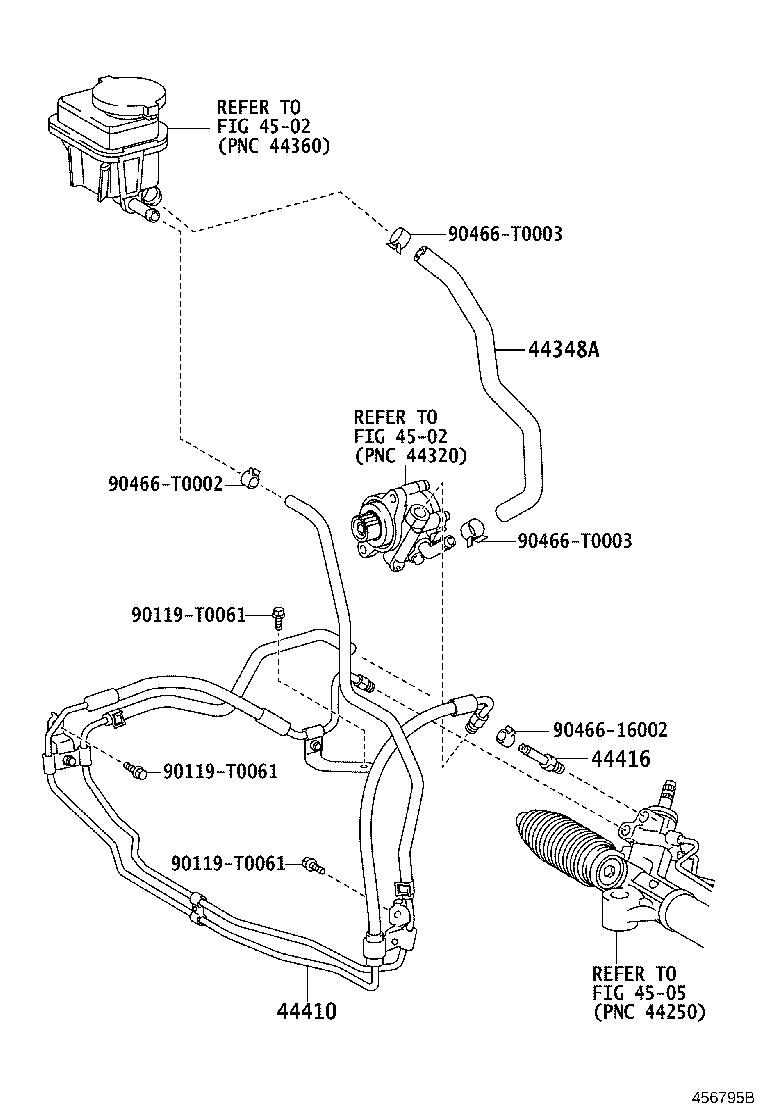

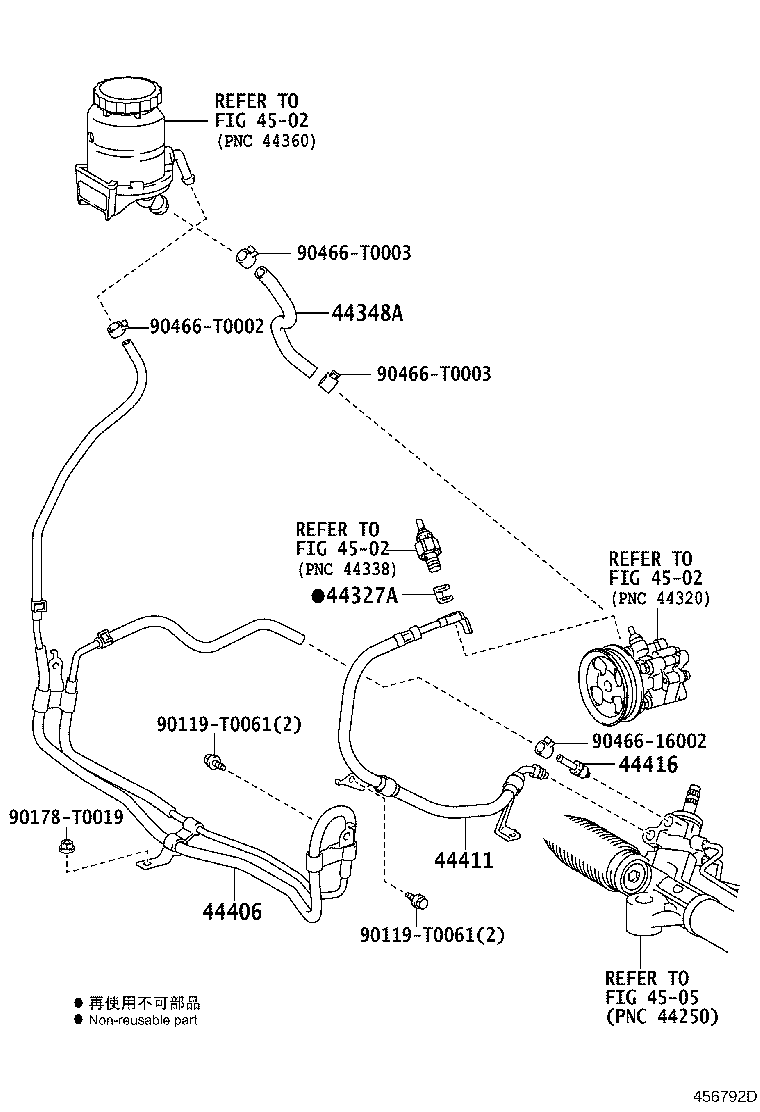

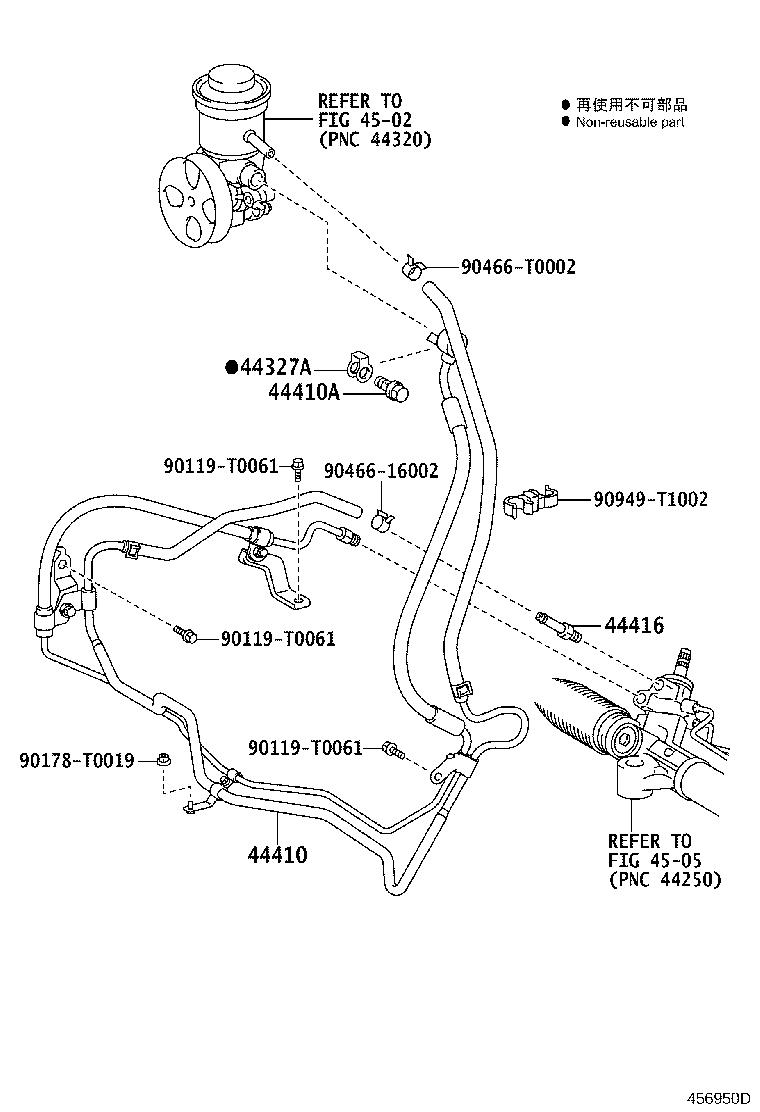

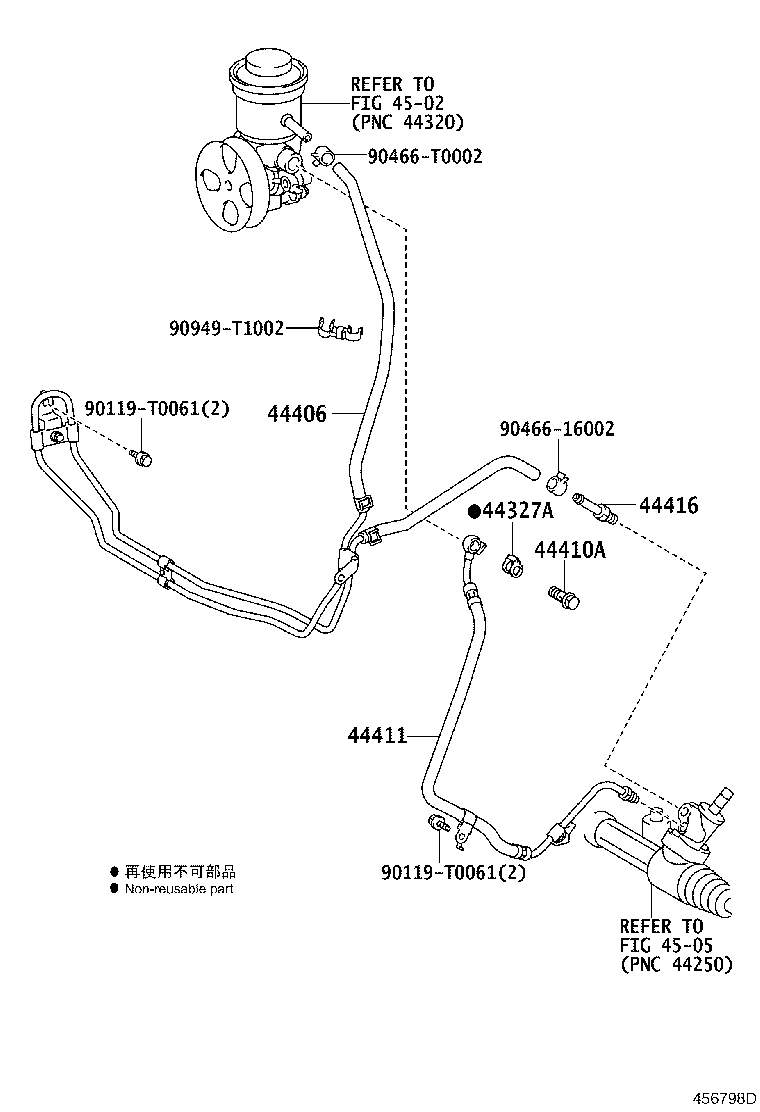

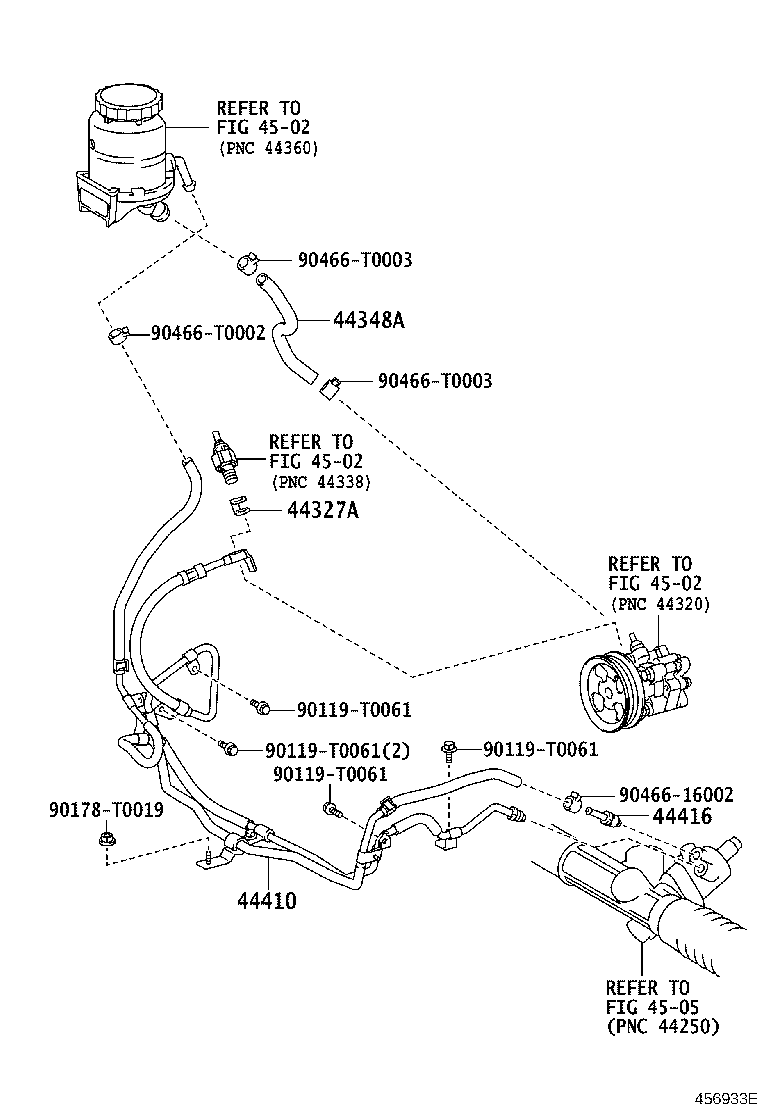

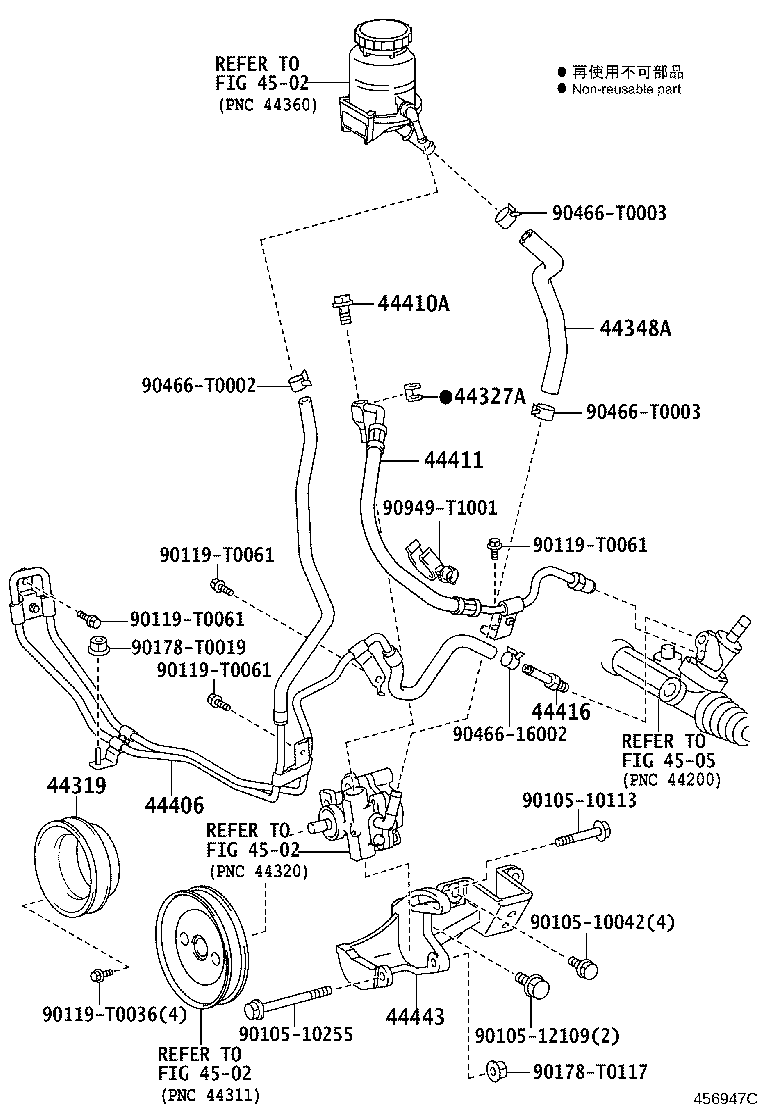

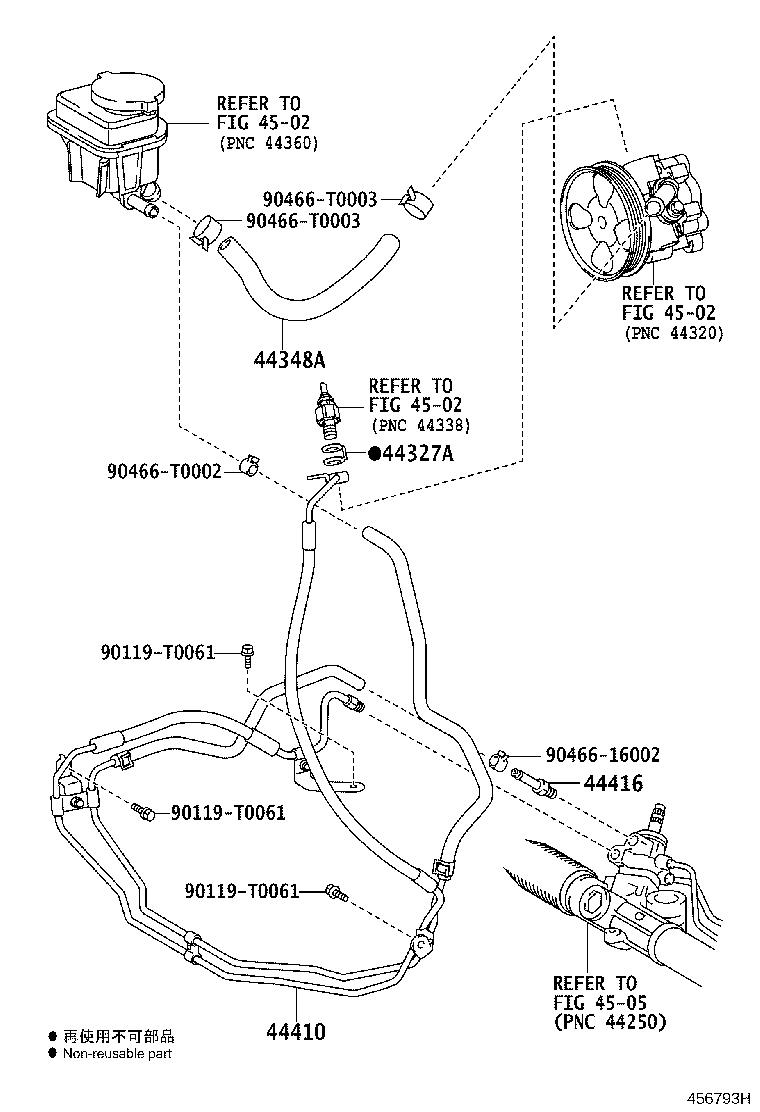

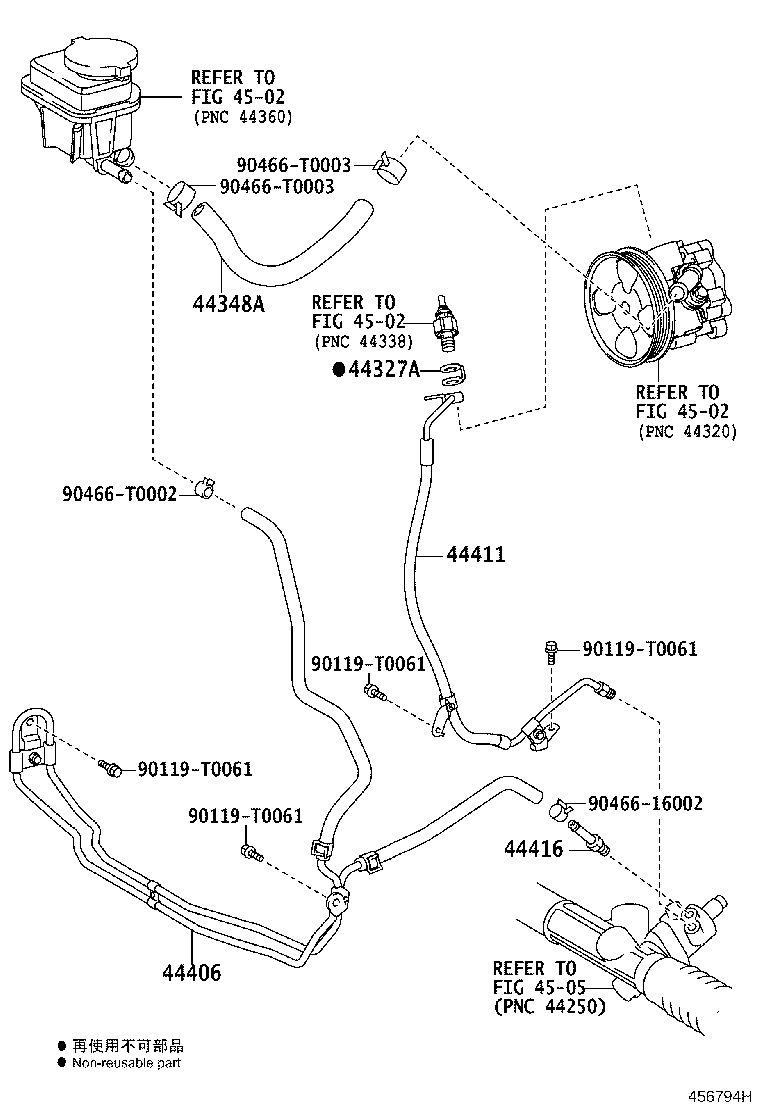

Figure 456791C 456791C 2015-05 → — Figure 456792D 456792D 2015-05 → — Figure 456793H 456793H 2015-05 → — Figure 456794H 456794H 2015-05 → — Figure 456795B 456795B 2015-05 → — Figure 456796B 456796B 2015-05 → — Figure 456797C 456797C 2015-05 → — Figure 456799D 456799D 2015-05 → — Figure 456798D 456798D 2015-05 → — Figure 456947C 456947C 2016-01 → — Figure 456950D 456950D 2016-01 → — Figure 456933E 456933E 2017-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
