Toyota Hilux
2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States
Supported model
Data version 2022-11

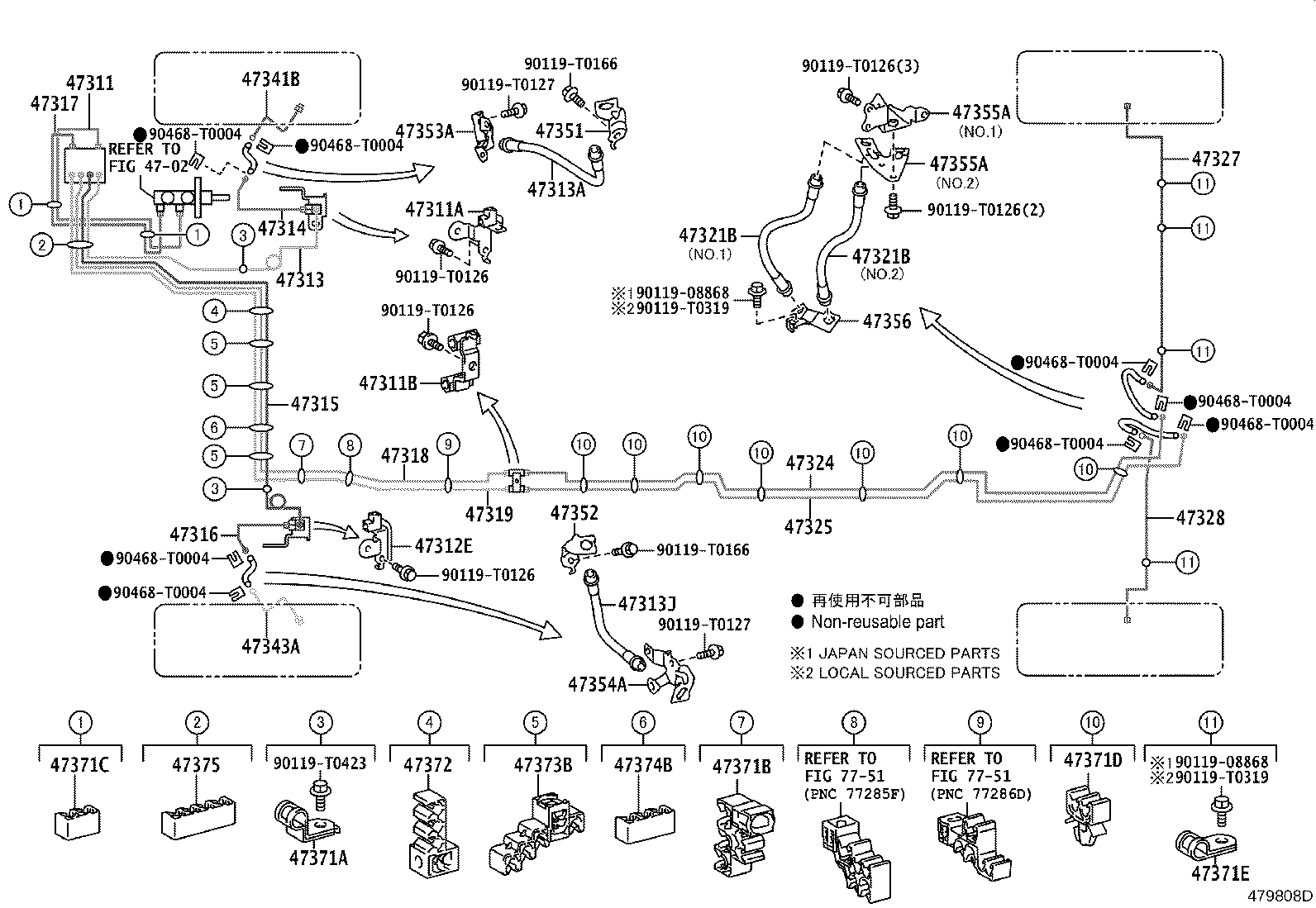

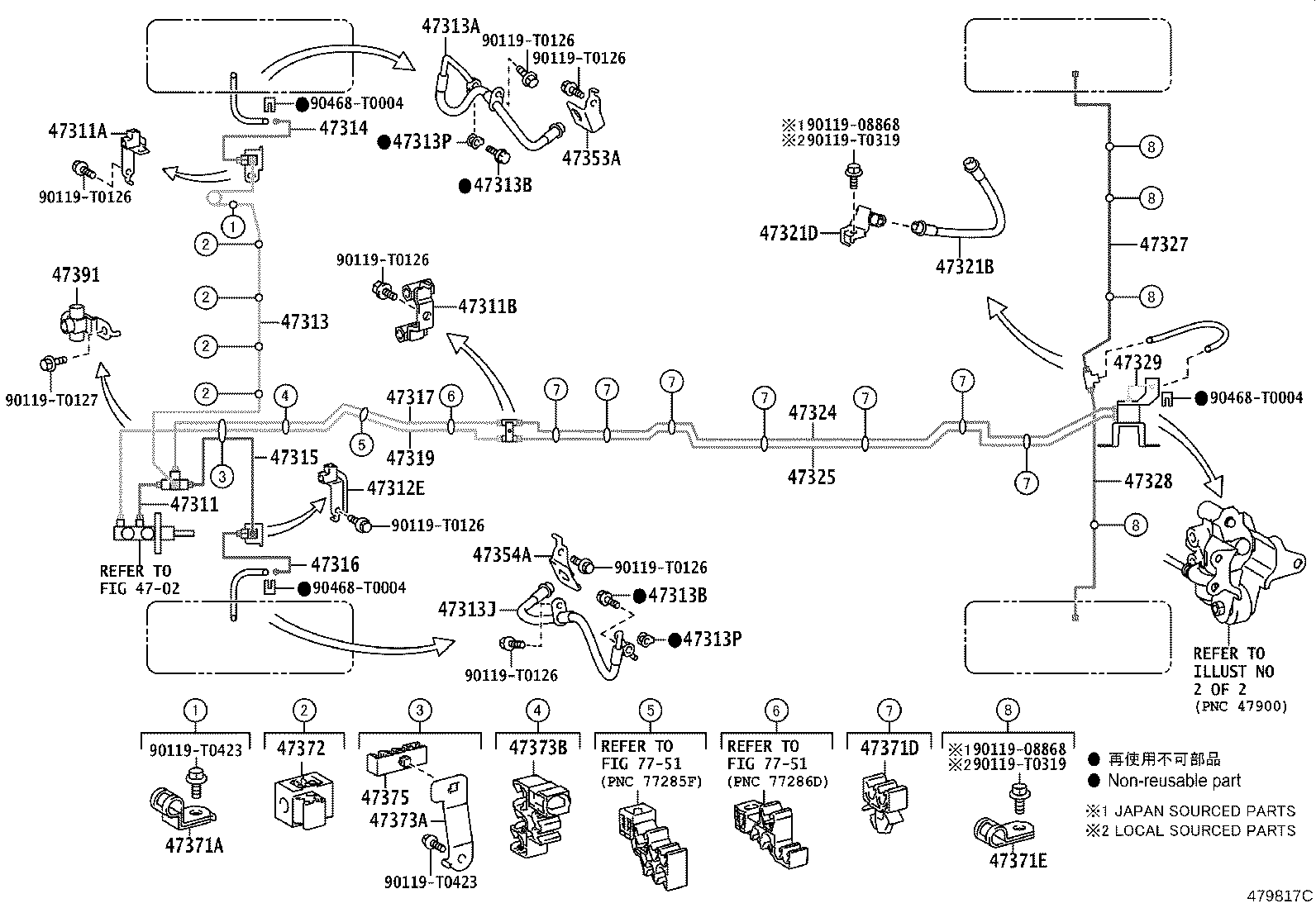

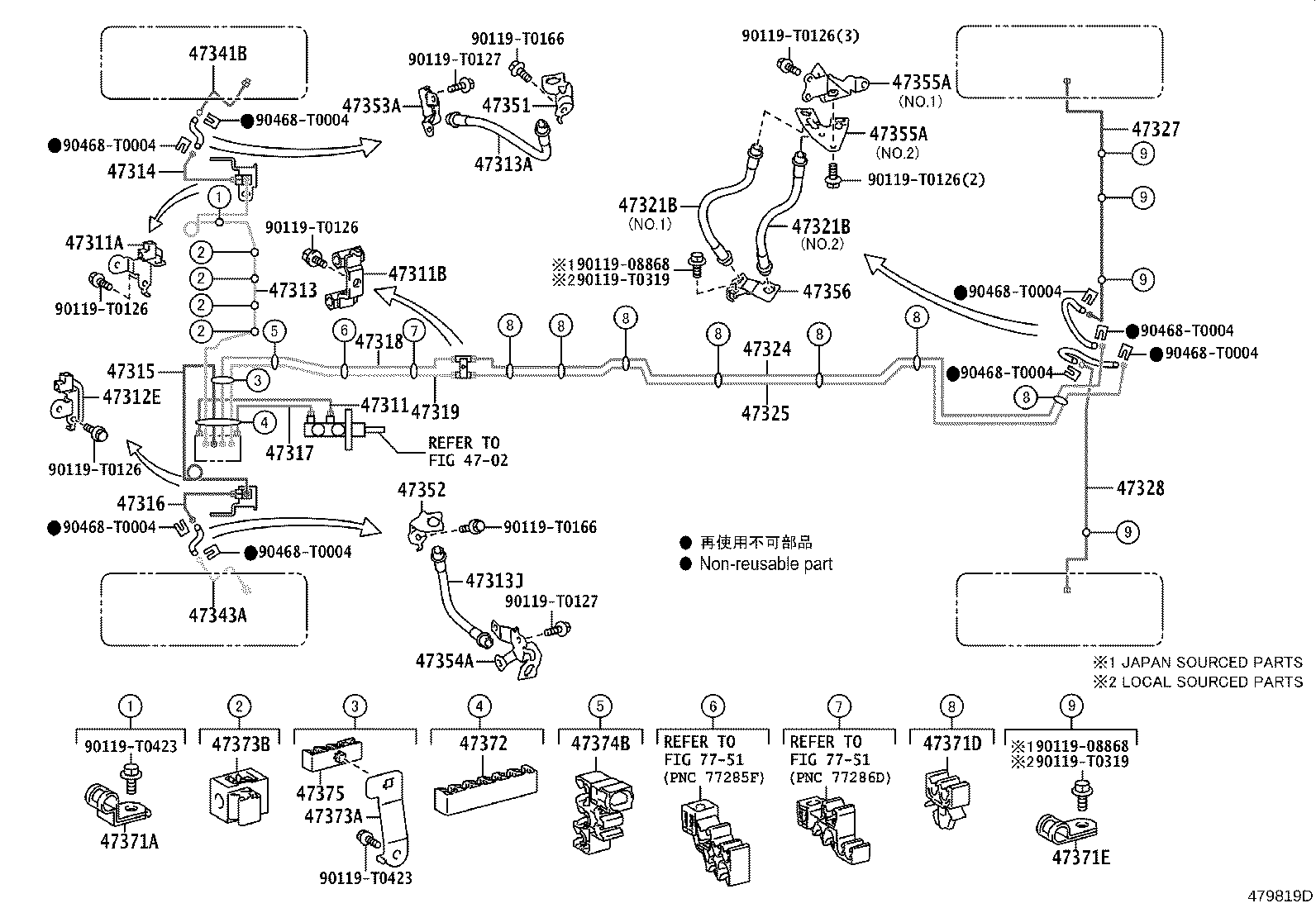

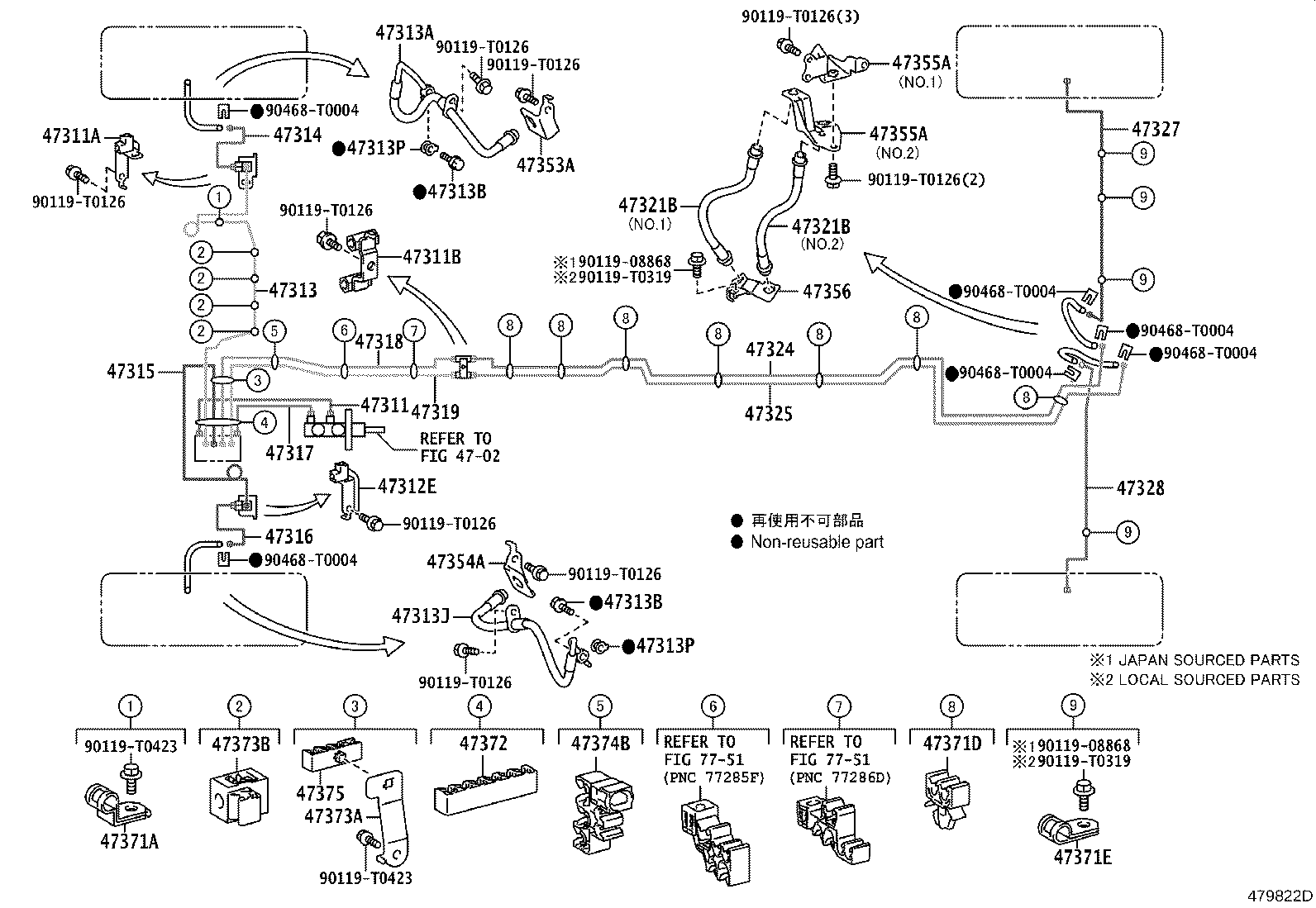

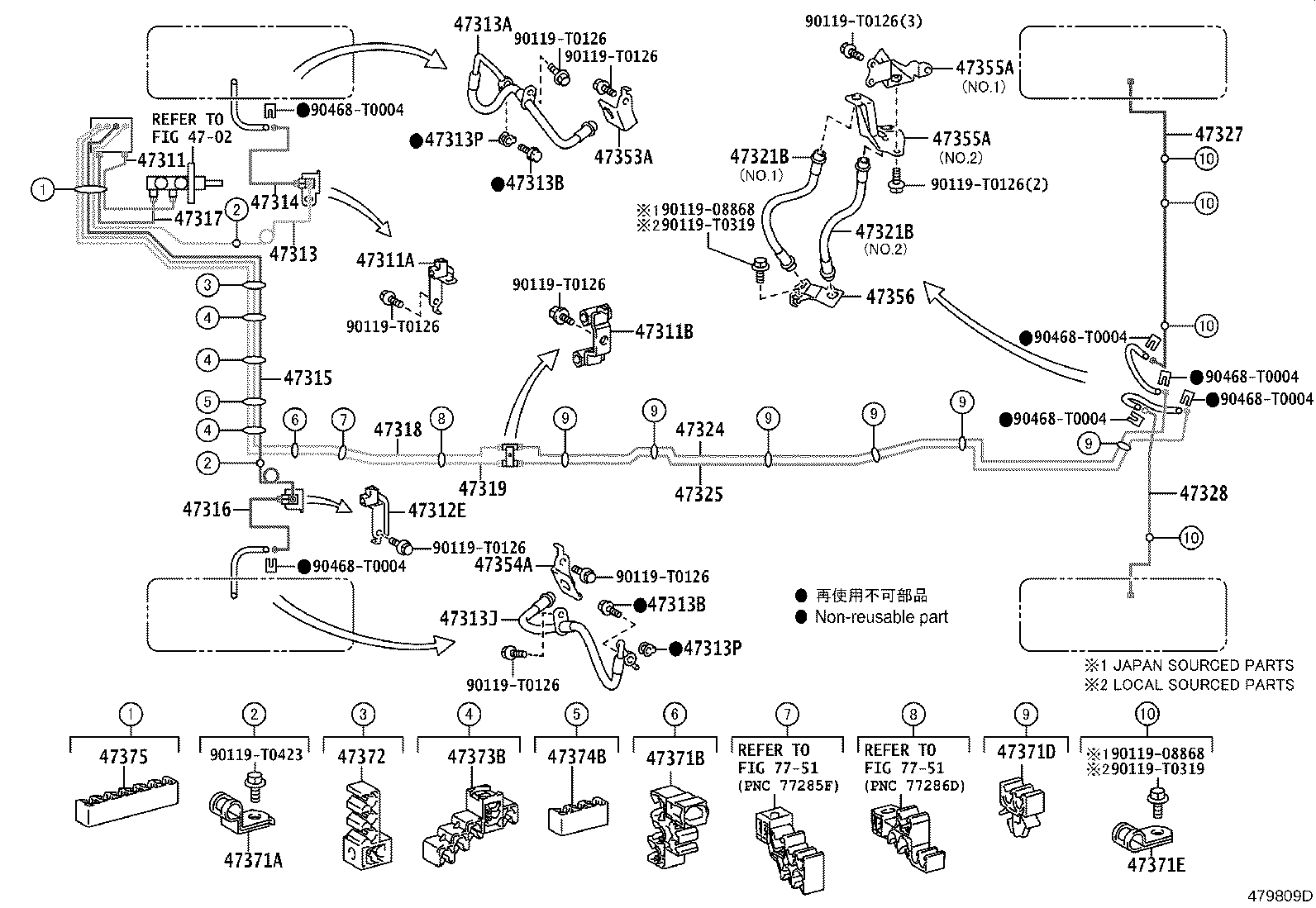

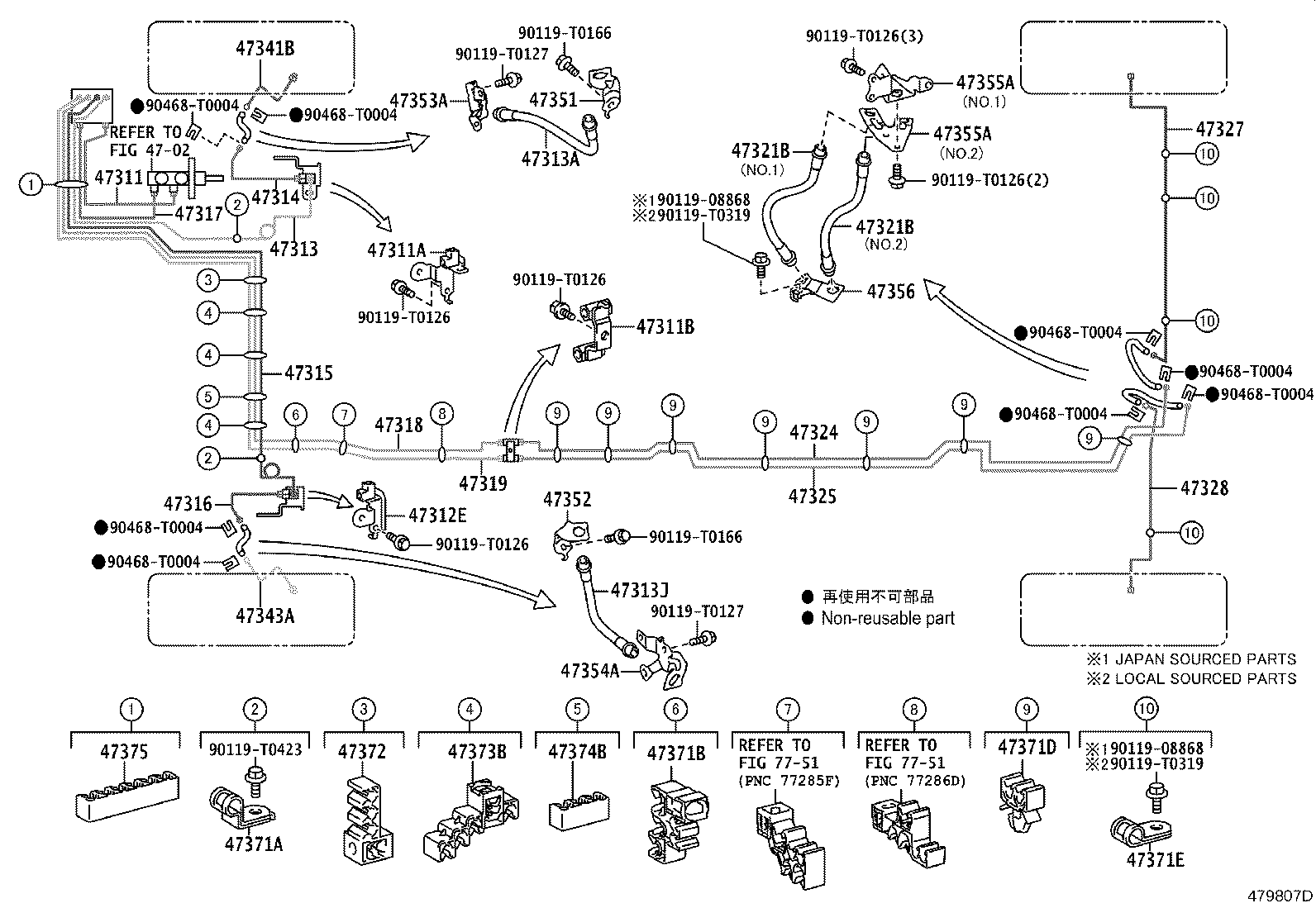

Brake Tube & Clamp
60 part groups · 19 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 31478D | Cap, Bleeder Plug(FOR LSPV) |

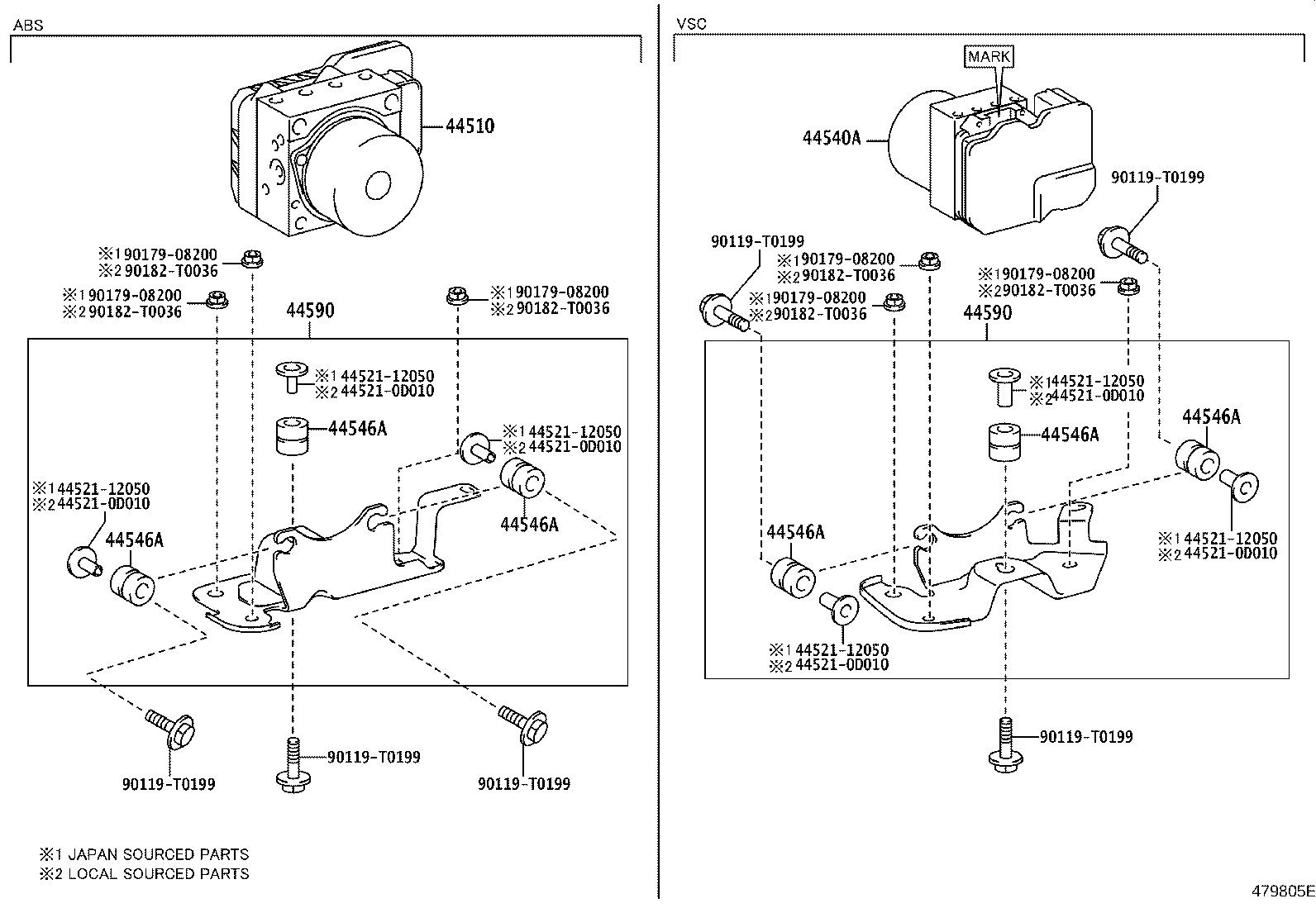

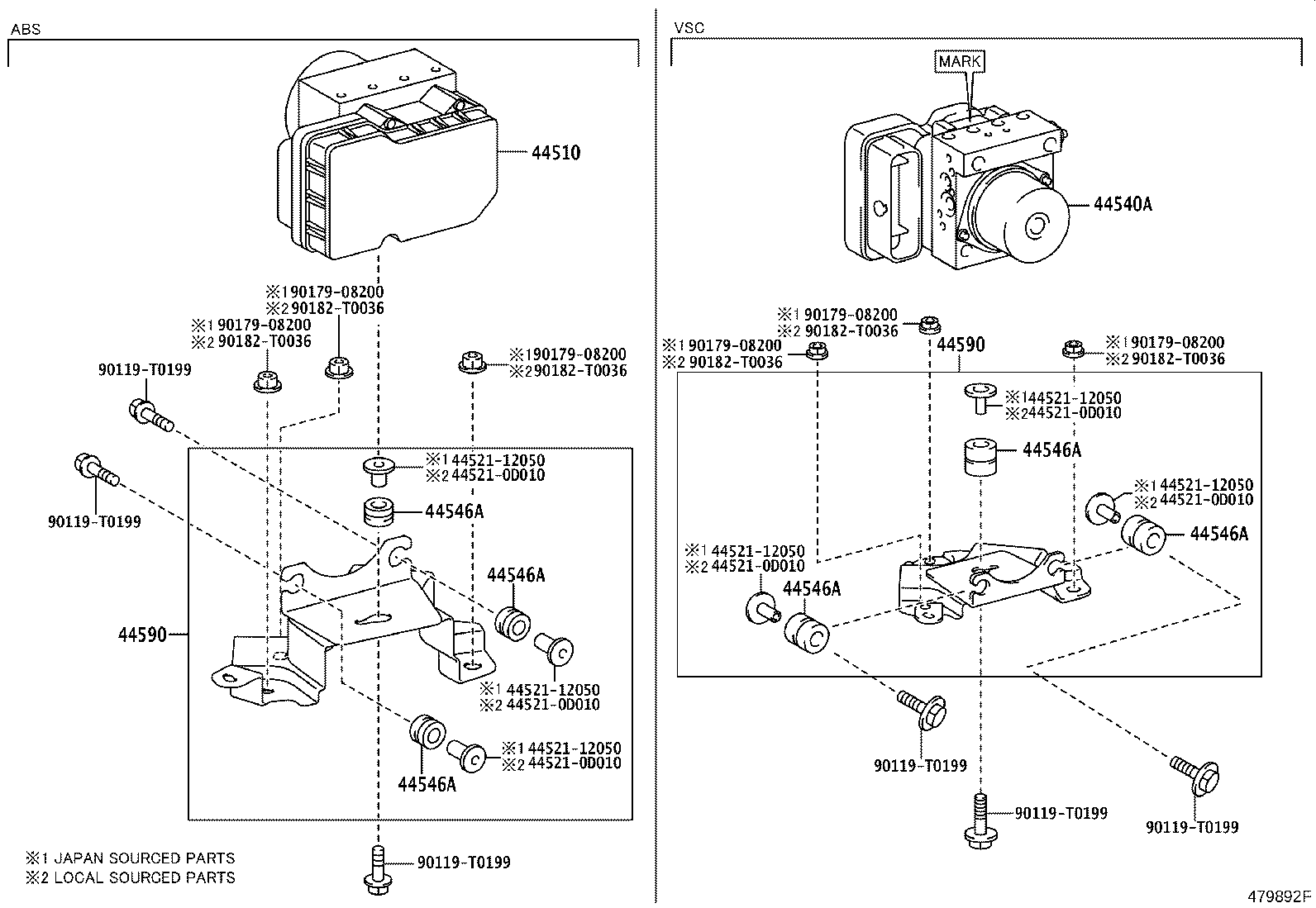

| 44510 | Actuator Assy, Brake |
| 44540A | Actuator Assy, Vsc |
| 44546A | Cushion, Brake Actuator Bolt |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47319 | Tube, Front Brake, NO.9 |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47328 | Tube, Rear Brake, NO.8 |
| 47329 | Tube, Rear Brake, NO.9 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47352B | Bracket, Flexible Hose, NO.2 |
| 47353A | Bracket, Flexible Hose, Front RH NO.2 |
| 47354A | Bracket, Flexible Hose, Front LH NO.2 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47356 | Bracket, Flexible Hose, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373A | Bracket, Tube Clamp |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47391 | Way, Brake Tube |

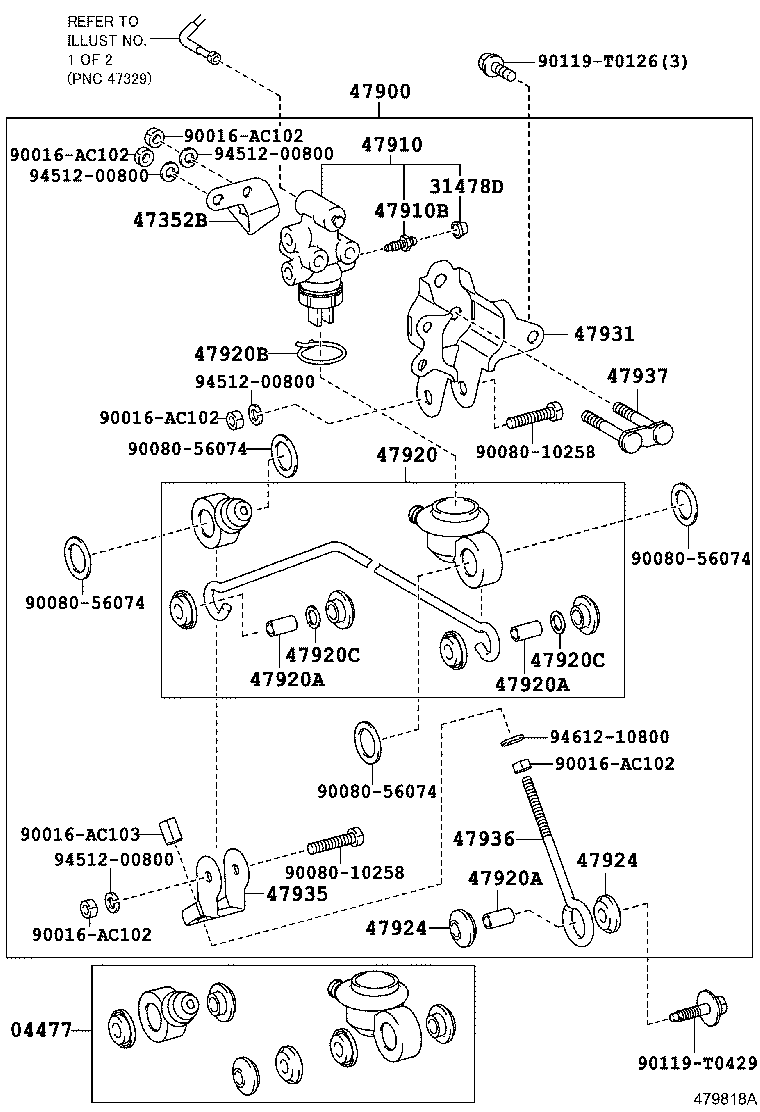

| 47900 | Valve Assy, Load Sensing W/Spring |
| 47910 | Valve Assy, Load Sensing Proportioning |
| 47910B | Plug, Bleeder |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47924 | Bush, Load Sensing Valve |
| 47931 | Bracket, Load Sensing Valve |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
