Toyota Hilux
2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States
Supported model
Data version 2022-11

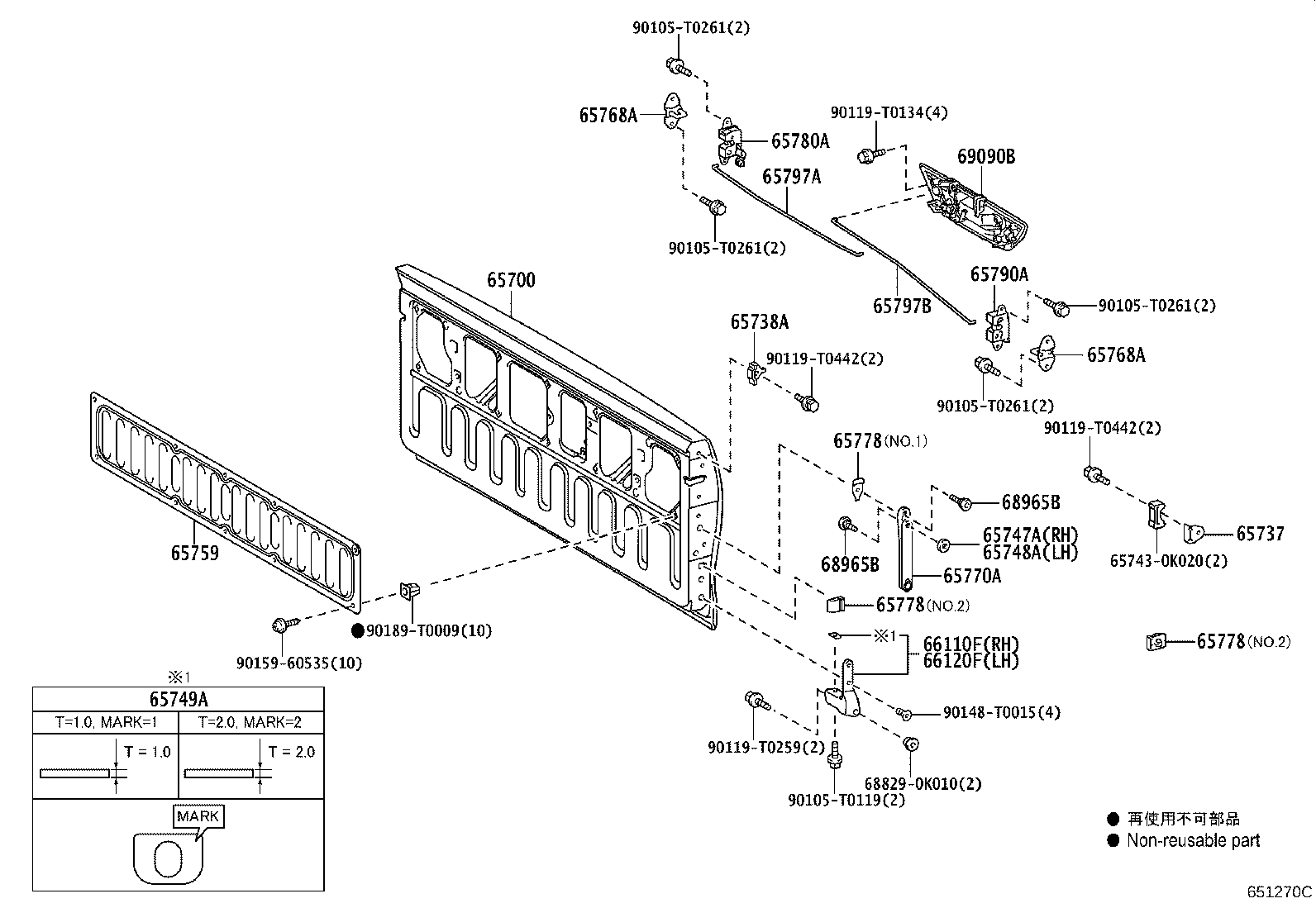

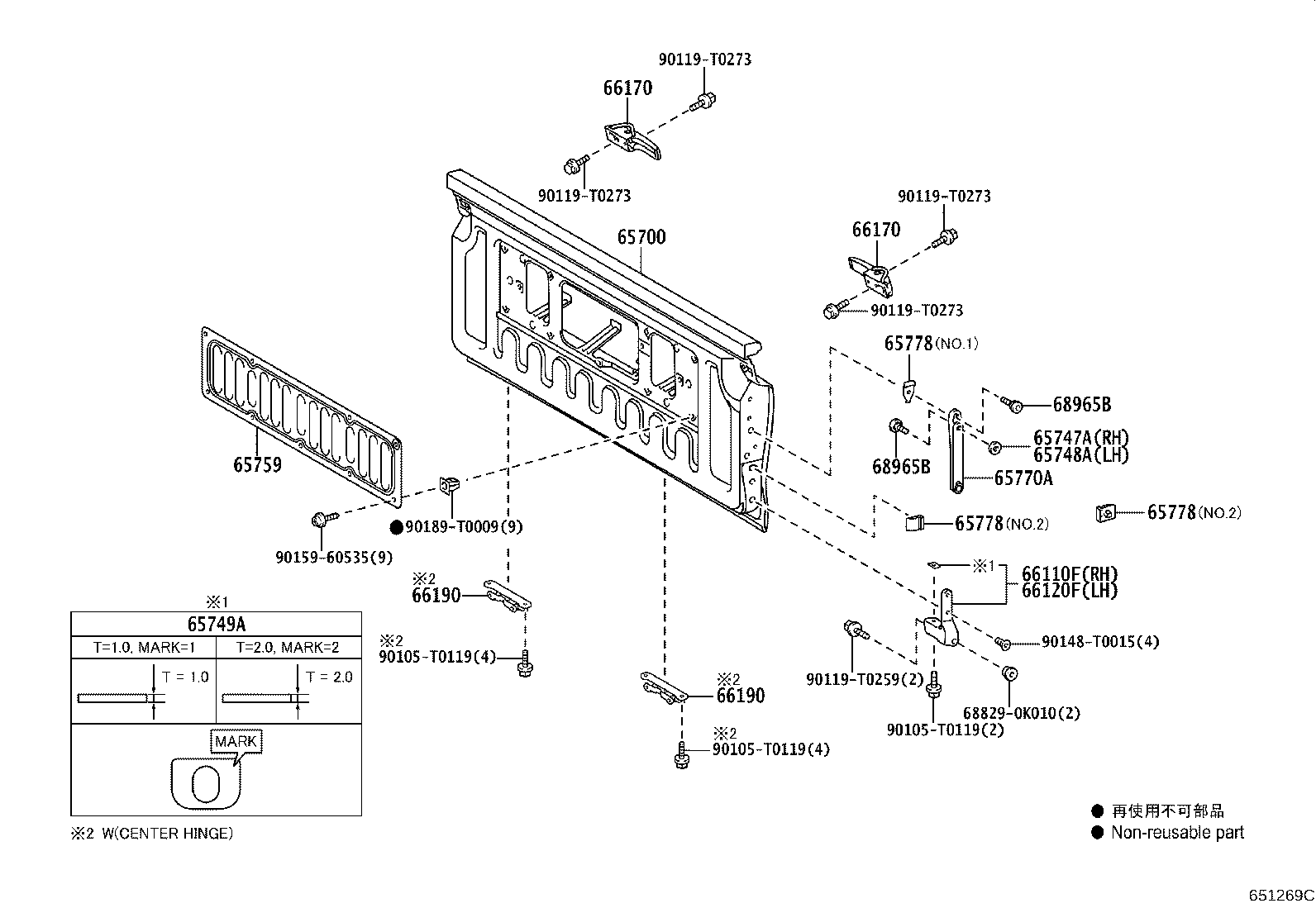

Rear Body Guard Frame & Tail Gate
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58227H | Cover, Header Panel, NO.1 |
| 65414 | Stopper, Guard Frame |
| 65456A | Protector, Header Bord |
| 65470 | Board Assy, Header |
| 65492C | Retainer, Front Guard Cushion |
| 65700 | Gate Assy, Rear Body Tail |
| 65737 | Stop, Tail Gate |
| 65738A | Stopper, Tail Gate Lock Hinge, NO.1 |
| 65747A | Plate, Tail Gate Seal, RH |
| 65748A | Plate, Tail Gate Seal, LH |
| 65749A | Pad, Tail Gate Hinge |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65778 | Stopper, Tail Gate Stay |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 65797A | Link, Tail Gate Lock Control |
| 65797B | Link, Tail Gate Lock Control |
| 66110F | Hinge Assy, Tail Gate, RH |
| 66120F | Hinge Assy, Tail Gate, LH |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66190 | Hinge Assy, Tail Gate, Center |
| 68965B | Shaft, Tail Gate Stay |
| 69090B | Handle Assy, Tail Gate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
