Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

20 part groups · 3 illustrations

Illustrations

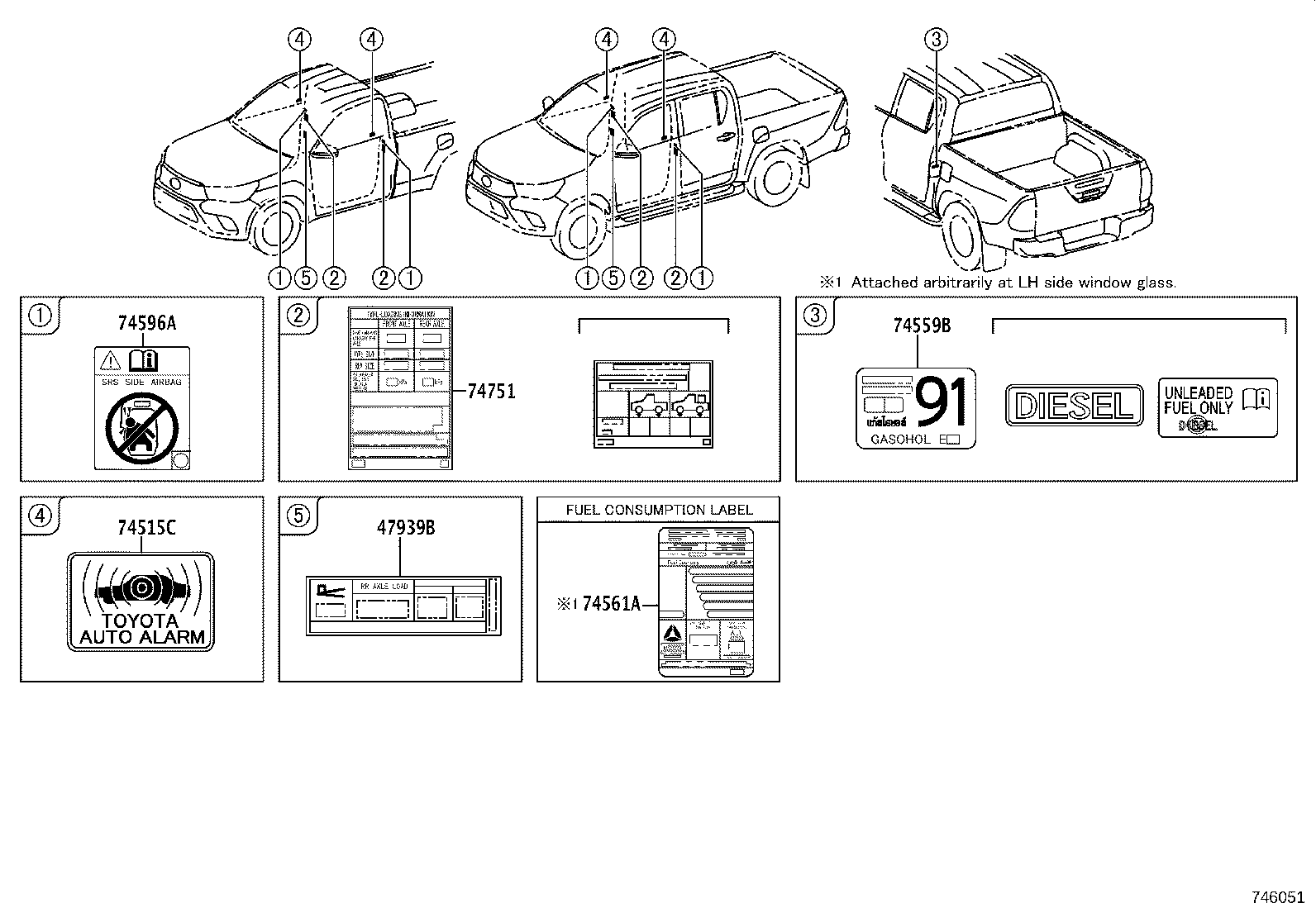

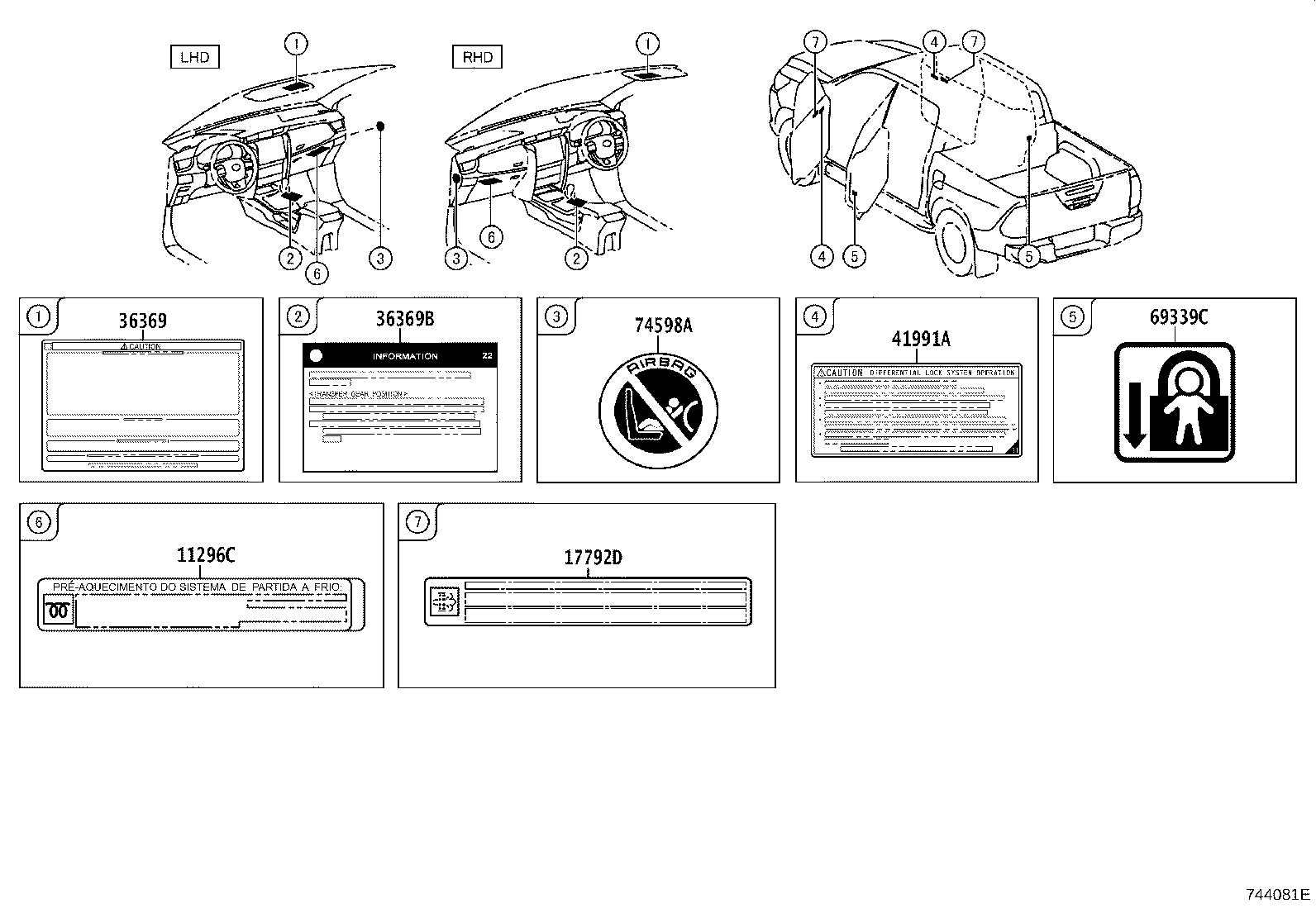

Figure 744073G 744073G 2015-05 → — Figure 746051 746051 2015-05 → — Figure 744081E 744081E 2015-05 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
11298B Label, Emission Control Information
17792D Label, Emission Control Device Information
28897A Plate, Battery Caution
36369 Label, Transfer Information
36369B Label, Transfer Information
41991A Plate, Caution
47939B Label, Load Sensing Valve Marking Information
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
