Toyota Hilux
2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States
Supported model
Data version 2022-11

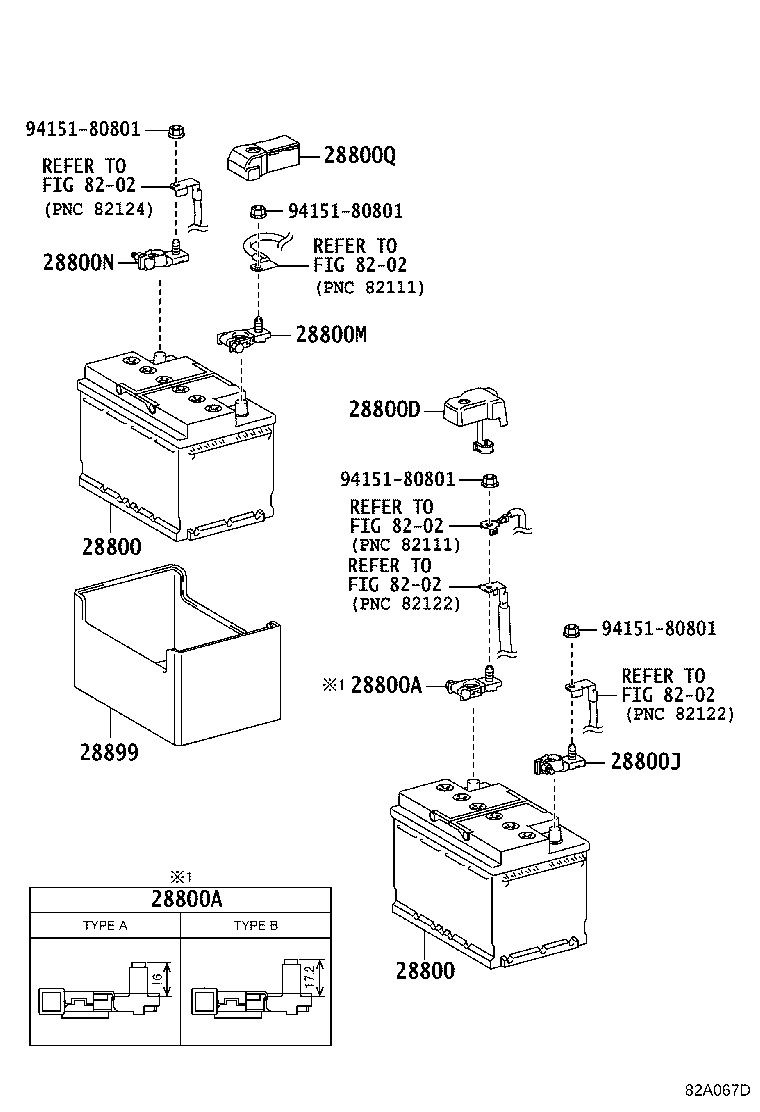

Battery & Battery Cable
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 28800N | Terminal, Battery Negative |
| 28800Q | Cover, Connector(FOR BATTERY) |
| 28898 | Plate, Battery |
| 28898B | Plate, Battery |
| 28899 | Insulator, Battery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
