Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 5 illustrations

Illustrations

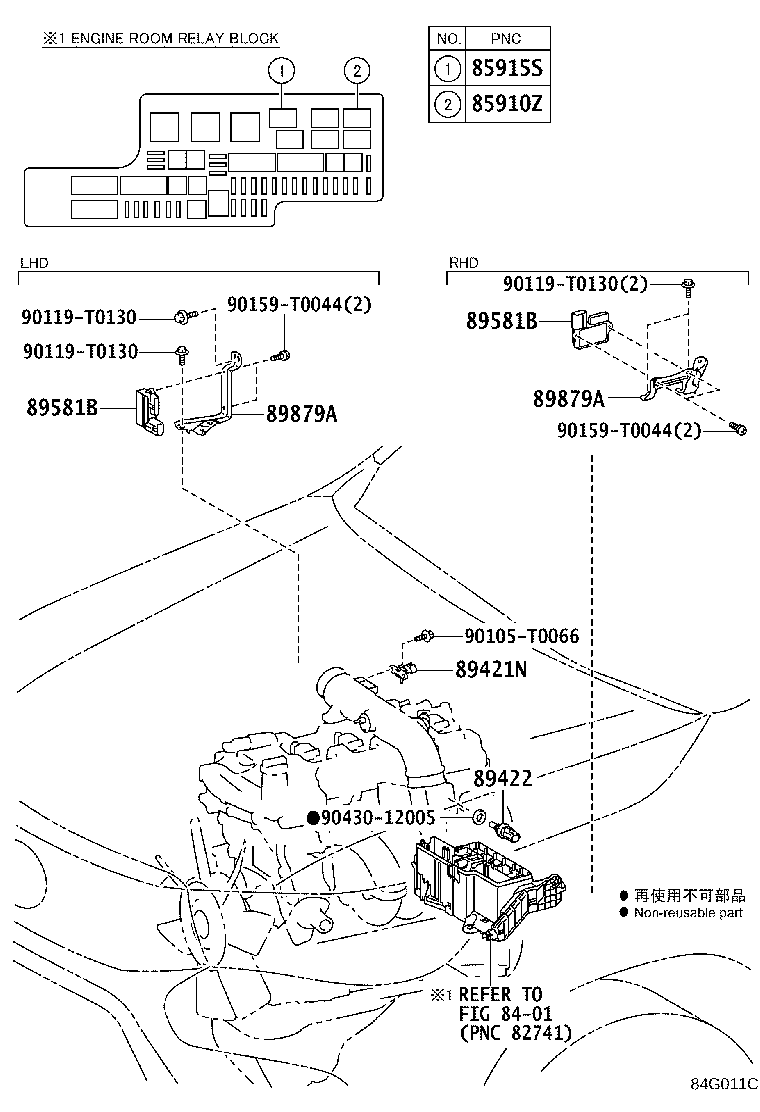

Figure 84G009C 84G009C 2015-05 → — Figure 84G011C 84G011C 2015-05 → — Figure 84G010C 84G010C 2015-05 → — Figure 84G012D 84G012D 2015-05 → — Figure 84H213A 84H213A 2015-05 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910Z Relay, Injection (FOR EFI)
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421N Sensor, Air Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89581B Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
