Heating & Air Conditioning - Cooler Piping

16 part groups · 12 illustrations

Illustrations

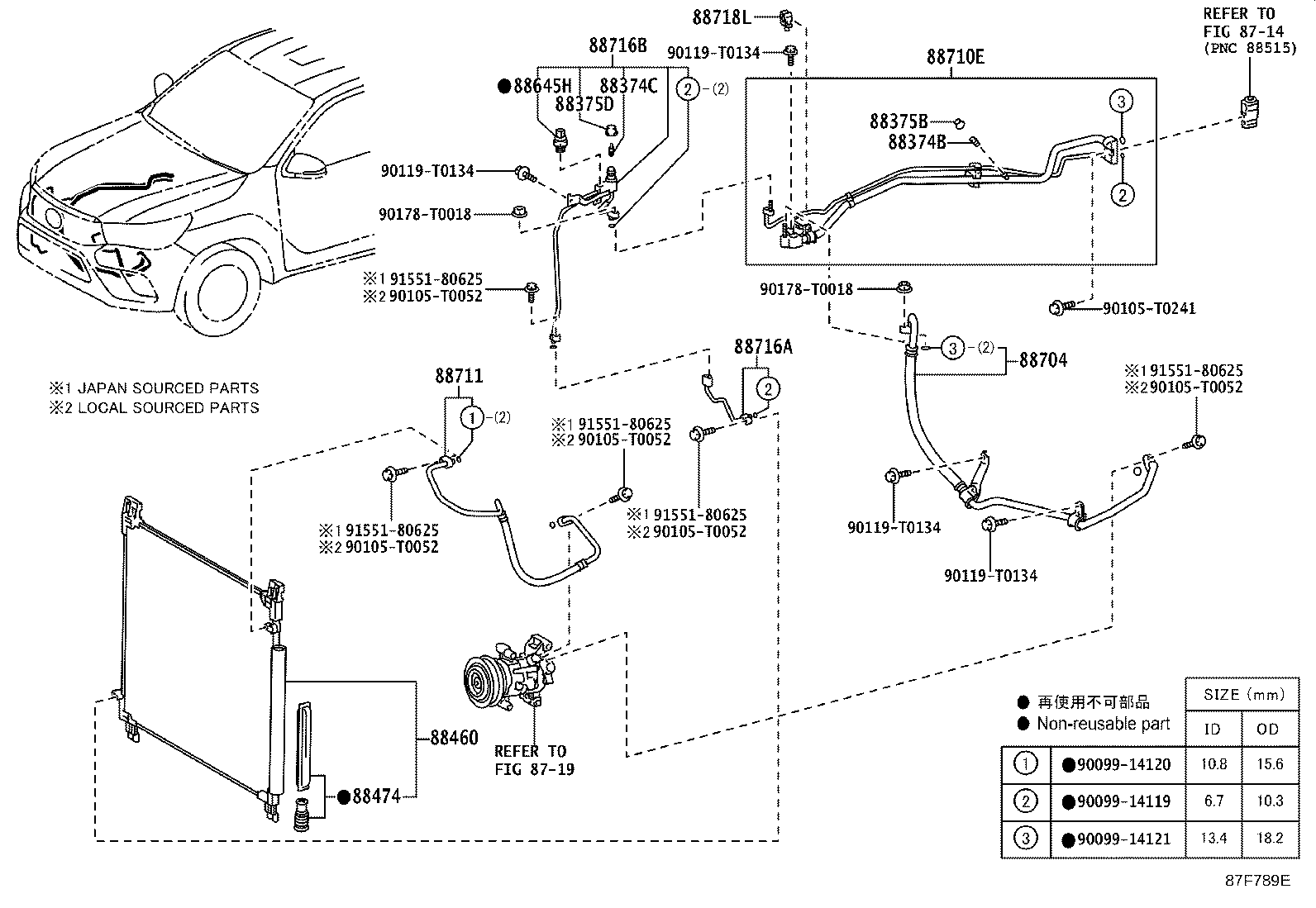

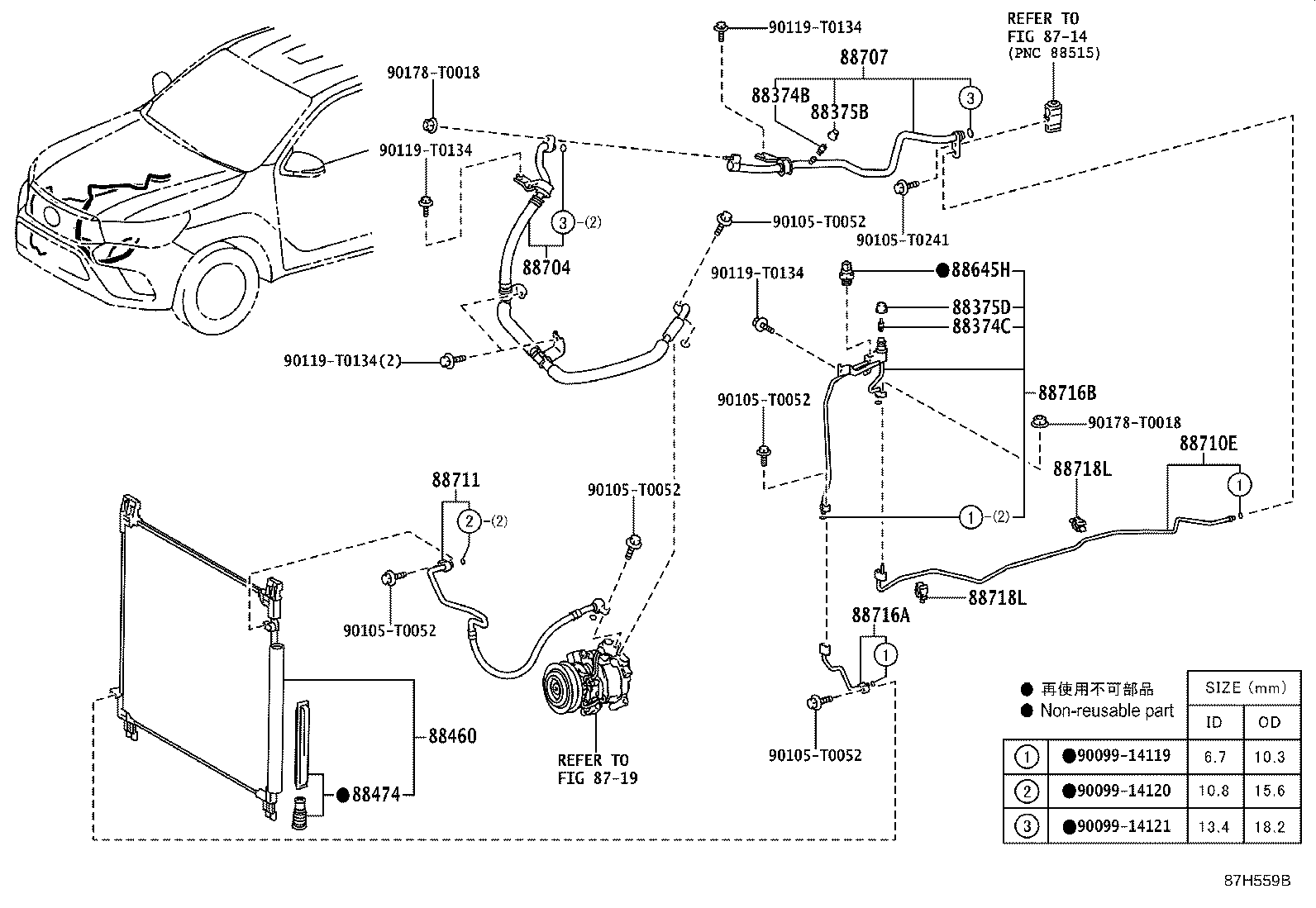

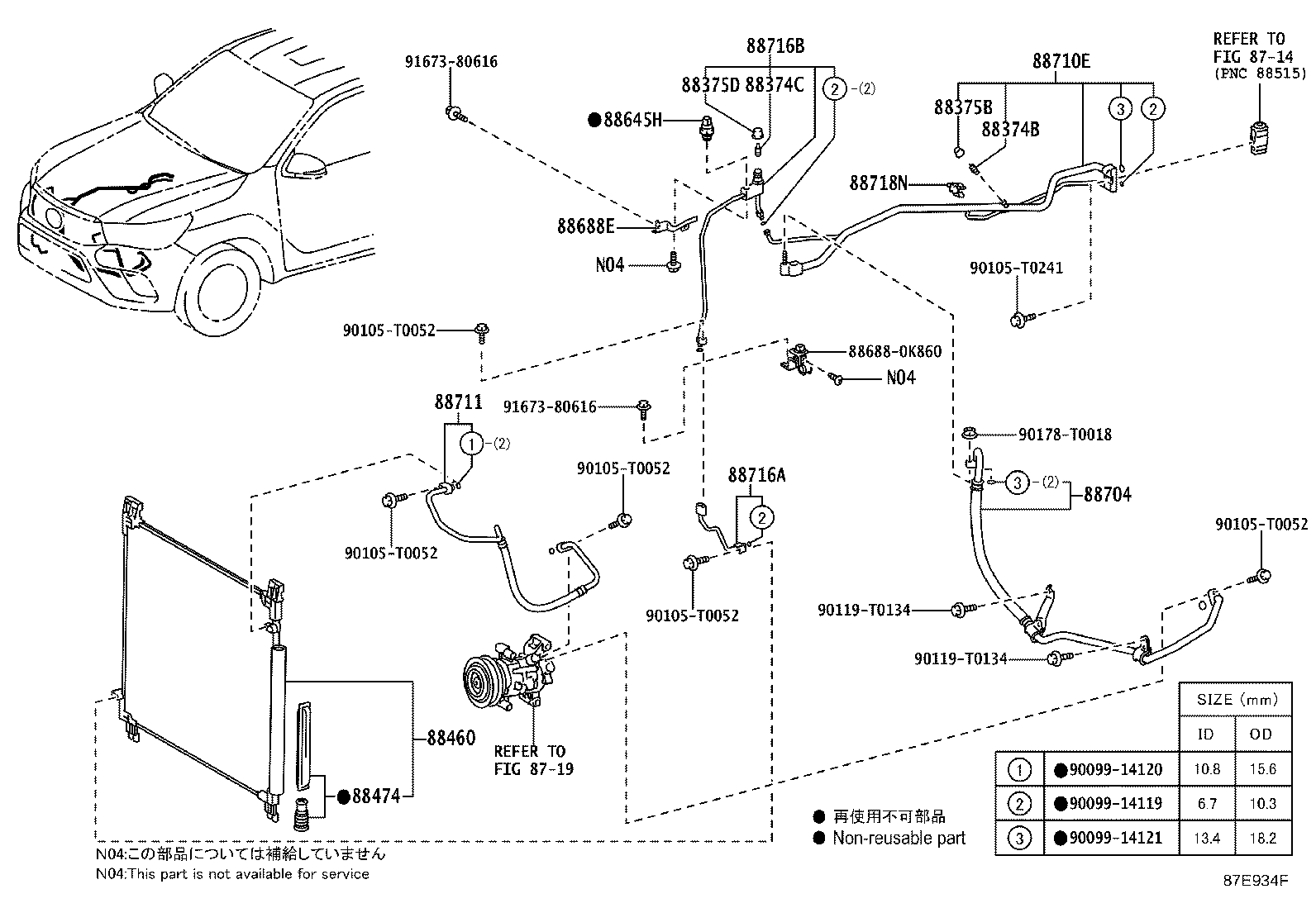

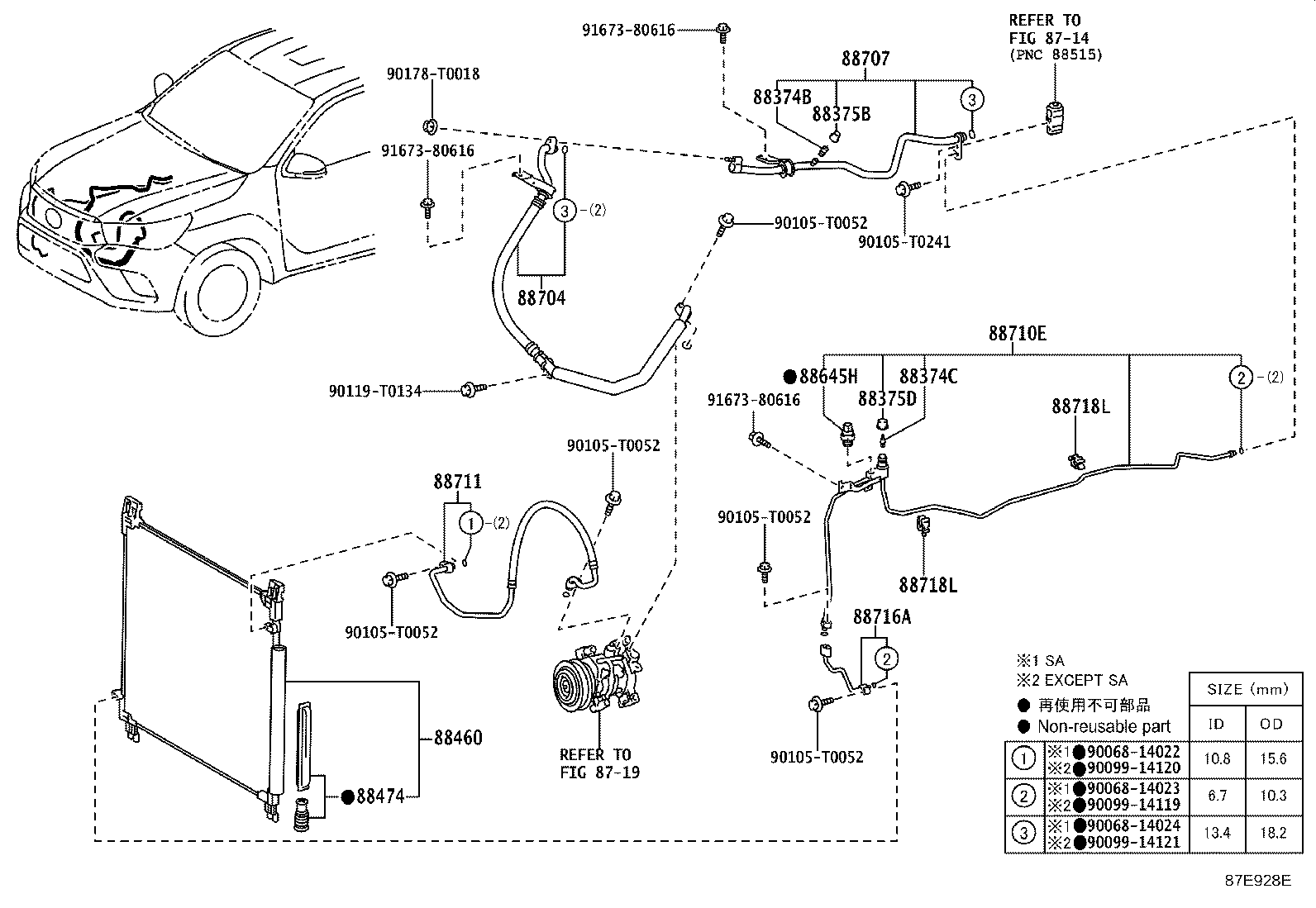

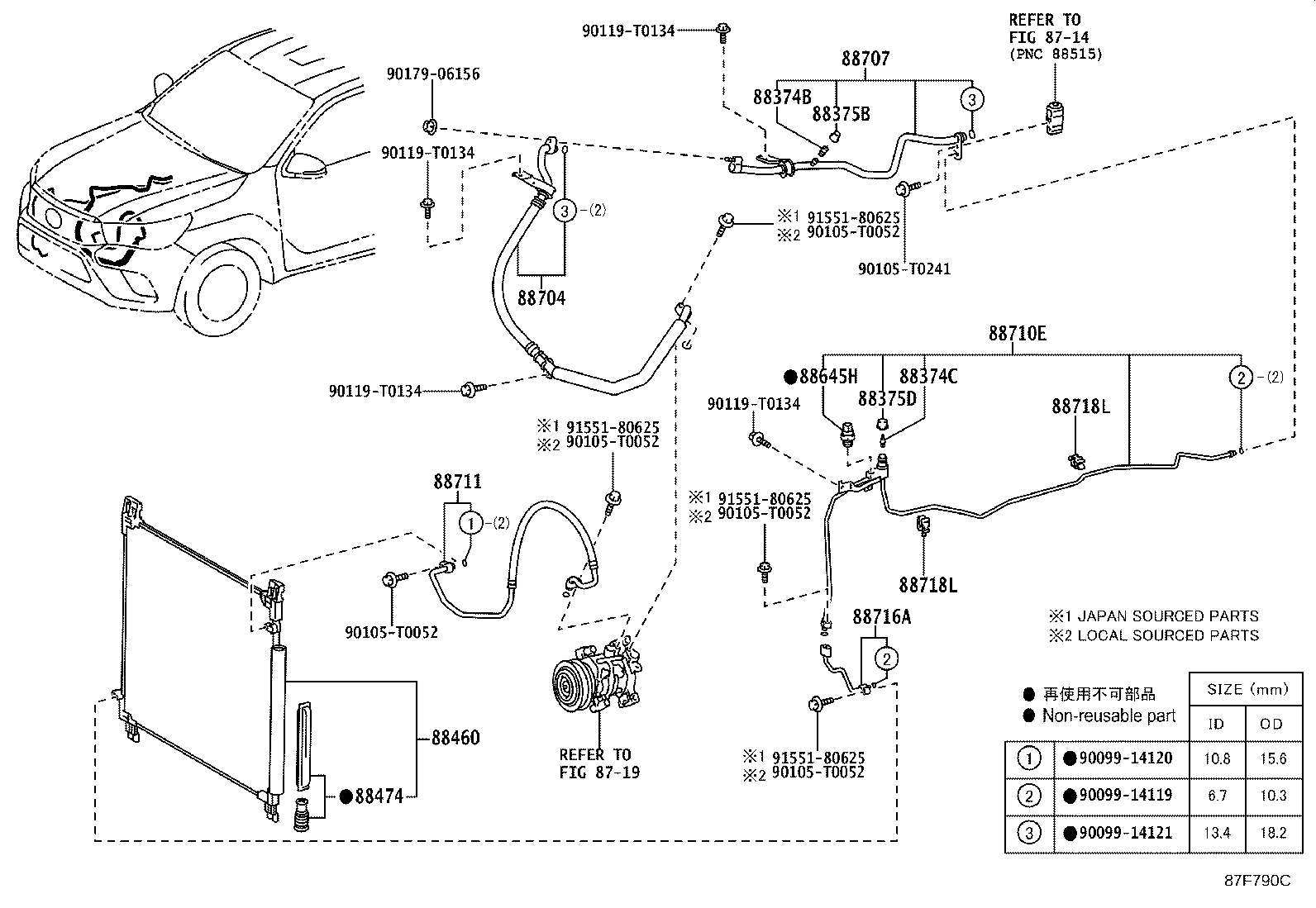

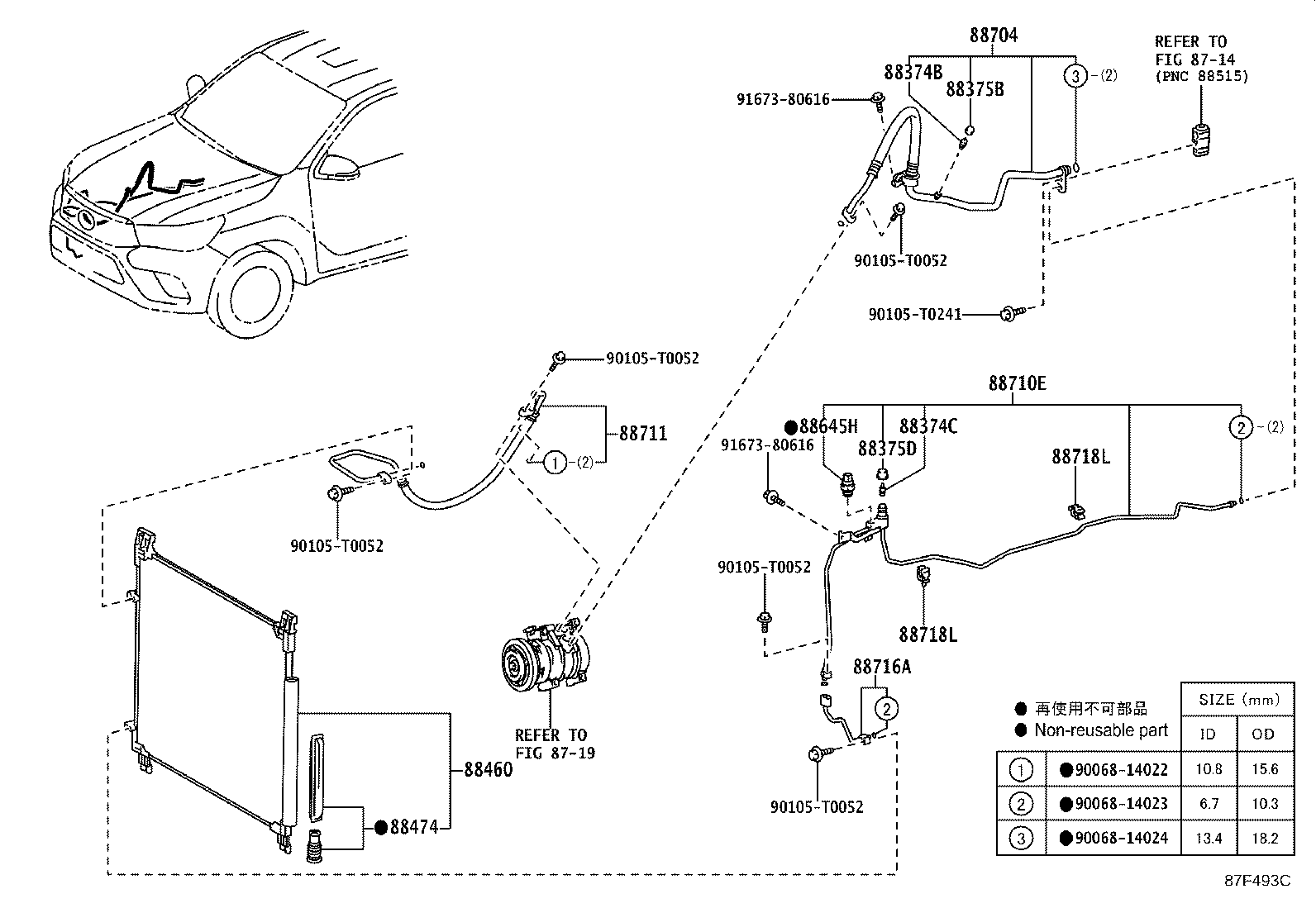

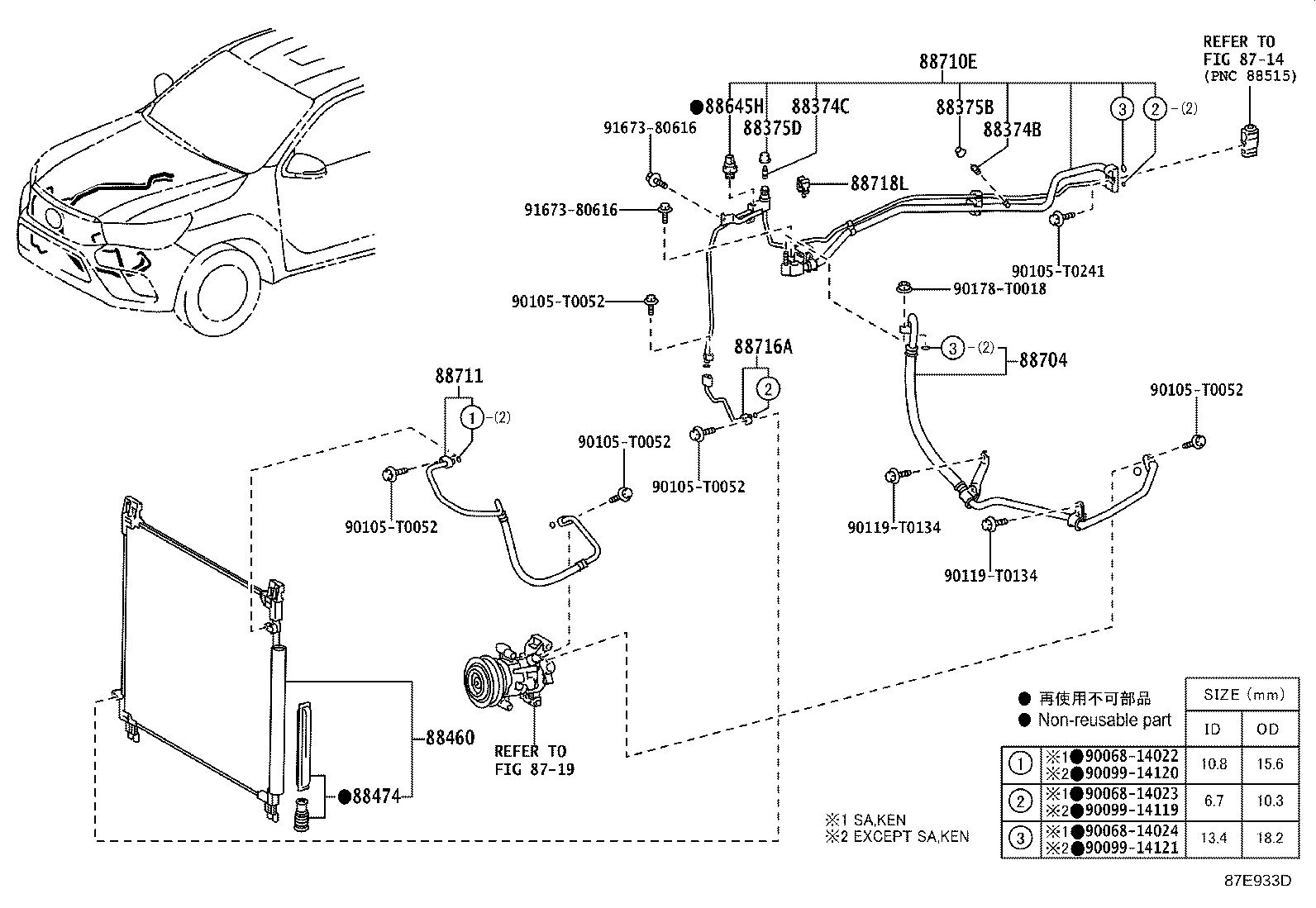

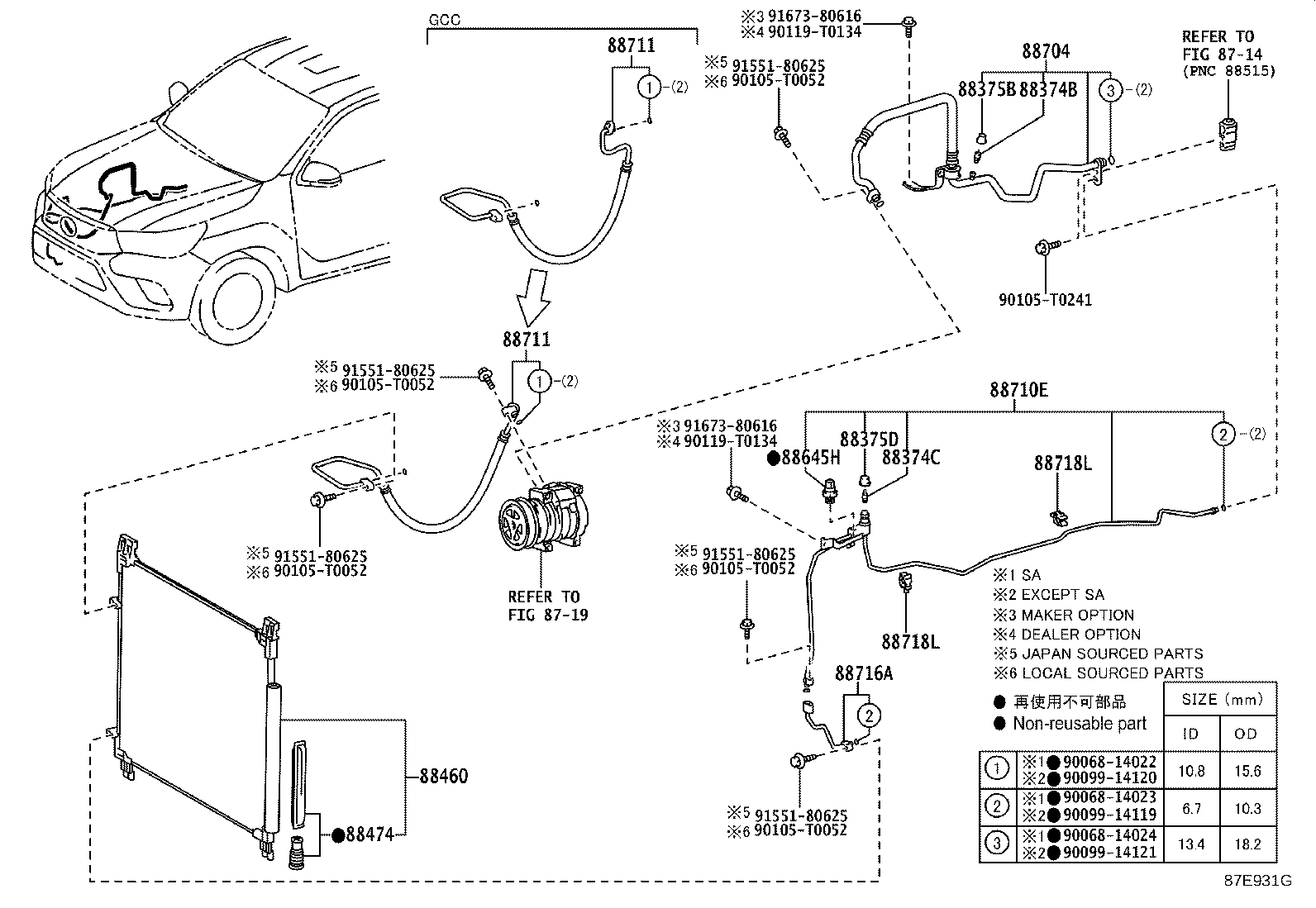

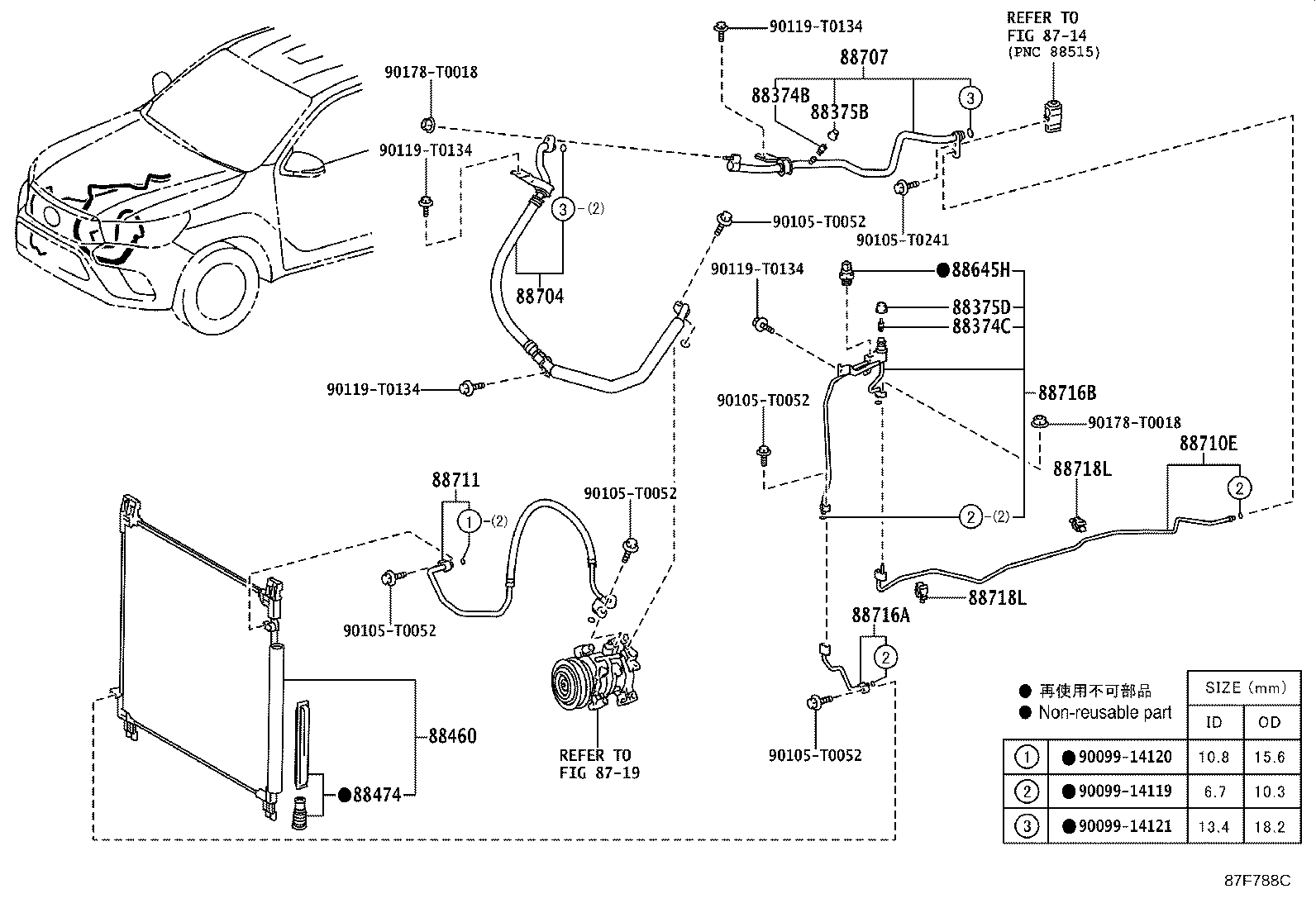

Figure 87E930D 87E930D 2015-05 → — Figure 87F789E 87F789E 2015-05 → — Figure 87F789E 87F789E 2015-05 → — Figure 87F789E 87F789E 2015-05 → — Figure 87E933D 87E933D 2015-05 → — Figure 87E934F 87E934F 2015-05 → — Figure 87E931G 87E931G 2015-05 → — Figure 87F788C 87F788C 2015-05 → — Figure 87F790C 87F790C 2015-05 → — Figure 87E928E 87E928E 2015-05 → — Figure 87F493C 87F493C 2016-01 → — Figure 87H559B 87H559B 2018-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718N Clamp, Piping
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
