Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

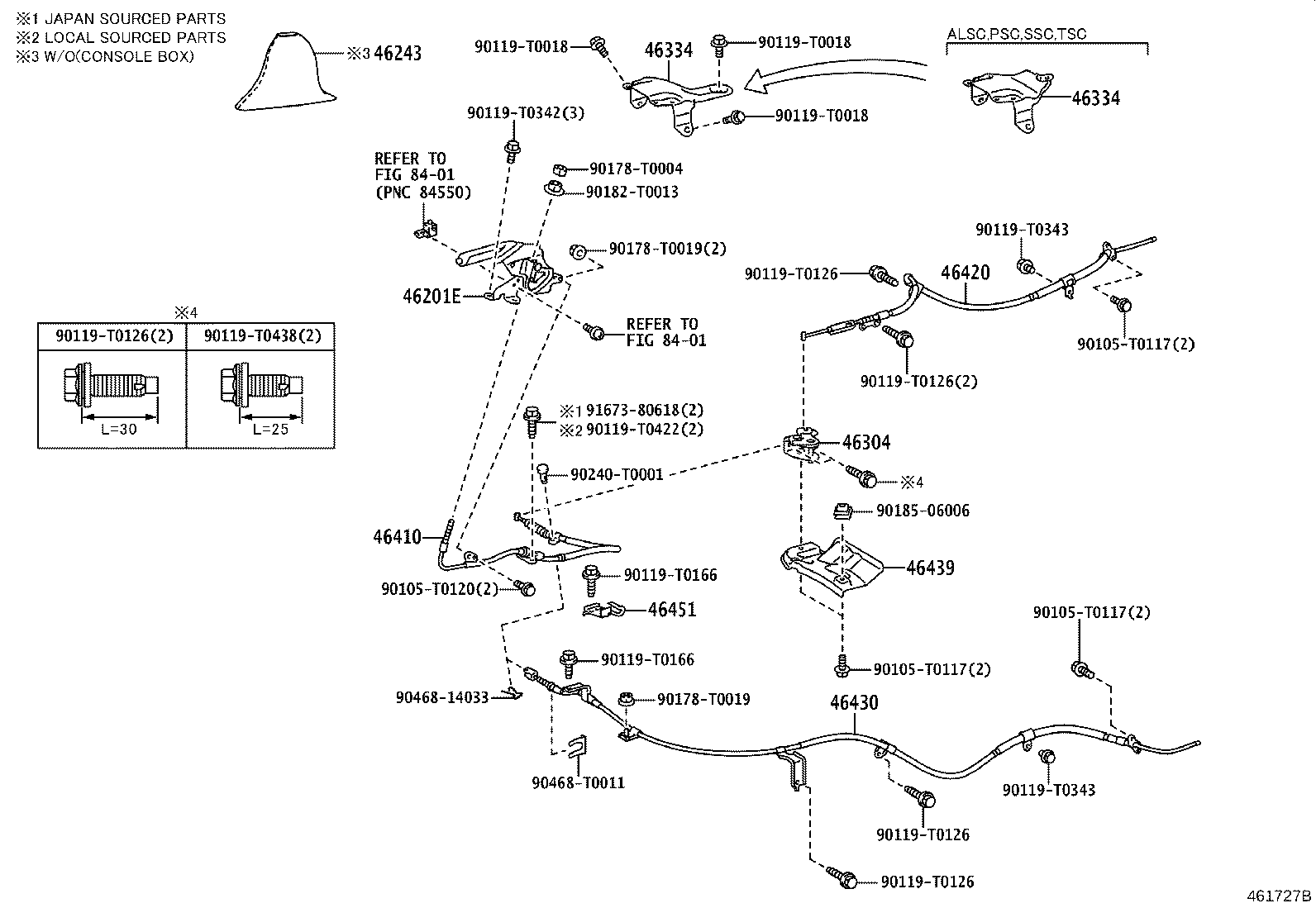

Exploded illustration 461727B 8401 — not listed in this catalogue 46201E — LEVER SUB-ASSY, PARKING BRAKE (10 parts) 46243 — COVER, PARKING BRAKE LEVER (14 parts) 46304 — EQUALIZER SUB-ASSY, PARKING BRAKE (6 parts) 46334 — PROTECTOR, INTERMEDIATE LEVER (6 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (5 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (10 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (8 parts) 46451 — BRACKET, CABLE SUPPORT (5 parts) 90105T0117 — not listed in this catalogue 90105T0117 — not listed in this catalogue 90105T0120 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0343 — not listed in this catalogue 90119T0343 — not listed in this catalogue 90119T0166 — not listed in this catalogue 90119T0342 — not listed in this catalogue 90178T0004 — not listed in this catalogue 90178T0019 — not listed in this catalogue 90178T0019 — not listed in this catalogue 90182T0013 — not listed in this catalogue 90240T0001 — not listed in this catalogue 9046814033 — not listed in this catalogue 90468T0011 — not listed in this catalogue 9167380618 — not listed in this catalogue 90119T0422 — not listed in this catalogue 8401 — not listed in this catalogue 46334 — PROTECTOR, INTERMEDIATE LEVER (6 parts) 90119T0018 — not listed in this catalogue 90119T0018 — not listed in this catalogue 90119T0018 — not listed in this catalogue 90119T0166 — not listed in this catalogue 90119T0126 — not listed in this catalogue 90119T0438 — not listed in this catalogue 46439 — INSULATOR, PARKING BRAKE CABLE HEAT (4 parts) 90105T0117 — not listed in this catalogue 9018506006 — not listed in this catalogue
461727B · 10 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
46201E — Lever Sub-assy, Parking Brake
46201-0K190-C0 note Lever Sub-assy, Parking Brake
2020-11 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD (H,S) —
46201-0K210-C0 note Lever Sub-assy, Parking Brake
2020-09 → 2021-09 ended
GUN126,136 SD S —
46201-0K210-C0 note Lever Sub-assy, Parking Brake
2020-09 → 2021-11 ended
GGN125,GUN125,126,136 H (GHA,KEN,SA) —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2020-06 → 2021-08 ended
GUN125 TX TH —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2020-06 → 2023-01 ended
GUN135 );GUN120,122,TGN126 A,MA,MMR,PH,TH,TWN,VN);GUN125,136,TGN126 ) +20 —
46201-0K230-C0 note Lever Sub-assy, Parking Brake
2020-06 → 2022-01 ended
GUN126 (H,S) PKN —
46201-0K250-C0 note Lever Sub-assy, Parking Brake
2020-06 → 2021-08 ended
GGN125,GUN112,122,125,126,TGN11#,120,121,126 GCC —
46201-0K250-C0 note Lever Sub-assy, Parking Brake
2020-06 → 2022-01 ended
GUN125 D) VN);GUN125,TGN126 RL,GEN,IDN,LA,MA,TH);GUN112,120,122,123,TGN110,121,136 +26 —
46201-0K260-C0 note Lever Sub-assy, Parking Brake
2020-11 → 2021-10 ended
GUN125,126,135,TGN126,136 (AD,AS) L —
46201-0K280-C0 note Lever Sub-assy, Parking Brake
2020-09 → 2021-11 ended
GUN122,125,126,13#,LAN125,TGN120,121,126,136 (L,S) (GHA,KEN,SA) —
46243 — Cover, Parking Brake Lever
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-03 ended
TGN126 TS S;GUN125,TGN126 MTM +5 —
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-03 ended
GUN122 25 RHD (MS,TS) +11 —
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-08 ended
TGN126 TS S;GUN125,TGN126 MTM +5 —
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-08 ended
GUN125,135,TGN126 TS LA —
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-08 ended
GUN125,135,TGN126 TS LA;GUN126,TGN121 TD +3 —
46243-0K020-C0 note Cover, Parking Brake Lever
2020-06 → 2021-10 ended
GUN122 H,TH);GUN125,TGN121 RHD (MS,TS) +11 —
46243-0K030-C0 note Cover, Parking Brake Lever
2020-09 → 2021-11 ended
GUN122,TGN120 SS;GUN125,135,LAN125,TGN121,126 (KD,KS,SD,SS) L —
46243-0K030-C0 note Cover, Parking Brake Lever
2020-09 → 2021-11 ended
GUN122 SD;GUN125 L GHA —
46243-0K030-C0 note Cover, Parking Brake Lever
2020-09 → 2021-05 ended
GUN125 KD —
46243-0K030-C0 note Cover, Parking Brake Lever
2020-09 → 2021-03 ended
GUN125,LAN125 LHD SD L;GUN122,125 +5 —
46243-0K030-C0 note Cover, Parking Brake Lever
2020-09 → 2021-09 ended
GUN125 S IV3 —
46243-0K040-C0 note Cover, Parking Brake Lever
2020-11 → 2021-10 ended
GUN125,135,TGN126 AS LA —
46243-0K040-C0 note Cover, Parking Brake Lever
2020-11 → 2021-10 ended
GUN126 AD 6F L +3 —
46243-0K050-C0 note Cover, Parking Brake Lever
2021-06 → 2022-01 ended
GUN122,126,TGN121 L PKN —
46304 — Equalizer Sub-assy, Parking Brake
46304-0K050 Equalizer Sub-assy, Parking Brake
2020-06 → 2021-06 ended
GUN125,126,135 KEN —
46304-0K050 Equalizer Sub-assy, Parking Brake
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD,AS —
46304-0K050 Equalizer Sub-assy, Parking Brake
2020-06 → 2023-01 ended
GGN125,GUN112,12#,13#,TGN11#,120,121,126,136 MD,MMD,MS,TD,TS,TX —
46304-0K050 Equalizer Sub-assy, Parking Brake
2020-06 → 2022-01 ended
GUN122,126,TGN121 PKN —
46304-0K090 Equalizer Sub-assy, Parking Brake
2020-09 → 2021-11 ended
GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136 GHA,SA —
46304-0K090 Equalizer Sub-assy, Parking Brake
2021-06 → 2021-11 ended
GUN125,126,135 KEN —
46334 — Protector, Intermediate Lever
46334-0K010 Protector, Intermediate Lever
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD —
46334-0K010 Protector, Intermediate Lever
2020-06 → 2023-01 ended
GGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136 KD,MD,MMD,SD,SX,TD,TX —
46334-0K010 Protector, Intermediate Lever
2020-06 → 2021-11 ended
GUN125,126 GHA —
46334-0K010 Protector, Intermediate Lever
2020-06 → 2022-01 ended
GUN126 PD —
46334-0K020 Protector, Intermediate Lever
2020-06 → 2022-01 ended
GUN112,12#,13#,LAN125,TGN11#,120,121,126,136 KS,MS,PS,SS,TS —
46334-0K020 Protector, Intermediate Lever
2020-06 → 2021-10 ended
GUN125,126,135,TGN126,136 AS —
46410 — Cable Assy, Parking Brake, NO.1
46410-0K100 Cable Assy, Parking Brake, NO.1
2020-06 → 2021-08 ended
GUN112,TGN11# —
46410-0K120 Cable Assy, Parking Brake, NO.1
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD,AS —
46410-0K120 Cable Assy, Parking Brake, NO.1
2020-06 → 2021-11 ended
GUN125,126 GHA —
46410-0K120 Cable Assy, Parking Brake, NO.1
2020-06 → 2022-01 ended
GUN122,126,TGN121 PKN —
46410-0K120 Cable Assy, Parking Brake, NO.1
2020-06 → 2023-01 ended
GGN125,GUN12#,13#,LAN125,TGN120,121,126,136 KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX —
46420 — Cable Assy, Parking Brake, NO.2
46420-0K150 Cable Assy, Parking Brake, NO.2
2020-06 → 2021-08 ended
GUN112,TGN11# —
46420-0K160 Cable Assy, Parking Brake, NO.2
2020-06 → 2022-01 ended
GUN120,122,123,TGN120,121 PS,SD,SS,TD,TS,TX —
46420-0K210 Cable Assy, Parking Brake, NO.2
2020-06 → 2021-10 ended
GUN125,126,13#,TGN126,128,13# AD,AS —
46420-0K210 Cable Assy, Parking Brake, NO.2
2020-06 → 2022-01 ended
GUN126 PKN —
46420-0K210 Cable Assy, Parking Brake, NO.2
2020-06 → 2023-01 ended
TGN126 N125,126,13#,TGN136 6FC MD,MMD,MS,TD,TS,TX +8 —
46420-0K220 Cable Assy, Parking Brake, NO.2
2020-09 → 2021-11 ended
GUN125,126,13#,LAN125,TGN126,136 GHA,KEN,SA —
46420-0K280 Cable Assy, Parking Brake, NO.2
2020-06 → 2021-10 ended
GGN125 LHD —
46420-0K290 Cable Assy, Parking Brake, NO.2
2020-06 → 2021-08 ended
TGN126 (H,S) GEN —
46420-0K290 note Cable Assy, Parking Brake, NO.2
2020-06 → 2021-08 ended
TGN126 L GEN;GUN125 LHD +2 —
46420-0K300 Cable Assy, Parking Brake, NO.2
2020-09 → 2021-09 ended
GGN125 SA —
46430 — Cable Assy, Parking Brake, NO.3
46430-0K120 Cable Assy, Parking Brake, NO.3
2020-06 → 2021-08 ended
TGN126 (H,S) GEN —
46430-0K120 note Cable Assy, Parking Brake, NO.3
2020-06 → 2021-08 ended
TGN126 L GEN;GUN125 LHD +2 —
46430-0K150 Cable Assy, Parking Brake, NO.3
2020-06 → 2021-08 ended
GUN112,TGN11# —
46430-0K160 Cable Assy, Parking Brake, NO.3
2020-06 → 2022-01 ended
GUN120,122,123,TGN120,121 PS,SD,SS,TD,TS,TX —
46430-0K210 Cable Assy, Parking Brake, NO.3
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD,AS —
46430-0K210 Cable Assy, Parking Brake, NO.3
2020-06 → 2022-01 ended
GUN126 PKN —
46430-0K210 Cable Assy, Parking Brake, NO.3
2020-06 → 2023-01 ended
TGN126 N125,GUN125,126,13#,TGN136 6FC MD,MMD,MS,TD,TS,TX +8 —
46430-0K220 Cable Assy, Parking Brake, NO.3
2020-09 → 2021-11 ended
GGN125,GUN125,126,13#,LAN125,TGN126,136 GHA,KEN,SA —
46439 — Insulator, Parking Brake Cable Heat
46439-0K060 Insulator, Parking Brake Cable Heat
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD,AS —
46439-0K060 Insulator, Parking Brake Cable Heat
2020-06 → 2021-11 ended
GUN125,126 GHA —
46439-0K060 Insulator, Parking Brake Cable Heat
2020-06 → 2022-01 ended
GUN122,126,TGN121 PKN —
46439-0K060 Insulator, Parking Brake Cable Heat
2020-06 → 2023-01 ended
GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136 S,TX KD,KS,MD,MMD,MS,SD,SS,SX,TD,T —
46451 — Bracket, Cable Support
46451-0K040 Bracket, Cable Support
2020-06 → 2021-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AD,AS —
46451-0K040 Bracket, Cable Support
2020-06 → 2021-11 ended
GUN125,126 GHA —
46451-0K040 Bracket, Cable Support
2020-06 → 2022-01 ended
GUN122,126,TGN121 PKN —
46451-0K040 Bracket, Cable Support
2020-06 → 2023-01 ended
GGN125,GUN12#,13#,LAN125,TGN120,121,126,136 KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX —
46451-0K050 Bracket, Cable Support
2020-06 → 2021-08 ended
GUN112,TGN11# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
