Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · United States

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

4 part groups · 2 illustrations

Illustrations

Figure 260474A

260474A 2020-06 → —

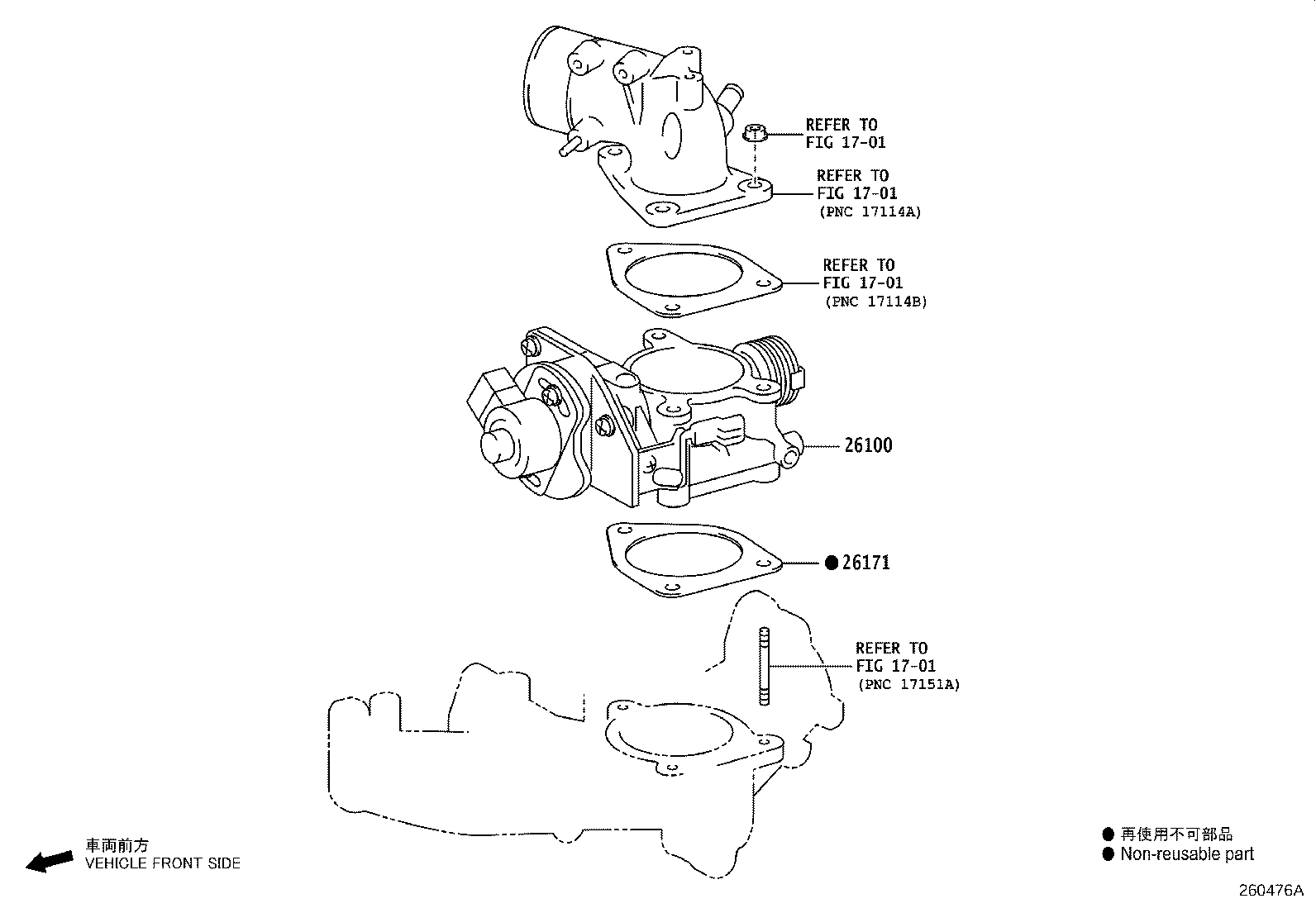

Figure 260476A

260476A 2020-09 → —

Part groups

PNC	Description
25712A	Wire, Emission Control Valve
26100	Venturi Assy
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
