Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

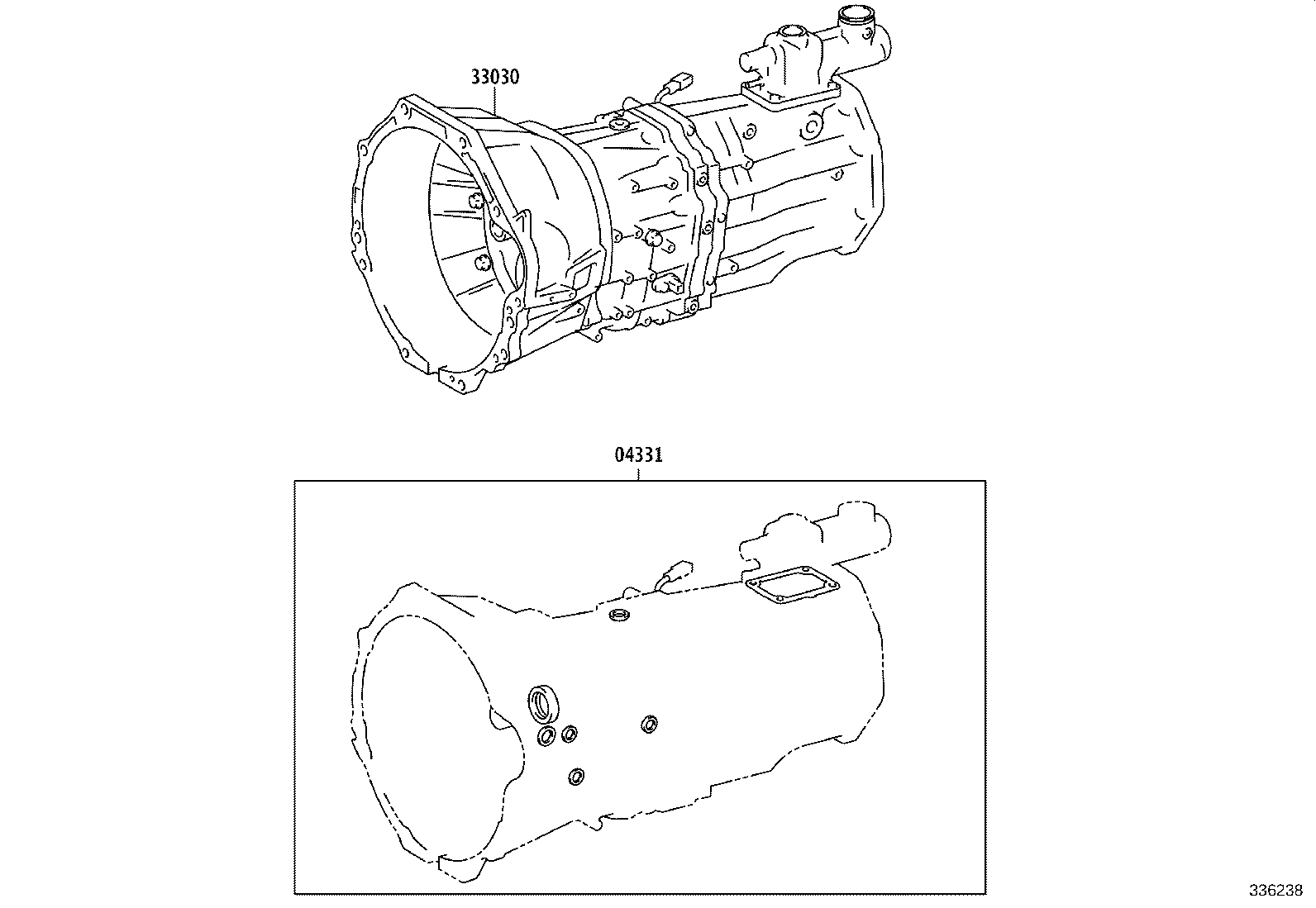

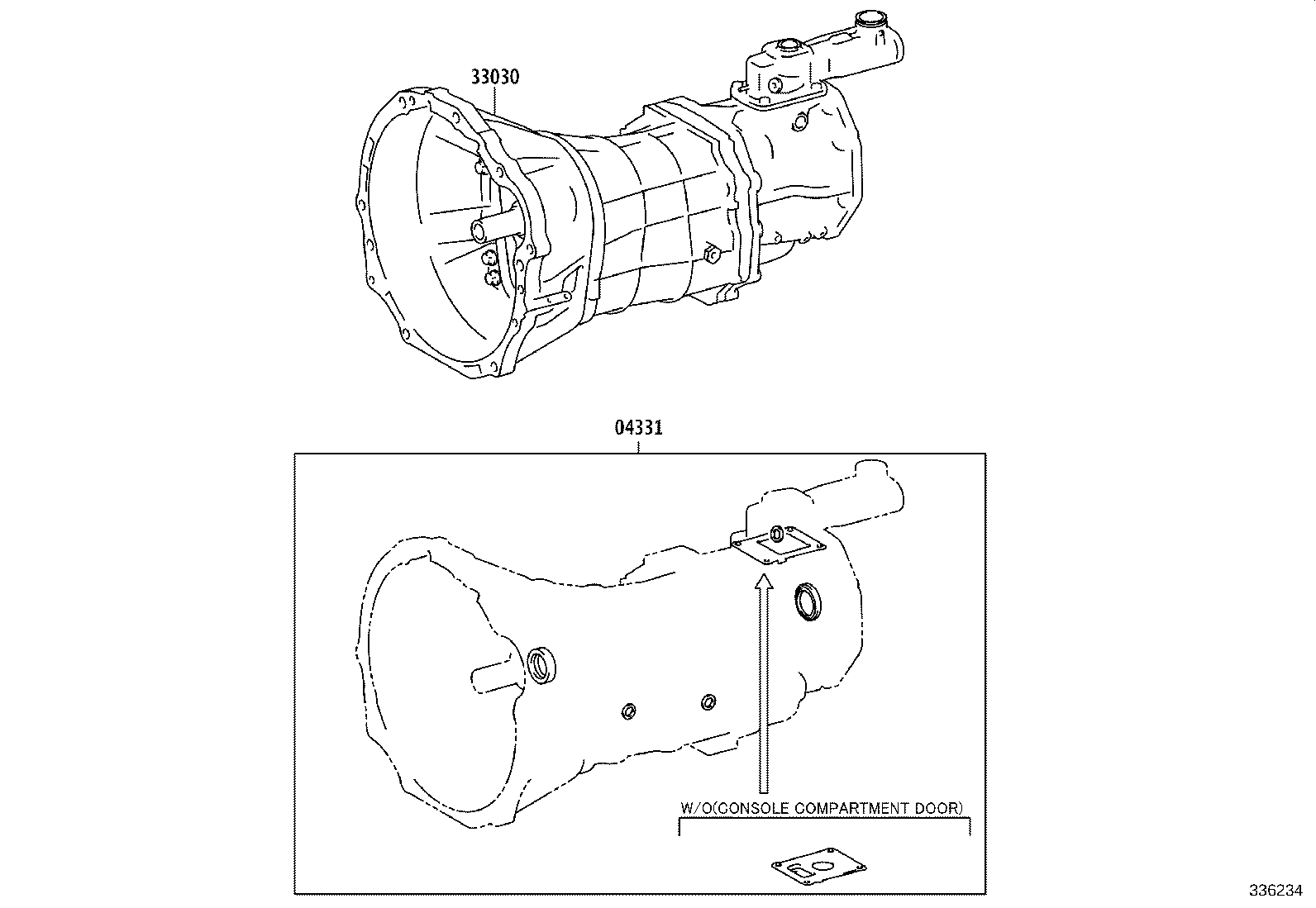

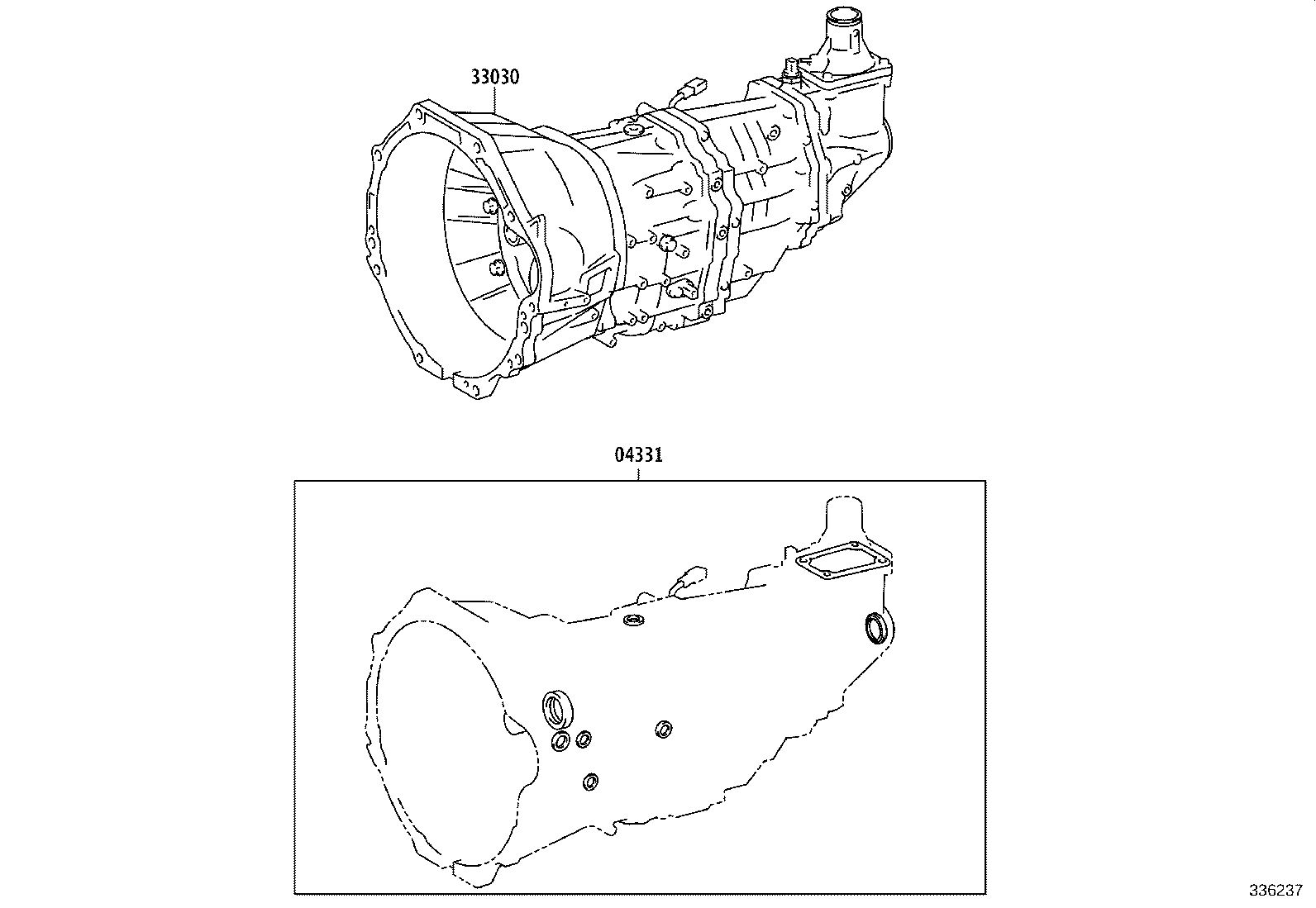

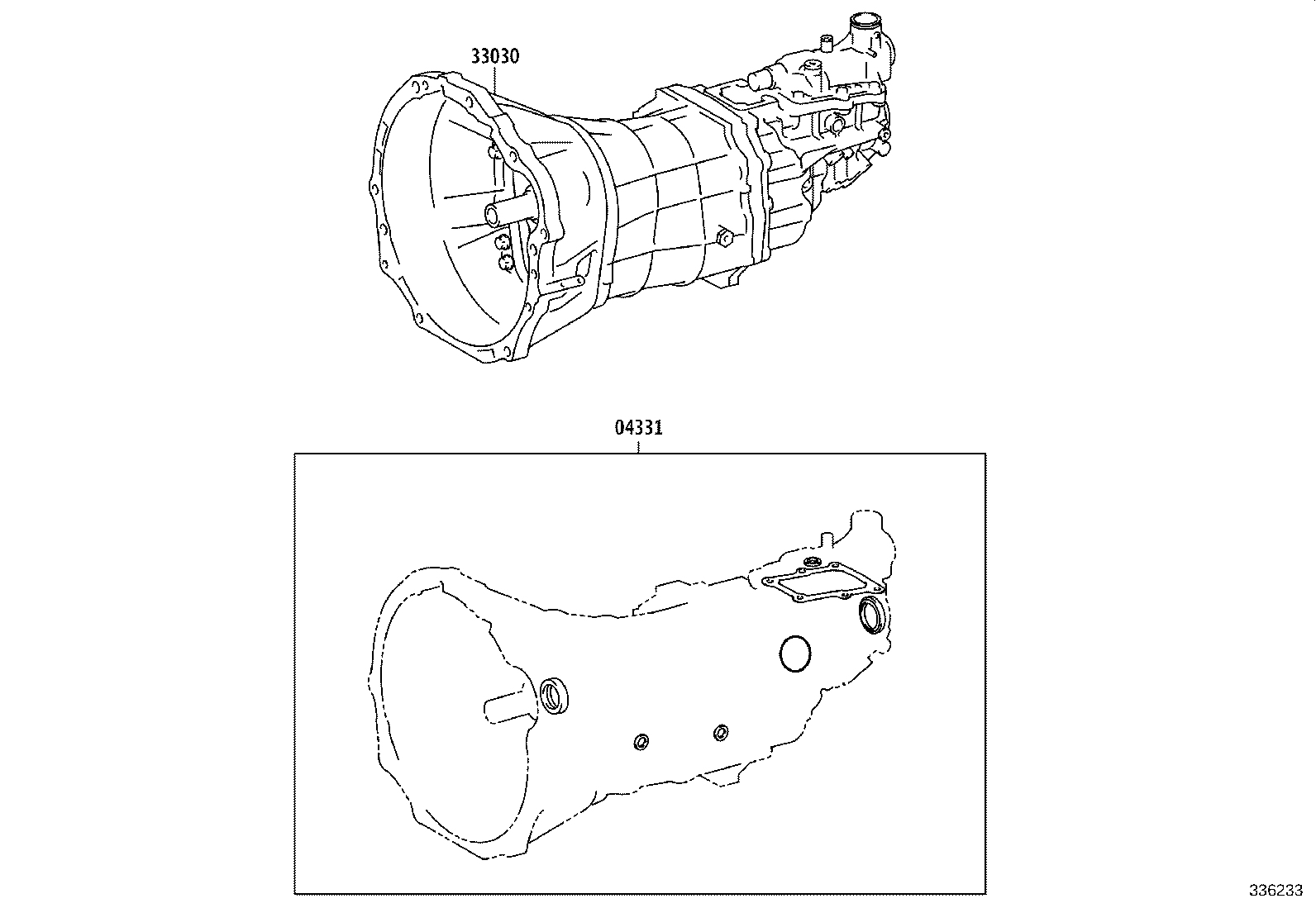

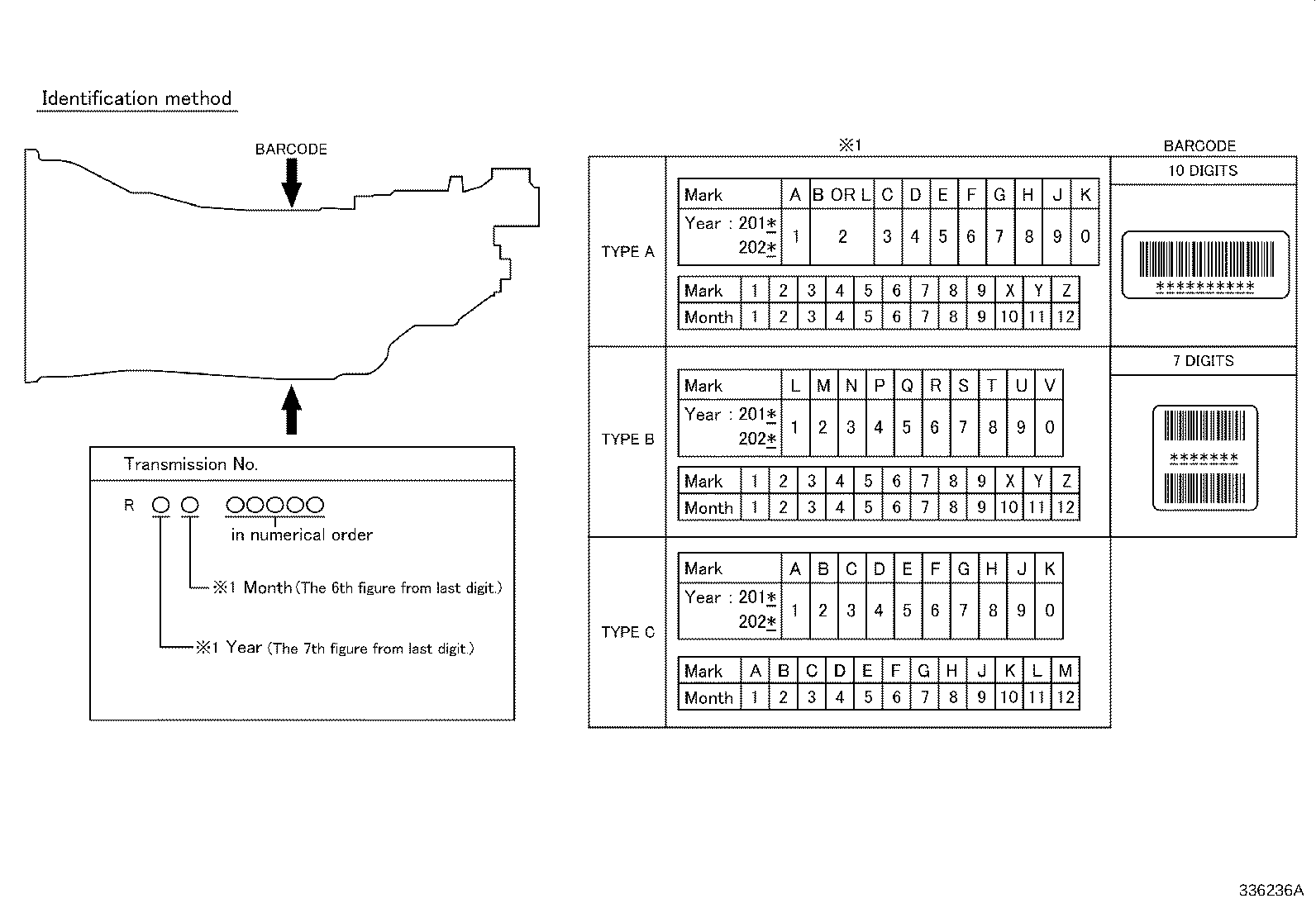

Figure 336232 336232 2020-06 → — Figure 336233 336233 2020-06 → — Figure 336234 336234 2020-06 → — Figure 336236A 336236A 2020-06 → — Figure 336237 336237 2020-06 → — Figure 336238 336238 2020-06 → — Figure 336239 336239 2020-06 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
