Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

10 part groups · 2 illustrations

Illustrations

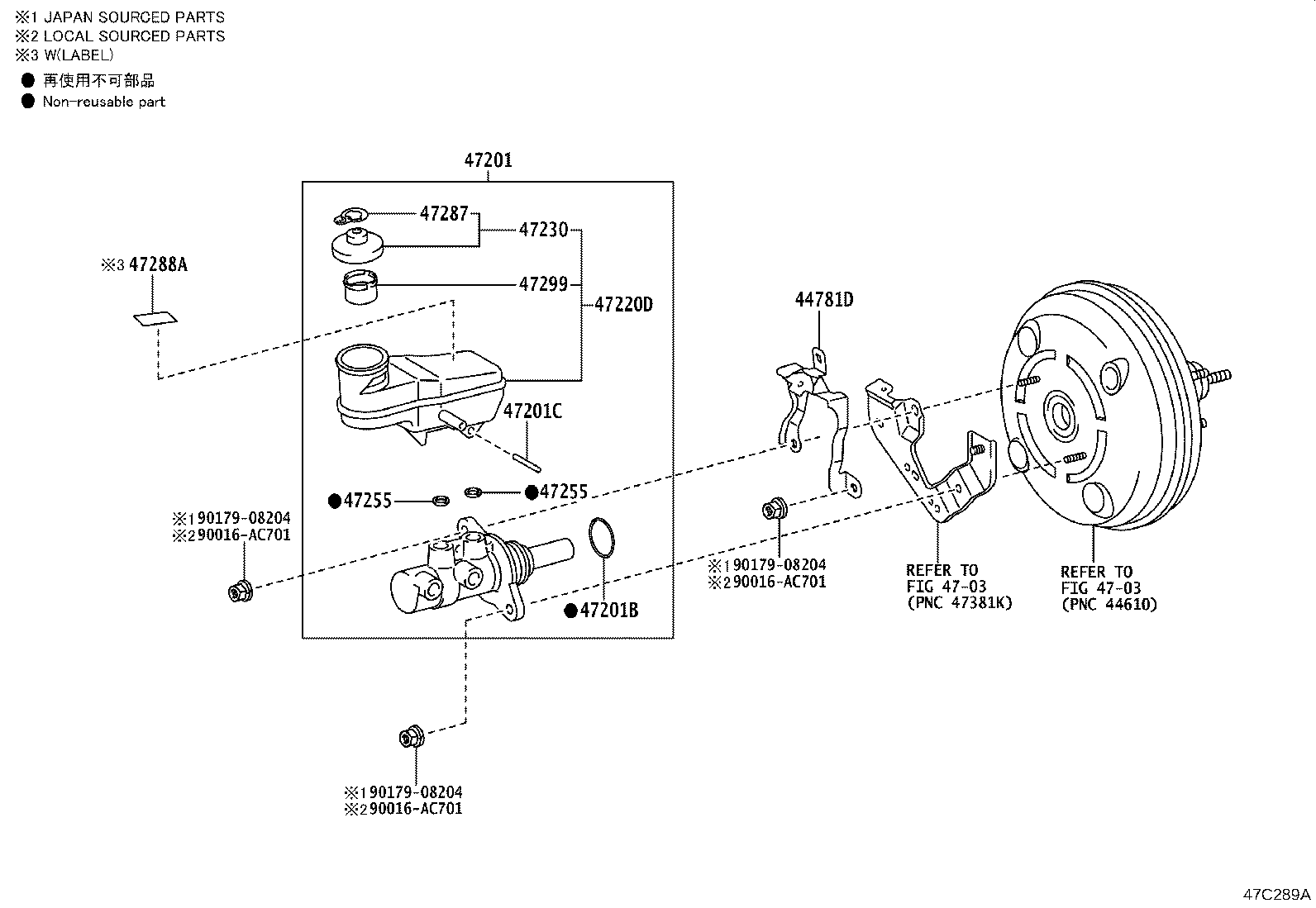

Figure 47C290A 47C290A 2020-06 → — Figure 47C289A 47C289A 2020-06 → —

Part groups

PNCDescription
44781D Bracket, Reservoir Hose
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47288A Label, Brake Fluid Notice
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
