Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 2 illustrations

Illustrations

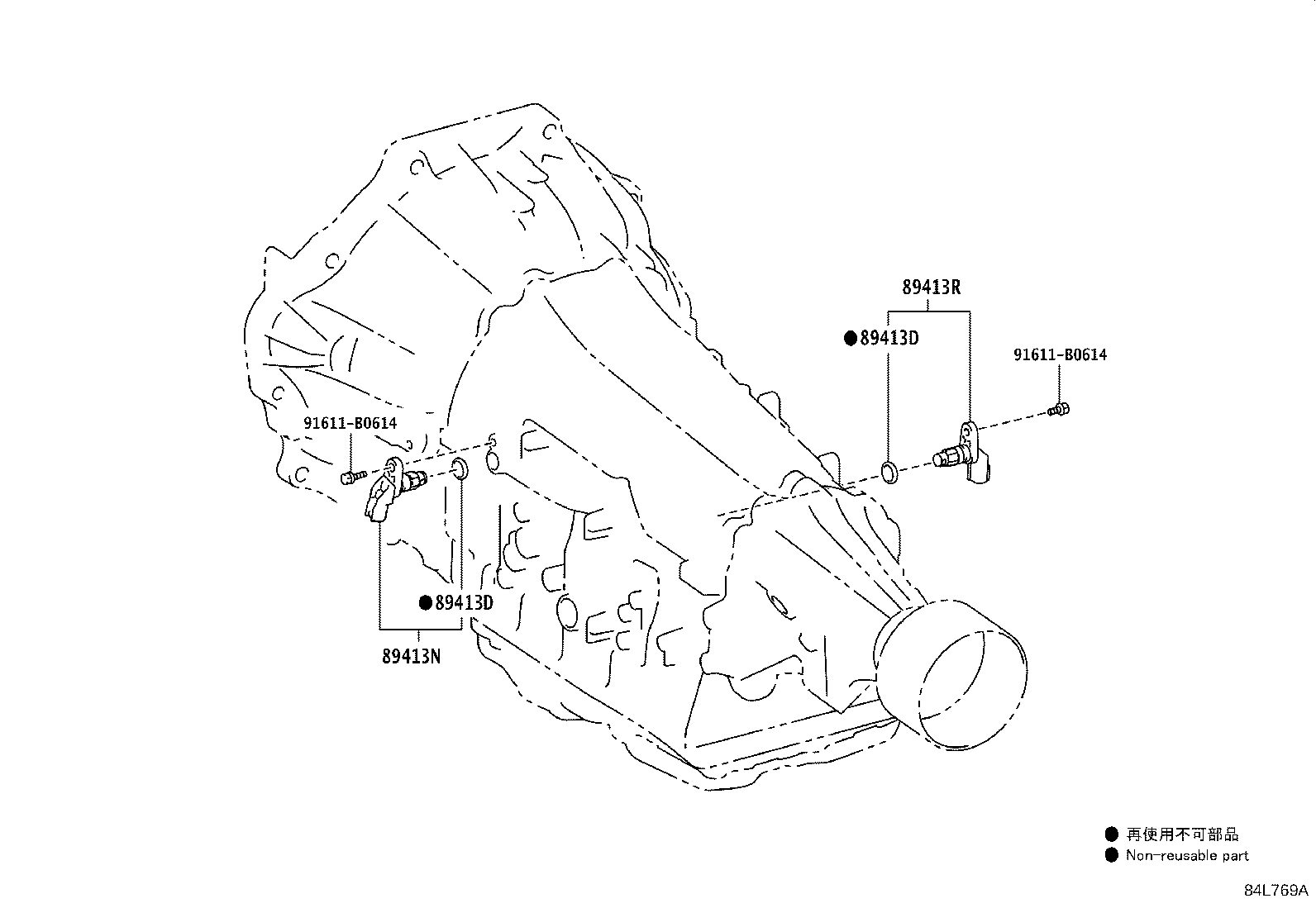

Figure 84L768A 84L768A 2020-06 → — Figure 84L769A 84L769A 2020-06 → —

Part groups

PNCDescription
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413R Sensor, Transmission Revolution (SP2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
