Toyota Hilux (SCB/XTR)

2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · United States

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

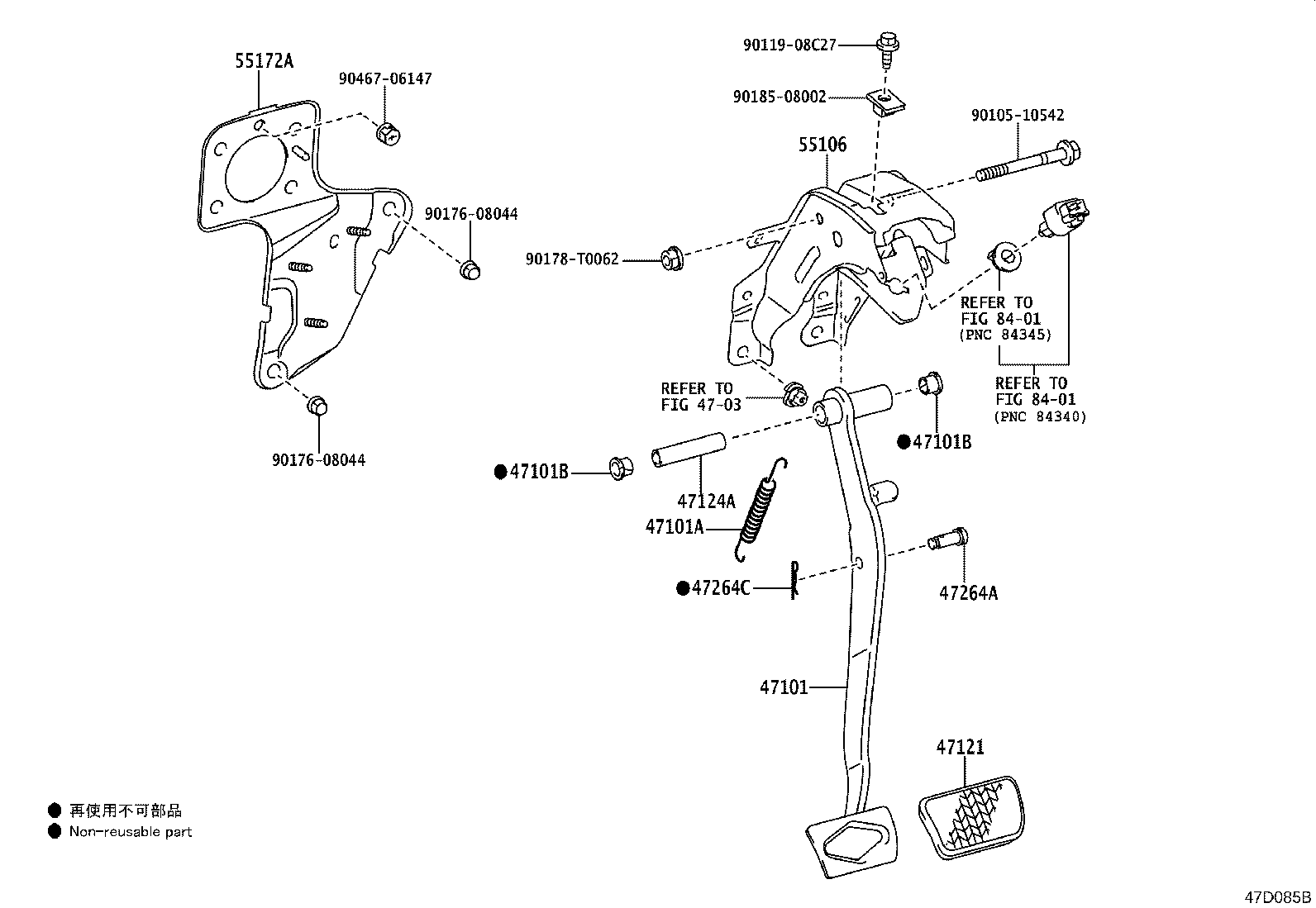

Exploded illustration 47D085B 47101 — PEDAL SUB-ASSY, BRAKE (10 parts) 47101A — SPRING(FOR BRAKE PEDAL RETURN) (5 parts) 47101B — BUSH(FOR BRAKE PEDAL) (5 parts) 47101B — BUSH(FOR BRAKE PEDAL) (5 parts) 47121 — PAD, BRAKE PEDAL (7 parts) 47124A — COLLAR(FOR BRAKE PEDAL SHAFT) (6 parts) 47264A — PIN(FOR PUSH ROD) (5 parts) 47264C — CLIP(FOR PUSH ROD CLEVIS PIN) (5 parts) 55106 — SUPPORT SUB-ASSY, BRAKE PEDAL (5 parts) 55172A — BASE, BRAKE PEDAL SUPPORT (7 parts) 9010510542 — not listed in this catalogue 9011908C27 — not listed in this catalogue 9017608044 — not listed in this catalogue 9017608044 — not listed in this catalogue 90178T0062 — not listed in this catalogue 9018508002 — not listed in this catalogue 9046706147 — not listed in this catalogue 4703 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
47D085B · 10 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
47101 — Pedal Sub-assy, Brake
47101-KK010 Pedal Sub-assy, Brake
2021-08 → 2022-07 ended
GUN112,121,122,125,126,13#,TGN110,121 RHD THP MTM —
47101-KK010 Pedal Sub-assy, Brake
2021-08 → 2023-03 ended
GUN122,125,126,13#,TGN120,136 RHD MTM (KEN,SA) —
47101-KK010 Pedal Sub-assy, Brake
2021-08 → 2022-08 ended
GUN125 MA —
47101-KK010 Pedal Sub-assy, Brake
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
47101-KK020 Pedal Sub-assy, Brake
2021-08 → 2022-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP MTM —
47101-KK020 Pedal Sub-assy, Brake
2021-08 → 2023-01 ended
GUN122,125,LAN125,TGN121 LHD SA —
47101-KK020 Pedal Sub-assy, Brake
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
47101-KK030 Pedal Sub-assy, Brake
2021-08 → 2023-01 ended
GUN125,126,13# 6FC SA —
47101-KK030 Pedal Sub-assy, Brake
2021-08 → 2022-07 ended
GUN120,125,126,13#,TGN121 RHD THP 6FC —
47101-KK040 Pedal Sub-assy, Brake
2021-08 → 2022-07 ended
GUN126 6FC GCC —
47101A — Spring(FOR BRAKE PEDAL RETURN)
90507-T0002 Spring(FOR BRAKE PEDAL RETURN)
2021-08 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
90507-T0002 Spring(FOR BRAKE PEDAL RETURN)
2021-08 → 2022-08 ended
GUN125 MA —
90507-T0002 Spring(FOR BRAKE PEDAL RETURN)
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
90507-T0002 Spring(FOR BRAKE PEDAL RETURN)
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
90507-T0002 Spring(FOR BRAKE PEDAL RETURN)
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
47101B — Bush(FOR BRAKE PEDAL)
90386-13015 Bush(FOR BRAKE PEDAL)
2021-08 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
90386-13015 Bush(FOR BRAKE PEDAL)
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
90386-13015 Bush(FOR BRAKE PEDAL)
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
90386-13015 Bush(FOR BRAKE PEDAL)
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
90386-13015 Bush(FOR BRAKE PEDAL)
2021-08 → 2022-08 ended
GUN125 MA —
47121 — Pad, Brake Pedal
31321-02020 Pad, Brake Pedal
2021-08 → 2022-07 ended
GUN11#,121,122,125,126,13#,TGN11#,12# THP MTM —
31321-02020 Pad, Brake Pedal
2021-08 → 2022-08 ended
GUN125 MA —
31321-02020 Pad, Brake Pedal
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
31321-02020 Pad, Brake Pedal
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
31321-02020 Pad, Brake Pedal
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 MTM (KEN,SA) —
47121-02030 Pad, Brake Pedal
2021-08 → 2022-07 ended
GUN120,125,126,13#,TGN121 THP 6FC —
47121-02030 Pad, Brake Pedal
2021-08 → 2023-01 ended
GUN125,126,13# 6FC SA —
47124A — Collar(FOR BRAKE PEDAL SHAFT)
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2021-08 → 2022-06 ended
GUN11#,12#,13#,LAN125,TGN11#,12#,136 AGTP,KENP,PKNP,SAP,THP —
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2022-06 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2022-06 → 2023-01 ended
GUN122,126,TGN121 PKN —
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2021-08 → 2022-08 ended
GUN125 MA —
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2022-06 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
90387-10121 Collar(FOR BRAKE PEDAL SHAFT)
2022-06 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
47264A — Pin(FOR PUSH ROD)
47148-35010 Pin(FOR PUSH ROD)
2021-08 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
47148-35010 Pin(FOR PUSH ROD)
2021-08 → 2022-08 ended
GUN125 MA —
47148-35010 Pin(FOR PUSH ROD)
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
47148-35010 Pin(FOR PUSH ROD)
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
47148-35010 Pin(FOR PUSH ROD)
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
47264C — Clip(FOR PUSH ROD CLEVIS PIN)
90468-16012 Clip(FOR PUSH ROD CLEVIS PIN)
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
90468-16012 Clip(FOR PUSH ROD CLEVIS PIN)
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
90468-16012 Clip(FOR PUSH ROD CLEVIS PIN)
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
90468-16012 Clip(FOR PUSH ROD CLEVIS PIN)
2021-08 → 2022-08 ended
GUN125 MA —
90468-16012 Clip(FOR PUSH ROD CLEVIS PIN)
2021-08 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
55106 — Support Sub-assy, Brake Pedal
55106-KK010 Support Sub-assy, Brake Pedal
2021-08 → 2022-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
55106-KK010 Support Sub-assy, Brake Pedal
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
55106-KK010 Support Sub-assy, Brake Pedal
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
55106-KK010 Support Sub-assy, Brake Pedal
2021-08 → 2023-03 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
55106-KK030 Support Sub-assy, Brake Pedal
2021-10 → 2022-08 ended
GUN125 MA —
55172A — Base, Brake Pedal Support
55172-KK040 Base, Brake Pedal Support
2021-08 → 2022-07 ended
GUN112,12#,13#,TGN110,121 RHD THP —
55172-KK040 Base, Brake Pedal Support
2021-08 → 2022-08 ended
GUN125 MA —
55172-KK040 Base, Brake Pedal Support
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
55172-KK040 Base, Brake Pedal Support
2021-08 → 2023-03 ended
GUN122,125,126,13#,TGN120,136 RHD (KEN,SA) —
55172-KK050 Base, Brake Pedal Support
2021-08 → 2022-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP —
55172-KK050 Base, Brake Pedal Support
2021-08 → 2022-10 ended
GUN125,126,135,TGN126,136 AGTP —
55172-KK050 Base, Brake Pedal Support
2021-08 → 2023-01 ended
GUN122,125,LAN125,TGN121 LHD SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
