Toyota Hilux (SCB/XTR)

2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · United States

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

9 part groups · 3 illustrations

Illustrations

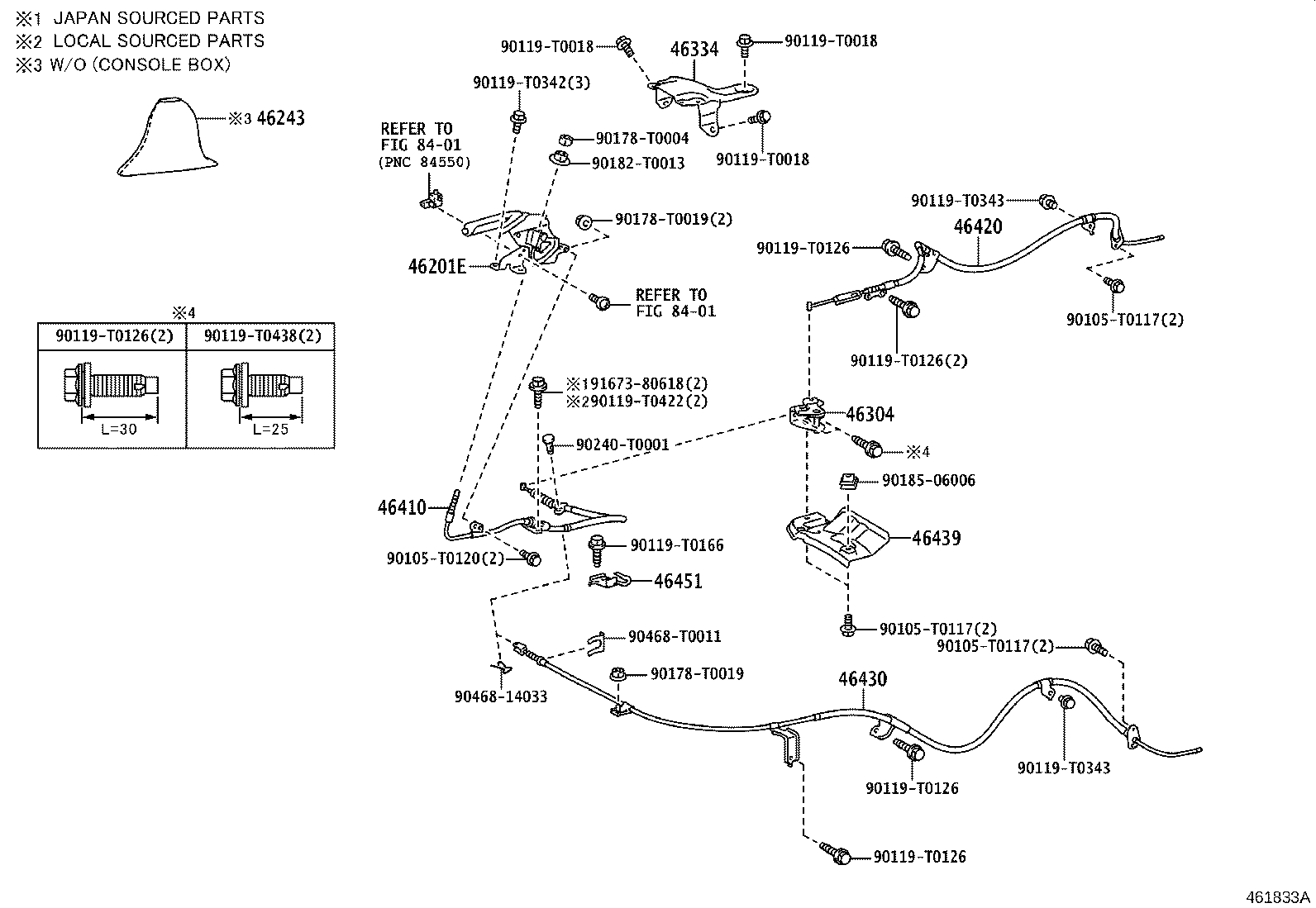

Figure 461831A 461831A 2021-08 → — Figure 461832A 461832A 2021-08 → — Figure 461833B 461833B 2021-08 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46243 Cover, Parking Brake Lever
46304 Equalizer Sub-assy, Parking Brake
46334 Protector, Intermediate Lever
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46439 Insulator, Parking Brake Cable Heat
46451 Bracket, Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
