Toyota Hilux (SCB/XTR)

2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · United States

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

14 part groups · 2 illustrations

Illustrations

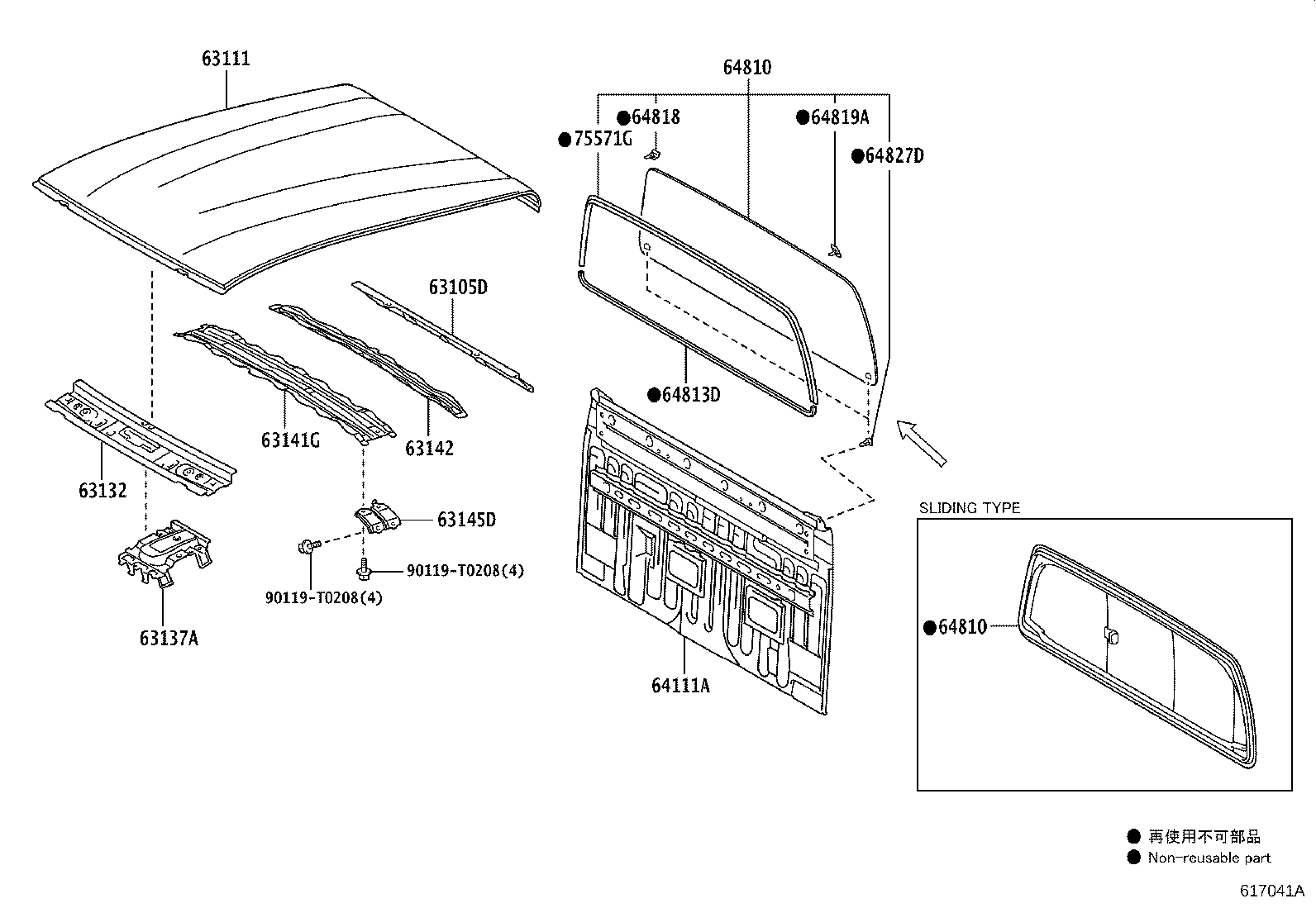

Figure 617040A 617040A 2021-08 → — Figure 617041A 617041A 2021-08 → —

Part groups

PNCDescription
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63137A Bracket, Dome Lamp, NO.1
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63145D Bracket, Roof Reinforcement
64111A Panel, Back
64810 Window Assy, Back
64813D Dam, Back Window Glass Adhesive
64818 Spacer, Back Window Glass
64819A Spacer, Back Window Glass, NO.2
64827D Clip, Back Window Glass
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
