Toyota Hilux (SCB/XTR)
2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · United States
Supported model
Data version 2022-01

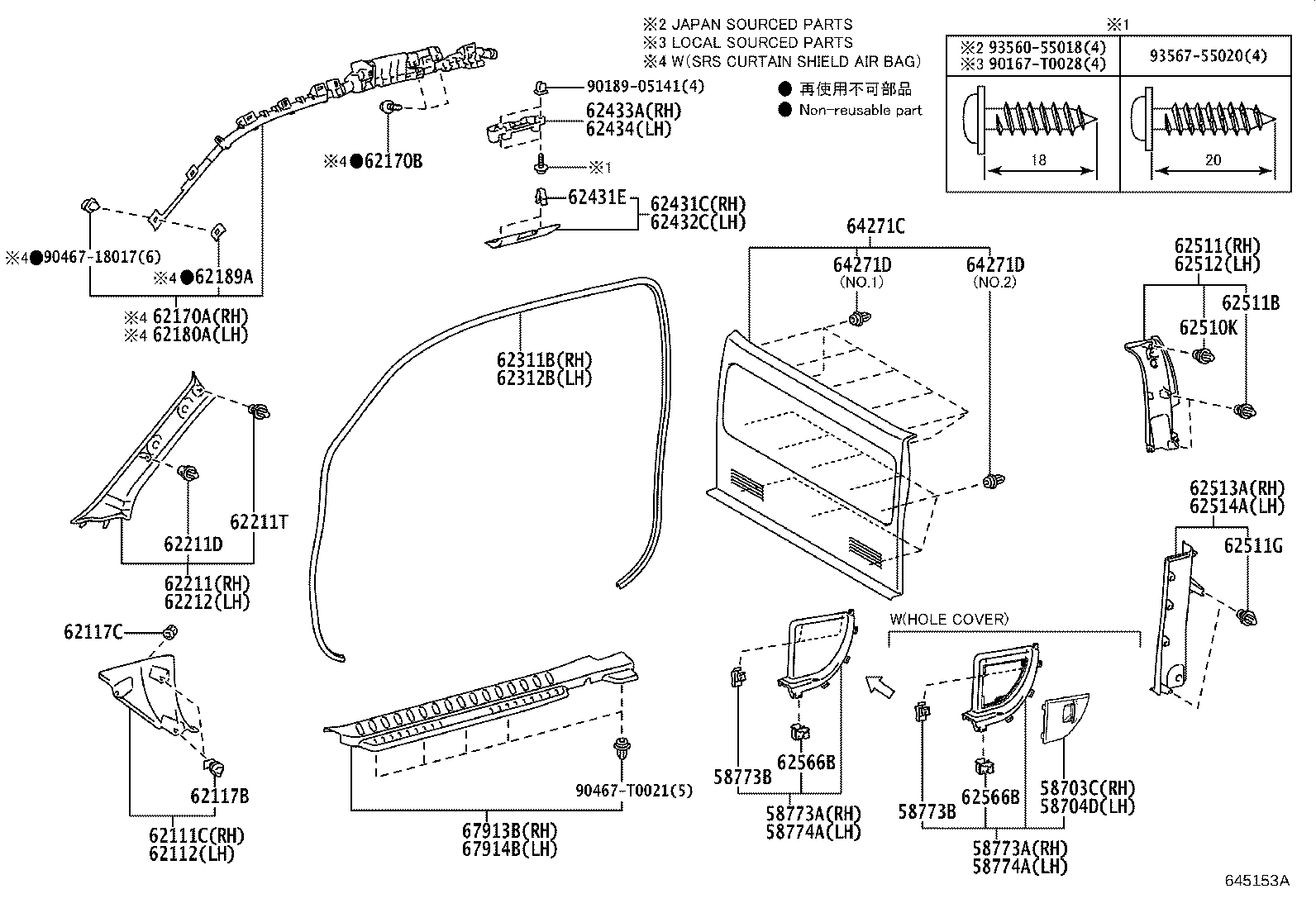

Inside Trim Board
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58703C | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704D | Cover Sub-assy, Luggage Compartment Side, LH |
| 58773A | Cover, Luggage Compartment Side, RH |
| 58773B | Clip(FOR LUGGAGE COMPARTMENT SIDE COVER) |
| 58774A | Cover, Luggage Compartment Side, LH |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62431E | Clip (FOR QUARTER PANEL GARNISH) |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62433A | Insert, Roof Side Rail Garnish, RH |
| 62434 | Insert, Roof Side Rail Garnish, LH |
| 62471M | Clip |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 64261C | Garnish, Back Panel, Upper |
| 64271C | Trim, Back Panel |
| 64271D | Clip(FOR BACK PANEL TRIM) |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
