Toyota Hilux (SCB/XTR)

2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · United States

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

7 part groups · 2 illustrations

Illustrations

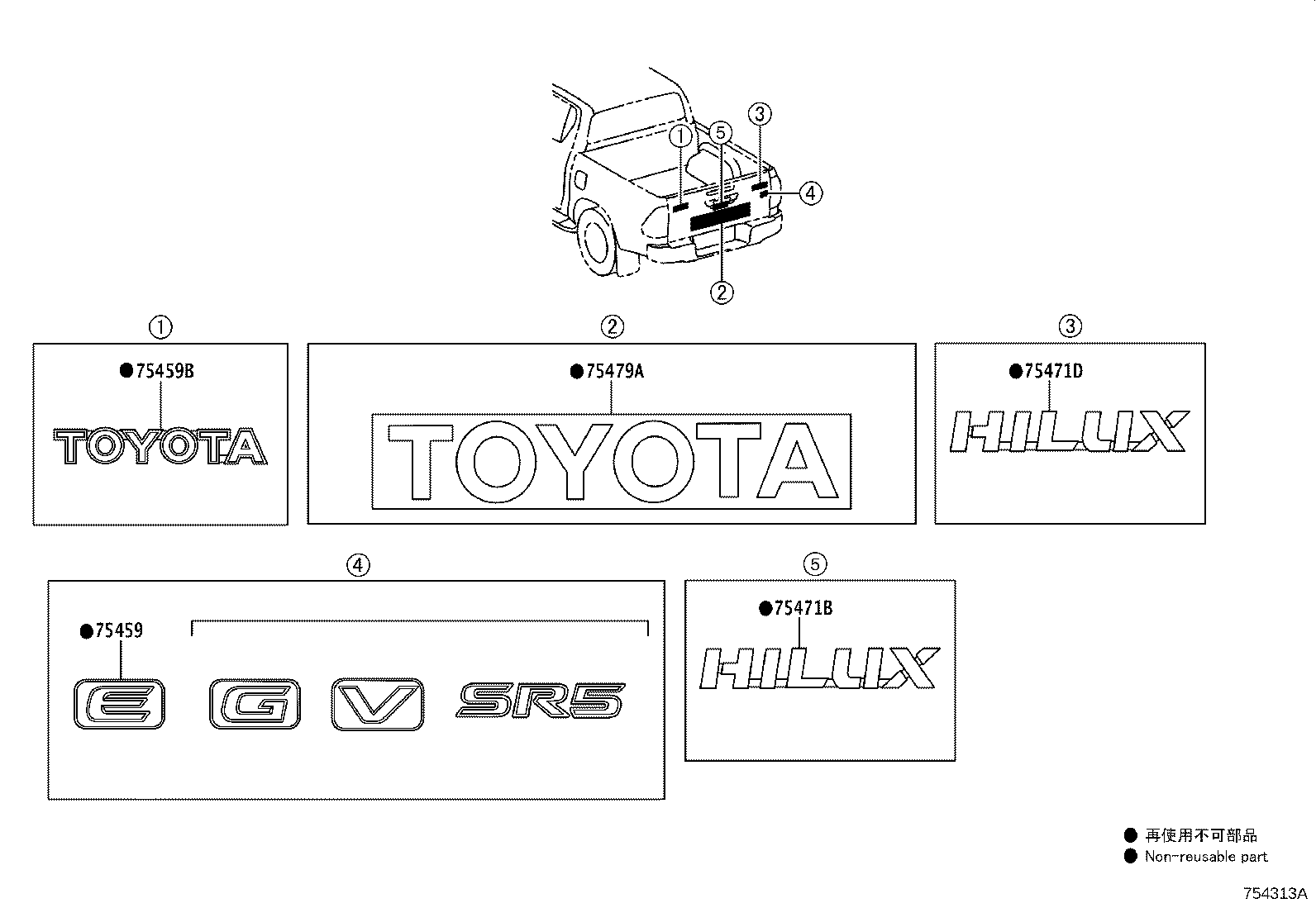

Figure 754312A 754312A 2021-08 → — Figure 754313A 754313A 2021-08 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75427 Plate, Front Door Name
75459 Mark, Tail Gate
75459B Mark, Tail Gate, NO.2
75471B Plate, Rear Body Name, NO.1
75471D Plate, Rear Name
75479A Mark, Tail Gate, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
