Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States
Supported model
Data version 2023-03

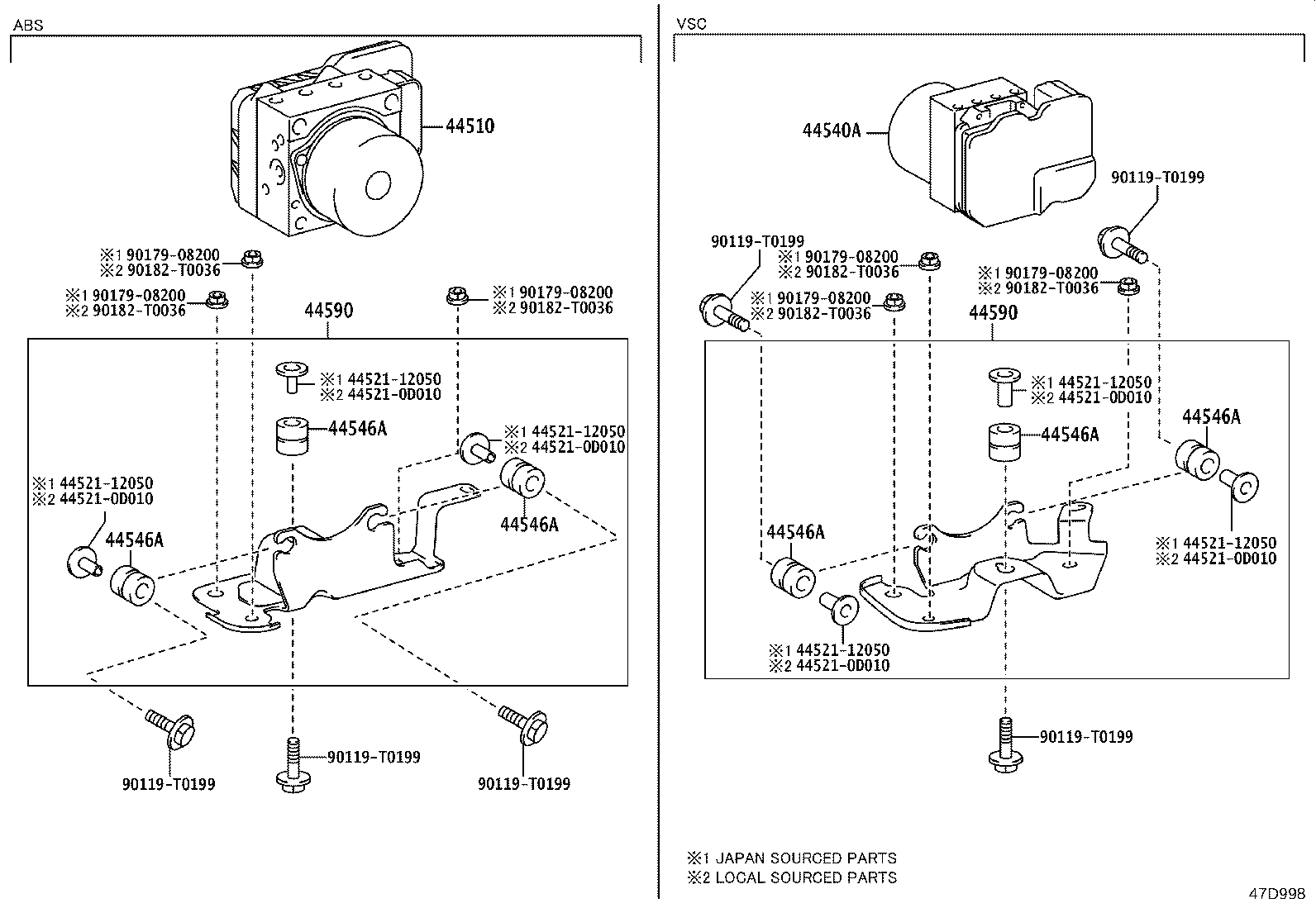

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-0K010 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN112 TH | — | |
| 44050-0K010 |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN112 TH;TGN110 IDN | — | |
| 44050-0K010 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN112 IDN | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN121 | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 44050-0K020 |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
TGN120,121 SA | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2023-11
ended
|
TGN120,121 SA | — | |
| 44050-0K020 |
Actuator Assy, Brake
2022-08 → —
|
GUN122,TGN121 PKN | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN122 GEN | — | |
| 44050-0K020 |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
TGN121 GEN,TH;GUN120,121,122 PH,TH | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN120,122 XTR;TGN121 GEN CBU | — | |
| 44050-0K020 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN122 SCB TH;GUN120,TGN121 SCB +1 | — | |
| 44050-0K030 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 44050-0K030 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
TGN121 GEN CBU | — | |
| 44050-0K030 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
TGN121 GEN | — | |
| 44050-0K060 note |
Actuator Assy, Brake
2023-01 → 2024-01
ended
|
GUN135 L SA | — | |
| 44050-0K070 |
Actuator Assy, Brake
2022-08 → 2024-03
ended
|
GUN135 KEN | — | |
| 44050-0K070 note |
Actuator Assy, Brake
2023-01 → 2024-01
ended
|
GUN135 L SA | — | |
| 44050-0K070 |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
TGN136 SA | — | |
| 44050-0K070 note |
Actuator Assy, Brake
2022-08 → 2023-11
ended
|
TGN136 SA | — | |
| 44050-0K070 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN135 L TH | — | |
| 44050-0K070 |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN135 L TH | — | |
| 44050-0K080 note |
Actuator Assy, Brake
2022-08 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 44050-0K080 |
Actuator Assy, Brake
2022-11 → 2023-10
ended
|
TGN136 LA | — | |
| 44050-0K080 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN135 THP LA | — | |
| 44050-0K090 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 LHD L GEN | — | |
| 44050-0K090 |
Actuator Assy, Brake
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 44050-0K090 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0K090 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
GUN125 LHD L SA | — | |
| 44050-0K090 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
GUN125 RHD SCB L +1 | — | |
| 44050-0K090 |
Actuator Assy, Brake
2023-01 → 2024-03
ended
|
GUN125 L KEN | — | |
| 44050-0K110 |
Actuator Assy, Brake
2022-08 → —
|
GUN126 PKN | — | |
| 44050-0K110 |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 LHD L GEN;GUN125,126 +3 | — | |
| 44050-0K110 |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
GUN125 LHD L SA | — | |
| 44050-0K110 note |
Actuator Assy, Brake
2022-08 → 2024-01
ended
|
GUN125 RHD L SA | — | |
| 44050-0K110 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0K110 note |
Actuator Assy, Brake
2022-08 → 2023-05
ended
|
GUN126 6F L TH | — | |
| 44050-0K110 |
Actuator Assy, Brake
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 44050-0K120 note |
Actuator Assy, Brake
2022-08 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 44050-0K120 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 44050-0K120 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0K120 note |
Actuator Assy, Brake
2022-08 → 2023-07
ended
|
GUN125 LHD L GEN | — | |
| 44540A — Actuator Assy, Vsc | ||||
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
TGN121 GEN CBU | — | |
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2024-01
ended
|
TGN120,121 SA | — | |
| 44050-0KB81 |
Actuator Assy, Vsc
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2023-11
ended
|
GUN122 SA | — | |
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN122 SCB TH;GUN120,TGN121 SCB +1 | — | |
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN121 | — | |
| 44050-0KB81 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN122 GEN | — | |
| 44050-0KB81 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
TGN121 GCC;GUN122,TGN120 GCC,GEN | — | |
| 44050-0KC00 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN13# SCB (H,S) | — | |
| 44050-0KC10 |
Actuator Assy, Vsc
2022-08 → 2023-10
ended
|
GUN135 AGTP;TGN136 BZAG | — | |
| 44050-0KC10 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN135 THP LA | — | |
| 44050-0KC10 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN135 LA | — | |
| 44050-0KC30 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 SCB H;GUN125 RHD +3 | — | |
| 44050-0KC40 |
Actuator Assy, Vsc
2022-08 → 2023-10
ended
|
GUN125 BZAG;GUN126,TGN126 AGTP | — | |
| 44050-0KC40 note |
Actuator Assy, Vsc
2022-08 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 44050-0KC40 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 44050-0KC40 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0KC40 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
TGN126 THP LA | — | |
| 44050-0KC60 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN120,122 XTR | — | |
| 44050-0KC80 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN13# XTR SA | — | |
| 44050-0KC90 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN135 (H,S) TH | — | |
| 44050-0KC90 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN135 L TH | — | |
| 44050-0KD30 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 XTR 6FC SA | — | |
| 44050-0KD40 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 TH | — | |
| 44050-0KD50 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 44050-0KD50 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 44050-0KD80 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN112 TH | — | |
| 44050-0KD80 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
TGN110 GCC;GUN11#,TGN111 GCC,IDN | — | |
| 44050-0KD80 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN112 IDN | — | |
| 44050-0KE80 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
TGN136 SA | — | |
| 44050-0KE80 note |
Actuator Assy, Vsc
2023-01 → 2023-11
ended
|
GUN135 L SA | — | |
| 44050-0KE80 |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN13# SCB SA | — | |
| 44050-0KE90 |
Actuator Assy, Vsc
2022-08 → 2024-01
ended
|
GUN125 LHD SCB S;GUN125,126 +3 | — | |
| 44050-0KE90 |
Actuator Assy, Vsc
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 44050-0KE90 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0KE90 note |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN126 6F L TH | — | |
| 44050-0KE90 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 RHD GEN;GUN126 SCB +5 | — | |
| 44050-0KE90 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN125 RHD 6F GEN | — | |
| 44050-0KE90 note |
Actuator Assy, Vsc
2022-08 → 2023-11
ended
|
GUN125 RHD SCB L +1 | — | |
| 44050-0KF00 |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN13# XTR SA | — | |
| 44050-0KF10 note |
Actuator Assy, Vsc
2023-01 → 2023-11
ended
|
GUN125 XTR L CBU | — | |
| 44050-0KF10 |
Actuator Assy, Vsc
2022-08 → 2024-01
ended
|
GUN125 XTR SA;GUN126 XTR +2 | — | |
| 44050-0KF10 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 XTR GEN | — | |
| 44050-71720 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
TGN121 ARL | — | |
| 44050-71750 note |
Actuator Assy, Vsc
2022-11 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 44050-71800 note |
Actuator Assy, Vsc
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 44050-71800 |
Actuator Assy, Vsc
2022-08 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 44050-71800 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 44050-71800 note |
Actuator Assy, Vsc
2022-08 → 2023-05
ended
|
GUN125 LA | — | |
| 44050-71A00 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN136 XTR SA | — | |
| 44050-71B00 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 XTR 6FC SA | — | |
| 44050-71C00 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN126 H TH | — | |
| 44050-71G40 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN136 SCB | — | |
| 44050-71G50 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 SCB H | — | |
| 44050-71J21 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 SCB H | — | |
| 44050-71J21 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125,126 SCB ARL | — | |
| 44050-71M80 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN136 SCB | — | |
| 44050-71M80 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN135 ARL | — | |
| 44050-71M90 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN136 XTR SA | — | |
| 44050-71M90 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN136 ARL | — | |
| 44050-71N00 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN125,126 XTR IV3 | — | |
| 44050-71N00 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 XTR 6FC SA | — | |
| 44050-71N10 note |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 6F H SA | — | |
| 44050-71N10 |
Actuator Assy, Vsc
2022-08 → 2023-07
ended
|
GUN126 ARL CBU | — | |
| 44050-71N20 |
Actuator Assy, Vsc
2023-01 → 2024-01
ended
|
GUN126 6F H SA | — | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 44546-0K010 note |
Cushion, Brake Actuator Bolt
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 44546-12120 note |
Cushion, Brake Actuator Bolt
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-0K050 |
Bracket Assy, Brake Actuator
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 44590-0K050 |
Bracket Assy, Brake Actuator
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 44590-0K050 |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN112,120,121,122,TGN121 TH;GUN125,126,TGN110 +3 | — | |
| 44590-0K050 note |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN;GUN112,122 +2 | — | |
| 44590-0K070 |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
TGN120,136 SA | — | |
| 44590-0K070 |
Bracket Assy, Brake Actuator
2023-01 → 2024-03
ended
|
GUN125,135 L KEN | — | |
| 44590-0K070 note |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
GUN122,125,135 RHD L SA | — | |
| 44590-0K100 |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN122 PH;GUN125,TGN121 LHD L +1 | — | |
| 44590-0K100 note |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN122,135 LHD +3 | — | |
| 44590-0K110 |
Bracket Assy, Brake Actuator
2022-11 → 2023-10
ended
|
TGN136 LA | — | |
| 44590-0K110 note |
Bracket Assy, Brake Actuator
2022-11 → 2023-10
ended
|
GUN125,135 AGTP LA | — | |
| 44590-0K120 |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
GUN125,LAN125,TGN121 LHD L SA | — | |
| 44590-0K120 note |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 44590-0K150 note |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN126 6F +3 | — | |
| 44590-0K150 |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN135 6F (H,S) (H,S);GUN112,122,13#,TGN121 +10 | — | |
| 44590-0K170 |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
GUN122,125,126,13# RHD SA | — | |
| 44590-0K170 note |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
TGN120,136 SA | — | |
| 44590-0K170 |
Bracket Assy, Brake Actuator
2023-01 → 2024-03
ended
|
GUN125 S KEN | — | |
| 44590-0K200 note |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
TGN121 GEN | — | |
| 44590-0K200 |
Bracket Assy, Brake Actuator
2022-08 → 2023-07
ended
|
GUN125 A) XTR GEN;GUN122 +4 | — | |
| 44590-0K210 |
Bracket Assy, Brake Actuator
2022-11 → 2023-10
ended
|
TGN136 BZAG;GUN125,126,135,TGN126 AGTP | — | |
| 44590-0K220 |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
GUN122 LHD SA;GUN125 LHD +2 | — | |
| 44590-0K220 note |
Bracket Assy, Brake Actuator
2023-01 → 2024-01
ended
|
TGN121 SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
