Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

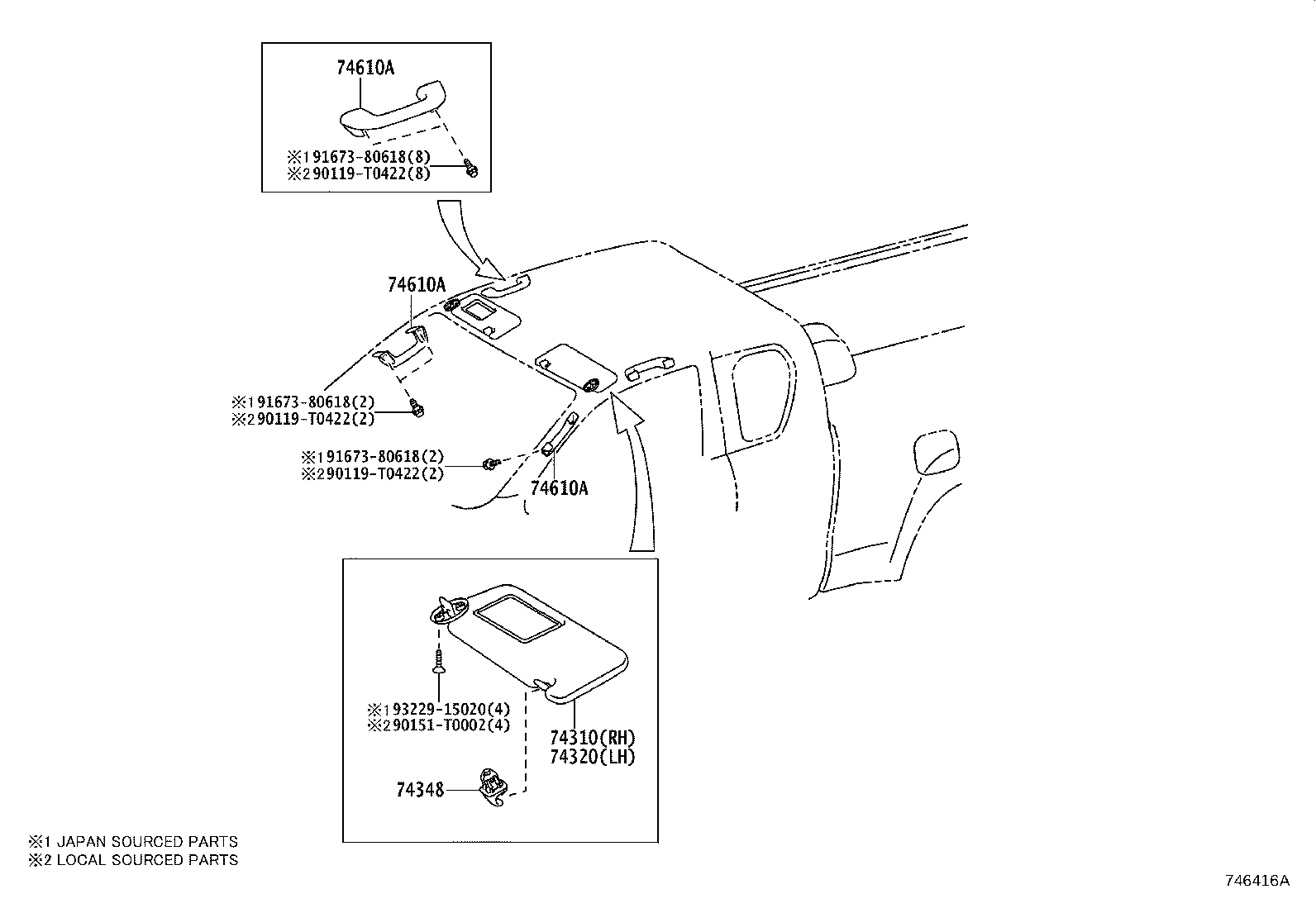

Exploded illustration 746416A 74610A — GRIP SUB-ASSY, ASSIST (28 parts) 74610A — GRIP SUB-ASSY, ASSIST (28 parts) 74610A — GRIP SUB-ASSY, ASSIST (28 parts) 74348 — HOLDER, VISOR (11 parts) 90119T0422 — not listed in this catalogue 9167380618 — not listed in this catalogue 90119T0422 — not listed in this catalogue 9167380618 — not listed in this catalogue 90119T0422 — not listed in this catalogue 9167380618 — not listed in this catalogue 9322915020 — not listed in this catalogue 90151T0002 — not listed in this catalogue 74320 — VISOR ASSY, LH (15 parts) 74310 — VISOR ASSY, RH (14 parts)
746416A · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN126 112,12#,136,TGN110,121 ARL RHD +12 —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → —
GUN122,126,TGN121 PKN —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2024-03 ended
GUN125,135 KEN —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2023-08 ended
GUN125 MA —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2024-01 ended
GUN126,136 XTR SA —
74310-0KC30-B1 note Visor Assy, RH
2022-08 → 2024-01 ended
GUN126,136 SCB SA;GUN122,125,135,TGN120,136 RHD +1 —
74310-0KC30-C1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74310-0KC30-C1 note Visor Assy, RH
2022-08 → 2024-01 ended
GUN126,136 XTR SA —
74310-0KD80-B1 note Visor Assy, RH
2022-11 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
74310-0KF10-B1 note Visor Assy, RH
2022-08 → 2024-01 ended
GUN122,125,LAN125,TGN121 LHD SA —
74310-0KF10-B1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN122,125,135,TGN121,126 LHD THP L +1 —
74310-0KF10-B1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN11#,122,125,126,TGN11#,12# GCC —
74310-0KJ00-B1 note Visor Assy, RH
2022-08 → 2023-07 ended
GUN125 XTR GEN —
74320 — Visor Assy, LH
74320-0KA90-B1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN125 RHD (ARL,GEN);GUN112,120,121,122,126,135,TGN110,121 RHD +3 —
74320-0KA90-B1 note Visor Assy, LH
2022-08 → —
GUN122,126,TGN121 PKN —
74320-0KA90-B1 note Visor Assy, LH
2022-08 → 2024-03 ended
GUN125,135 KEN —
74320-0KA90-B1 note Visor Assy, LH
2022-08 → 2023-08 ended
GUN125 MA —
74320-0KA90-B1 note Visor Assy, LH
2022-08 → 2024-01 ended
GUN122,125,126,135,TGN120,136 RHD (L,S) SA —
74320-0KB00-B1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN126 20,122,136 ARL;GUN126 XTR +9 —
74320-0KB00-B1 note Visor Assy, LH
2022-08 → 2024-01 ended
GUN126,136 SCB H —
74320-0KB00-B1 note Visor Assy, LH
2022-08 → 2024-01 ended
GUN126,136 XTR SA —
74320-0KB00-B1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74320-0KB00-C1 note Visor Assy, LH
2022-08 → 2024-01 ended
GUN126,136 XTR SA —
74320-0KB00-C1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74320-0KC30-B1 note Visor Assy, LH
2022-11 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
74320-0KF60-B1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN122,125,135,TGN121,126 LHD THP (GEN,LA,PH) —
74320-0KF60-B1 note Visor Assy, LH
2022-08 → 2023-07 ended
GUN11#,122,125,126,TGN11#,12# GCC —
74320-0KF60-B1 note Visor Assy, LH
2022-08 → 2024-01 ended
GUN122,125,LAN125,TGN121 LHD SA —
74348 — Holder, Visor
74348-0K070-B0 note Holder, Visor
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
74348-0K070-B0 note Holder, Visor
2022-08 → —
GUN122,126,TGN121 PKN —
74348-0K070-B0 note Holder, Visor
2022-08 → 2023-08 ended
GUN125 MA —
74348-0K070-B0 note Holder, Visor
2022-08 → 2023-07 ended
GUN135 RHD ,TH) THP +13 —
74348-0K070-B0 note Holder, Visor
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74348-0K070-B0 note Holder, Visor
2022-08 → 2023-07 ended
GUN11#,122,125,126,TGN11#,12# GCC —
74348-0K070-C0 note Holder, Visor
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74348-0K080-B0 note Holder, Visor
2023-01 → 2024-01 ended
GUN126,136 SCB SA;GUN122,125,135,LAN125,TGN120,121,136 SA —
74348-0K080-B0 note Holder, Visor
2023-01 → 2024-03 ended
GUN125,135 KEN —
74348-0K080-B0 note Holder, Visor
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
74348-0K080-C0 note Holder, Visor
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
74610A — Grip Sub-assy, Assist
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → —
GUN122,126,TGN121 PKN —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-03 ended
GUN125 S KEN —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-03 ended
GUN125,135 L KEN —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
TGN120,136 SA;GUN125 RHD 6F +2 —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN125,126,TGN136 SCB MTM S +1 —
74603-0K070-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN125 XTR S SA;GUN122,125,135,LAN125,TGN120,121 +2 —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-11 → 2024-01 ended
GUN135 S SA;GUN125,126,136 SCB +2 —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-11 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
TGN121 TH;GUN112,120,122,TGN110 GEN,IDN,PH,TH —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN125 (IDN,TH) S GEN;GUN122 +3 —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN125 1,126 6FC THP +7 —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN125,126,TGN126 GCC —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN126,135 (L,S) TH;GUN121,125 6F +2 —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN11#,122,TGN11#,120,121 GCC —
74603-0K070-B0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN121 —
74603-0K070-C0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
74603-0K070-C0 note Grip Sub-assy, Assist
2022-08 → 2023-07 ended
GUN126,135 6FC H TH —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN125 XTR S SA;GUN122,125,135,LAN125,TGN120,121 +2 —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-03 ended
GUN125 S KEN —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-03 ended
GUN125,135 L KEN —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
TGN120,136 SA;GUN125 RHD 6F +2 —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
74603-KK010-B0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN125,126,TGN136 SCB MTM S +1 —
74603-KK010-B0 note Grip Sub-assy, Assist
2022-11 → 2024-01 ended
GUN135 S SA;GUN125,126,136 SCB +2 —
74603-KK010-B0 note Grip Sub-assy, Assist
2022-11 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
74603-KK010-C0 note Grip Sub-assy, Assist
2023-01 → 2024-01 ended
GUN126,136 XTR SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
