Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

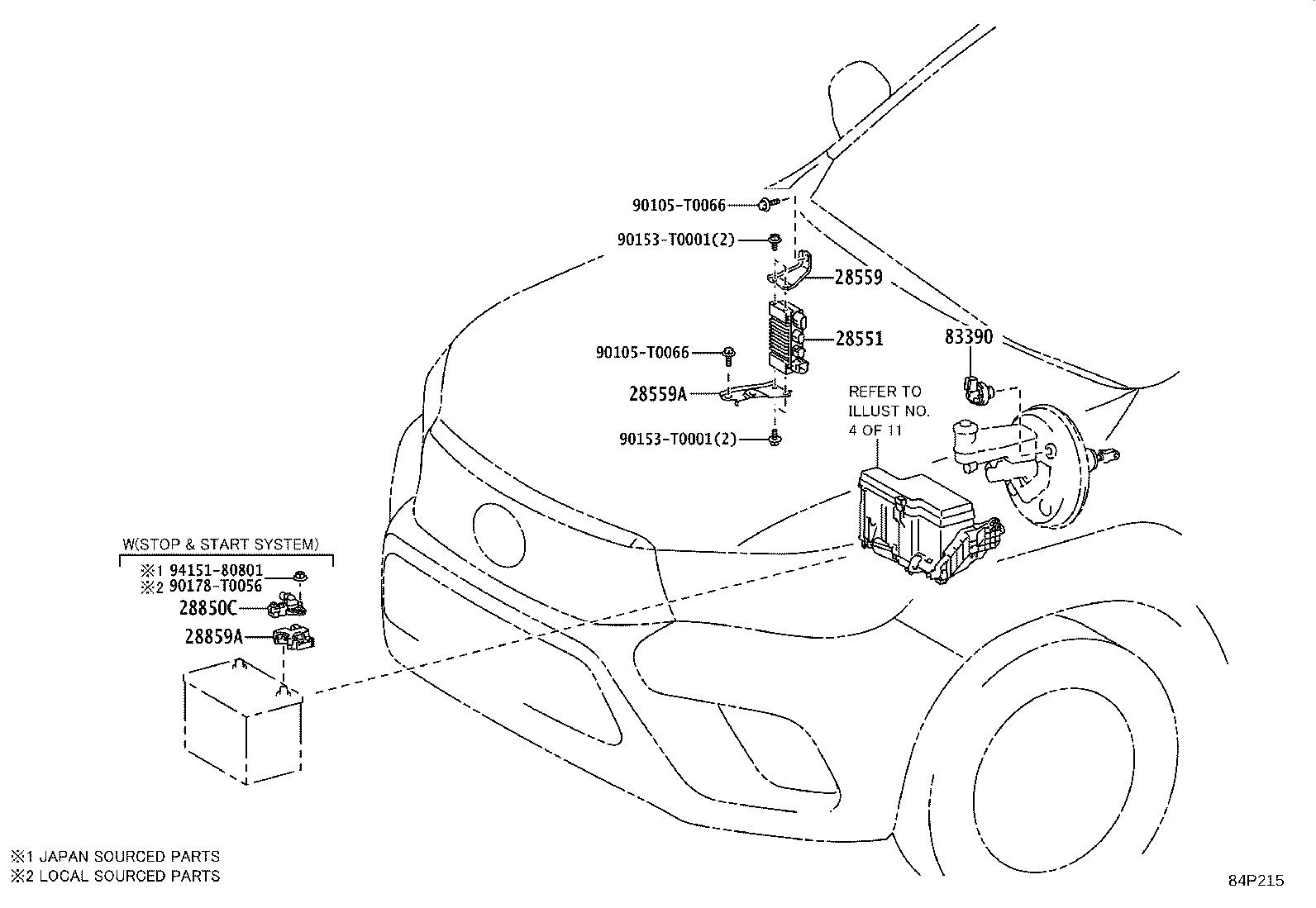

Exploded illustration 84P215 28850C — SENSOR ASSY, BATTERY STATE (1 parts) 28859A — HOLDER, BATTERY CURRENT SENSOR (1 parts) 90178T0056 — not listed in this catalogue 9415180801 — not listed in this catalogue 28551 — CONTROLLER, GLOW PLUG (12 parts) 28559 — BRACKET, GLOW PLUG CONTROLLER, NO.1 (18 parts) 83390 — SWITCH ASSY, VACUUM WARNING (7 parts) 90153T0001 — not listed in this catalogue 90105T0066 — not listed in this catalogue 90153T0001 — not listed in this catalogue 90105T0066 — not listed in this catalogue 28559A — BRACKET, GLOW PLUG CONTROLLER, NO.2 (18 parts)
84P215 · 6 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
28551 — Controller, Glow Plug
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN11#,12#,13# THP —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN125,126,135 AGTP —
28551-0E010 note Controller, Glow Plug
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28551-0E010 note Controller, Glow Plug
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# SA —
28551-0E010 note Controller, Glow Plug
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN11#,12#,13# THP —
28551-30010 note Controller, Glow Plug
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28551-30010 note Controller, Glow Plug
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28551-30010 note Controller, Glow Plug
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# SA —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN125,126,135 AGTP —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559 — Bracket, Glow Plug Controller, NO.1
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN11#,122,125,126,135 LHD THP —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN125,126,135 AGTP —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
2GDFTV GUN122,125 LHD SA —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559A — Bracket, Glow Plug Controller, NO.2
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
2GDFTV GUN122,125 LHD SA —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN125,126,135 AGTP —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN11#,122,125,126,135 LHD THP —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2023-05 → —
1GDFTV,2GDFTV GUN122,126 PKN —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
2GDFTV GUN125 MA —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
2GDFTV GUN125,135 KEN —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN122,125,126,13# RHD SA —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN112,12#,13# RHD THP —
28850C — Sensor Assy, Battery State
28850-0Y010 note Sensor Assy, Battery State
2022-08 → 2023-07 ended
2GDFTV H,S) GUN135 (GCC,TH) +8 —
28859A — Holder, Battery Current Sensor
28859-0L010 note Holder, Battery Current Sensor
2022-08 → 2023-07 ended
2GDFTV H,S) GUN135 (GCC,TH) +8 —
83390 — Switch Assy, Vacuum Warning
83390-28120 note Switch Assy, Vacuum Warning
2022-08 → 2023-05 ended
GUN135 6F TH;GUN135 6FC +4 —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-07 ended
GUN11#,12#,13# THP —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-08 ended
GUN125 MA —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-10 ended
GUN125,126,135 AGTP —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2024-01 ended
GUN122,125,126,13#,LAN125 SA —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2024-03 ended
GUN125,135 KEN —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → —
GUN122,126 PKN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
