Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States
Supported model
Data version 2023-03

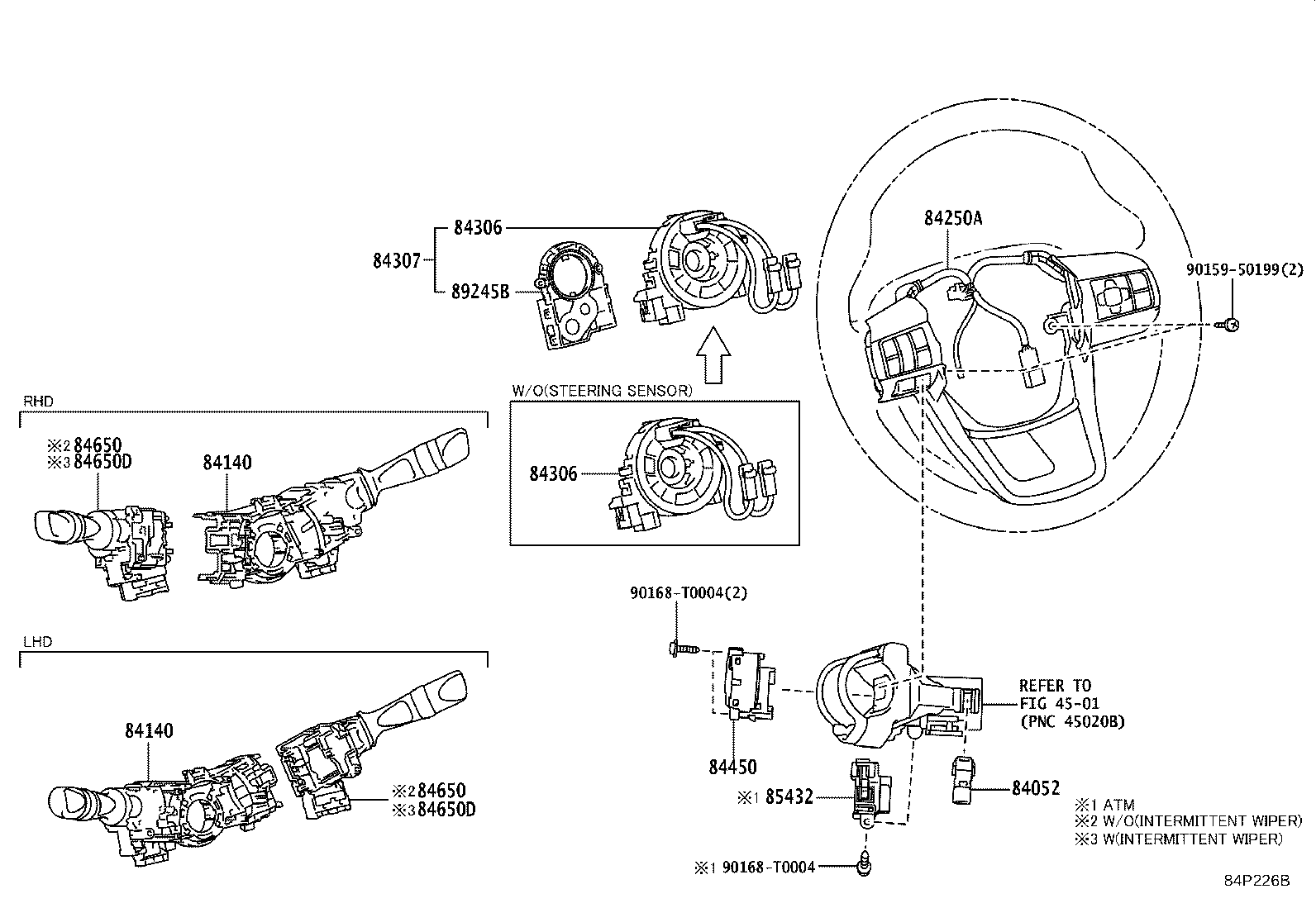

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP (L,S) | — | |
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 84052-0K020 note |
Switch Assy, Un-lock Warning
2023-01 → 2023-11
ended
|
GUN126 6F H SA | — | |
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 84052-0K020 |
Switch Assy, Un-lock Warning
2022-08 → 2024-01
ended
|
GUN126 6F SA;GUN126,136 SCB +2 | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-02A80 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
TGN121 SA | — | |
| 84140-02A80 note |
Switch Assy, Headlamp Dimmer
2022-11 → 2024-01
ended
|
GUN122,125,LAN125 LHD SA | — | |
| 84140-02A80 note |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
GUN125,126,135 AGTP LA | — | |
| 84140-06550 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
TGN121 SA | — | |
| 84140-06550 |
Switch Assy, Headlamp Dimmer
2022-11 → 2024-01
ended
|
GUN122,125,LAN125 LHD SA | — | |
| 84140-06550 |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
GUN125,126,135 AGTP LA | — | |
| 84140-06560 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 LHD SCB S | — | |
| 84140-06560 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 LHD S SA | — | |
| 84140-06600 |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
TGN136 LA | — | |
| 84140-06600 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 LHD S SA | — | |
| 84140-06600 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 LHD SCB S | — | |
| 84140-0K400 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN126 6F H SA | — | |
| 84140-0K400 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125,126,135,TGN136 RHD SCB MTM +2 | — | |
| 84140-0K400 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN135 XTR SA;GUN125,135 SCB +2 | — | |
| 84140-0K400 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125,126,135 RHD SCB 6F +2 | — | |
| 84140-0K400 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 6FC SA | — | |
| 84140-0K410 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-01
ended
|
GUN125 XTR L CBU;GUN135 +7 | — | |
| 84140-0K410 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 84140-0K410 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84140-0K410 |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN135 XTR SA;GUN125,135 SCB +2 | — | |
| 84140-0K430 |
Switch Assy, Headlamp Dimmer
2023-03 → —
|
GUN126 PKN | — | |
| 84140-0K430 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125,126,135 RHD SCB 6F +2 | — | |
| 84140-0K430 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125,126,135,TGN136 RHD SCB MTM +2 | — | |
| 84140-0K440 |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 84140-0K440 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN112,12#,TGN110,121 RHD L (GEN,IDN,TH) | — | |
| 84140-0K440 |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-01
ended
|
GUN135 SCB 6F SA;GUN122,125,126,TGN120,136 +4 | — | |
| 84140-0K440 |
Switch Assy, Headlamp Dimmer
2022-08 → —
|
GUN122,TGN121 PKN | — | |
| 84140-0K450 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN112,TGN111,121,126 S | — | |
| 84140-0K460 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 84140-0K470 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K470 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 84140-0K470 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K470 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125,TGN121 LHD L GEN | — | |
| 84140-0K470 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K480 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN112,TGN111,121,126 S | — | |
| 84140-0K490 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 84140-0K500 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,TGN11#,12# GCC | — | |
| 84140-0K510 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 84140-0K510 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K510 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K510 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K510 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122,135 THP (LA,PH);GUN125,TGN121 LHD +3 | — | |
| 84140-0K580 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 RHD 6F S +1 | — | |
| 84140-0K580 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122,125 S +1 | — | |
| 84140-0K580 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN126,135 XTR THP (H,S) +1 | — | |
| 84140-0K580 |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 84140-0K580 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 6FC SA | — | |
| 84140-0K580 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 RHD 6F S +1 | — | |
| 84140-0K580 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 6FC SA | — | |
| 84140-0K590 |
Switch Assy, Headlamp Dimmer
2022-09 → 2023-08
ended
|
GUN125 MA | — | |
| 84140-0K600 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2023-07
ended
|
TGN121 TH | — | |
| 84140-0K600 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN125 6FC SA | — | |
| 84140-0K600 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
TGN121 ARL;GUN125 ARL,TH;GUN135 RHD +5 | — | |
| 84140-0K600 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2023-07
ended
|
GUN112,120,121,122,126 L TH | — | |
| 84140-0K600 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2024-01
ended
|
GUN125 RHD 6F S +1 | — | |
| 84140-0K600 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 84140-0K610 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN112,TGN111,121,126 S | — | |
| 84140-0K620 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125 H | — | |
| 84140-0K630 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K630 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 GCC;GUN112,TGN111 S;TGN121,126 GCC +1 | — | |
| 84140-0K640 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K640 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN125,TGN121 LHD L GEN | — | |
| 84140-0K640 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K640 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 84140-0K640 |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
TGN126 THP LA | — | |
| 84140-0K660 |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
GUN125,126,135,TGN136 BZAG CBU | — | |
| 84140-0K660 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84140-0K660 |
Switch Assy, Headlamp Dimmer
2022-11 → 2024-01
ended
|
TGN121 SA | — | |
| 84140-0K690 note |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 84140-0K690 |
Switch Assy, Headlamp Dimmer
2022-11 → 2023-10
ended
|
TGN126 AGTP;GUN125,126,135 BZAG IV3 | — | |
| 84140-0K760 note |
Switch Assy, Headlamp Dimmer
2023-01 → 2023-07
ended
|
TGN121 GCC IV3;GUN111,126,TGN120 GCC | — | |
| 84140-0K760 note |
Switch Assy, Headlamp Dimmer
2022-08 → 2023-07
ended
|
TGN121 GCC CBU;GUN112,122,TGN11#,126 GCC | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
TGN126 THP LA | — | |
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2024-01
ended
|
TGN121,136 SA;GUN122 LHD SA;GUN135 +3 | — | |
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2024-01
ended
|
GUN135 MTM L SA +7 | — | |
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
GUN122,125,TGN121 (L,S) GEN | — | |
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
TGN126 L GCC CBU;TGN110,120,121 +2 | — | |
| 84250-0K100-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
TGN126 IV3;GUN112,122,125 L GCC | — | |
| 84250-0K180-C1 note |
Switch Assy, Steering Pad
2022-11 → 2023-10
ended
|
TGN126 AGTP;GUN125,135,TGN136 BZAG | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
GUN11#,122,126,TGN111,121,126 S GCC | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2023-01 → 2024-01
ended
|
GUN125,126 SCB S SA | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2022-08 → 2024-01
ended
|
GUN126 H SA;GUN125 XTR +4 | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2023-01 → 2023-11
ended
|
GUN126,136 XTR SA | — | |
| 84250-0K310-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
GUN135 TH;GUN120,122,125,126 (H,S) (GEN,TH) | — | |
| 84250-0K310-C2 note |
Switch Assy, Steering Pad
2022-08 → 2024-01
ended
|
GUN126,136 XTR SA | — | |
| 84250-0K310-C2 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
GUN126,135 6FC H TH | — | |
| 84250-0K320-C1 note |
Switch Assy, Steering Pad
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84250-0K320-C1 note |
Switch Assy, Steering Pad
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84250-0K370-C1 note |
Switch Assy, Steering Pad
2022-08 → 2023-07
ended
|
GUN125 THP (ARL,LA);GUN126,13#,TGN121 ARL | — | |
| 84250-0K400-C1 note |
Switch Assy, Steering Pad
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84250-0K400-C1 note |
Switch Assy, Steering Pad
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84250-0K420-C0 note |
Switch Assy, Steering Pad
2023-01 → 2024-01
ended
|
GUN126,136 XTR SA | — | |
| 84250-0K420-C1 note |
Switch Assy, Steering Pad
2023-01 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-0K260 note |
Cable Sub-assy, Spiral
2023-01 → 2024-01
ended
|
GUN122,125,135 RHD L SA | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84306-0K260 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN125 LHD L SA;LAN125,TGN120,136 +1 | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125,TGN121 LHD L GEN | — | |
| 84306-0K260 |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122 S +1 | — | |
| 84306-0K260 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN122 GEN;GUN125 RHD 6F +1 | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → 2024-03
ended
|
GUN125,135 L KEN | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2023-01 → 2024-01
ended
|
TGN120 SA | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2023-01 → 2024-01
ended
|
GUN122,125,135 RHD L SA | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2022-08 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → 2023-10
ended
|
TGN136 LA | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84306-0K270 |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125 .L LHD (IDN,PH,TH) +5 | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN;GUN112,122,135 +2 | — | |
| 84306-0K270 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 84308-0K060 |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125,126,13#,TGN121 ARL | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
TGN120,136 SA | — | |
| 84308-0K070 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN125 LHD S SA;GUN122,125,126,13# +2 | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122 S +1 | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-11 → 2023-05
ended
|
GUN125 AGTP LA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2023-01 → 2023-11
ended
|
GUN122,125,135 RHD L SA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2023-01 → 2023-11
ended
|
GUN122,125,135 RHD L SA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2023-05
ended
|
GUN125 THP LA | — | |
| 84308-0K070 |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125 125,126,135 THP (H,S) +7 | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
TGN121 GEN | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-11 → 2023-05
ended
|
GUN125 AGTP LA | — | |
| 84308-0K070 |
Cable Sub-assy, Spiral
2022-08 → 2023-10
ended
|
GUN125,TGN126 AGTP;GUN135,TGN136 BZAG | — | |
| 84308-0K070 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
TGN126 IV3;GUN125 GCC;GUN125 RHD +3 | — | |
| 84308-0K070 |
Cable Sub-assy, Spiral
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN122,125,135 RHD L SA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84308-0K080 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2023-01 → 2024-01
ended
|
TGN120 SA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
TGN126 THP LA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-05
ended
|
GUN125 RHD 6F GEN;GUN112,122,135 +1 | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN122,126 6F L TH;GUN112,120,121,TGN121 +2 | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 84308-0K080 |
Cable Sub-assy, Spiral
2022-08 → 2023-07
ended
|
TGN126 CC,GEN,IDN,LA) IV3;GUN125 GCC;GUN126 +7 | — | |
| 84308-0K080 |
Cable Sub-assy, Spiral
2022-08 → 2023-10
ended
|
GUN126 AGTP;GUN135 AGTP LA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-10
ended
|
TGN126 AGTP | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-11 → 2023-05
ended
|
GUN135 AGTP LA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-11
ended
|
GUN122 LHD SA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-11
ended
|
GUN122 LHD SA | — | |
| 84308-0K080 note |
Cable Sub-assy, Spiral
2022-08 → 2023-05
ended
|
GUN122 GEN;GUN125 RHD 6F +1 | — | |
| 84307 — Cable Sub-assy, Spiral W/Sensor | ||||
| 84307-0K190 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
GUN125,126,13#,TGN121 ARL | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
TGN120,136 SA | — | |
| 84307-0K200 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
GUN125 LHD S SA;GUN122,125,126,13# +2 | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-11 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84307-0K200 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-10
ended
|
GUN125,TGN126 AGTP;GUN135,TGN136 BZAG | — | |
| 84307-0K200 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
TGN126 IV3;GUN125 GCC;GUN125 RHD +3 | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
TGN121 GEN | — | |
| 84307-0K200 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122 S +1 | — | |
| 84307-0K200 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
GUN125 125,126,135 THP (H,S) +7 | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
GUN122,125,135 RHD L SA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2023-01 → 2024-01
ended
|
TGN120 SA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 84307-0K210 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
GUN125 THP LA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-10
ended
|
TGN126 AGTP | — | |
| 84307-0K210 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-10
ended
|
GUN126 AGTP;GUN135 AGTP LA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
TGN126 THP LA | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
GUN122,126 6F L TH;GUN112,120,121,TGN121 +2 | — | |
| 84307-0K210 |
Cable Sub-assy, Spiral W/Sensor
2022-08 → 2023-07
ended
|
TGN126 CC,GEN,IDN,LA) IV3;GUN125 GCC;GUN126 +7 | — | |
| 84307-0K210 note |
Cable Sub-assy, Spiral W/Sensor
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → 2024-01
ended
|
GUN126 6F SA;GUN126,136 SCB +2 | — | |
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 84450-02040 note |
Switch Assy, Ignition OR Starter
2023-01 → 2023-11
ended
|
GUN126 6F H SA | — | |
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84450-02040 |
Switch Assy, Ignition OR Starter
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP (L,S) | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-0D340 |
Switch Assy, Windshield Wiper
2022-11 → 2023-10
ended
|
TGN136 LA | — | |
| 84652-0D340 |
Switch Assy, Windshield Wiper
2022-11 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD L SA | — | |
| 84652-0K260 |
Switch Assy, Windshield Wiper
2022-08 → 2023-07
ended
|
GUN112,122,125,135,TGN110,121 RHD (ARL,GEN,IDN) | — | |
| 84652-0K260 |
Switch Assy, Windshield Wiper
2022-08 → 2024-01
ended
|
GUN122,125,135,TGN120 RHD SCB L +1 | — | |
| 84652-0K260 |
Switch Assy, Windshield Wiper
2022-08 → 2024-03
ended
|
GUN125,135 L KEN | — | |
| 84652-0K260 |
Switch Assy, Windshield Wiper
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 84652-0K300 |
Switch Assy, Windshield Wiper
2022-08 → 2023-07
ended
|
GUN125 LHD L (GCC,GEN);GUN11#,122,126,TGN11#,12# +1 | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-02750 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2023-01 → 2024-01
ended
|
GUN122,125 LHD L SA | — | |
| 84652-02750 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-11 → 2023-10
ended
|
TGN136 BZAG;GUN125,126,135,TGN126 AGTP | — | |
| 84652-06260 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2023-01 → 2024-01
ended
|
GUN125 LHD S SA | — | |
| 84652-0K241 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-07
ended
|
GUN135 TH;GUN120,122,125,126,136 RHD THP +1 | — | |
| 84652-0K241 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84652-0K241 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2024-01
ended
|
GUN125,126,13#,TGN136 RHD (H,S) SA | — | |
| 84652-0K250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-07
ended
|
GUN112,120,121,122,126,TGN121 L TH | — | |
| 84652-0K250 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2024-01
ended
|
GUN122,125,TGN120 RHD SCB L +1 | — | |
| 84652-0K250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2024-01
ended
|
GUN125 XTR L CBU | — | |
| 84652-0K250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84652-0K250 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 84652-0K280 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-07
ended
|
GUN125 XTR GEN | — | |
| 84652-0K290 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN122,135,TGN121,126 LHD +2 | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-0D010 |
Solenoid, Key Interlock
2022-08 → 2023-07
ended
|
GUN120,125,126,13#,TGN121 THP 6FC (L,S) | — | |
| 85432-0D010 |
Solenoid, Key Interlock
2022-08 → 2024-01
ended
|
GUN135 6FC SA;GUN125,126,136 SCB +2 | — | |
| 89245B — Sensor, Steering | ||||
| 8924B-0D020 note |
Sensor, Steering
2022-08 → 2023-06
ended
|
GUN125 LA;GUN125 RHD 6F +2 | — | |
| 8924B-0D020 |
Sensor, Steering
2022-08 → 2023-07
ended
|
GUN125 P ,120,126 XTR +15 | — | |
| 8924B-0D020 note |
Sensor, Steering
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN112,120,121,122 TH;GUN126,TGN121 +3 | — | |
| 8924B-0D020 |
Sensor, Steering
2022-08 → 2023-10
ended
|
TGN136 BZAG;GUN125,126,135,TGN126 AGTP | — | |
| 8924B-0D020 note |
Sensor, Steering
2022-08 → 2023-11
ended
|
GUN122,135 L SA;GUN125 RHD +2 | — | |
| 8924B-0D020 |
Sensor, Steering
2022-08 → 2024-01
ended
|
GUN125 RHD SA;GUN122,126,13# SA;GUN125 +3 | — | |
| 8924B-0D020 note |
Sensor, Steering
2022-08 → 2024-01
ended
|
TGN120,121,136 SA | — | |
| 8924B-0D020 |
Sensor, Steering
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
