Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States
Supported model
Data version 2023-03

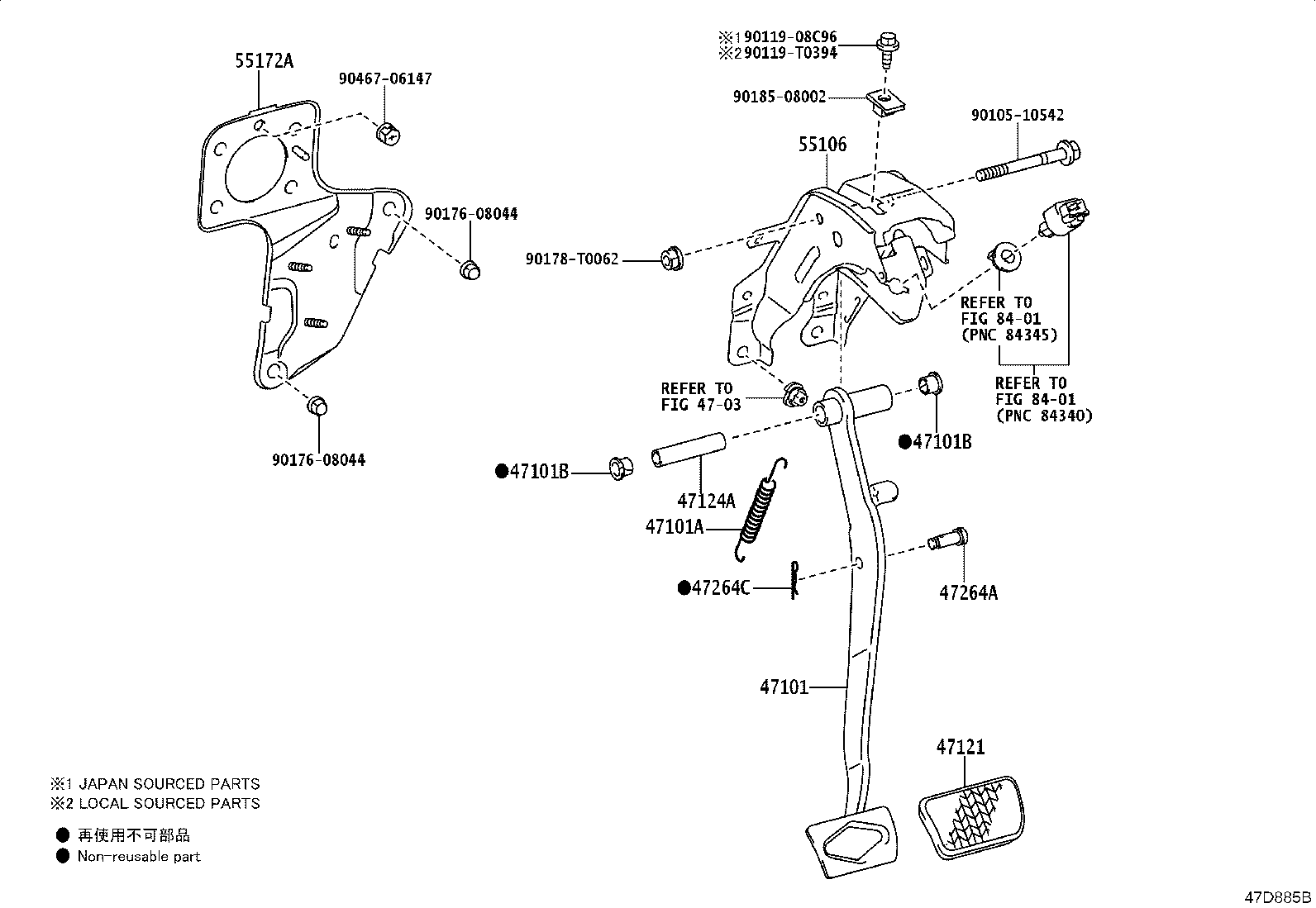

Brake Pedal & Bracket
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47121 | Pad, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47264A | Pin(FOR PUSH ROD) |
| 47264C | Clip(FOR PUSH ROD CLEVIS PIN) |
| 55106 | Support Sub-assy, Brake Pedal |
| 55172A | Base, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
