Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States
Supported model
Data version 2023-03

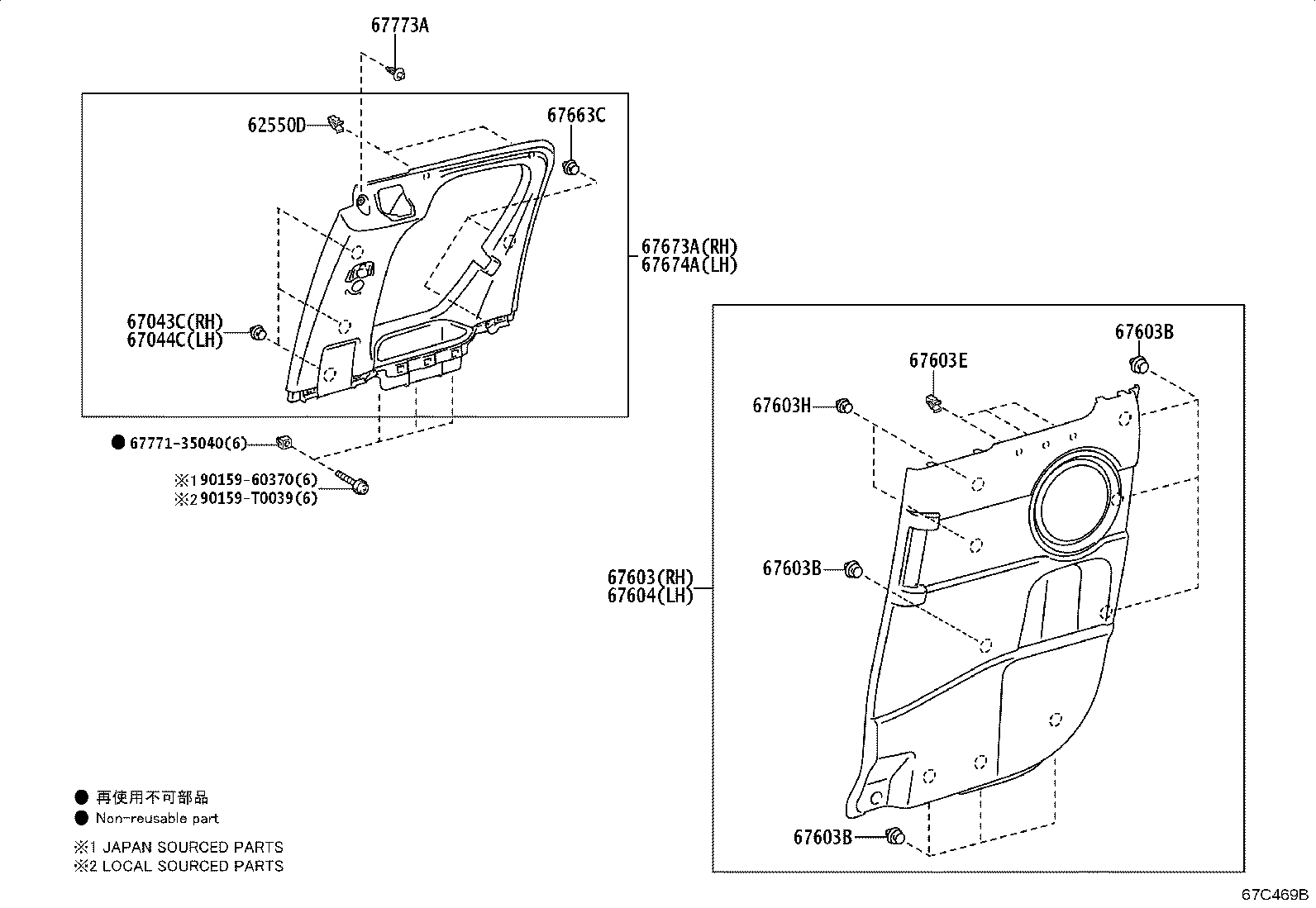

Rear Door Panel & Glass
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62550D | Clip, Rear Window Side Garnish |
| 67003C | Cushion, Rear Door Panel |
| 67003J | Panel Sub-assy, Access Panel, RH |
| 67004J | Panel Sub-assy, Access Panel, LH |
| 67043C | Clip, Rear Door Window Frame, RH |
| 67044C | Clip, Rear Door Window Frame, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603H | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67663C | Clip(FOR DOOR FRAME GARNISH) |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67837C | Seal, Rear Door Dust Proof |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869M | Clip, Door Weatherstrip |
| 67871F | Weatherstrip, Access Panel, RH |
| 67872F | Weatherstrip, Access Panel, LH |
| 67897H | Cushion, Rear Door |
| 68630E | Check Assy, Access Panel, RH |
| 68640E | Check Assy, Access Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
