Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 5 illustrations

Illustrations

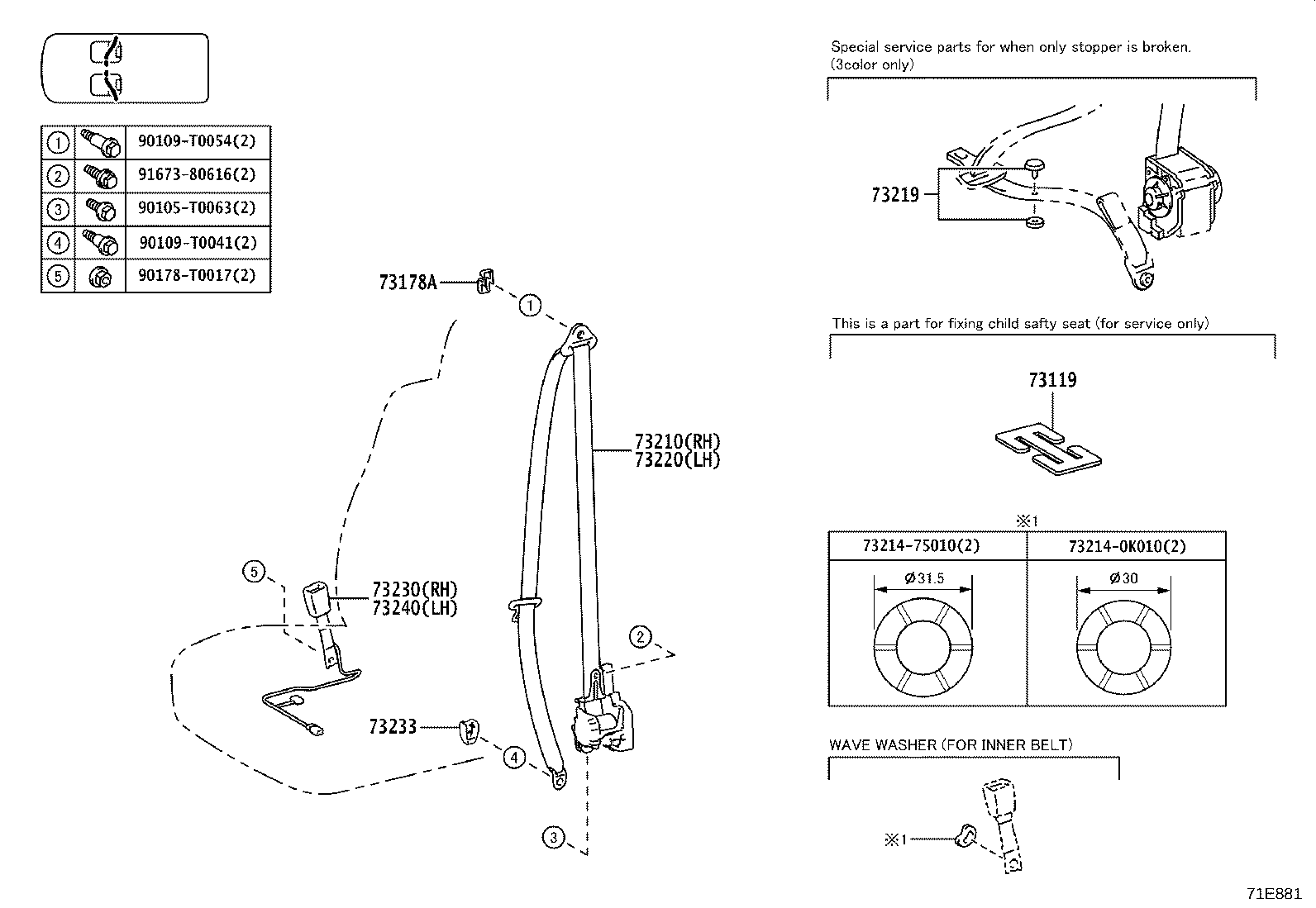

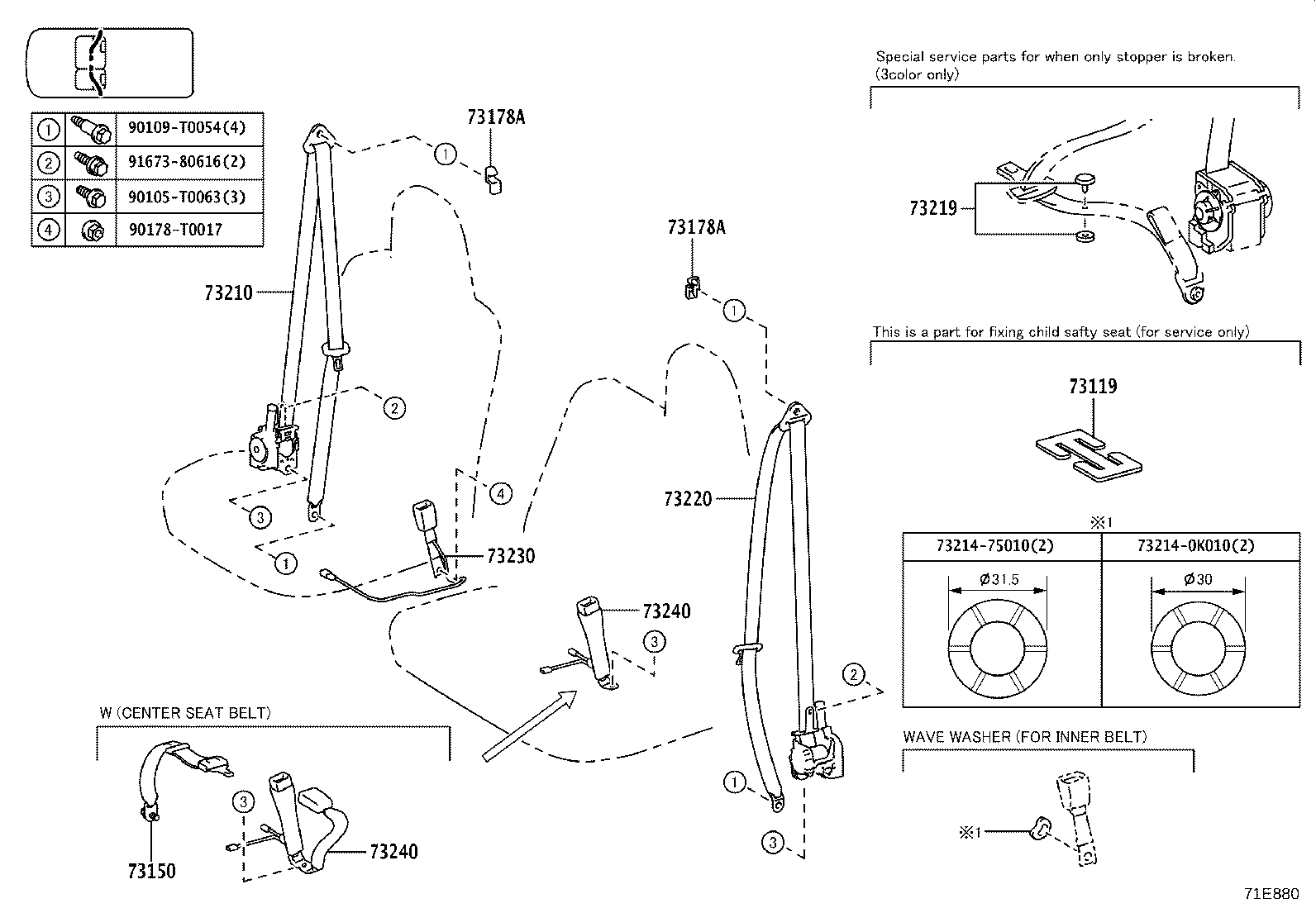

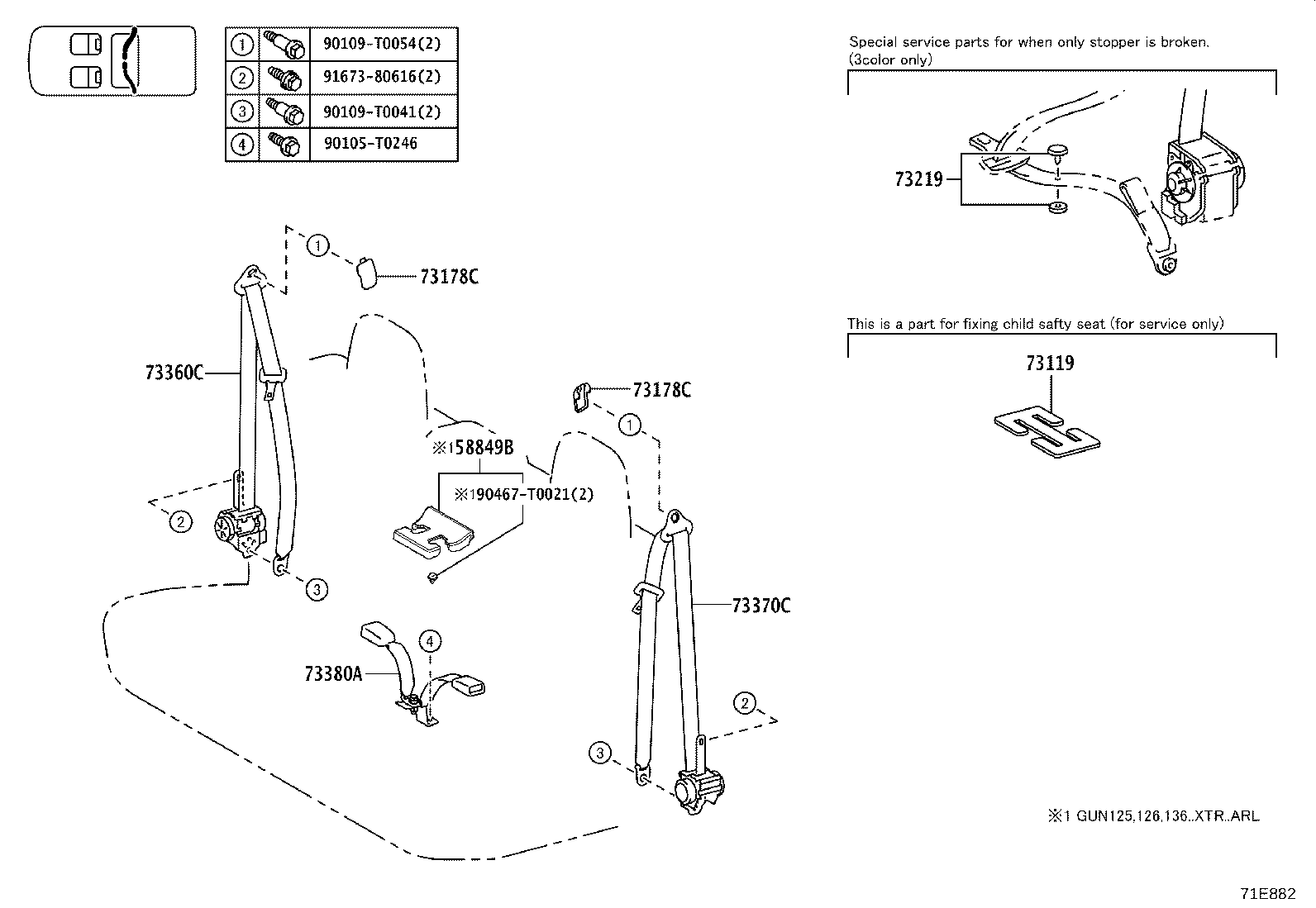

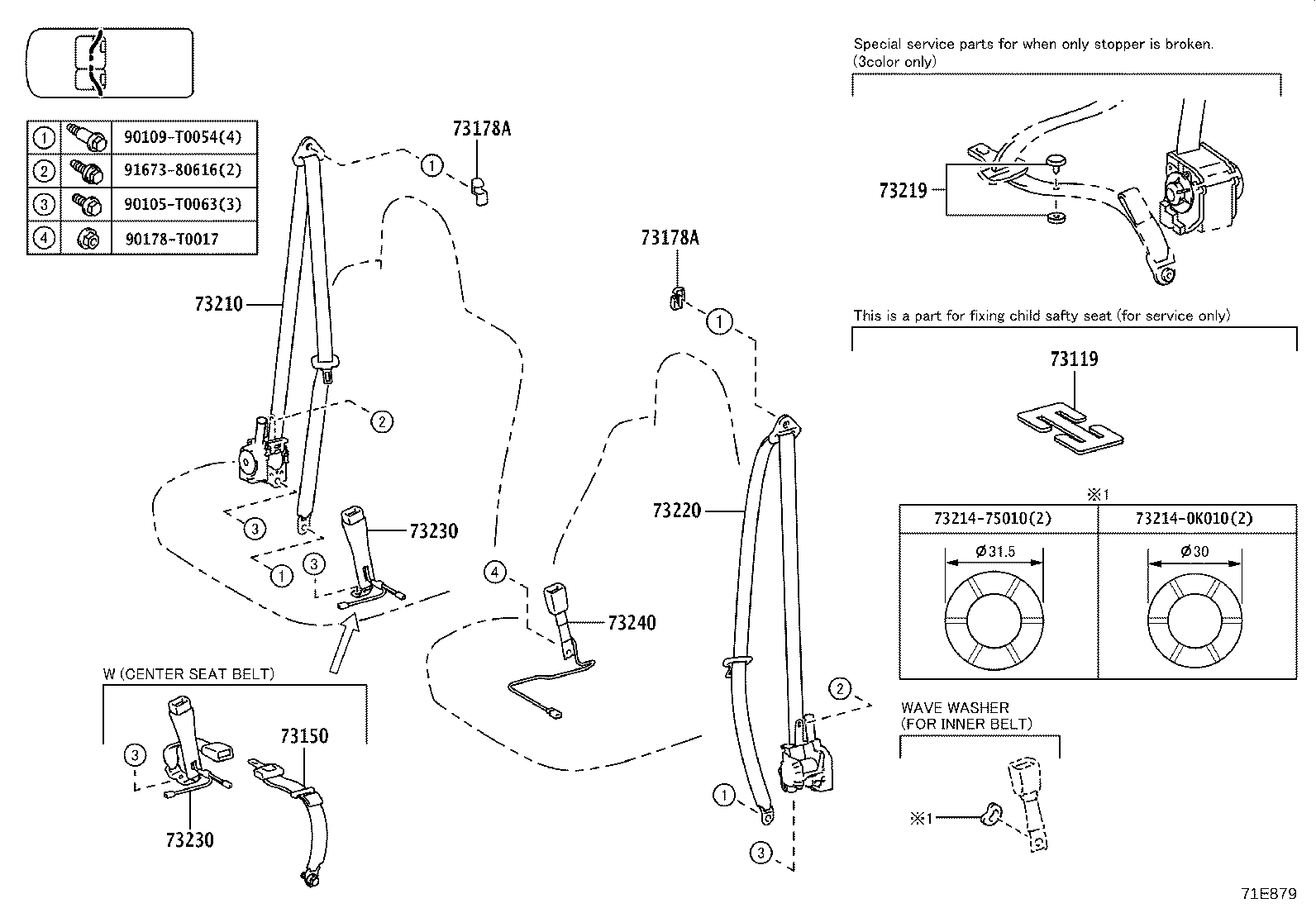

Figure 71E878 71E878 2022-08 → — Figure 71E879 71E879 2022-08 → — Figure 71E880 71E880 2022-08 → — Figure 71E881 71E881 2022-08 → — Figure 71E882 71E882 2022-08 → —

Part groups

PNCDescription
58849B Cover, Console Box Hole, NO.2
73119 Plate, Seat Belt Webbing Clip
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
