Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States
Supported model
Data version 2023-03

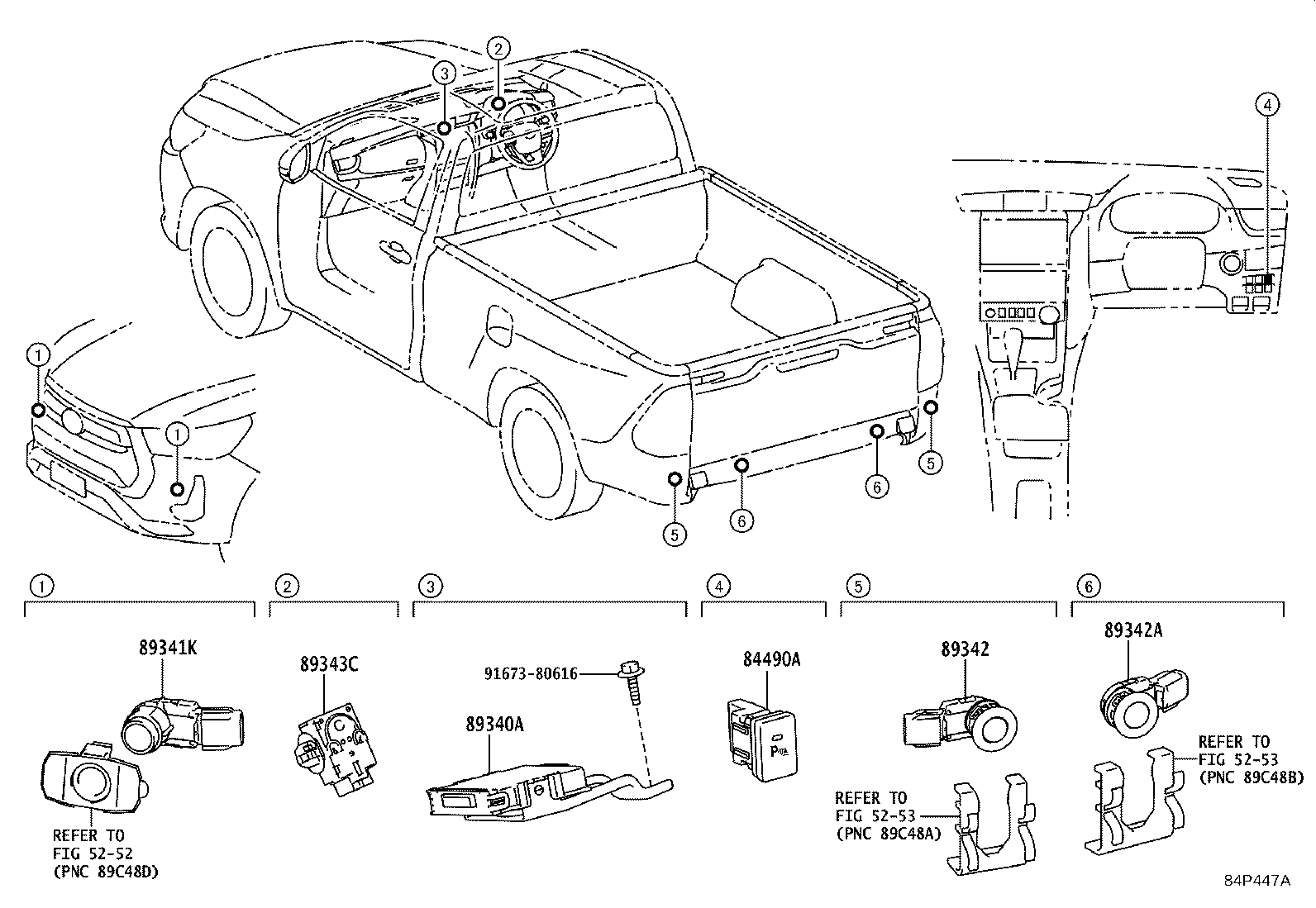

Clearance & Back Sonar
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84490A | Switch Assy, Back Sonar OR Clearance Sonar |
| 89340A | Computer Assy, Clearance Warning |
| 89341K | Sensor, Ultrasonic, Front Corner |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
